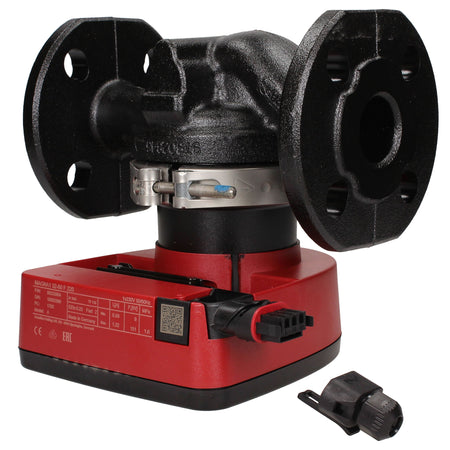

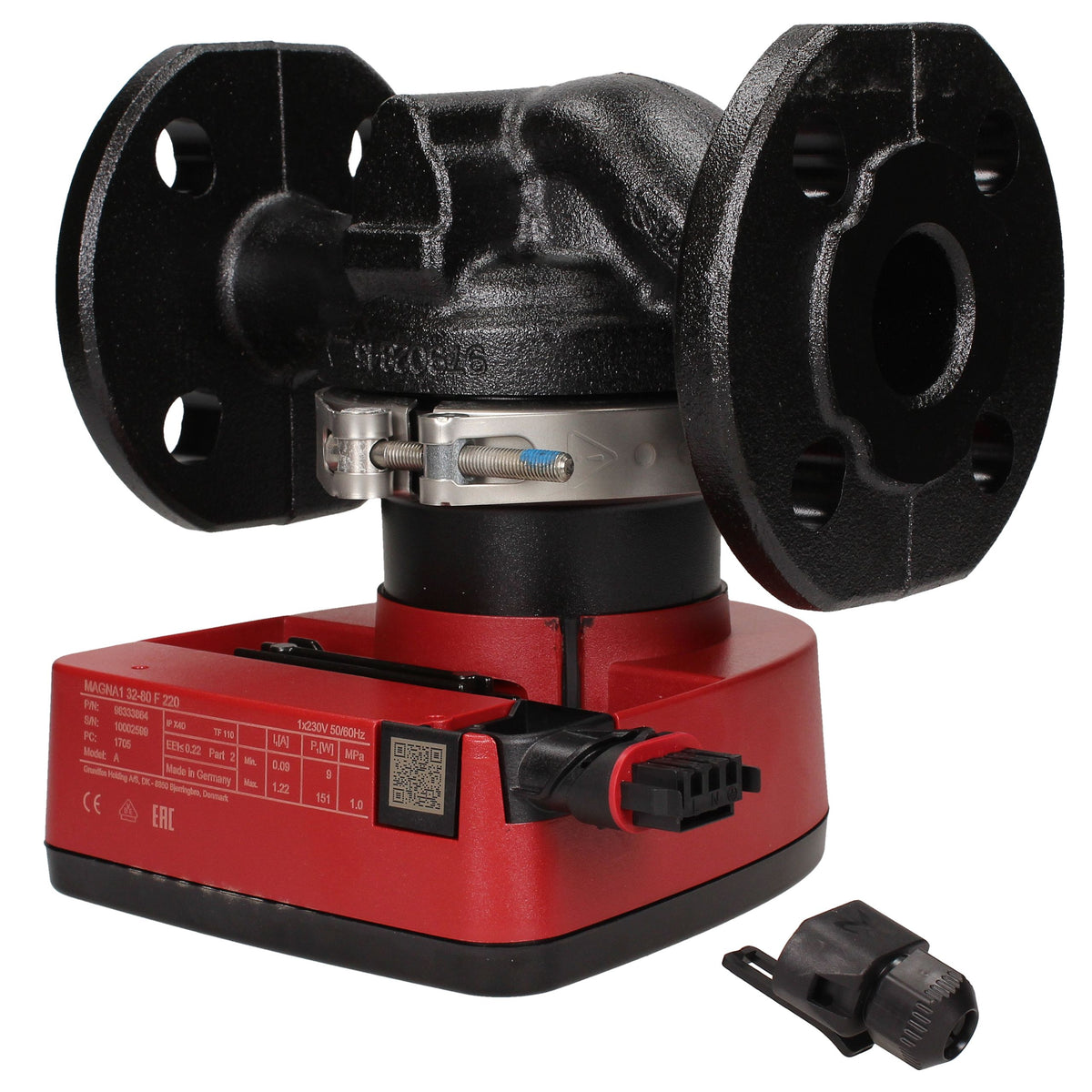

Grundfos MAGNA1 32-100 F Electronic Circulating Pump

Description

The Grundfos MAGNA1 32-100 F is a reliable, electronically controlled circulating pump designed for heating and cooling systems that require dependable performance with variable flow rates. Its integrated motor speed control helps the pump adjust operation to system demand, supporting efficient circulation and consistent comfort.

Suitable for residential, commercial and light industrial installations, this DN32 flanged pump provides a maximum head of 10 metres and a maximum flow rate of up to 5.25 m³/h. The cast iron pump housing, 230 V single phase supply and robust construction make it a practical choice for replacement installations and new heating or air conditioning systems.

Key Features

Efficient circulation

Electronically controlled operation helps match pump performance to changing system requirements.

10m maximum head

Provides suitable pressure performance for a wide range of domestic and commercial circulation systems.

Up to 5.25 m³/h flow

Designed to support effective movement of water through heating and cooling circuits.

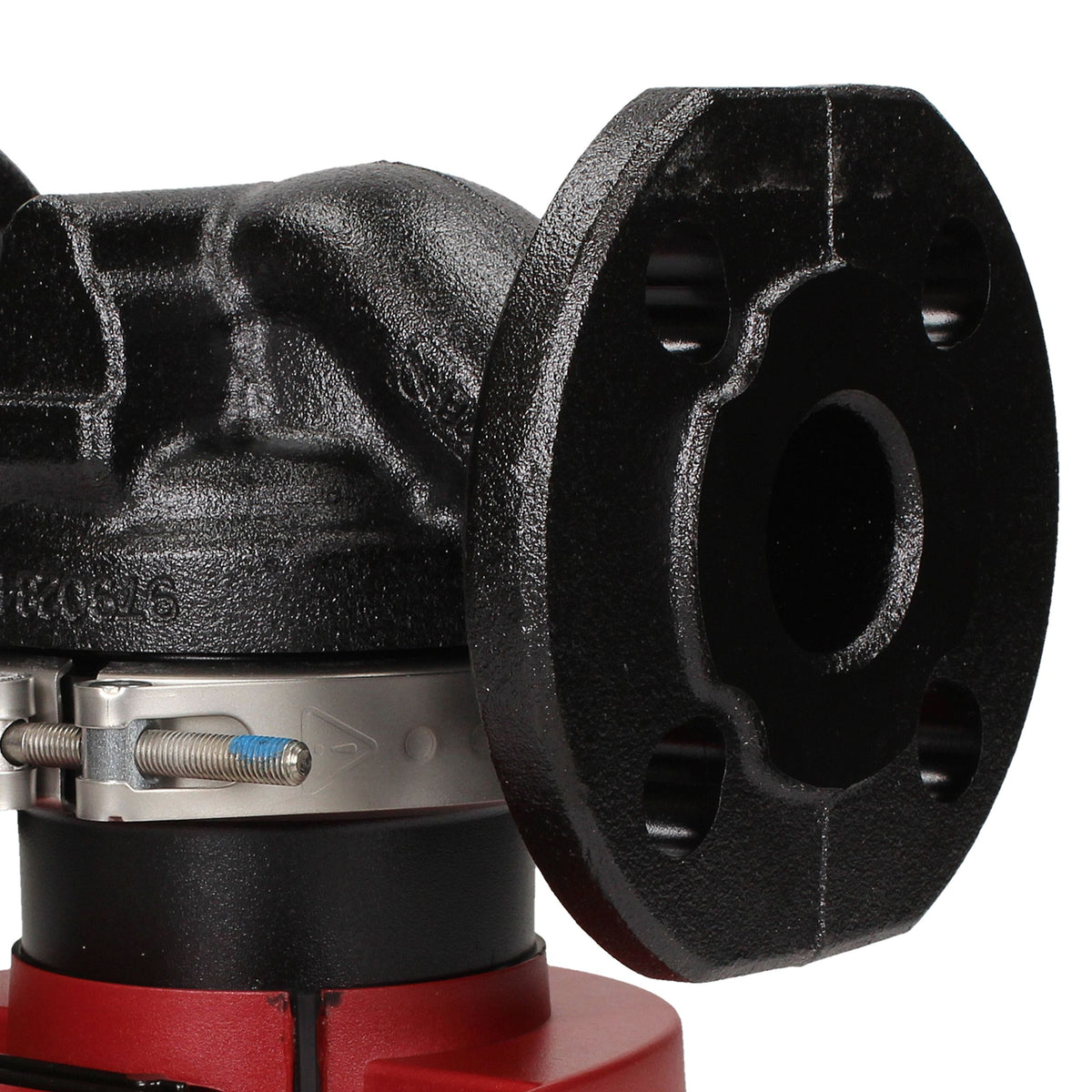

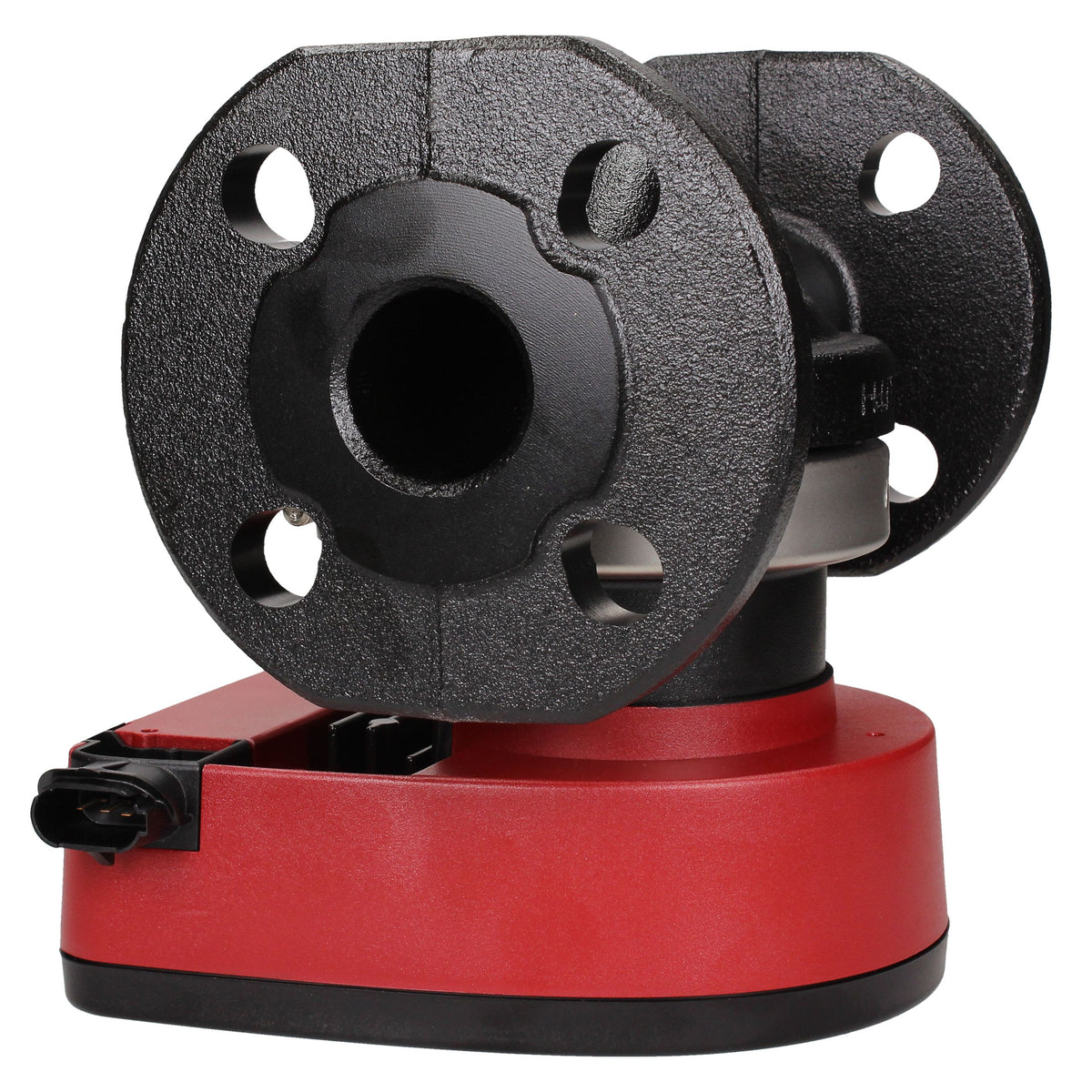

DN32 flanged connections

Suitable for compatible DN32 pipework and flanged system installations.

Wide temperature range

Suitable for pumped liquid temperatures from -10°C to 110°C, subject to system requirements.

Built for professional use

A dependable solution for heating, air conditioning, district heating and cooling applications.

Technical Specifications

Product type	Electronic circulating pump
Product name	Grundfos MAGNA1 32-100 F
Manufacturer product number	97924166
EAN	5710626492404
Maximum head	10 m
Maximum flow rate	5.25 m³/h

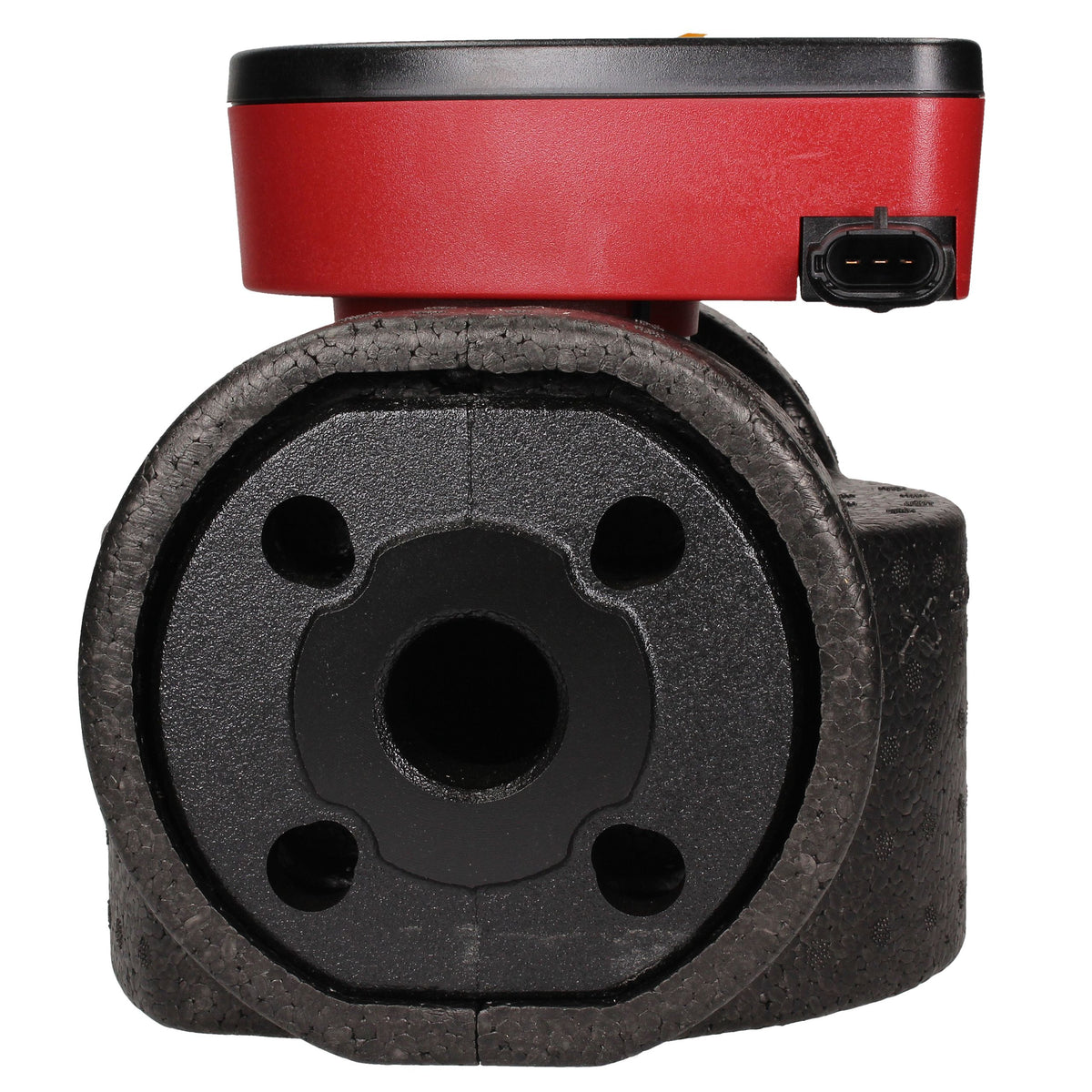

Pipe connection	DN32 flanged
Flange pressure class	PN6/10
Installation length	220 mm

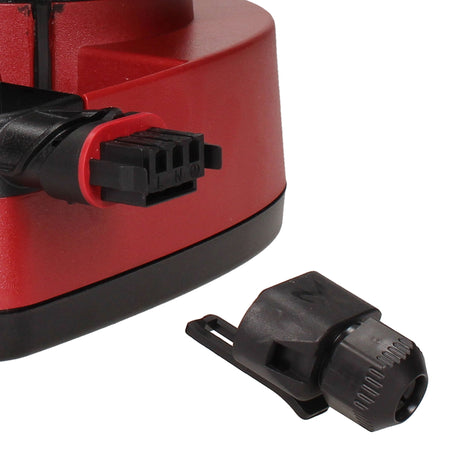

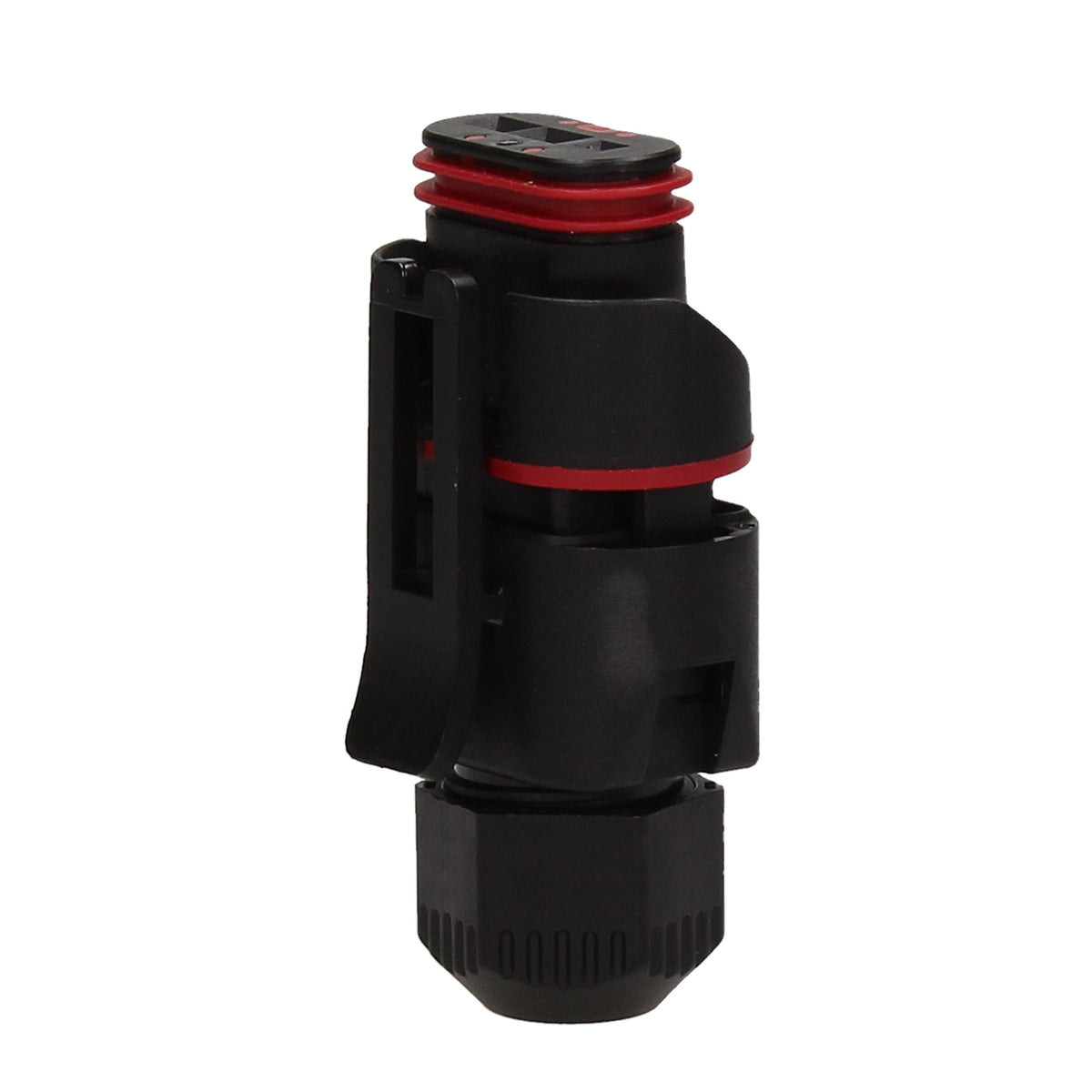

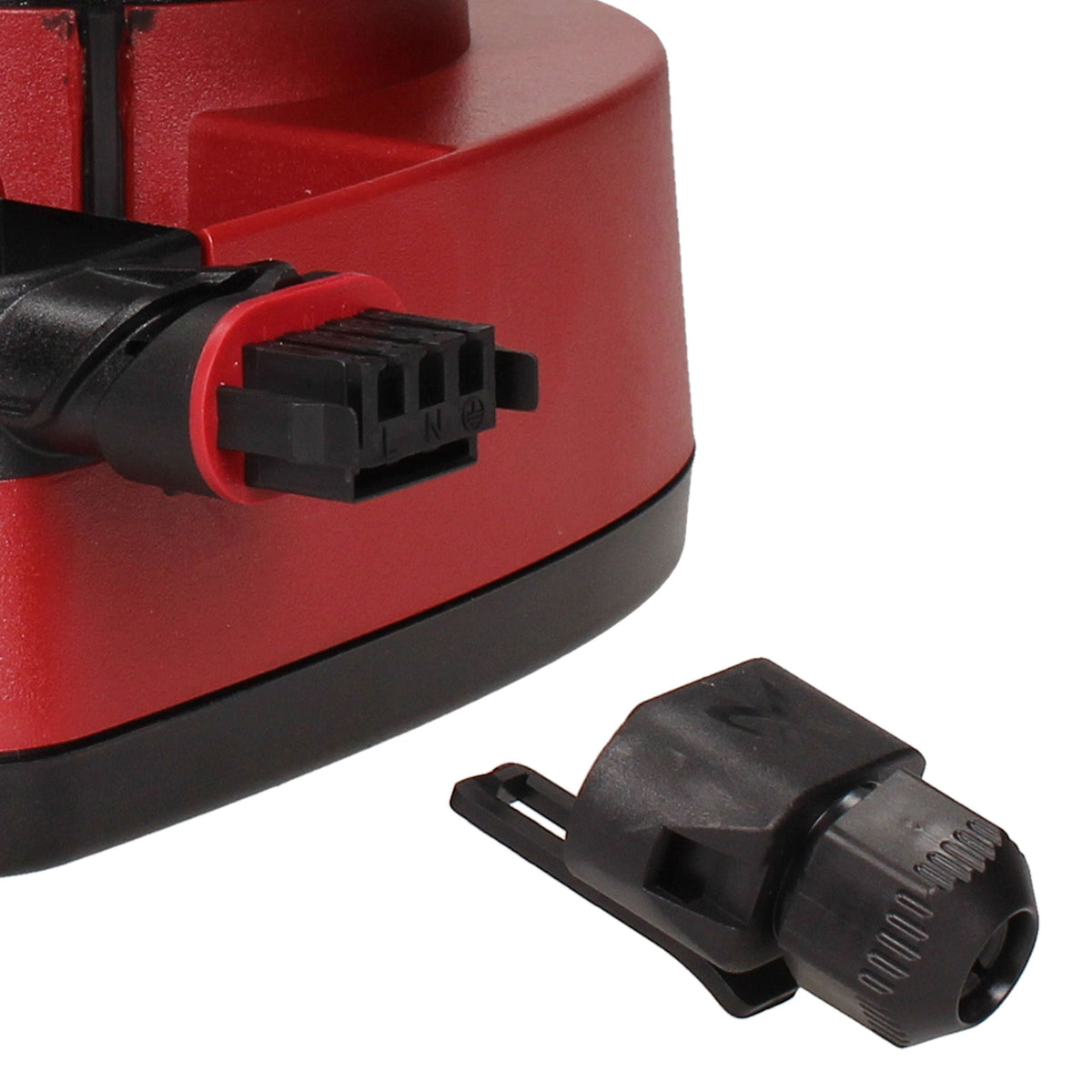

Power supply	1 x 230 V
Supply frequency	50 Hz
Power consumption	8-175 W
Maximum operating pressure	10 bar
Liquid temperature range	-10°C to 110°C
Ambient temperature range	0°C to 40°C
Pump housing	Cast iron
Impeller material	Plastic
Protection rating	IPX4
Insulation class	F
Temperature class	TF110
Approvals	CE, VDE, EAC and CN RoHS

Suitable Applications

Residential heating

Suitable for circulating water through compatible domestic central heating and underfloor heating systems.

Commercial heating

A practical circulation solution for commercial heating installations with variable flow requirements.

Air conditioning systems

Designed for compatible chilled water and air conditioning circulation applications.

Replacement installations

The 220 mm installation length and DN32 flanged format make it suitable for compatible replacement projects.

Always confirm the pump curve, connection dimensions, pressure class, electrical supply and system requirements before installation. Installation and electrical connection should be carried out by a suitably qualified professional.
