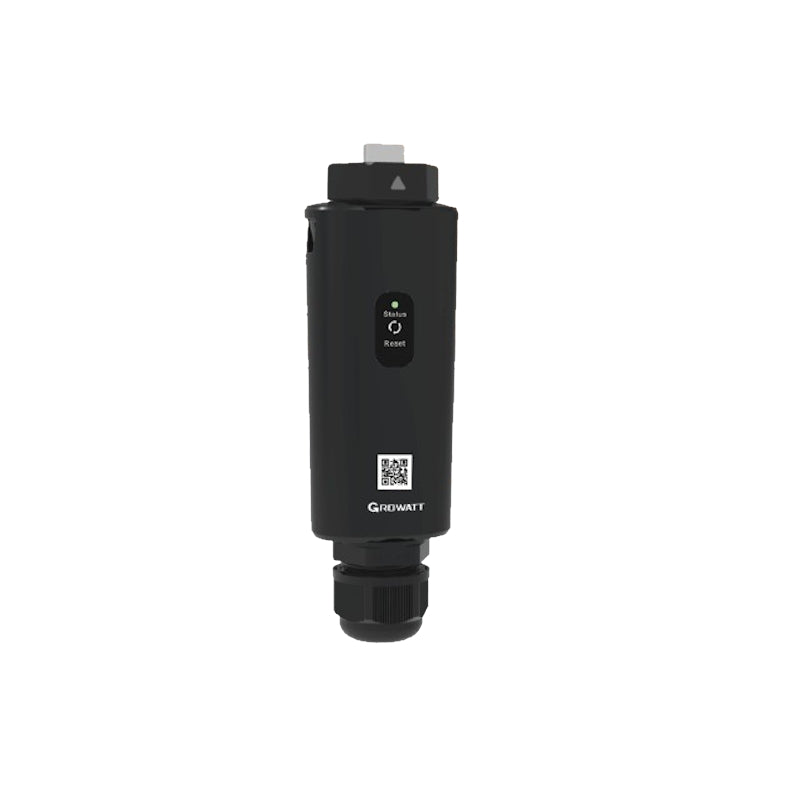

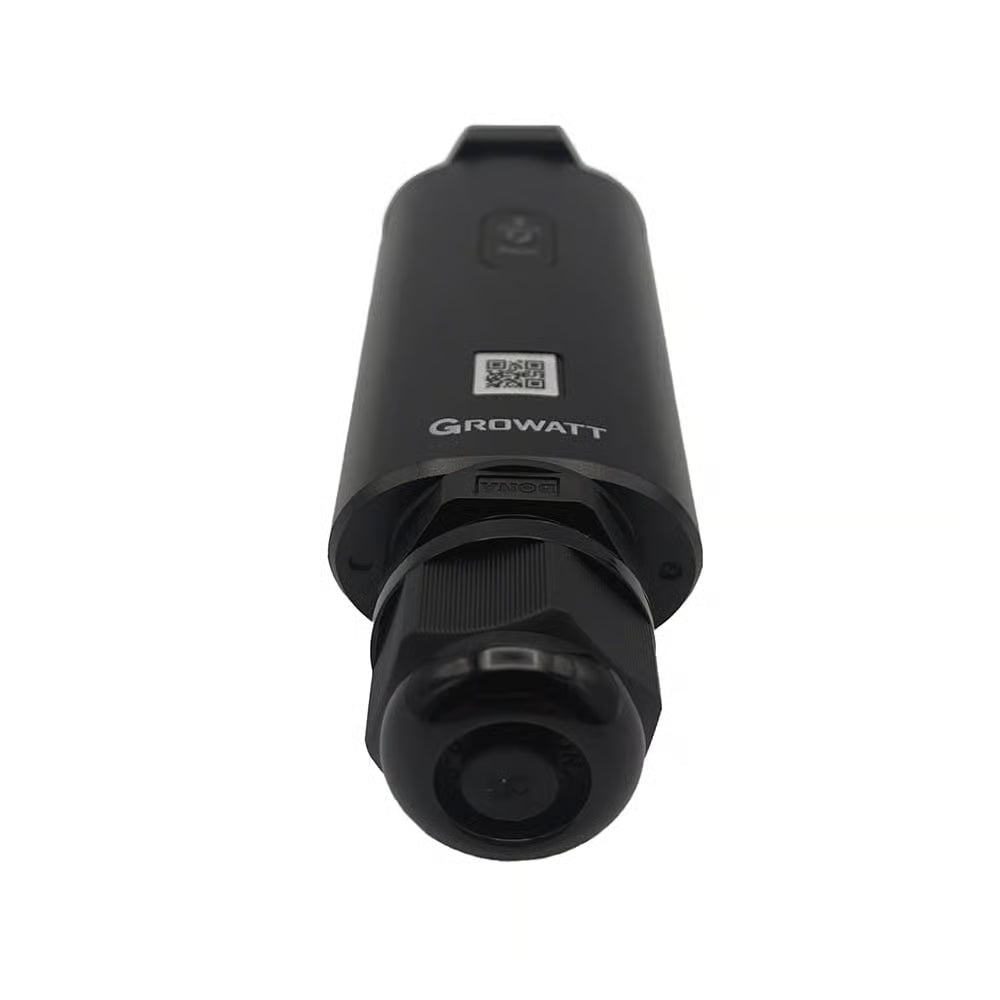

Growatt Shine LAN-X Ethernet Direct Connection
Regular price
£23.00
Inc. VAT
£19.17 Exc. VAT
£19.17 Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
The Growatt Shine LAN-X Ethernet Direct Connection (Part No: GROWATT-SHINE-LAN-X) is a compact Ethernet datalogger designed for Growatt inverters, providing stable wired LAN connectivity for remote monitoring and management of solar PV systems without relying on WiFi.
Product Description
The Shine LAN-X is a plug-and-play monitoring device that enables direct Ethernet connection between Growatt inverters and the ShineServer platform. It supports real-time data upload, fault detection, and performance optimization via the ShinePhone app or web portal. Ideal for environments where WiFi is unstable or unavailable, it ensures reliable data transmission with low power consumption and easy installation via the inverter's RS485 port.
Key Features
- Ethernet connectivity: Stable wired LAN for reliable data transmission.
- Plug-and-play: Simple RS485 connection to Growatt inverters.
- Remote monitoring: Access system data via ShinePhone app or ShineServer.
- LED indicators: Status lights for power, communication, and network.
- Low power consumption: Efficient operation with minimal energy use.
- Compact design: Small form factor for discreet installation.
- Wide compatibility: Suitable for various Growatt inverter models.
Technical Specifications
- Model: Shine LAN-X – Ethernet Datalogger.
- Connectivity: Ethernet LAN (RJ45).
- Interface: RS485 to inverter.
- Power supply: From inverter (5V DC).
- Power consumption: <1 W.
- Data interval: 5 minutes.
- Operating temperature: -20°C to +60°C.
- Protection rating: IP65.
Dimensions & Weights
- Width: 48 mm.
- Depth: 25 mm.
- Height: 128 mm.
- Weight: 0.1 kg.
System & Application Notes
- Ideal for remote monitoring of Growatt inverters in residential and small commercial PV systems where WiFi is unreliable.
- Compatible with Growatt inverters supporting RS485 communication.
- Suitable for wired networks; connect to router via Ethernet cable.
- Installation: Plug into the inverter's RS485 port; configure via app.
- Supports data logging, alerts, and performance analysis on ShineServer.
- Warranty: 2 years standard.
- Type Web Interfaces
- Vendor Growatt
- SKU GROWATT-SHINE-LAN-X
