The Grant Aerona Smart Controller Kit For Smart Pre-Plumbed Cylinders (HP290SMARTPP) is the streamlined control package for installations pairing the Grant Aerona 290 R290 heat pump with a Grant QR2 Smart Pre-Plumbed cylinder. Because the QR2 Smart cylinder arrives factory-fitted with its own wiring centre and touchscreen display, this kit supplies only the additional components needed to complete the system: the Aerona Smart WiFi Hub, the outdoor weather sensor and two water temperature sensors.
QR2
Smart Cylinder Compatible
-40°C
Sensor Working Range Min
Built For QR2 Smart Pre-Plumbed Installations
This kit is intended exclusively for use where a Grant QR2 Smart Pre-Plumbed cylinder is being installed with the Aerona 290. The cylinder is supplied with its own factory-fitted and pre-wired Smart Controller wiring centre and touchscreen display, so these components are not duplicated in this kit.
Not Interchangeable With HP290SMART
Do not confuse this kit with HP290SMART, which is the full kit (including wiring centre and touchscreen) required for standard, non pre-plumbed cylinder installations. Ordering the wrong kit will leave either a duplicate wiring centre or a missing display on site.
Qualified Installation Required
Installation and commissioning must be carried out by a qualified installer in accordance with BS 7671 IET Wiring Regulations and the Grant QR2 Smart Pre-Plumbed Cylinder installation manual (DOC 0217), which is supplied with the cylinder.
Factory-Ready Integration
Because the wiring centre and touchscreen arrive pre-installed in the QR2 Smart Pre-Plumbed cylinder, this kit completes the system without duplicating hardware – reducing both cost and installation time.
Remote App & Web Access
The Aerona Smart WiFi Hub connects the pre-wired controller to Grant's ecoNET24 platform, giving homeowners and installers remote visibility of system settings, performance data and error codes.
Accurate Weather Compensation
The outdoor weather sensor continuously feeds outdoor temperature data to the Smart Controller, allowing it to automatically adjust the heat pump's flow temperature for optimum efficiency.
Circuit-Level Water Monitoring
The two included water temperature sensors provide real-time and historical flow temperature data for connected heating circuits via the ecoNET24 platform.
Full Compatibility With Aerona 290 Range
Works across all five Aerona 290 models (4kW to 15.5kW), giving consistent smart control regardless of the heat pump size specified for the property.
Simple Sensor Installation
The outdoor sensor mounts easily to an external north-facing wall away from direct sun, while water sensors clip and insulate directly onto pipework – no specialist tools required.

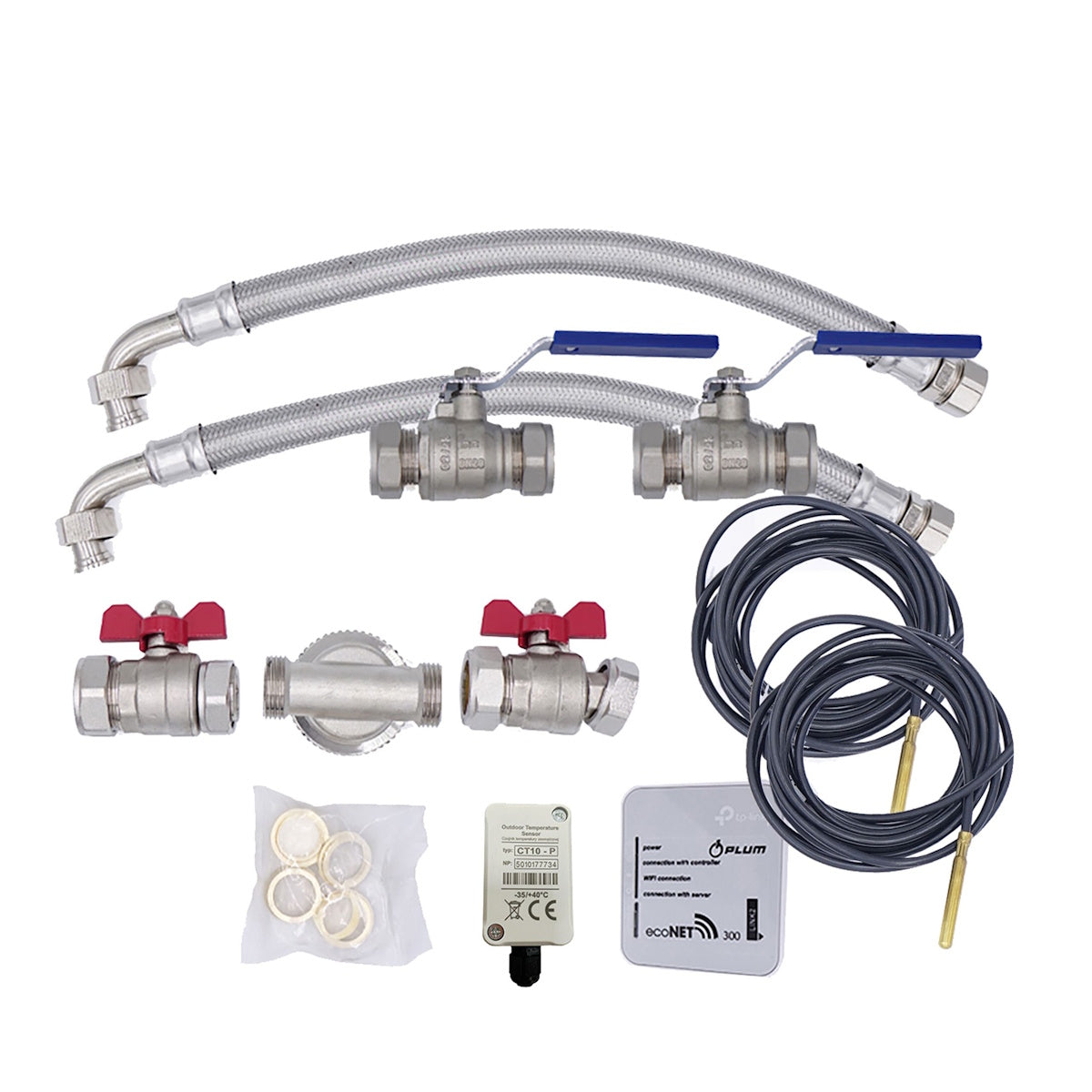

Kit Contents
| Component |
Included Quantity |
| Wi-Fi Hub |
1 |
| Outdoor Weather Sensor |
1 |
| Water Temperature Sensors |
2 |
Technical Specification
| Included Components |
| Wi-Fi Hub |
1 |
| Outdoor Weather Sensor |
1 |
| Water Temperature Sensors |
2 |
| Sensor Technical Data |
| Outdoor Weather Sensor Range |
-40°C to 110°C |
| Measurement Accuracy |
±2°C |
| Outdoor Sensor Cable |
2 x 0.5mm² min., max. 25m length |
| Compatibility |
| Compatible Heat Pumps |
All Grant Aerona 290 (R290) models |
| Cylinder Type |
Grant QR2 Smart Pre-Plumbed cylinder only |
| MPN |
HP290SMARTPP |
Frequently Asked Questions
Why doesn't this kit include a wiring centre or touchscreen display?
Because the Grant QR2 Smart Pre-Plumbed cylinder arrives factory-fitted and pre-wired with its own Smart Controller wiring centre and touchscreen display, so this kit only supplies the additional components needed to complete the system.
Which heat pumps is this kit compatible with?
This kit is compatible with all five Aerona 290 models (4kW, 6.5kW, 9kW, 12kW and 15.5kW) when installed with a Grant QR2 Smart Pre-Plumbed cylinder.
What if I'm using a standard, non pre-plumbed cylinder instead?
For standard cylinders, order the HP290SMART kit, which includes the full wiring centre and touchscreen display.
Does this kit provide remote access?
Yes, the included Aerona Smart WiFi Hub enables remote monitoring and control via the ecoNET24 mobile app or web-based portal.
Is professional installation required?
Yes. Installation must be carried out by a qualified installer in line with the Grant QR2 Smart Pre-Plumbed Cylinder installation manual (DOC 0217) and current UK wiring regulations.
