Glow-worm Compact 28C LPG Combi Boiler, Horizontal Flue and System Filter
Regular price
£970.00
Inc. VAT
£808.33
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£27.95 delivery), Small Items (£3.99/7.99 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us

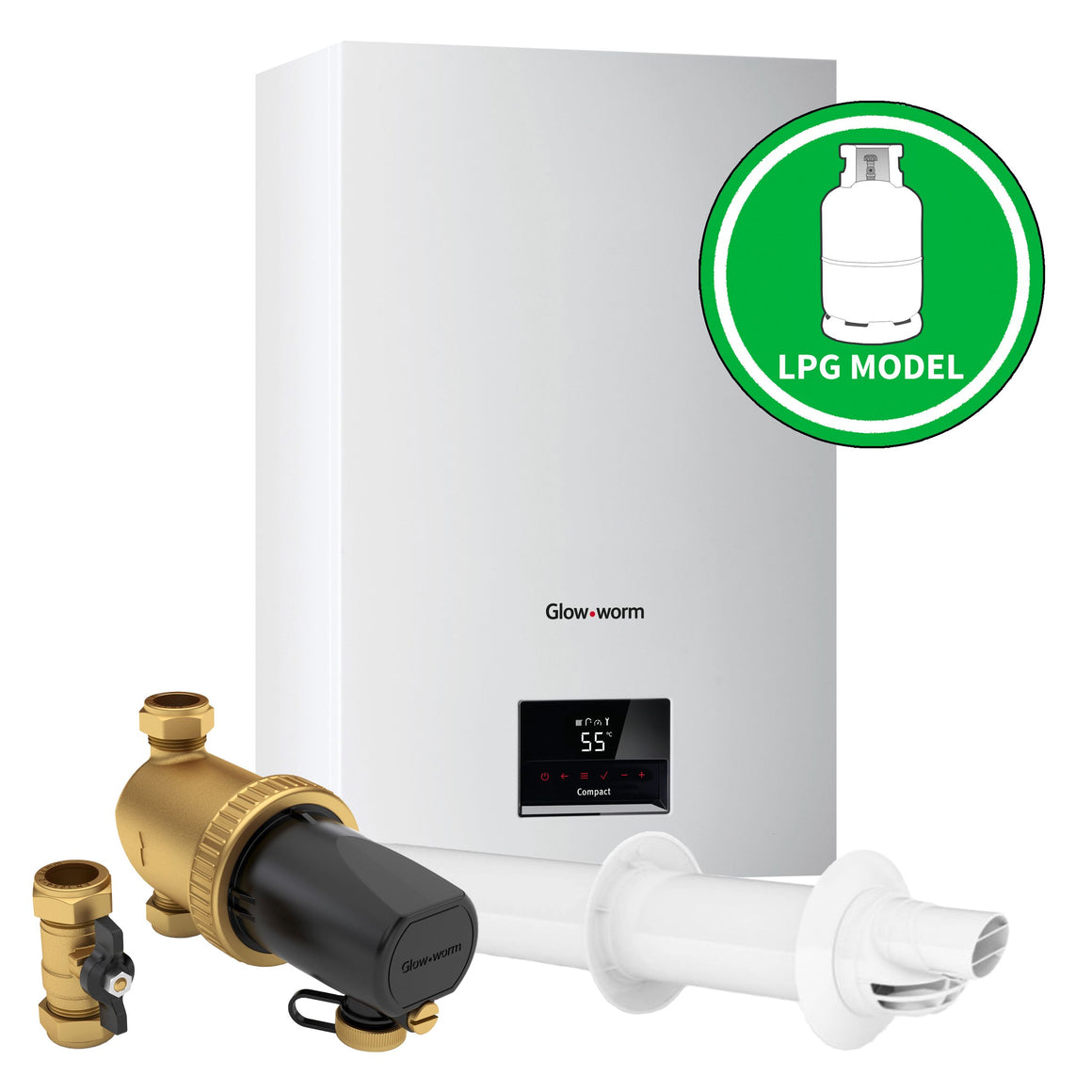

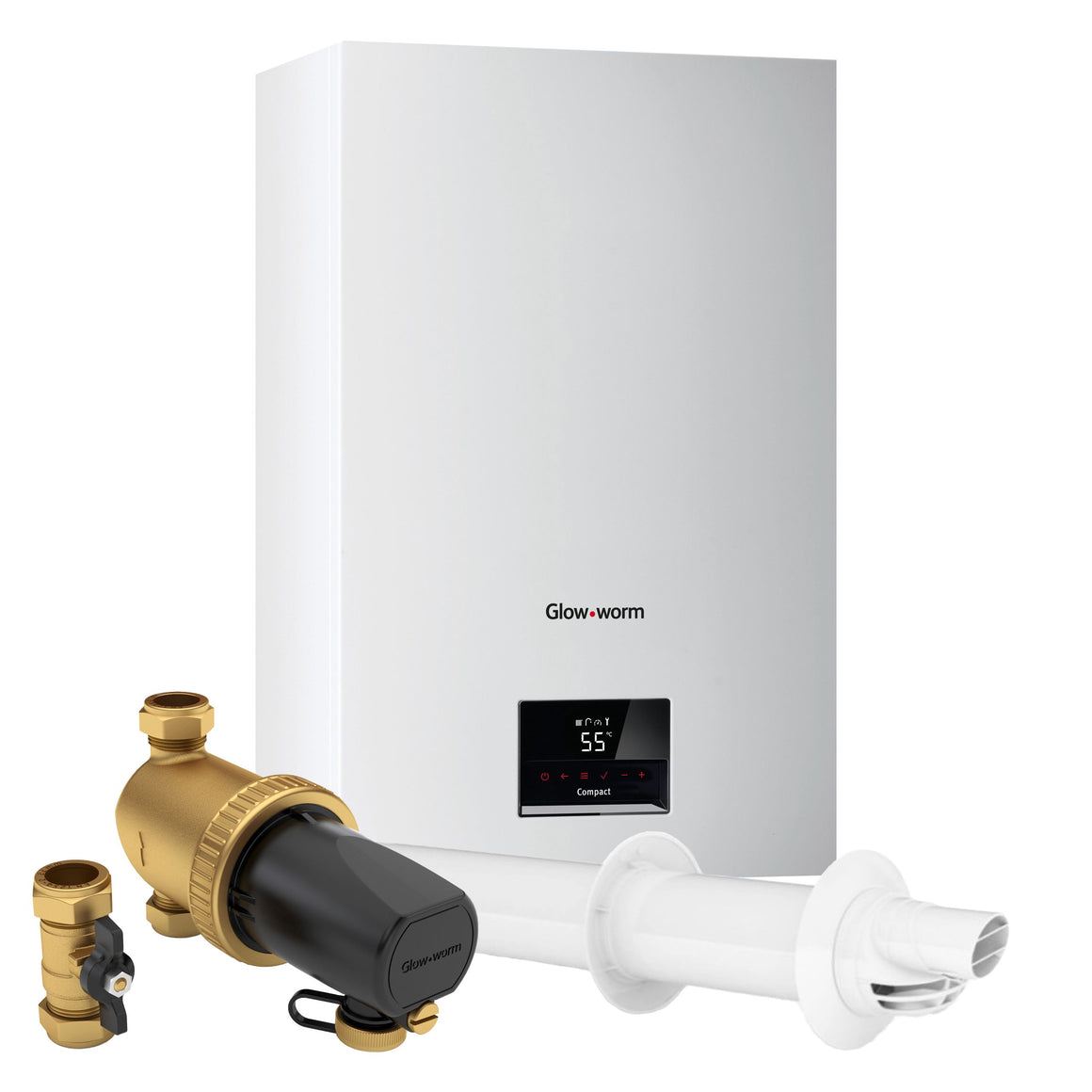

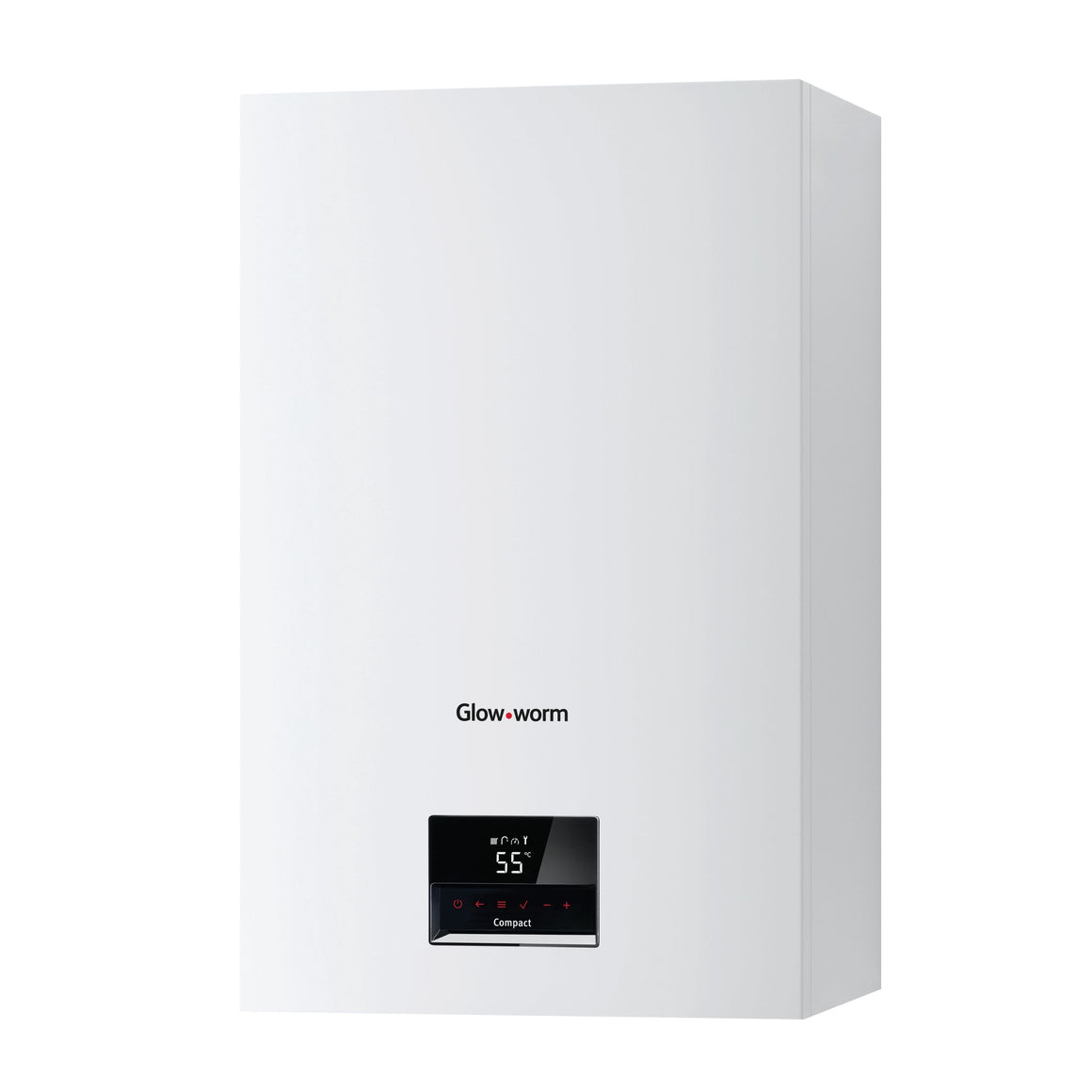

The Glow-worm Compact 28C LPG is a wall-hung, room-sealed condensing combi boiler rated at 28kW, factory-configured for LPG and built in the UK at Glow-worm's Belper factory. This listing bundles the boiler with the Glow-worm Standard Horizontal Flue Kit (10031041), a 60/100mm concentric push-fit kit for standard wall termination, and the Glow-worm Power System Filter (10035820) to protect the heat exchanger from circulating debris. One of the smallest and lightest boilers in the Glow-worm range at just 626 x 400 x 270mm, the Compact 28C suits tight airing cupboard or kitchen cupboard installations without compromising on output.
28kW
Combi Output
92%
ErP Efficiency
7.7 – 25.9 kW
CH Output Range
NOx 6
NOx Class
5 yrs
Parts & Labour Guarantee
26.5 kg
Net Weight
Gas Safe Registration & LPG Installation Requirements
This is an LPG-specific boiler (gas category II2H3P) and must only be installed, commissioned and serviced by a Gas Safe registered engineer holding the relevant LPG qualification. It must not be connected to a natural gas supply. The flue must be positioned in accordance with the clearances in the manufacturer's installation instructions, and a Benchmark commissioning checklist must be completed and left with the end user.
Bundle Contents & Compatibility
This listing supplies three separate boxed items designed to be installed together: the Compact 28C LPG boiler (article 0010040108), the Glow-worm Standard Horizontal Flue Kit (0010031041), and the Power System Filter (10035820). The horizontal kit is suitable for standard 60/100mm through-wall termination only.
Why This Bundle
Purpose-Built for LPG
Factory-configured for liquefied petroleum gas (G31) rather than field-converted, making this the correct specification for off-gas-grid properties and static caravan installations running on LPG.
Compact, Lightweight Design
At 26.5 kg net and 626 x 400 x 270mm, the Compact 28C is one of the smallest and lightest boilers Glow-worm produces, easing installation in restricted spaces.
High-Efficiency Modulating Pump
A modulating pump adapts its output to actual heating and hot water demand rather than running at a fixed speed, lowering electricity consumption and running costs.
Quiet Heat Exchanger
Built around a heat exchanger engineered for low operating noise, keeping the boiler unobtrusive in kitchen or hallway cupboard installations close to living space.
UK-Built Quality
Manufactured at Glow-worm's award-winning factory in Belper, Derbyshire, alongside the wider Vaillant Group boiler range with which it shares core componentry.

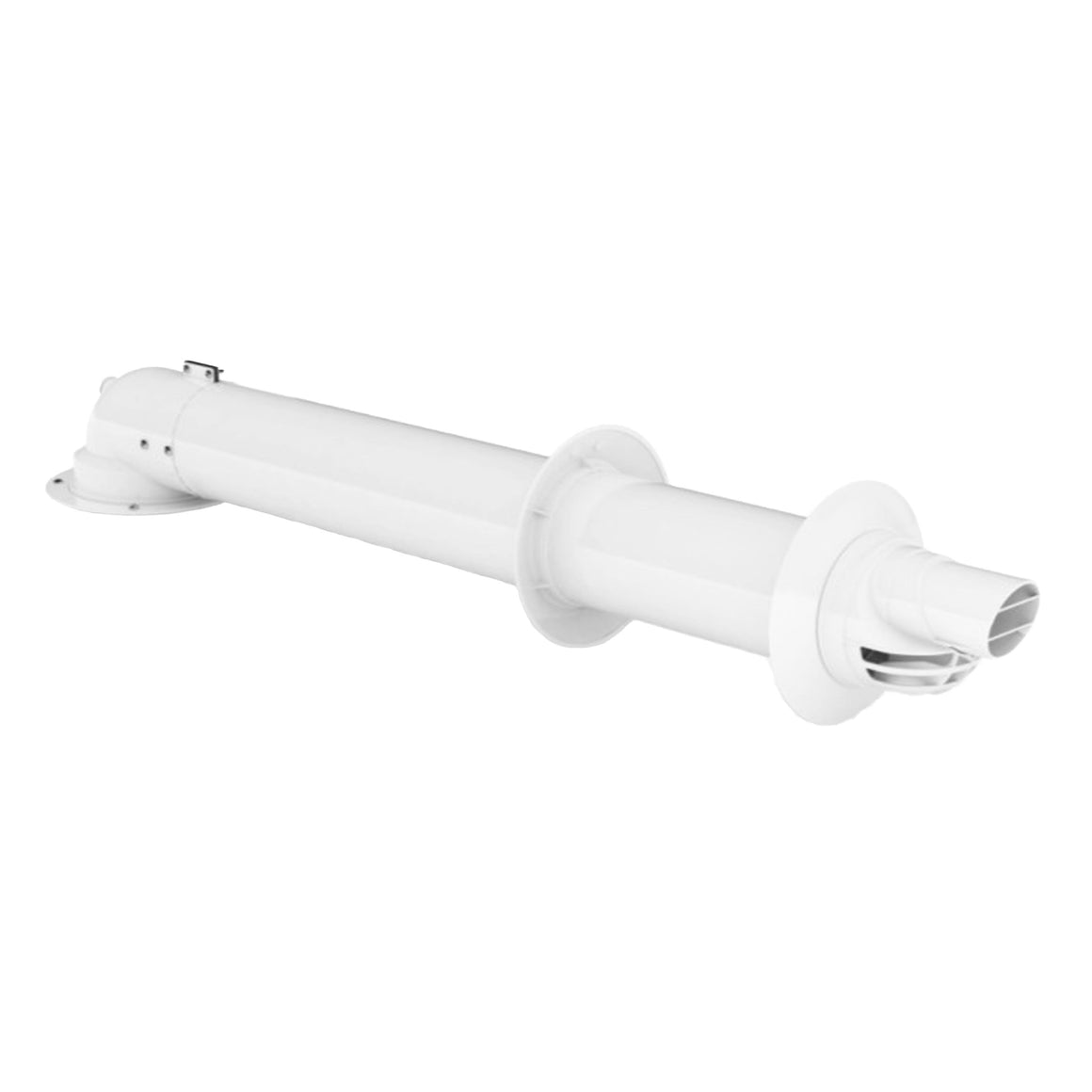

Horizontal Flue Included
This bundle supplies the correct Glow-worm-approved flue components for a through-wall termination, removing the guesswork of matching third-party flue accessories to the boiler.
Technical Specification
| General | |
| Boiler article number | 0010040108 |
| Flue kit article number(s) | 10031041 |
| System filter article number | 10035820 |
| Boiler type | Wall-hung, room-sealed, fan-assisted condensing combi |
| Gas category | II2H3P (LPG, G31) — factory set |
| Dimensions (H x W x D) | 626 x 400 x 270 mm |
| Guarantee | 5 years parts and labour |
| Heating Performance | |
| Nominal heat output range (50/30°C, condensing) | 7.7 – 25.9 kW |
| Nominal heat output range (75/55°C) | 6.9 – 23.9 kW |
| Maximum flow temperature | 75°C |
| Flow temperature adjustment range | 30 – 75°C |
| Maximum operating pressure (heating) | 3.0 bar |
| Domestic Hot Water | |
| Specific flow rate D (ΔT = 30K) | 13.4 l/min |
| Specific flow rate D (ΔT = 35K) | 11.5 l/min |
| Minimum water flow | 1.7 l/min |
| DHW output temperature range | 35 – 55°C |
| Recommended supply pressure | 3.0 bar |
| Performance & Emissions | |
| ErP efficiency | 92% |
| NOx class | 6 |
| Net weight | 26.5 kg |
| IP rating | IPX5 |
| Flue | |
| Permitted installation types | C13, C33, C43, C53 |
| Max. horizontal flue length (60/100mm, incl. 1 elbow) | 9 m |
| Max. vertical flue length (60/100mm, incl. 1 elbow) | 10 m |
