GivEnergy LoRa 223 Wireless RS485 Long Range Transceiver - LCD Display, 8km Range for Inverters and Meters

The GivEnergy LoRa 223 Wireless RS485 Long Range Transceiver is a robust, industrial-grade wireless communication module designed to extend RS485 Modbus RTU data transmission over long distances (up to 8km line-of-sight) in GivEnergy solar and battery storage systems, eliminating the need for complex cabling.

Product Description

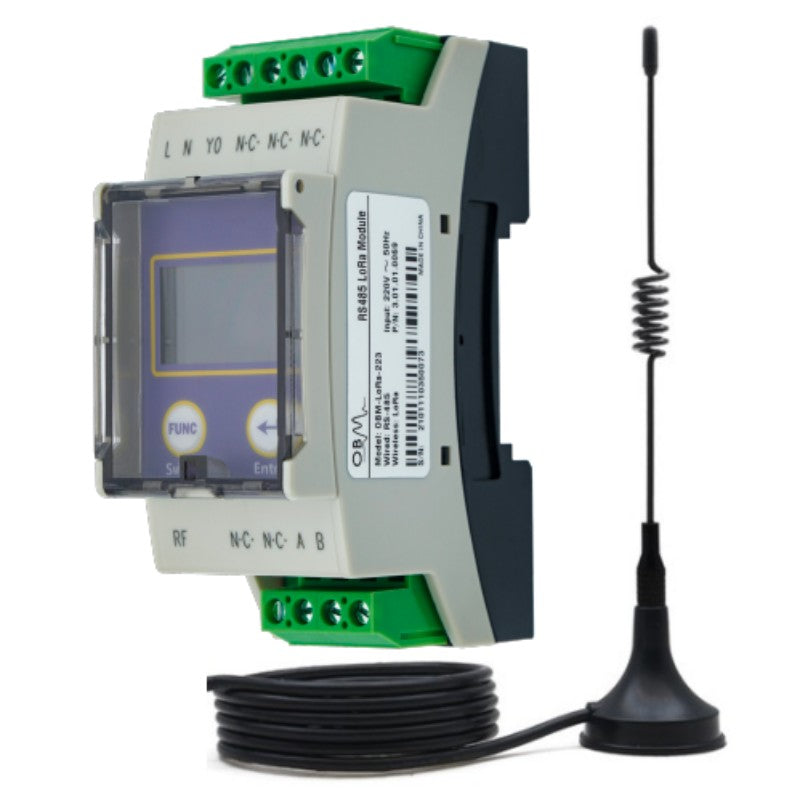

The GivEnergy LoRa 223 (GIV-LORA-LCD) is a pair of pre-paired transceiver units (transmitter and receiver) that convert wired RS485 signals to LoRa wireless protocol. It is specifically engineered for GivEnergy inverters, batteries, and meters, enabling reliable data communication in installations where running long cables is impractical or impossible. The built-in LCD display allows on-site configuration of radio frequency, serial port settings, and signal strength monitoring. Ideal for remote meter reading, CT clamp extension, and multi-device networks, it supports Modbus RTU and integrates seamlessly with the GivEnergy ecosystem for real-time monitoring and control.

Key Features

• Long-range LoRa technology: Up to 8km barrier-free transmission for RS485 data.
• LCD configuration screen: Easy on-site setup of frequency, baud rate, and signal diagnostics.
• Modbus RTU compatible: Seamless integration with GivEnergy inverters and meters.
• Wide voltage range: 85–420V AC input for flexible power supply.
• Low power consumption: Only 0.5W standby for energy-efficient operation.
• Multiple protocols: Supports LoRa Radio, LoRa PMAC, and LoRaWAN modes.
• Pre-paired pair: Transmitter and receiver ready to use out of the box.

Technical Specifications

• Model: GIV-LORA-LCD – LoRa 223 Wireless Transceiver.
• Power supply: 85–420V AC, 50/60 Hz.
• Static power consumption: 0.5W @ 220V AC.
• Wired port: RS-485 / Modbus RTU.
• Wireless standard: LoRa (Radio / PMAC / WAN).
• Frequency range: 428–438 MHz.
• Transmit power: +19 dBm max.
• Receive sensitivity: -132 dBm (SF10).
• Baud rates: 1200, 2400, 4800, 9600 bps.
• Operating temperature: -25°C to +70°C.
• Dimensions: 90.5 x 35.6 x 60.7 mm (L x W x H).

Dimensions & Weights

• Length: 90.5 mm.
• Width: 35.6 mm.
• Height: 60.7 mm.
• Weight: 0.26 kg (per unit).

System & Application Notes

• Ideal for GivEnergy inverters, batteries, and CT clamps where cabling distances exceed practical limits.
• Supports multiple devices and transceivers in one network.

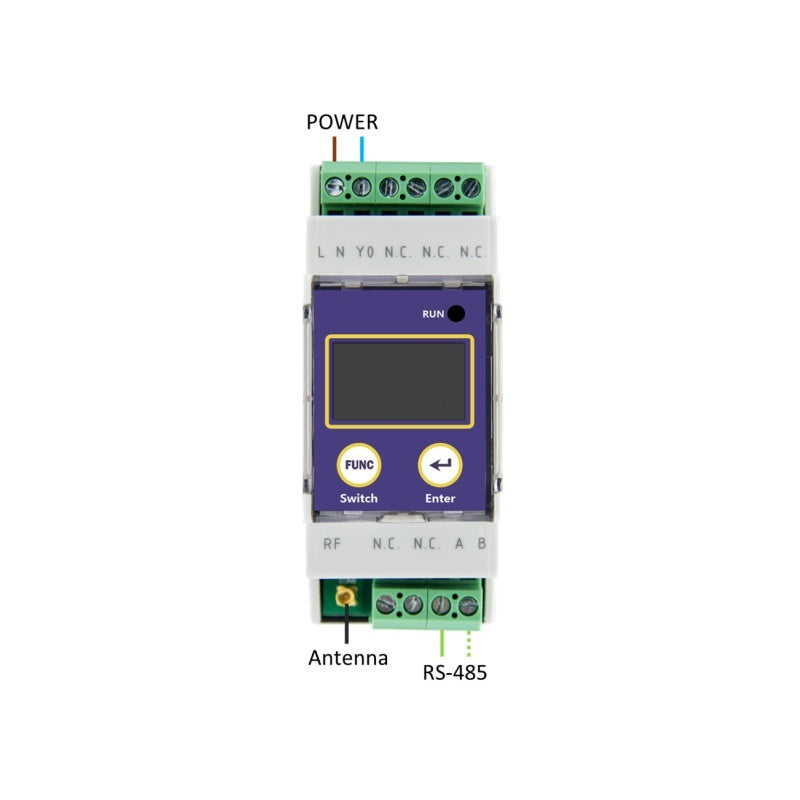

• Installation: DIN-rail or surface mount; connect RS485 to inverter/meter; power via 230V; configure via LCD.
• Pre-configured for GivEnergy systems; set to "LoRa Radio" mode for compatibility.
• Professional installation recommended; not suitable for G100 systems.
