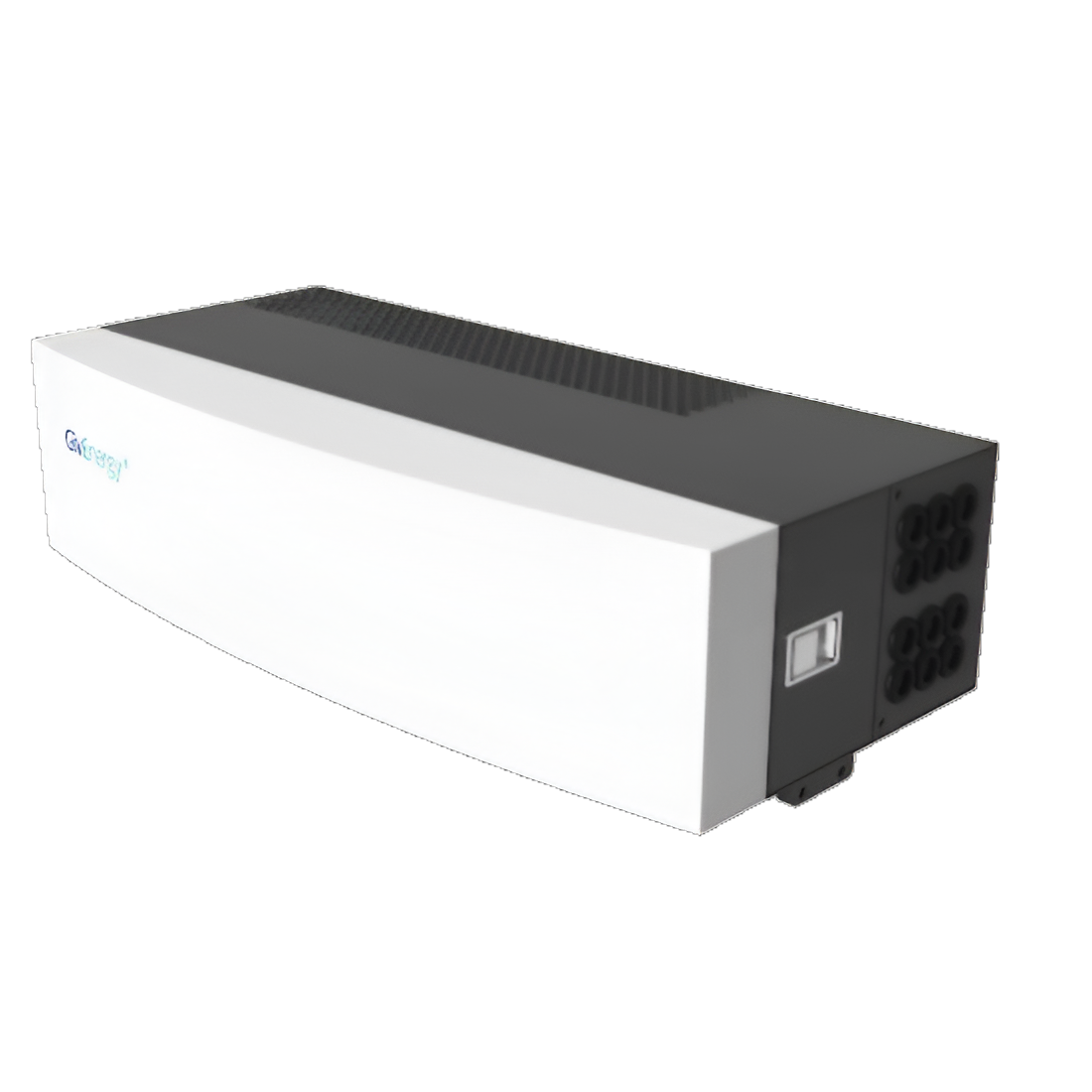

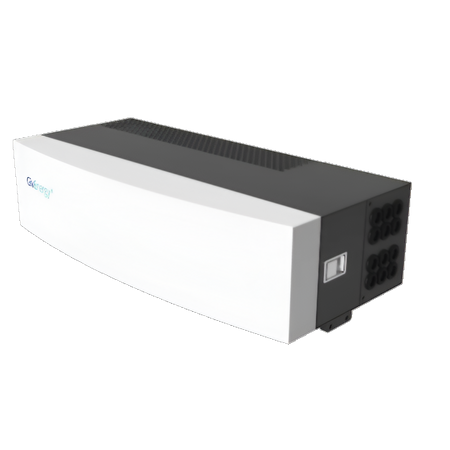

GivEnergy All In One 2 MPPT Box
The GivEnergy All In One 2 MPPT Box transforms your AIO2 system into a high-performance hybrid solar solution with 6 independent MPPT trackers delivering up to 20kW PV input power. This optional add-on provides maximum flexibility for complex rooftop configurations, east-west arrays, and multiple panel orientations. Seamless integration with AIO2 inverter ensures optimal solar energy harvest throughout the day.
Why Buy the GivEnergy AIO2 MPPT Box?
- 6 independent MPPT trackers optimise each string individually for maximum yield
- 20kW total PV input capacity supports large-scale residential solar installations
- Ultra-wide 80-550V MPPT range accommodates diverse panel configurations
- 4500W per MPPT tracker with 17A/23A string current capability
- IP65 weatherproof rating suitable for outdoor rooftop mounting
- Plug-and-play integration with AIO2 systems via dedicated communication ports
- 99.9% MPPT efficiency maximises solar energy conversion
- Compact 600x145x280mm design simplifies installation and cable management
Suitable For
- Complex solar PV arrays with multiple roof orientations and shading patterns
- High-capacity residential installations requiring maximum PV flexibility
- AIO2 hybrid system owners wanting integrated DC solar optimisation
- East-west facing panel configurations needing independent string tracking
- Large rooftop systems with diverse panel technologies and string lengths
Technical Specifications
| Specification | Details |
|---|---|
| Model | GIV-MPP-20.0-G1 |
| Total PV Input Power | 20 kW |
| Number of MPPTs | 6 independent trackers |
| Power per MPPT | 4500 W |
| MPPT Voltage Range | 80-550 V |
| Start-up Voltage | 60 V |
| Max Input Current | 6 x 17A / 6 x 23A |
| MPPT Efficiency | 99.9% |
| Max Input Voltage | 600 V |
| Dimensions (W x H x D) | 600 x 145 x 280 mm |
| Weight | 18 kg |
| IP Rating | IP65 (outdoor rated) |
| Operating Temperature | -20°C to +55°C |
| Communication | RS485 to AIO2 inverter |
| Compatibility | All In One 2 hybrid systems |
