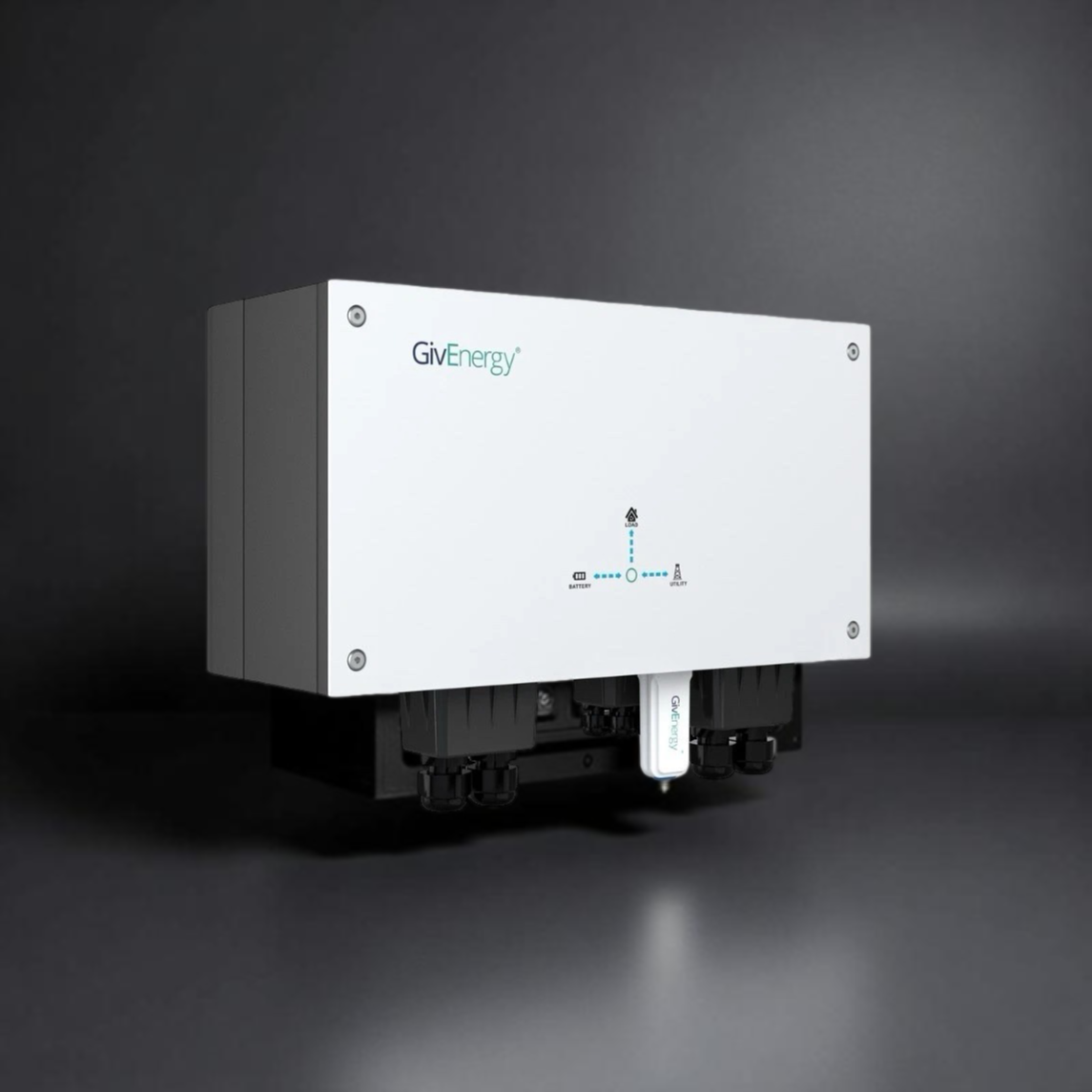

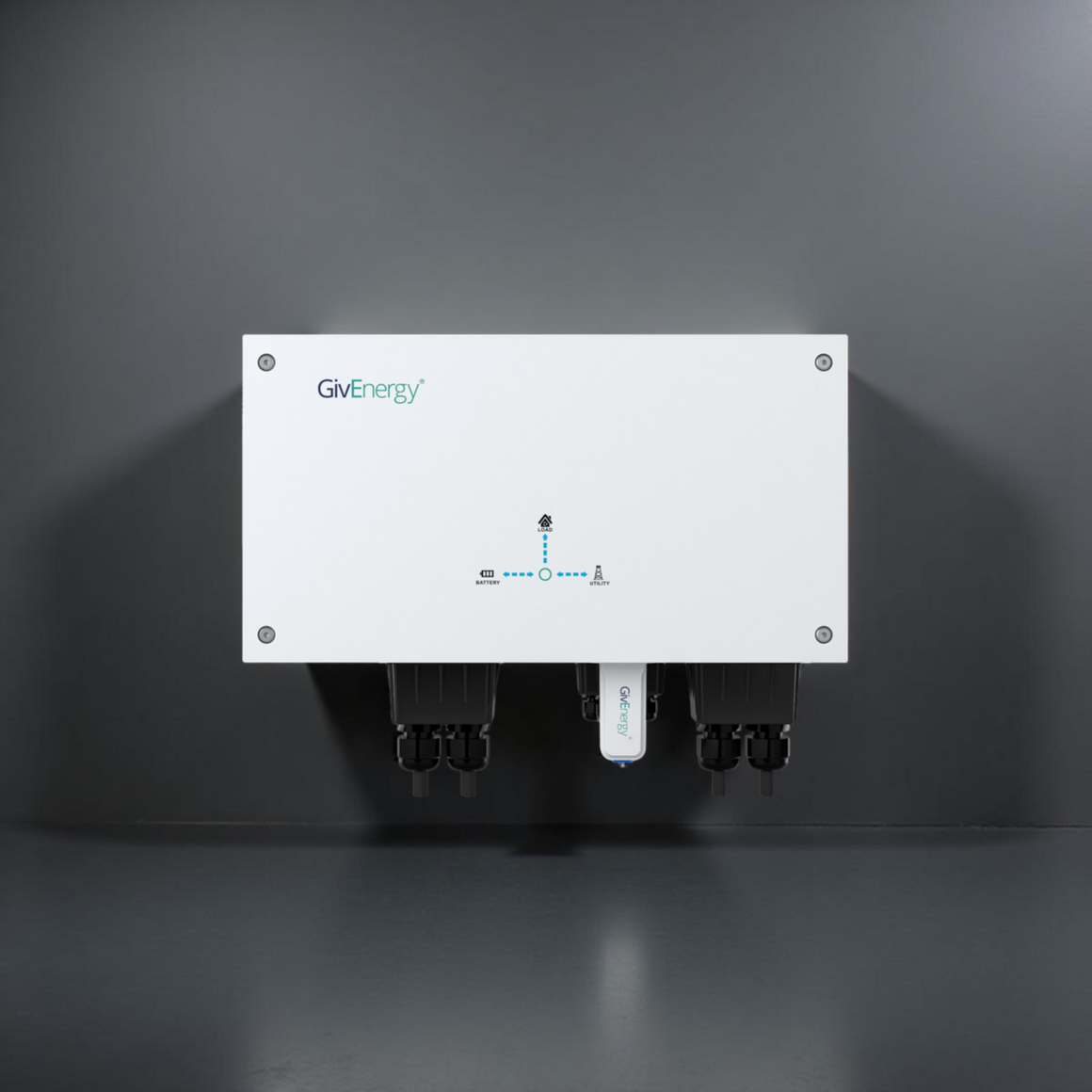

GivEnergy AC Coupled 3.0kW Battery Inverter

GivEnergy AC Coupled 3.0kW Battery Inverter

The GivEnergy AC Coupled 3.0kW Battery Inverter is a versatile solution for adding energy storage to existing or new renewable installations. This single-phase inverter enables you to charge batteries from surplus solar PV, other renewables, or directly from the grid on off-peak tariffs, maximising self-consumption and savings. With built-in WiFi, remote monitoring, and robust safety features, this Battery Inverter ideal for both retrofit and standalone battery systems.

Key Features

• Nominal AC Output Power: 3,000W
• Max. Apparent Power: 3,200VA
• Max. Output Current: 13A
• Max. Charge/Discharge Rate: 3,000W / 3,000W
• Battery Compatibility: GivEnergy LiFePO4 (45V – 58V)
• Max. Charging/Discharging Current: 60A / 60A
• Backup Output (EPS): Up to 3,000W to dedicated circuits
• AC Nominal Voltage: 230V (range 202V – 262V)
• AC Grid Frequency: 50Hz (±5Hz)
• Power Factor: 1 (adjustable 0.9 leading/lagging)
• THDI: <3%
• IP Rating: IP65 (indoor/outdoor)
• Noise Emission: <30dB
• Operating Temperature Range: -25°C to +60°C (derating above 45°C)
• Relative Humidity: 0–100%
• Altitude: up to 4000m (derating above 2000m)
• Inverter Topology: Transformerless
• Dimensions (HxWxD): 260 × 480 × 223 mm
• Weight: 22.4 kg
• Warranty: 12 years
• Display: LED indicators
• Communications: WiFi, USB, RS485, GPRS, 4G (options)
• Certifications: G98, G100, EN50549, IEC 62109-1/2, VDE-AR-N4105, VDE0126, AS4777, IEC62040, EN61000-6-2/3, UKCA, CE

Technical Highlights

• Compatible with GivEnergy battery modules (2.6kWh, 5.2kWh, 8.2kWh)
• Remote monitoring and firmware updates via GivEnergy app and portal
• Flexible rate tariff support (charge/discharge on variable tariffs)
• Retrofit compatible – add storage to any existing PV system
• Backup power up to 2.5–3.0kW for critical circuits (requires dedicated isolator/switch)

Note: Installation must be carried out by a GivEnergy-trained, qualified electrician. System registration on the GivEnergy portal is required for full warranty and commissioning.
