GivEnergy 7kW EV Tethered Charger
Regular price
£445.00
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

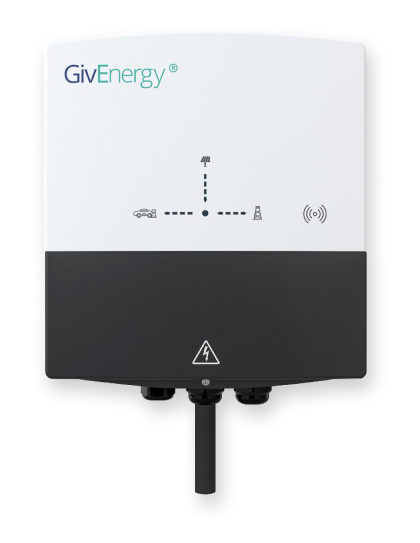

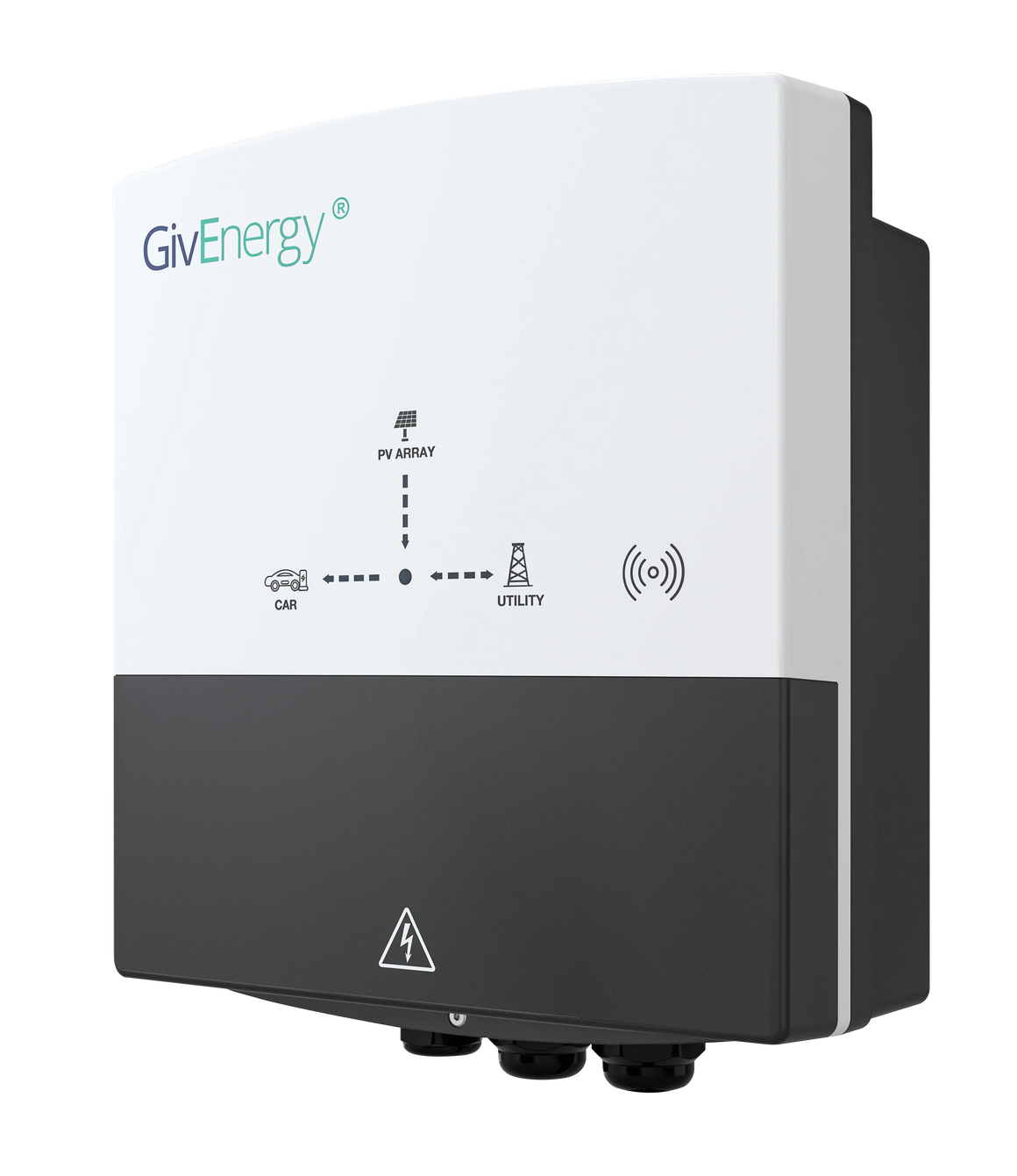

GivEnergy 7kW EV Tethered Charger
Product Description
The GivEnergy 7kW EV Tethered Charger is a smart, app-controlled home electric vehicle charging point engineered for flexibility, efficiency, and integration with renewable energy systems. Designed for seamless operation with or without a solar PV or home battery, it lets you charge your EV from the grid, excess solar, or your GivEnergy battery system through intuitive scheduling and energy management via the GivEnergy Monitoring Portal and app.
- 7kW Fast Charging: Delivers up to 7kW (32A) AC charging compatible with all Type 2 electric vehicles.
- 5m Tethered Cable: Supplied with a robust, 5-metre Type 2 connector cable for convenient reach and easy handling.
- Smart App Control: Full management and remote scheduling via the GivEnergy App and Monitoring Portal, with data-rich consumption and cost tracking.
- Solar & Battery Integration: Select energy source – excess solar, grid, or battery – for optimised, low-carbon charging and maximum bill savings.
- Plug & Play Simplicity: Easy to install, with support for plug-and-play usage or advanced control via RFID card/app.
- Advanced Connectivity: Built-in WiFi and LAN (RJ-45) with optional 4G, OCPP 1.6J protocol for integration with energy management and smart home platforms.
- Durable & Weatherproof: Compact (288 x 260 x 112 mm), tough PC+ASA enclosure. IP65 rating for safe indoor or outdoor installation.
- Comprehensive Protection: Integrated PEN fault detection (no earth rod required), type B RCD, surge, over-/under-voltage, short circuit, overload, over-temperature, and earth leakage protection.
- Easy Data Access: App and online portal provide detailed charging data and smart scheduling for lowest-carbon/cheapest charging.
Key Technical Specifications
| AC Power Output Rating | 7kW / 32A single-phase |
| Charging Cable Type & Length | Tethered, Type 2 (IEC 62196-2), 5 metres |
| Input Voltage Range | 230V (207–253V) |
| Dimensions (H × W × D) | 288 × 260 × 112 mm |
| Weight | 4.5 kg |
| Protection Rating | IP65 |
| Operating Temperature | -30°C to +55°C |
| Connectivity | WiFi, LAN (RJ-45), 4G (optional) |
| User Interface | App, RFID, Plug and Play |
| Charger Protocol | OCPP 1.6J |
| Integrated Safety | Type B RCD, PEN fault detection, surge, overload, short-circuit, earth leakage, over-/under-voltage, over-temp |
| Warranty | 3 years |
Applications
- Home EV charging with or without solar PV and battery storage
- Smart scheduling for grid, solar, or battery-powered sessions
- Indoor or outdoor installations where space and reliability matter
- Integration with smart home and renewable energy management systems
What's Included?
- GivEnergy 7kW EV Tethered Charger (GIV-EV-7.2)
- 5m Type 2 cable (tethered)
- Mounting hardware and installation guide
- Access to the GivEnergy Monitoring Portal and App
Why Choose the GivEnergy 7kW EV Tethered Charger?
- Seamless charging from grid, solar, or battery with a single, reliable charger
- Ultra-compact, weatherproof, and built for UK homes
- App-driven insights, live management, and robust safety as standard
- Future-proofed connectivity and open protocol support for integrations
- Type EV Charger
- Vendor GivEnergy
- SKU GIV-EV-7.2
