The Genius Roof SolarFlash Profile Tile Kit is built around FlexiFlash, a flexible flashing panel designed specifically for profile concrete tiles such as Redland Regent, Double Roman, Ludlow Plus, Marley Mendip and Ludlow Major. Where the standard SolarFlash panel is rigid, FlexiFlash is made from a flexible material that moulds around the deep curvature of a profile tile, giving a weathertight seal that a rigid panel could not achieve on this tile type.
As with the rest of the SolarFlash range, the kit keeps the roof anchor bracket clear of the tile beneath it, so the bracket remains free to move without disturbing the flashing or making the tile load-bearing. The included aluminium support is essential to maintaining the shape of the flexible panel over time.
250 x 235mm
FlexiFlash Panel
50 x 140 x 40mm
Hood Dimensions
Up to 100mm
Compatible Head Lap
MCS 012
Compliance Support
Important Safety Information: The included aluminium support must be used on every installation. It supports the flexible back of the FlexiFlash panel and prevents it from sagging over time, which would otherwise compromise the weatherproof seal.
Flexible Panel for Profile Tiles
FlexiFlash is made from a flexible material, allowing it to mould around the curvature of profile concrete tiles such as Redland Regent, Double Roman, Ludlow Plus, Marley Mendip and Ludlow Major — a shape a rigid flashing panel cannot follow.
Same Footprint as Small SolarFlash
The FlexiFlash panel shares the same 250mm x 235mm dimensions and identical 50mm x 140mm x 40mm hood as the 'small' SolarFlash used on flat and plain tiles, keeping the range consistent.
Aluminium Support Included
A metal support is supplied to reinforce the flexible back of the panel, maintaining its shape and effectiveness for the lifetime of the installation.
Weather Stop Foam Included
A foam insert seals the hood against the bracket, designed to stop wind-driven snow and rain from being carried into the roof space beneath it.
Shims for Bracket Clearance
Two wooden shims (packings) are supplied to help maintain correct clearance between the roof anchor bracket and the tile surface beneath it.
Cutting Rather Than Notching
For profile tiles it can be quicker to cut the tile cleanly around the hood rather than notch it, giving a tidier finish with less risk of tile damage.
Please Note: FlexiFlash is sized for single-lap tiles with a head lap of up to 100mm. This kit is intended for profile concrete tiles specifically — flat or plain tiles should use the separate SolarFlash Flat Tile Kit, and existing/new slate roofs should use the appropriate SolarFlash Slate Refit or Slate New Build Kit.
| Product Details |
| Manufacturer |
Genius Roof Solutions (Hallclip) |
| Part Number |
GEN-P-TILE |
| Product Range |
SolarFlash (FlexiFlash) |
| Kit Type |
Profile Tile Kit |
| Dimensions & Compatibility |
| FlexiFlash Panel Size |
250mm width x 235mm length |
| Hood Dimensions |
50mm width x 140mm length x 40mm depth |
| Compatible Tile Types |
Profile concrete tiles: Redland Regent, Double Roman, Ludlow Plus, Marley Mendip, Ludlow Major |
| Maximum Head Lap |
Up to 100mm (single lap) |

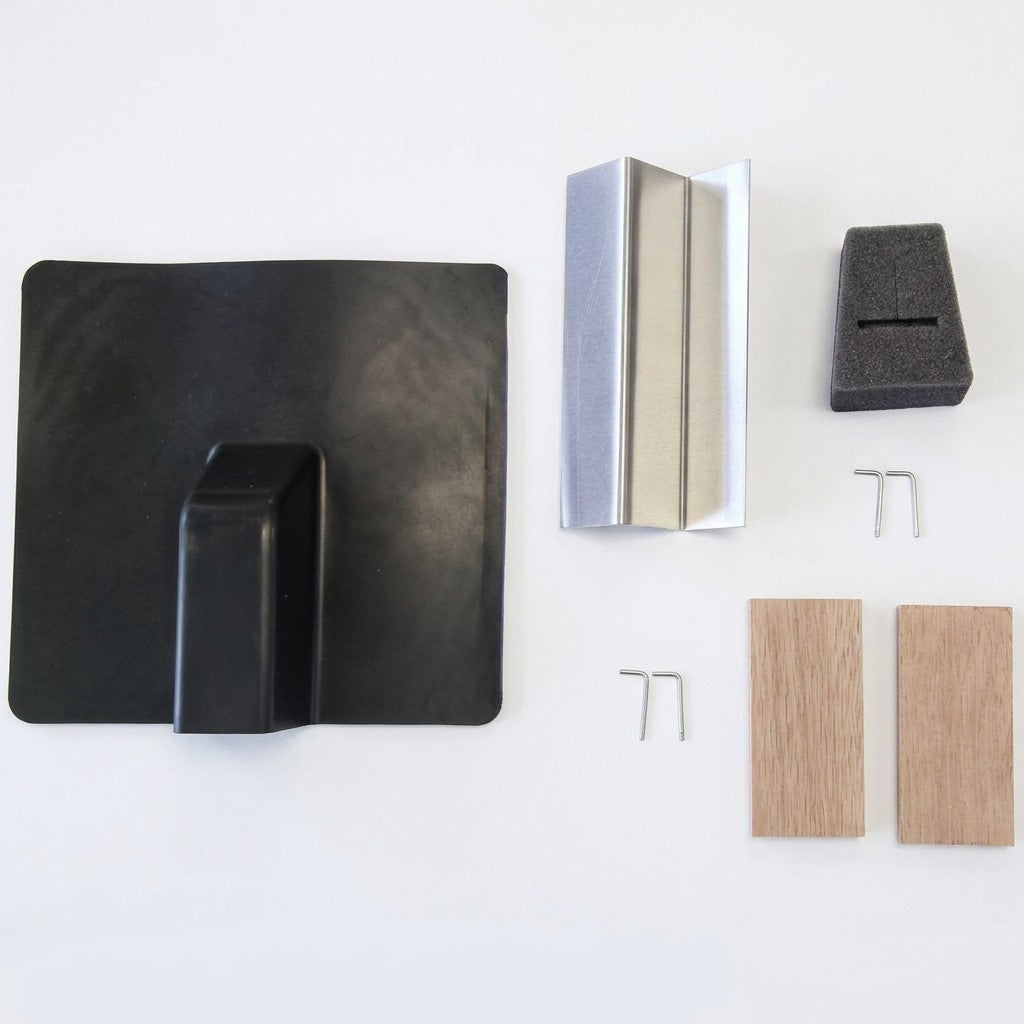

| Kit Contents |
| FlexiFlash Panel |
1 x small FlexiFlash |
| Wooden Shims |
2 x wooden shims (packings) |
| Weather Stop Foam |
1 x foam insert |
| Aluminium Support |
1 x metal support |
| Fixings |
2 x nails |
| Compliance & Use |
| Standard Supported |
MCS 012 weatherproofing compliance for roof brackets |
| Typical Users |
Solar PV installers, roofing contractors, housing associations, developers |
| Required Roof Hooks |
Must be used with an appropriate profile tile roof hook |
| Training Required |
None — designed for installation without additional expert training |
Good to Know: One Profile Tile Kit is required for every roof anchor bracket in the installation, so order quantities to match your total bracket count.
Which tile types is this kit designed for?
The Profile Tile Kit is designed for profile concrete tiles such as Redland Regent, Double Roman, Ludlow Plus, Marley Mendip and Ludlow Major. It is not suitable for flat, plain, or slate roofs.
Why does FlexiFlash need to be flexible?
Profile tiles have a deep curved shape. A rigid flashing panel cannot follow that curvature, so FlexiFlash is made from a flexible material specifically to mould around the profile and maintain a weatherproof seal.
Is the aluminium support really necessary?
Yes. The support must be used on every installation. It reinforces the flexible back of the panel and prevents it sagging, which would otherwise let the seal fail over time.
What head lap is this kit designed for?
The FlexiFlash panel is sized for single-lap tiles with a head lap of up to 100mm. Confirm your tile's head lap before ordering.
Should I cut or notch the tile around the hood?
It can be quicker and give a tidier result to cut the tile around the hood rather than notch it, particularly on profile tiles where notching can be more awkward.
How many kits do I need for my installation?
You need one Profile Tile Kit per roof anchor bracket. Count your total bracket quantity before ordering.
