The Genius Roof Slate Kit for New Build, built around the manufacturer's SolarFlash system, is the dedicated waterproof flashing solution for new-build slate roofs and slate roofs that have been fully stripped and are being reinstalled. Manufactured by Hallclip (Genius Roof Solutions), it uses the same large-format SolarFlash panel as the Slate Refit Kit, but without the additional Hallhook and compensation hook hardware needed only for retrofitting around an existing course of slates.
Because the roof is being slated fresh rather than cut and refitted around an existing bracket, installation follows the standard slating sequence: brackets are fixed, the SolarFlash panel and foam are fitted around the bracket, and slating continues as normal with cuts made around the SolarFlash hood. This keeps the bracket free to move without ever contacting the slate or flashing beneath it, supporting MCS 012 compliant weatherproofing.
365 x 365mm
SolarFlash Panel
50 x 140 x 40mm
Hood Dimensions
Up to 600mm
Compatible Slate Length
Up to 100mm
Compatible Head Lap
MCS 012
Compliance Support
Please Note: This kit is for new-build or fully stripped slate roofs only. If you are working on an existing slate roof where slates need to be cut and refitted around a bracket without stripping the roof, use the separate Slate Refit Kit instead, which includes Hallhooks and compensation hooks for that purpose.
Waterproof SolarFlash Panel

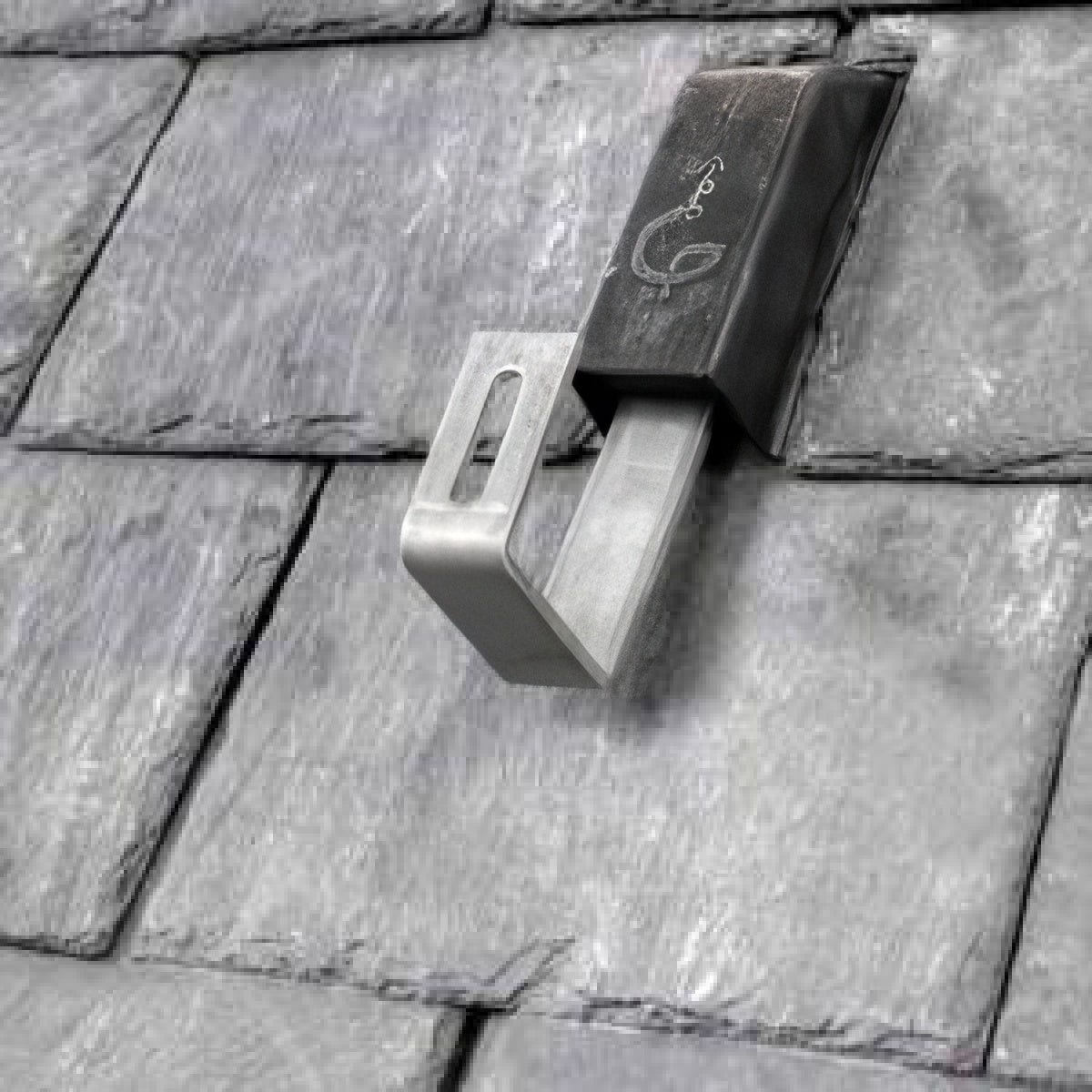

The 365mm x 365mm large SolarFlash panel sits proud of the roof anchor bracket, allowing the bracket to move freely without ever contacting the flashing or making the slate beneath it load-bearing.
Designed for New-Build Sequencing
Slating proceeds in the standard order — brackets fixed to rafters, slate laid as normal, cuts made around the bracket and SolarFlash hood — without the extra retrofit hardware needed on an existing roof.
Weather Stop Foam Included
A foam insert seals the SolarFlash hood against the bracket drop, designed to stop wind-driven snow from being carried into the roof space.
Shims for Bracket Clearance
Two wooden shims (packings) are supplied to lift the roof anchor bracket away from the slate beneath it where extra clearance is needed.
Suits Natural & Manmade Slate
Compatible with both natural slate and manmade (fibre cement) slate roofs, giving flexibility across different slate specifications.
No Specialist Training Required
Installation follows the familiar slating process with no additional expert knowledge needed beyond standard roofing practice.
Good to Know: The 'Large' SolarFlash panel is sized for slates being laid double lap with a head lap of up to 100mm, and for a maximum slate length of 600mm (24 inches). As a guide, slate sizes are marked on the SolarFlash panel, which can be trimmed or nailed through as needed.
| Product Details |
| Manufacturer |
Genius Roof Solutions (Hallclip) |
| Part Number |
GEN-SLATE-NEW |
| Product Range |
SolarFlash |
| Kit Type |
Slate New Build Kit |
| Dimensions & Compatibility |
| SolarFlash Panel Size |
365mm width x 365mm length |
| Hood Dimensions |
50mm width x 140mm length x 40mm depth |
| Compatible Slate Length |
Up to 600mm (24 inches) |
| Maximum Head Lap |
Up to 100mm (double lap) |
| Slate Types |
Natural slate and manmade (fibre cement) slate |

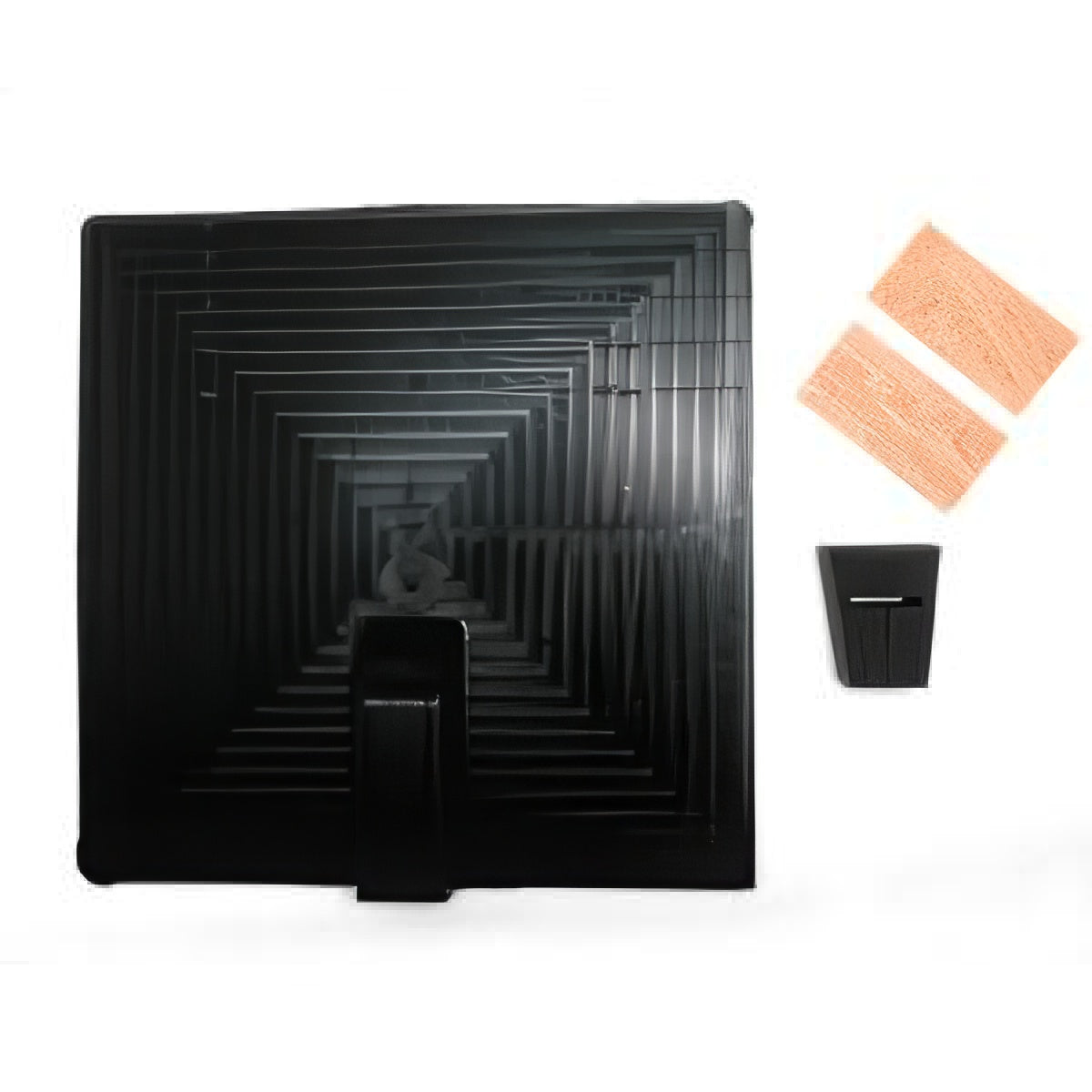

| Kit Contents |
| SolarFlash Panel |
1 x large SolarFlash |
| Wooden Shims |
2 x wooden shims (packings) |
| Weather Stop Foam |
1 x foam insert |
| Compliance & Use |
| Standard Supported |
MCS 012 weatherproofing compliance for roof brackets |
| Typical Users |
Solar PV installers, roofing contractors, housing associations, developers |
| Required Roof Hooks |
Must be used with a flat tile roof hook where the mounting system specifies one |
| Training Required |
None — follows standard new-build slating sequence |
Good to Know: One SolarFlash kit is required for every roof anchor bracket in the installation, so order quantities to match your total bracket count.
Which roof condition is this kit designed for?
The Slate Kit for New Build is designed for new-build slate roofs, or slate roofs that have been fully stripped and are being reinstalled. For existing roofs where slates are being cut and refitted around a bracket without stripping, use the separate Slate Refit Kit instead.
What is the maximum slate length and head lap this kit supports?
The large SolarFlash panel is designed for slate lengths of up to 600mm (24 inches), based on slates being laid double lap with a head lap of up to 100mm.
Does this kit include Hallhooks or compensation hooks?
No. Because a new-build or stripped roof is slated fresh rather than refitted around an existing bracket, this kit does not include the Hallhooks and compensation hooks supplied with the Slate Refit Kit.
How many kits do I need for my installation?
You need one SolarFlash kit per roof anchor bracket, not one per panel. Count your total bracket quantity before ordering.
Can this kit be used on both natural and manmade slate?
Yes. It is compatible with both natural slate and manmade (fibre cement) slate roofs.
