Fusebox Type 2 SPD Kit 1P+N 40kA with 32A MCB | SPDCUKITT2

Description

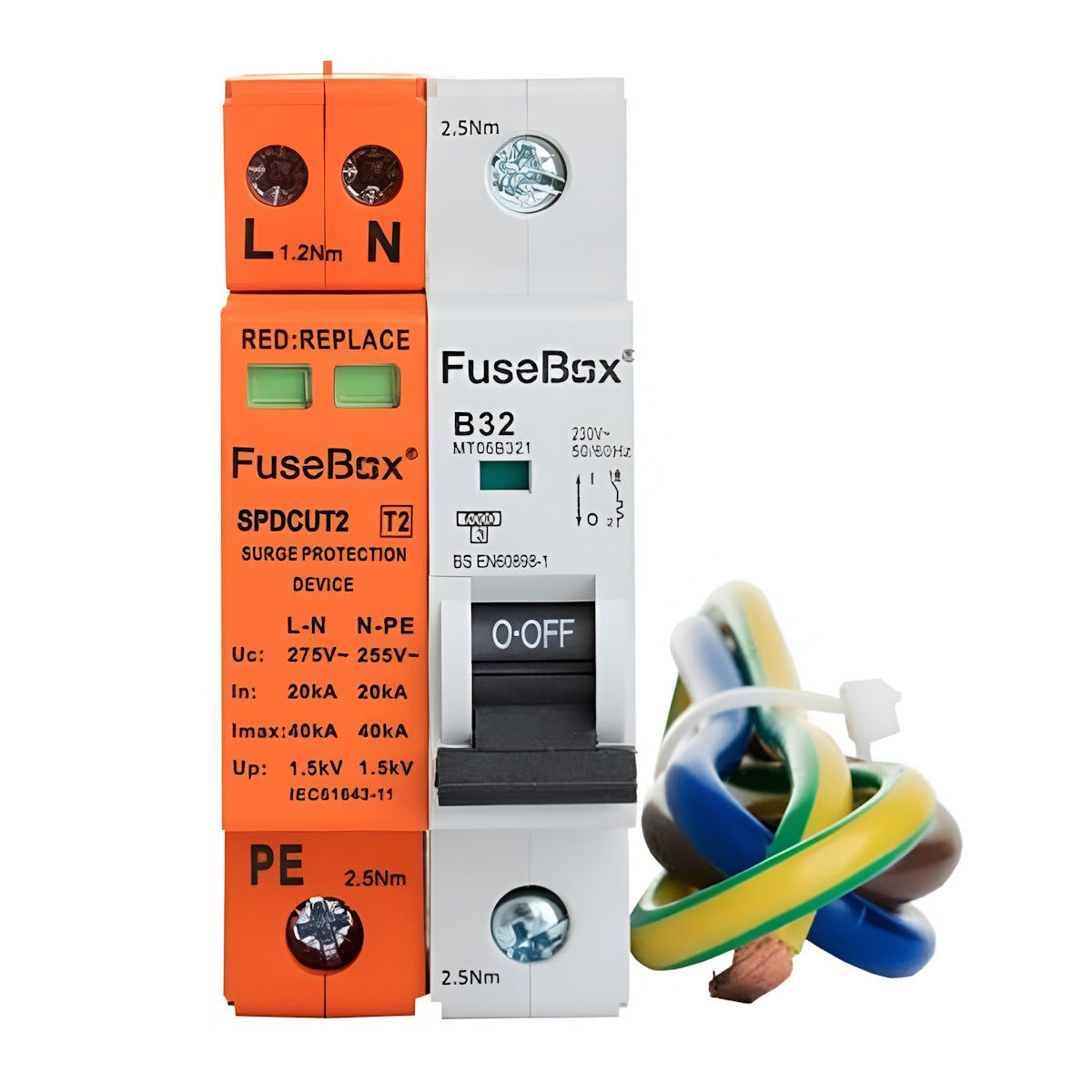

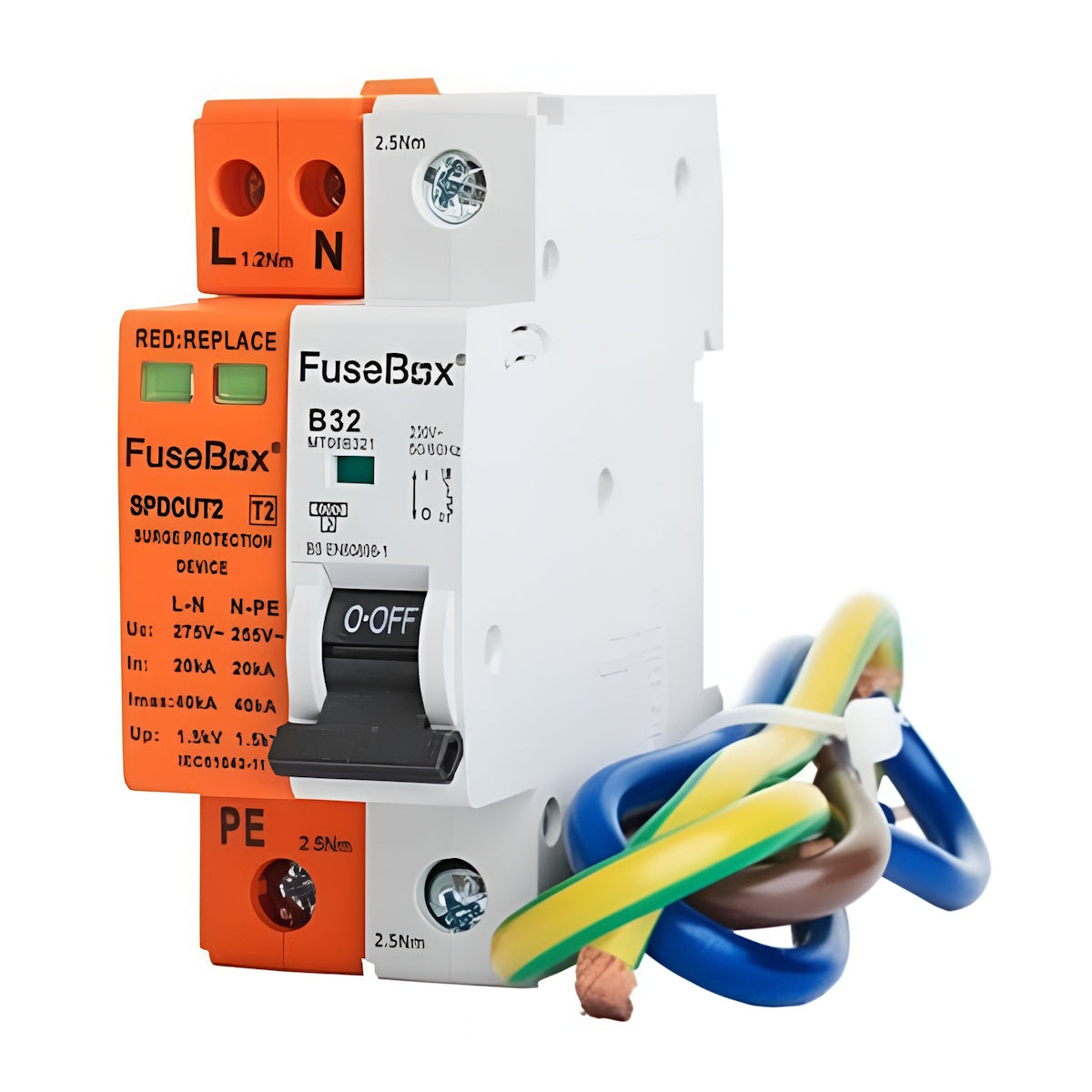

The Fusebox Type 2 surge protection device kit (1+N-PE, 40kA), part number SPDCUKITT2, is a single-module (18mm) Type 2 SPD supplied with a 32A B type MCB and 6mm² connecting cables. It is built to EN 61643-11 (Type 2) and rated at 20kA nominal and 40kA maximum discharge current.

The SPD uses MOV and GDT (spark gap) technology for a response time of 25ns or less, with a green/red flag indicator showing when it is good or needs replacing. It suits TN-C-S, TN-S and TT systems and has a 50kA short circuit withstand. The cables can be shortened if required.

Type 2

EN 61643-11

40kA

Max. discharge current

20kA

Nominal discharge current

≤ 25ns

Response time

32A B MCB

Included in kit

18mm

Single module

Safety and compliance

This device must be installed and tested by a qualified electrician in accordance with BS 7671. Check all connections are torqued before powering up, because loose connections cause fires.

Insulation resistance testing

With the SPD fitted, remove either the earth connection or the plug-in cartridge before insulation resistance testing. If you do not, test at a maximum of 250V DC.

Kit contents

Single-module Type 2 SPD, 32A B type MCB and 6mm² connecting cables.

Key features

Complete SPD kit

SPD, 32A B type MCB and 6mm² cables supplied together.

Type 2 protection

EN 61643-11 Type 2 with 20kA In and 40kA Imax (8/20μs).

Low protection level

L-PE ≤ 1.5kV and N-PE ≤ 1.3kV voltage protection level.

Status indication

Green flag: good. Red flag: replace.

Compact single module

18mm single module on 35mm DIN rail.

Wide system compatibility

For TN-C-S, TN-S and TT 230V systems.

Technical specification

General

Parameter

Specification

Brand

Fusebox

Part number

SPDCUKITT2

Barcode

5060523524129

Description

Surge protection device T2 (1+N-PE), 18mm, with 32A B type MCB and 6mm² cables

Standard

EN 61643-11 (Type 2)

Technology

MOV (metal oxide varistor) / GDT (spark gap)

Electrical

Parameter

Specification

Voltage (Un)

230V AC, 50/60Hz

Systems

TN-C-S, TN-S, TT

Max. operating voltage (Uc)

L-PE 275V, N-PE 255V

Nominal discharge current (In, 8/20μs)

20kA

Max. discharge current (Imax, 8/20μs)

40kA

Voltage protection level

L-PE ≤ 1.5kV, N-PE ≤ 1.3kV

Response time (tA)

≤ 25ns

Short circuit withstand (ISccR)

50kA

Temporary overvoltage (UT)

335V for 5 seconds, withstand

Maximum back-up fuse

125A gG

Mechanical

Parameter

Specification

Terminal capacity

PE 16mm², L/N 10mm²

Recommended torque

PE 2.5Nm, L 1.2Nm, N 1.2Nm

Degree of protection

IP20

Mounting

35mm DIN rail

Indication

Flag: green good, red replace

Frequently asked questions

What is included in the kit?

A single-module Type 2 SPD, a 32A B type MCB and 6mm² connecting cables.

What systems is it suitable for?

TN-C-S, TN-S and TT systems at 230V, 50/60Hz.

What back-up fuse is needed?

The maximum back-up fuse is 125A gG.

How do I know when to replace it?

The flag indicator shows green when good and red when it needs replacing.

Can I shorten the cables?

Yes. The connecting cables can be shortened if required.

How do I test insulation resistance?

Remove the earth connection or the plug-in cartridge, or test at a maximum of 250V DC.
