FuseBox IP65 32A Bi-Directional RCBO & Surge Protection Consumer Unit

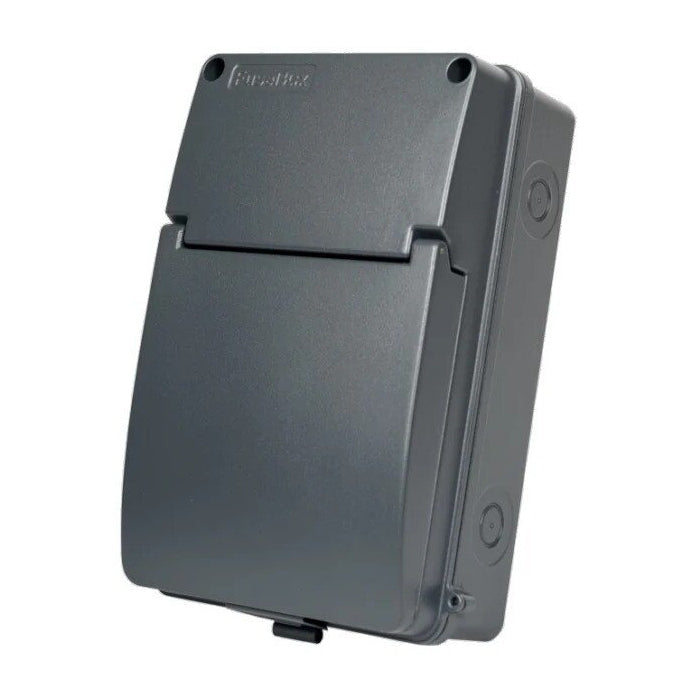

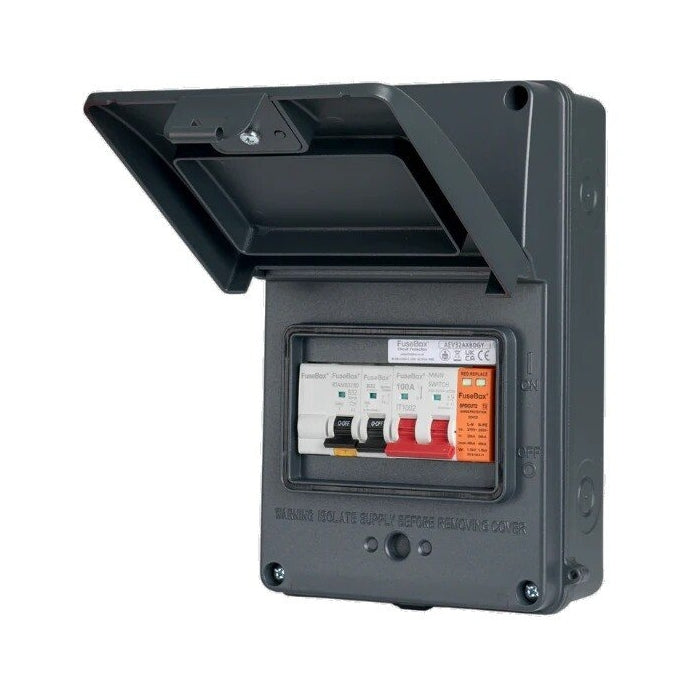

The FuseBox AEV32AXBDGY is a robust, weather-resistant consumer unit designed specifically for electric vehicle charging installations. It features a 32A bi-directional RCBO (Residual Current Breaker with Overcurrent protection), Type 2 surge protection, and a 100A main switch incomer. Encased in a durable IP65-rated aluminium enclosure, this unit ensures complete electrical protection for both indoor and outdoor use, making it ideal for garage and external EV charging setups.
Key Features
- 32A Type A bi-directional RCBO for protection against earth faults in both directions
- 100A rated main switch incomer for robust circuit control
- Type 2 surge protection device (SPD) for safeguarding against voltage spikes
- 32A miniature circuit breaker (MCB) for additional overload protection
- IP65 aluminium six-module enclosure, resistant to dust and water ingress
- Removable and raised DIN rail for easy installation and flexible wiring
- Tail clamp configurable in two positions to assist circuit installation
- Earth and neutral terminal bars positioned at the top for convenient wiring
- Base and front cover can be sealed with wire tag for additional security
- Drop-down lid maintaining IP65 rating while allowing easy access for maintenance
- Suitable for internal and external electrical consumer unit applications
Technical Specifications
| Model | AEV32AXBDGY |
|---|---|
| Enclosure | 6-module Aluminium IP65 Rated |
| Main Switch | 100A |
| RCBO | 32A Type A Bi-Directional |
| Surge Protection | Type 2 (T2 SPD) SPD1MT2 |
| MCB | 32A |
| Dimensions | 270mm (H) x 182mm (W) x 103mm (D) |
| Ingress Protection | IP65 |
| Material | Aluminium |
| Certification | BS EN61439-3 Compliant |
| Application | Suitable for indoor and outdoor EV charging installations |
| Warranty | 1 year manufacturer warranty |
Applications
- Electrical protection in EV charging circuit installations for homes and commercial properties
- Protection against overcurrent, earth faults, and surges in EV charging systems
- Suitable for use in harsh environments due to high IP65 ingress protection
Why Choose the FuseBox AEV32AXBDGY?
- Comprehensive protective components combined in one consumer unit
- Durable IP65 aluminium enclosure for prolonged use in demanding environments
- Easy installation with flexible DIN rail, tail clamp configurations, and accessible terminals
- Advanced surge and fault protection for enhanced electrical safety
- Type EV Charging Accessories
- Vendor Fusebox
- SKU AEV32AXBDGY
