FuseBox 32A Type A Mini RCBO 30mA B Curve 6kA | RTAMB32

Description

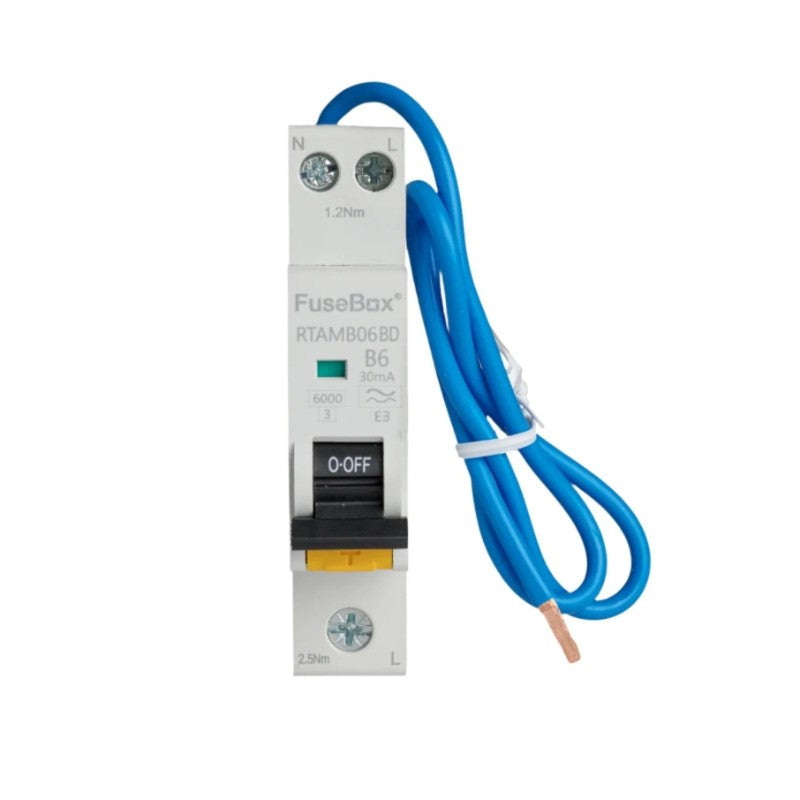

The FuseBox bidirectional mini RCBO, 32A B curve, 6kA, 30mA Type A (RTAMB32) provides overload, short circuit and earth leakage protection in one compact device. It has switched line and neutral (1P+N) and is Type A, sensing AC and pulsating DC up to 6mA.

The mini format increases working space inside a FuseBox consumer unit. It offers a 6kA short circuit capacity, a B curve (3 to 5 × In) trip characteristic, a 450mm flying neutral lead that can be cut to suit, and 35mm DIN rail mounting. It is built to IEC 61009-1 and IEC 61009-2-2.

32A

Rated current

30mA

Residual current

6kA

Breaking capacity

B curve

3 to 5 × In

Type A

AC and pulsating DC

1P+N

Switched line and neutral

Safety and testing

When insulation resistance testing, disconnect the line and neutral conductors. Installation and testing must be carried out by a competent person in line with BS 7671.

Neutral cable size

For the 32A rating the datasheet gives a 4.0mm² flying neutral cable CSA. The neutral lead is 450mm long and can be shortened to suit.

For FuseBox consumer units

This RCBO is made for use in FuseBox consumer units. Check compatibility with your board.

Key features

Three protections in one

Overload, short circuit and earth leakage protection in a single device.

Type A sensitivity

Type A detects AC and pulsating DC up to 6mA.

Switched neutral

1P+N switched disconnects both line and neutral.

6kA capacity

6kA short circuit capacity on ratings up to 40A.

Compact mini format

Mini RCBO frees up working space inside the consumer unit.

Bi-directional

Bi-directional design, with a 450mm flying neutral that can be cut to length.

Technical specification

General

Parameter

Specification

Brand

FuseBox

Part number

RTAMB32

GTIN-13

5060523523603

Type

Mini RCBO, 6kA, 1P+N switched, B curve, Type A

Rated current (In)

32A

Rated residual operating current (IΔn)

30mA

Electrical

Parameter

Specification

Rated voltage

230V AC

Frequency

50/60Hz

Rated breaking capacity (Icn)

6000A (6kA)

Tripping characteristic

B curve, 3 to 5 × In

Residual current characteristic

Type A (AC and pulsating DC up to 6mA)

Mechanical endurance

10,000 operations

Connection and mounting

Parameter

Specification

Terminal capacity

1 to 16mm² in (L), 1 to 10mm² out (N, L)

Tightening torque

2.5Nm in (L), 1.2Nm out (N, L)

Flying neutral length

450mm (can be cut to suit)

Neutral cable CSA at 32A

4.0mm²

Mounting

35mm DIN rail

Material

PA6 (Nylon 6)

Weight

0.144kg

Standards

IEC 61009-1, IEC 61009-2-2

Frequently asked questions

What does Type A mean?

A Type A RCBO detects residual currents that are AC and pulsating DC up to 6mA.

What does B curve mean?

A B curve trips at 3 to 5 times the rated current, suited to circuits with low inrush current.

Does it switch the neutral?

Yes. It is a 1P+N switched device, disconnecting both line and neutral.

Can the neutral lead be shortened?

Yes. The 450mm flying neutral can be cut to suit. Use 4.0mm² neutral cable at 32A.

How should I test insulation resistance?

Disconnect the line and neutral conductors before insulation resistance testing.
