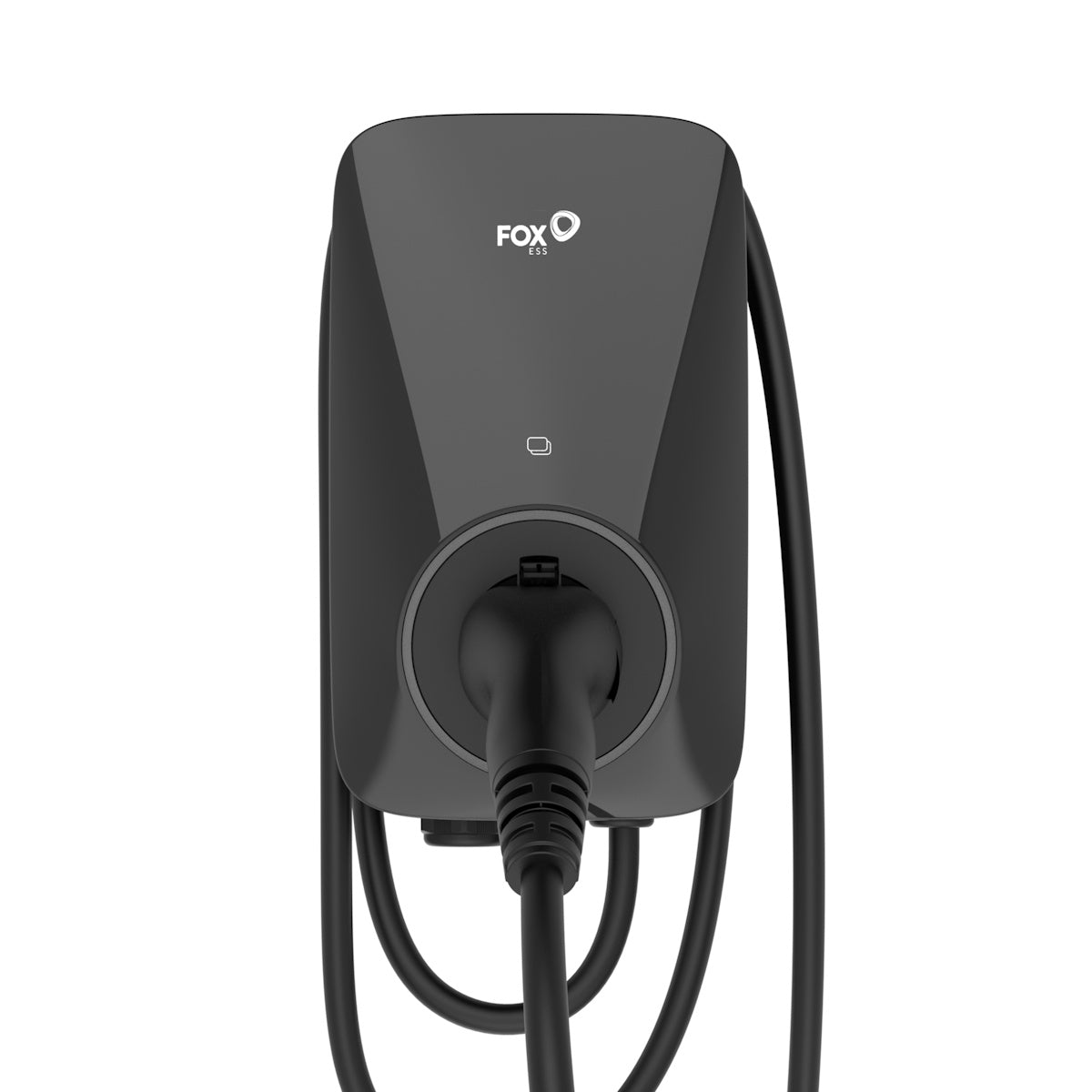

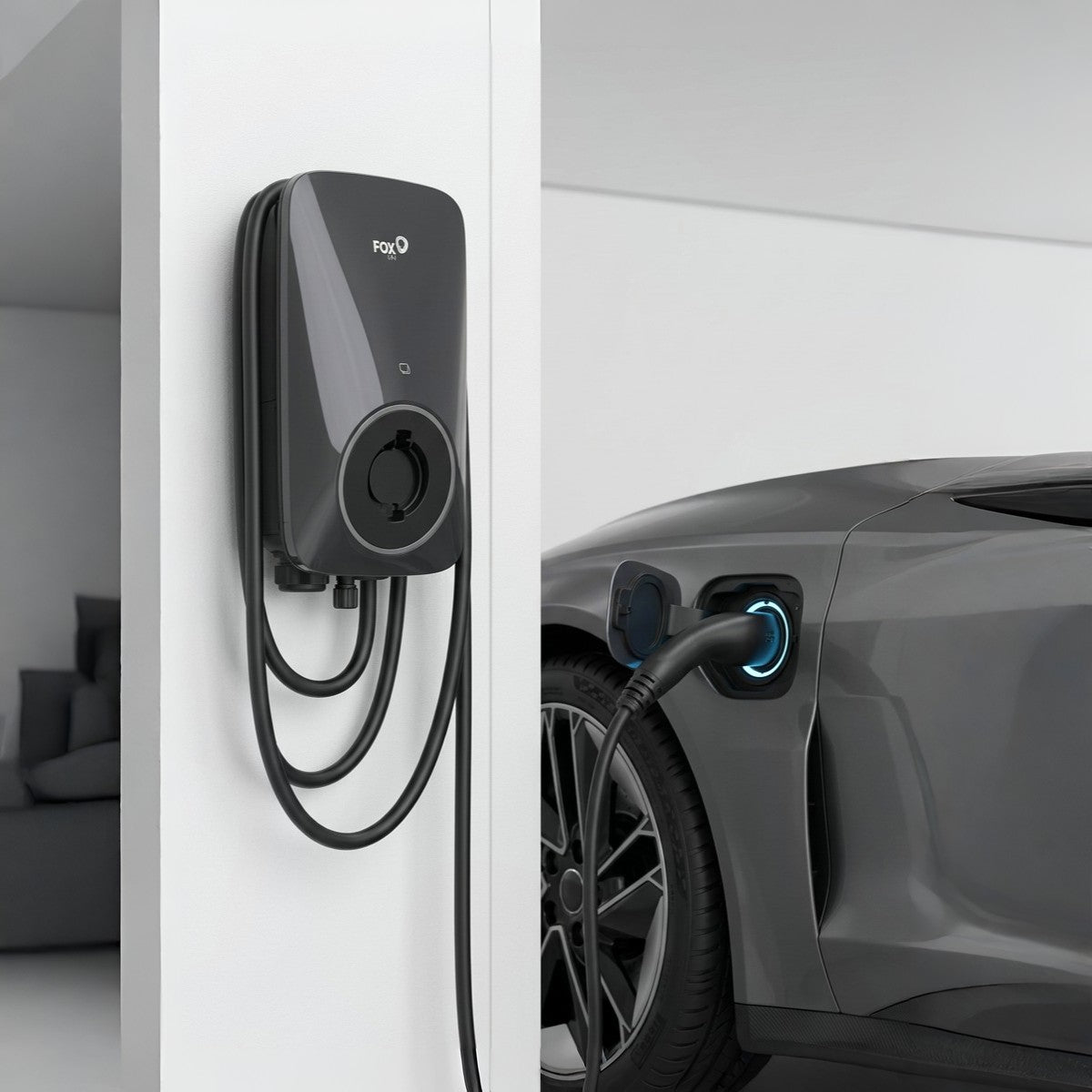

The Fox ESS A Series 7kW EV Charger is a single-phase, tethered Type 2 home charge point finished in black, supplied with a 5m charging cable for straightforward reach across most driveways and carports. Delivering up to 7.3kW at 32A, it charges compatible EVs significantly faster than a domestic 3-pin socket, while its streamlined enclosure suits both wall and post mounting.
The charger connects over WiFi and Bluetooth and supports the OCPP 1.6 (JSON) and OCPP 2.0 protocols, giving installers and network operators the option to bring it onto a back-end management platform for remote monitoring, smart tariff charging and access control. Day-to-day, it can be operated by app, RFID card, or straightforward plug-and-play, making it equally suited to single-household use or managed fleet and workplace charging.
IP55 / IK08
Ingress & impact protection
3 Years
Manufacturer warranty
Good to Know
This is the single-phase (1P+N+PE) 7.3kW model with a permanently attached Type 2 charging cable. Confirm your vehicle's onboard charger and home electrical supply support single-phase 32A charging before ordering.
Key Features
7.3kW Fast Home Charging
Delivers up to 32A at 230V for significantly faster charging than a standard domestic socket.
Tethered 5m Type 2 Cable
Supplied with an attached 5m Type 2 charging cable, removing the need for a separate cable and suiting most driveway and parking layouts.
WiFi & Bluetooth Connectivity
Connects via WiFi and Bluetooth for app-based monitoring, firmware updates and smart charging control.
OCPP 1.6/2.0 Compatible
Supports OCPP 1.6 (JSON) and OCPP 2.0, allowing integration with third-party charge point management platforms.
Multiple Start Modes
Can be operated by app, RFID card, or plug-and-play, giving flexibility for private, shared or fleet charging scenarios.
Robust Outdoor Rating
IP55 ingress protection and IK08 impact resistance, with a wide -30°C to 50°C operating temperature range for reliable year-round outdoor use.
Please Note
The internal RCD-DD provides 6mA DC residual current detection, but an external RCCB is still required at the distribution board in line with wiring regulations.
Technical Specification
Input
Wiring Scheme
1P+N+PE (single-phase)
Rated Voltage
230Vac ±20%
Output
Output Voltage
230Vac ±20%
Connector Type
Tethered Type 2 cable, 5m
Control & Communication
Card Reader
Mifare ISO/IEC 14443 A
Start Modes
Plug & Play / RFID Card / App
Connectivity
WiFi, Bluetooth
Charge Management Protocol
OCPP 1.6 (JSON) / OCPP 2.0
Protection & Safety
Residual Current Detection
AC 30mA / DC 6mA (internal RCD-DD)
Electrical Protection
Overcurrent, residual current, ground, surge, over/under voltage, over-temperature
Physical & Environmental
Dimensions (W x H x D)
320 x 190 x 144.5mm
Operating Temperature
-30°C to 50°C
Operating Humidity
5%–95%, non-condensing
Max Operating Altitude
2000m
Installation
Wall-mount or post-mount
Compliance
Standards
EN/IEC 61851-1: 2019, EN/IEC 61851-21-2: 2021
Frequently Asked Questions
What is the maximum charging speed of this charger?▼
This model delivers up to 7.3kW at 32A on a single-phase supply, giving significantly faster charging than a standard 3-pin domestic socket.
Does it come with a charging cable?▼
Yes, it is supplied with a tethered 5m Type 2 charging cable permanently attached to the unit, so no separate cable purchase is needed.
Can this charger connect to a charge point management platform?▼
Yes. It supports OCPP 1.6 (JSON) and OCPP 2.0, allowing it to be managed through compatible third-party back-end platforms in addition to its own app.
Is it suitable for outdoor installation?▼
Yes, it is rated IP55 for ingress protection and IK08 for impact resistance, with an operating range of -30°C to 50°C suiting exposed outdoor mounting.
How can the charger be started?▼
It supports three start modes: app operation, RFID card authentication, or straightforward plug-and-play with no authentication required.
Do I still need an external RCD at the consumer unit?▼
Yes. While the charger includes internal 6mA DC residual current detection (RCD-DD), an external RCCB is still required at the electrical installation in line with wiring regulations.
