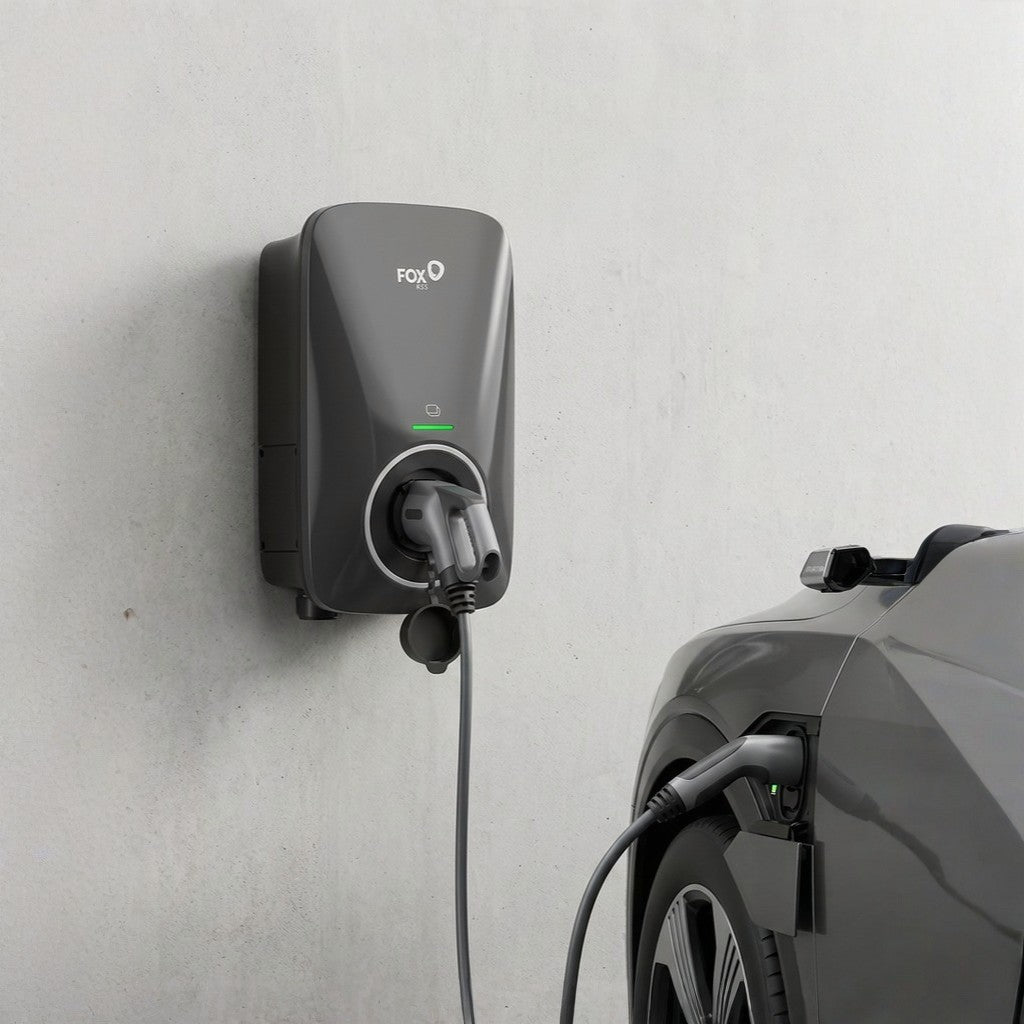

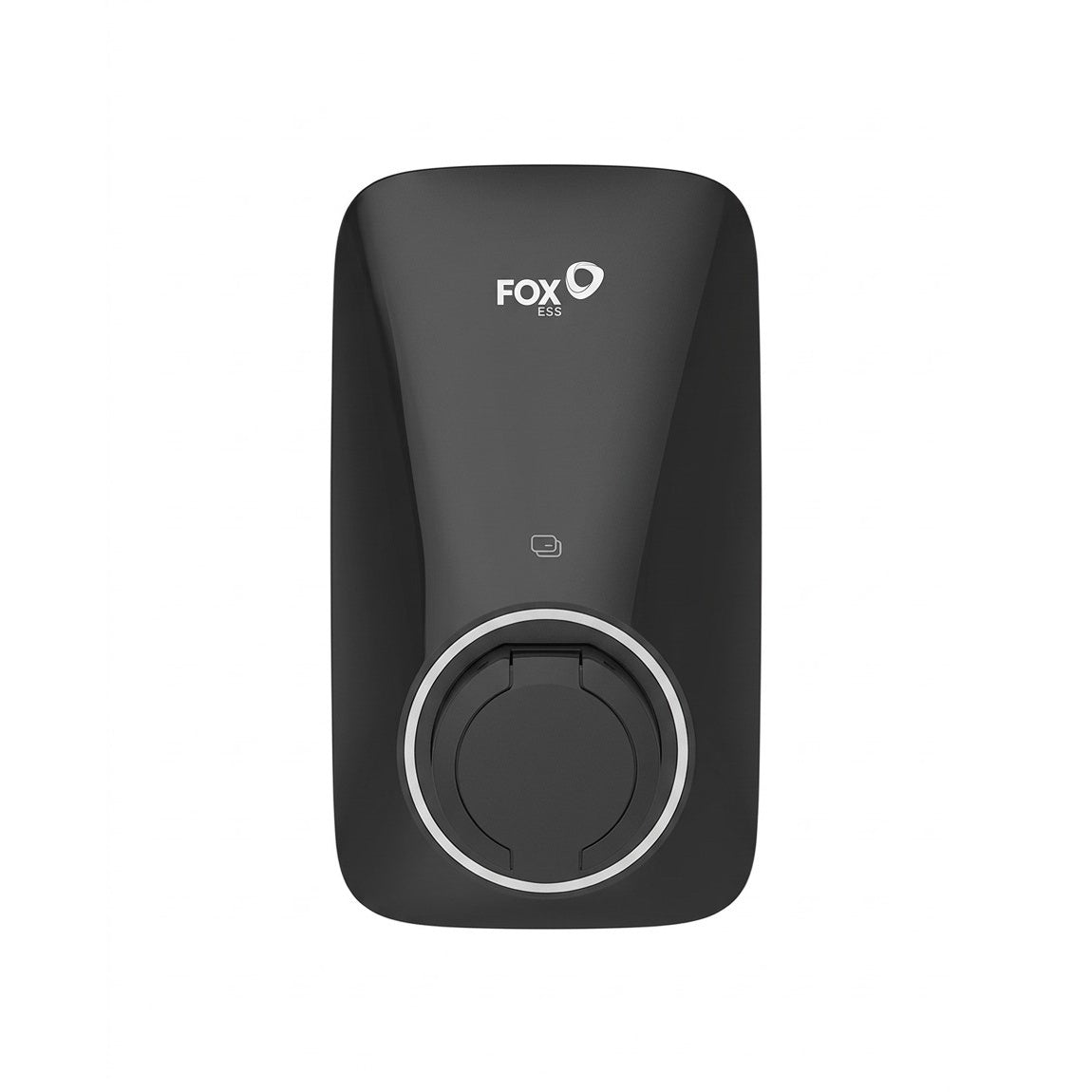

The Fox ESS A7300S1-E-B is a 7.3kW single-phase untethered EV charger finished in black, built on Fox ESS's second-generation A Series platform. It uses a Type 2 socket rather than a fixed cable, so drivers connect with their own vehicle cable — a popular choice for households or fleets running multiple EV models. The unit is V2G hardware-ready (ISO 15118) and includes dynamic load balancing as standard, making it a future-proof option for UK homes and small commercial sites.
Rated IP65 on the charger body (IP55 at the socket) and IK08 impact-rated, it's built for permanent outdoor installation on a wall or post. Connectivity covers Bluetooth, Wi-Fi, Ethernet and optional 4G, with full OCPP 1.6J / 2.0.1 compliance and an open MODBUS interface for integration with third-party energy management and charge point operator platforms.
Type 2
Socket (untethered)
Installation note: This charger includes internal RCD-DD protection (30mA AC / 6mA DC), but an external RCCB is still required per UK wiring regulations. It also integrates PEN fault protection to BS 7671 Clause 722.411.4.1 (Method 4), so no additional earth electrode is needed on TN-C-S (PME) supplies. Installation must be carried out by a qualified electrician in line with local regulations.
For installation by a qualified electrician only. All electrical connection and commissioning must comply with BS 7671 and be carried out by a licensed contractor.
V2G-Ready Hardware
Built to ISO 15118 with the hardware in place for future vehicle-to-grid functionality as it becomes available.
Dynamic Load Balancing
Automatically adjusts charging power to keep the property's total demand within its supply limit, avoiding tripped mains.
Solar Surplus Charging
Links to compatible solar PV systems to direct surplus generation straight into the EV, reducing grid draw.
Multi-Protocol Connectivity
Bluetooth, Wi-Fi, Ethernet and optional 4G (Micro-SIM), with OCPP 1.6JSON/2.0.1 and an open MODBUS interface for CPO and EMS integration.
Scheduled & App-Controlled Charging
Set charging windows to run overnight or on cheaper tariffs, and start, stop or monitor sessions via the Fox ESS app, RFID card or Plug & Charge.
Outdoor-Rated Build
IP65-rated body with salt-mist and UV-resistant treatment, suitable for wall or post mounting in exposed UK outdoor locations.
Input / Output
Wiring scheme
1P+N+PE (single-phase)
Rated voltage
230Vac ±20%
Rated/max output current
32A
Standby power consumption
≤10W
Connector type
IEC 62196 Type 2 socket
Control & Communication
Start mode
Plug & Charge / RFID card / App
RFID reader
Mifare ISO/IEC 14443 A
Bluetooth / Wi-Fi (2.4GHz) / Ethernet
Yes / Yes / Yes
4G LTE
Optional (Micro-SIM, not included)
Vehicle communication
ISO 15118 ready (V2G hardware-ready)
Safety & Protection
Residual current detection
30mA AC + 6mA DC (internal RCD-DD)
Electrical protection
Over/under voltage, overcurrent, leakage current, ground, surge, over-temperature, tamper, PEN fault
EMC classification
Class B
Certification
CE / UKCA / CB / RCM
Standards
EN/IEC 61851-1:2019, EN/IEC 61851-21-2:2021
Environment, Dimensions & Weight
Installation
Wall-mount / post-mount
Operating temperature
-30°C to +50°C
Storage temperature
-40°C to +70°C
Operating humidity
5–95%, no condensation
Operating altitude
≤2000m
IP protection rating
Body IP65, socket IP55
IK protection rating
IK08
Dimensions (W×H×D)
190 × 320 × 144mm
Does the A7300S1-E-B come with a charging cable?
No — this is the socket (untethered) version. It has a Type 2 socket on the charger, and the driver plugs in using their own Type 1 or Type 2 vehicle cable. This makes it a flexible choice for multi-vehicle households.
Do I need an external RCD/RCBO with this charger?
Yes. The unit has internal RCD-DD protection (30mA AC / 6mA DC), but Fox ESS specifies an external RCCB is still required, and recommends a 30mA Type A RCBO (230V/40A) for the 7.3kW model. Final protection must be confirmed by your installer against BS 7671.
Can this charger work with solar panels?
Yes. With a compatible CT clamp (included for single-phase models) and Fox ESS monitoring setup, the charger can prioritise surplus solar generation for charging before drawing from the grid.
Is this charger suitable for outdoor installation?
Yes. The body carries an IP65 rating (IP55 at the socket), IK08 impact protection, and salt-mist and UV-resistant treatment, and it's designed for wall or post mounting outdoors, operating down to -30°C.
What's included in the box?
The charger ships with a mounting backplate and bracket, 2 RFID cards, expansion fixings, cable terminals, an RJ45 connector, a CT clamp (single-phase models), and a quick installation guide. Post mounting requires a separate column, sold individually.
Who can install this EV charger?
Installation, wiring and commissioning must be carried out by a qualified, licensed electrician in accordance with BS 7671 and local regulations. The manual is written for trained electrical personnel only.
