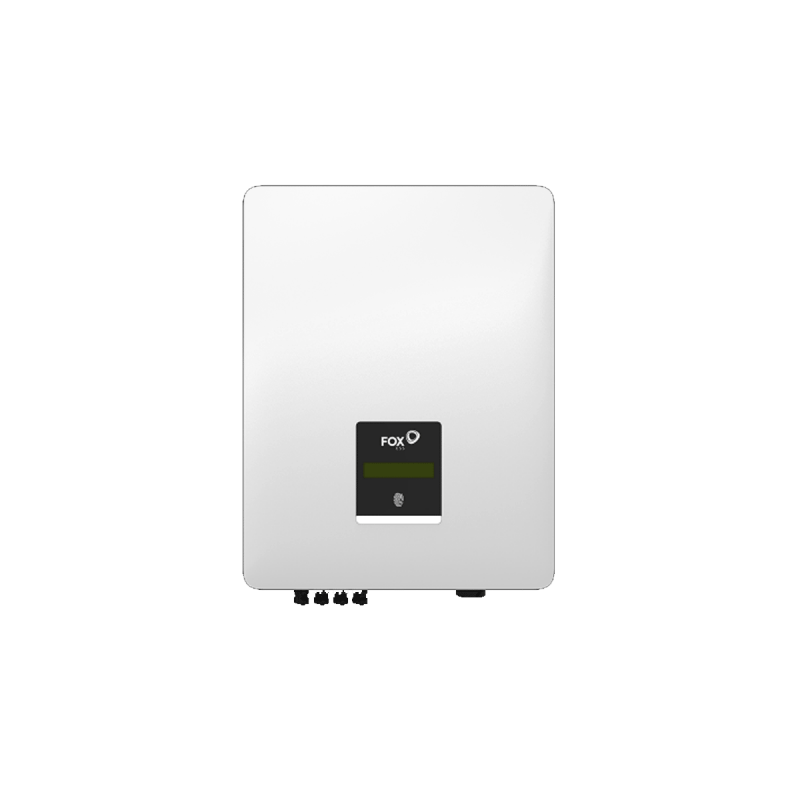

Fox ESS 6.0kW T Series 3PH Dual Tracker PV Inverter

The Fox ESS 6.0kW T Series 3PH Dual Tracker PV Inverter (Part No: FE-T-6.0) is an efficient three-phase grid-tie inverter designed for residential and small commercial solar PV systems, featuring dual MPPT trackers for optimized energy harvest and flexible installation.

Product Description

The Fox ESS T Series inverter is tailored for three-phase setups, offering high efficiency up to 98.6% with a compact design and natural cooling for silent operation. It supports wide voltage range for compatibility with high-efficiency modules and bifacial panels. With IP65 protection, it is suitable for outdoor use. The inverter includes remote monitoring via Fox Cloud and is expandable for battery storage, making it ideal for systems aiming for energy independence.

Key Features

• Dual MPPT trackers: Wide voltage range for flexible string design and maximum yield.
• High efficiency: Maximum 98.6% for superior energy conversion.
• Natural cooling: Fanless design for quiet operation.
• IP65 rated: Dust and water resistant for harsh environments.
• Remote monitoring: Via Fox Cloud app with real-time data and alerts.
• Battery ready: Compatible with Fox ESS storage solutions.
• Integrated DC isolator: Enhances safety and simplifies installation.
• Transformerless topology: Improves efficiency and reduces weight.

Technical Specifications

• Model: FE-T-6.0 – T Series 6.0kW Three Phase Inverter.
• Rated AC power output: 6000 W.
• Maximum AC apparent power: 6600 VA.
• Maximum DC power: 9000 W.
• MPPT voltage range: 140–1000 V.
• Startup voltage: 140 V.
• Maximum input voltage: 1100 V.
• Maximum DC current: 13.5 A / 13.5 A (per MPPT).
• DC inputs: 2 (MC4 connectors).
• Efficiency (max): 98.6%.
• Euro efficiency: 97.8%.
• Topology: Transformerless.
• Protection rating: IP65.
• Certifications: G99 compliant, IEC standards.

Dimensions & Weights

• Width: 370 mm.
• Depth: 160 mm.
• Height: 480 mm.
• Weight: 15.5 kg.

System & Application Notes

• Ideal for residential and small commercial PV systems with 12-18 panels.
• Compatible with high-efficiency and bifacial solar modules.
• Suitable for grid-tie applications with export limitation options.
• Supports monitoring via Fox Cloud app or portal.
• Installation by qualified solar professionals following Fox ESS guidelines and local regulations.
• Warranty: 12 years standard.
