FloPlast 21.5mm Black Overflow Condensate Pipe 3m | OS01B | PVC-U

Description

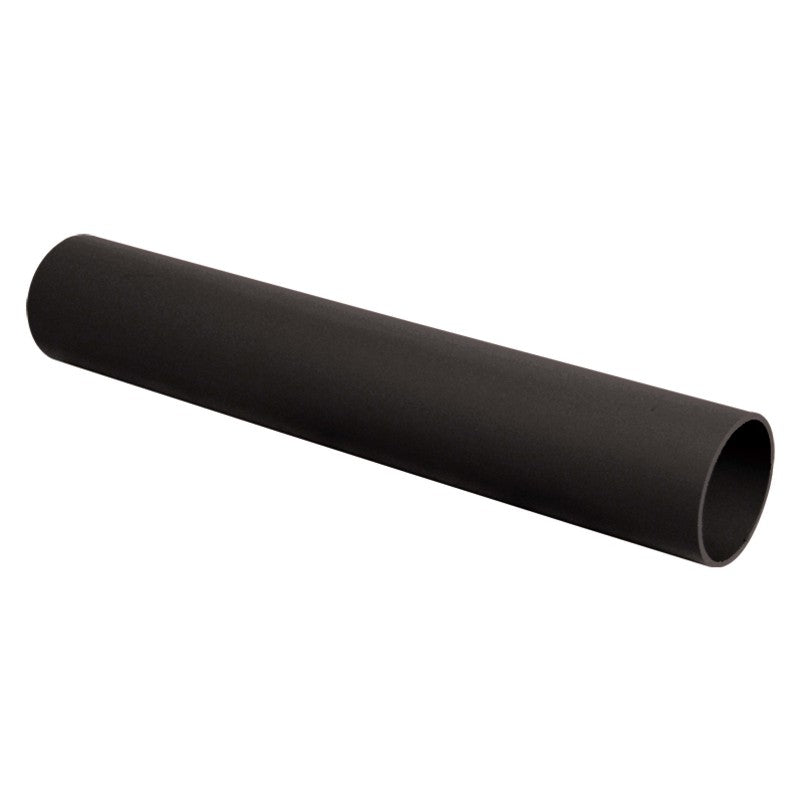

The FloPlast 21.5 mm black overflow pipe (OS01B) is a 3 m length of PVC-U solvent weld pipe widely used to carry condensate from air conditioning indoor units to a drain, as well as overflow and boiler condensate. The black RAL 9005 finish is discreet on exterior and visible runs.

It is part of FloPlast's 21.5 mm solvent weld overflow system, with no expansion gap required and a continuous temperature rating of 76 °C (intermittent discharges to 100 °C for under two minutes). It is lightweight, easy to cut and available with matching couplings, bends and clips.

21.5 mm

Pipe size

3 m

Pipe length

PVC-U

Solvent weld

76 °C

Continuous temperature

RAL 9005

Black finish

OS01B

FloPlast part code

ℹ Condensate drains must fall

Run condensate pipework with a continuous fall away from the indoor unit and avoid dips or traps that hold water. Check the unit's installation manual for the drain connection and gradient.

⚠ Solvent cement is sold separately

FloPlast solvent weld joints need FloPlast solvent cement. Apply it evenly to both surfaces, insert the pipe fully into the socket, wipe off surplus cement, and follow the cement manufacturer's cure times before testing. No expansion gap is needed.

Key features

💧

Condensate and overflow duty

Designed for overflow waste and widely used for air conditioning and boiler condensate drains.

⚫

Black RAL 9005

Black finish blends in on exterior runs and matches black soil pipe.

🔗

Solvent weld jointing

Solvent weld joints to PVC-U give strong, permanent joints with no rubber seals to degrade.

🌡️

Hot water rated

76 °C continuous with intermittent discharges up to 100 °C for under two minutes.

↔️

No expansion gap

No expansion gap required, so runs are quick to assemble.

📏

3 m lengths

3 m length keeps the number of joints down on longer drain runs.

Technical specification

Product

Brand

FloPlast

Part code

OS01B

System

21.5 mm solvent weld overflow waste

Material

PVC-U

Colour

Black (RAL 9005)

Length

3 m

Jointing

Solvent weld, FloPlast solvent cement

Performance and installation

Continuous temperature

Maximum 76 °C

Intermittent discharge

Up to 100 °C, less than 2 minutes

Expansion gap

Not required

Clip spacing

1.2 m vertical runs, 0.5 m horizontal runs

Frequently asked questions

Can I use 21.5 mm overflow pipe for air conditioning condensate?

Yes. It is widely used for condensate drains from indoor units. Connect the unit's drain hose with a suitable adaptor, and check the unit manual for the drain connection size and gradient.

How do I join it?

Use FloPlast solvent weld fittings and solvent cement. Apply cement evenly to both surfaces, push the pipe fully into the socket and wipe off any excess.

How far apart should I clip it?

Fix clips at 1.2 m centres on vertical runs and 0.5 m centres on horizontal runs.

Does it need an expansion gap?

No. The solvent weld overflow system does not need an expansion gap.

What fall should the pipe have?

Run it with a continuous fall away from the unit. Follow the air conditioning unit manufacturer's guidance for the gradient.
