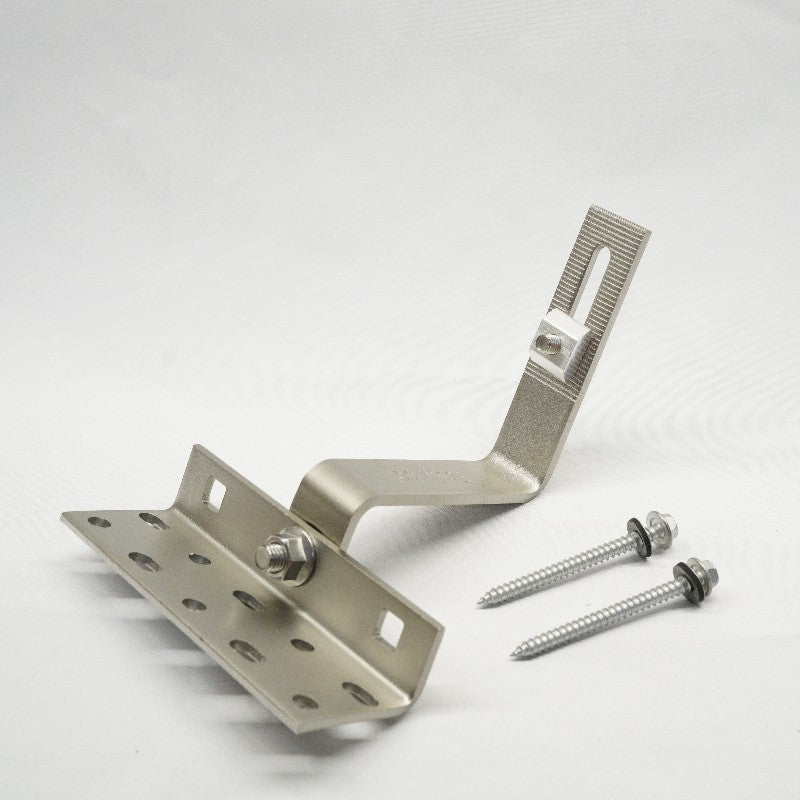

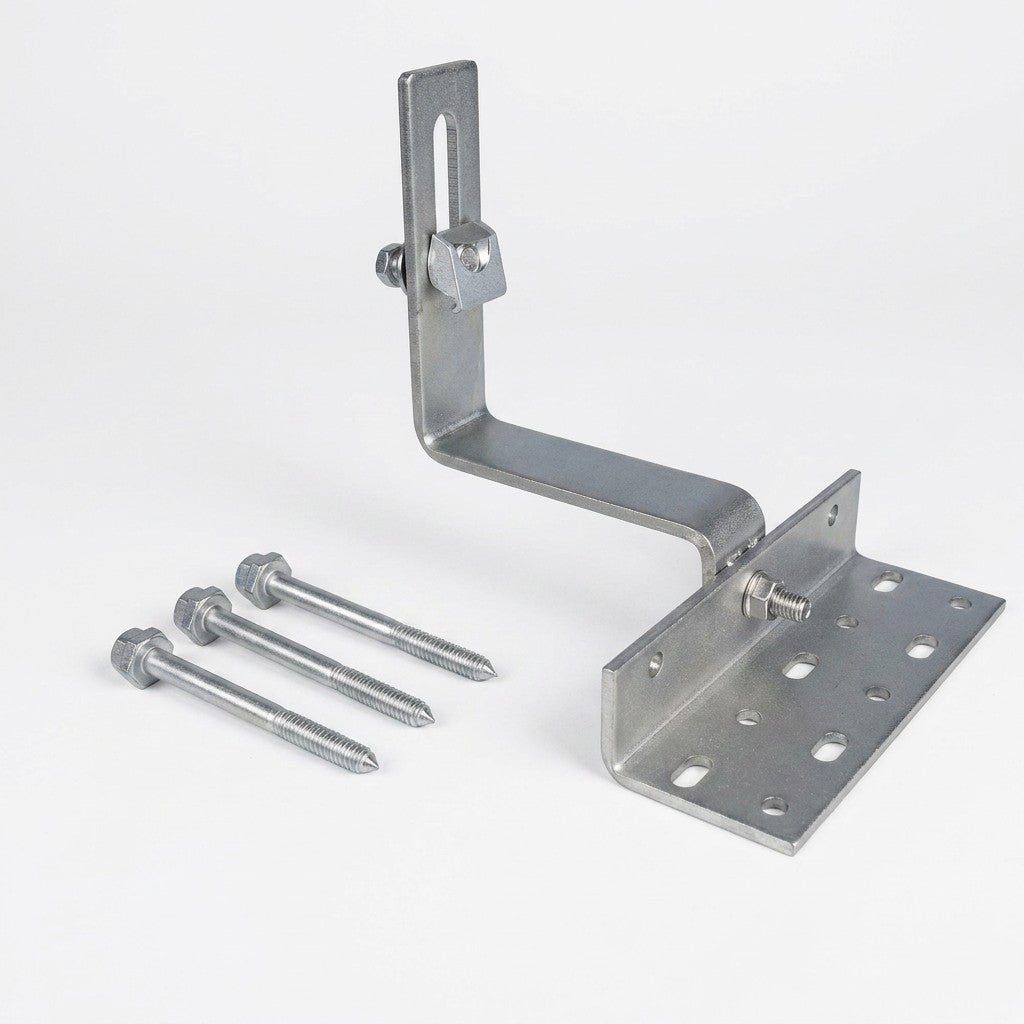

The Fastensol Portrait Concrete Tile Adjustable Hook — TH05 is a stainless steel roof hook with adjustable height and lateral positioning, designed for mounting solar panel rails in portrait orientation on pan tiles, large flat tiles, and concrete interlocking tiles. The adjustability makes it particularly well suited to uneven roofs or roofs with varying tile profiles, where a fixed-geometry hook may not seat correctly.
Manufactured from stainless steel, the TH05 mounts directly to the rafters beneath the tile, with its adjustable base compensating for variations in tile thickness, roof alignment, and rafter positioning — helping installers achieve a precise, secure fit without needing to pack or shim the hook manually.
Adjustable
Height & Lateral Fit
Manufacturer Dimensions
Manufacturer dimensions (mm): a 38–50 (adjustable range) · b 101 · c 158–170 (adjustable range) · d 55 · e 140 · f 30 · bracket thickness g 5. These figures define the adjustable range of the hook and should be checked against your specific tile profile before installation.
Professional Installation Required
Installation of Fastensol mounting components must be carried out only by professionally trained installers. It is the installer's responsibility to verify the structural integrity of the roof or substructure the system is fixed to — rotten, rusted, undersized, or excessively spaced rafters are not suitable and installation on such structures will void the warranty.
Key Features
Adjustable Height & Lateral Positioning
The TH05's adjustable base and lateral slots allow flexible positioning to accommodate uneven roofs, varying tile thickness, and inconsistent rafter spacing — reducing the need for manual packing or shimming.
Suitable for a Wide Range of Concrete Tiles
Compatible with pan tiles, large flat tiles, and concrete interlocking tiles, making it a versatile choice where the exact tile profile varies across a roof.
Corrosion-Resistant Stainless Steel
Built from stainless steel throughout for long-term structural reliability in exposed rooftop conditions.
Direct Rafter Fixing
Mounts directly to the rafter beneath the roof tiles, maintaining a solid structural load path independent of the tile itself.
Portrait Orientation Support
Designed specifically for solar arrays mounted with panels in portrait orientation, positioning the mounting rail correctly for this layout.
Installer-Friendly Adjustable Structure
The adjustable design minimises on-site fitting time on challenging or uneven tile layouts, making it a practical choice for professional solar mounting teams.
Technical Specifications
Identification
Product Code
TH05 / F-TH05
Manufacturer
Xiamen Fasten Solar Technology Co., Ltd (Fastensol)
Tile Compatibility
Suitable Tile Types
Pan tiles, large flat tiles, and concrete interlocking tiles
Material & Construction
Adjustability
Height and lateral position adjustable
Dimension a (adjustable)
38–50 mm
Dimension c (adjustable)
158–170 mm
Bracket Thickness (g)
5 mm
Fixings
Wood screws, ST6.3×80 (2 minimum, included)
System Ratings
Maximum Building Height
20 m
Packaging & Warranty
Package Detail
Boxes of 10, cartons of 40
Product Warranty
12 years material · 5 years finish
Frequently Asked Questions
What makes the TH05 different from the fixed TH01/TH06 hooks?
The TH05 has an adjustable base with height and lateral positioning, allowing it to accommodate a wider range of tile profiles and roof irregularities than a fixed-geometry hook like the TH01 or TH06. This makes it especially useful on uneven roofs or where tile thickness varies.
What tile types is the TH05 suitable for?
The TH05 is suitable for pan tiles, large flat tiles, and concrete interlocking tiles. For slate roofs, use the TH04 (portrait) or TH04A (landscape) instead.
How is the TH05 fixed to the roof?
The TH05 mounts directly to the rafter using a minimum of 2 wood screws (ST6.3×80), included with the hook. Locate and mark the rafter position, adjust the arm-base bolts as needed, drill pilot holes, then fix the hook before replacing the tiles around it.
How many TH05 hooks come per box?
The TH05 is supplied in boxes of 10 and larger cartons of 40, with pricing typically quoted per individual hook.
Can I use this with mounting rails or clamps from another brand?
No. Fastensol components are engineered as a matched system, and mixing Fastensol hardware with mounting equipment from other suppliers is not supported and will void the warranty. Always use genuine Fastensol rails, clamps, hooks and splices together as a complete system.
What warranty does this product carry?
Fastensol backs this product with a 12-year product warranty against defects in material and workmanship, plus a 5-year finish warranty on the anodised coating, from Xiamen Fasten Solar Technology Co., Ltd. The finish warranty is void if the component is not cleaned and maintained in line with AAMA 609 & 610-02 guidance for architecturally finished aluminium, and the full warranty is void if the product is modified, installed incorrectly, or mixed with another manufacturer's mounting hardware.
