Fastensol Plug-In Solar Balcony Mounting Kit 2.0 | 15-45° Tilt

Description

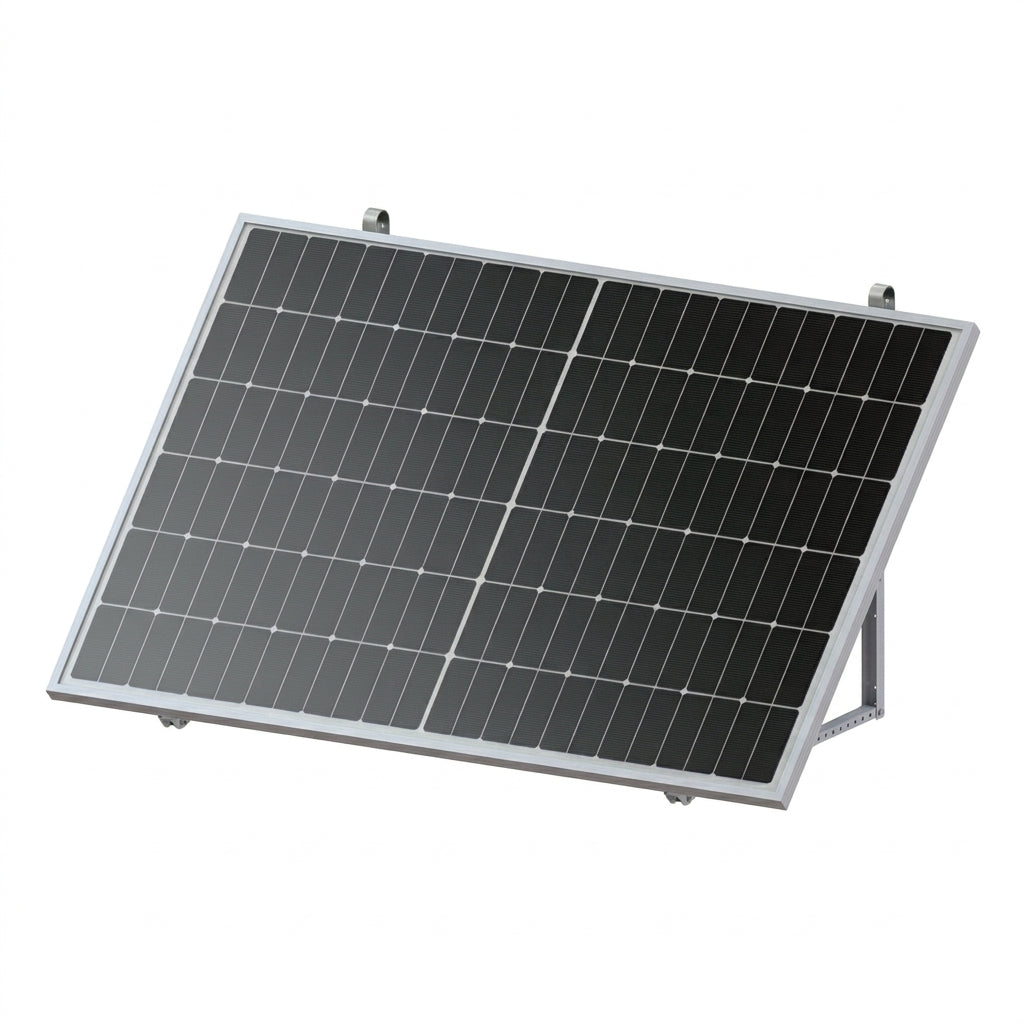

The Fastensol Plug-In Solar Balcony Mounting Kit 2.0 is a lightweight, durable mounting solution that lets you fix framed solar modules directly to balcony railings without structural modification. Built from high-strength aluminium alloy profiles with stainless steel fasteners, it offers excellent corrosion resistance and long-term outdoor durability.

Designed for plug-in solar balcony systems using micro-inverters, the kit carries modules up to 1134 mm wide (maximum 2384 × 1134 mm and 35 kg) and gives an adjustable tilt of 15° to 45° to suit the sun path. All hardware comes in one box, including round and square railing hooks, safety wire ropes and M8 expansion bolts, and the same frame can also be fixed to brick or concrete walls. Every kit is covered by a 12-year warranty on the brackets.

15° – 45°

Adjustable tilt angle

35 kg

Max module weight

2384 × 1134 mm

Max module size

72 mm

Max railing diameter

≤ 20 m

Standard install height

12 years

Bracket warranty

Safety: two-person installation

A minimum of two people is required to lift and position the assembled system. Do not attempt installation alone. The safety wire ropes must be connected to the fixing points and the structure checked for stability before support is released. Do not install on damaged balcony structures, unstable railings, in extreme weather or without the proper fixing components.

Compatibility: railings, modules and height

Suitable for framed modules only, up to 2384 × 1134 mm and 35 kg. Railings must be square or round up to 72 mm diameter, structurally stable, with no visible corrosion, cracks or deformation. Hollow bricks, plasterboard, external thermal insulation walls, hollow tiled walls and lightweight partition panels are forbidden mounting surfaces. Above 15 m, project-specific wind verification is required; buildings over 20 m, exposed coastal sites, tall isolated structures and high wind exposure sites need additional engineering verification.

Not included in the kit

The kit supplies the mounting structure and fixings only. Solar modules and the micro-inverter are supplied separately, and the system is connected and activated following the micro-inverter manufacturer's instructions.

Key features

No structural modification

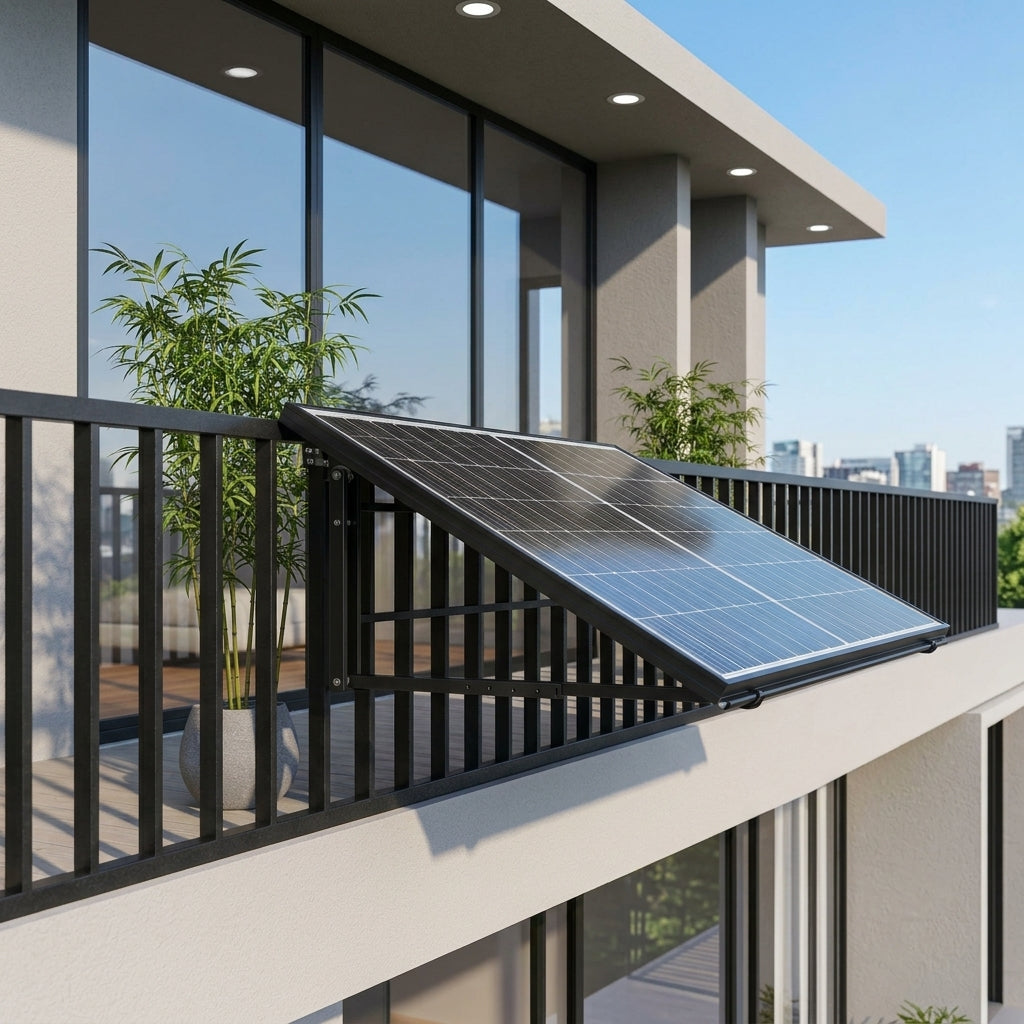

Hooks clamp onto square and round railings up to 72 mm, with safety wire ropes as a secondary fixing.

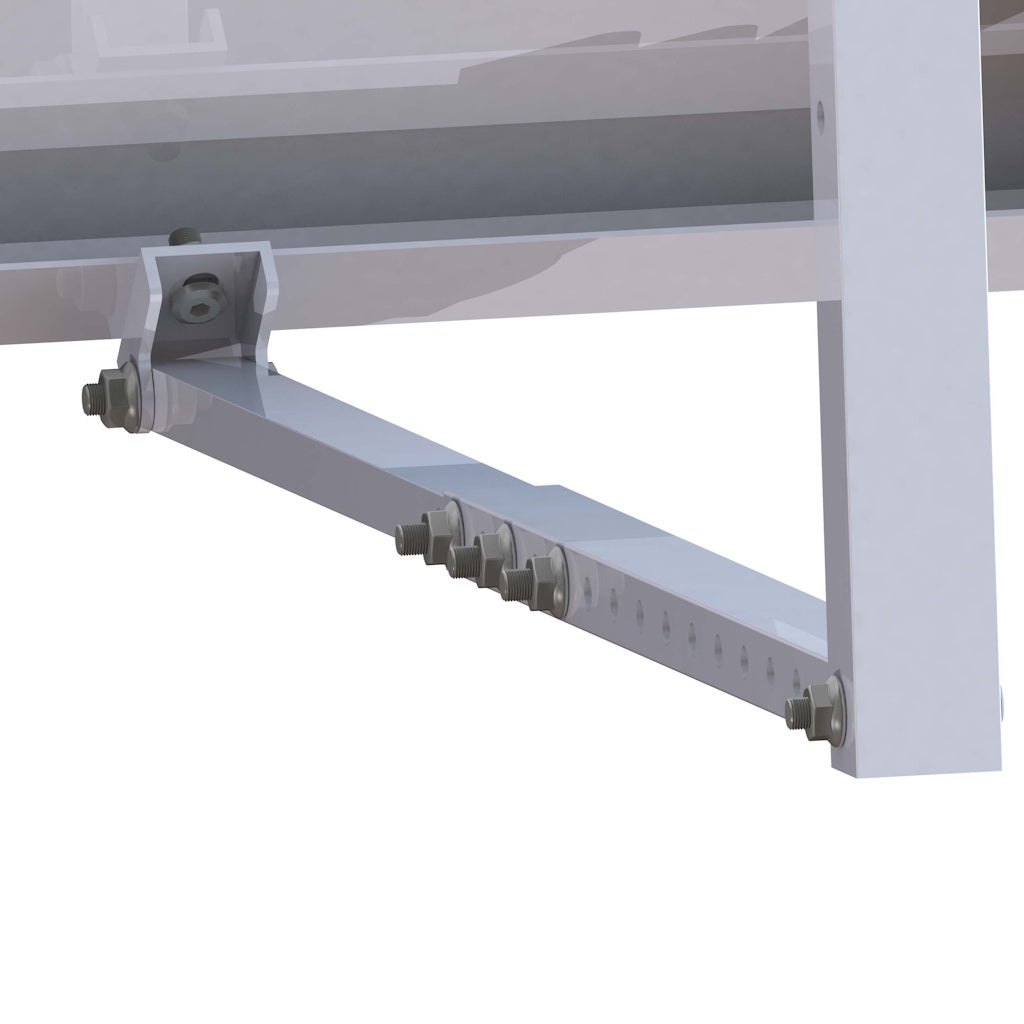

Adjustable 15–45° tilt

Set the angle of incline between 15° and 45° to improve sun exposure and energy yield.

Everything in one box

All hardware included for a quick, efficient install: brackets, cross beams, blocks, bolts, hooks, ropes and expansion bolts.

Corrosion resistant

High-strength aluminium alloy profiles with stainless steel fasteners for long-term outdoor durability.

Balcony, wall and ground

Designed for balcony, wall and ground photovoltaic applications, with 4 × M8×80 expansion bolts included for wall fixing.

Micro-inverter ready

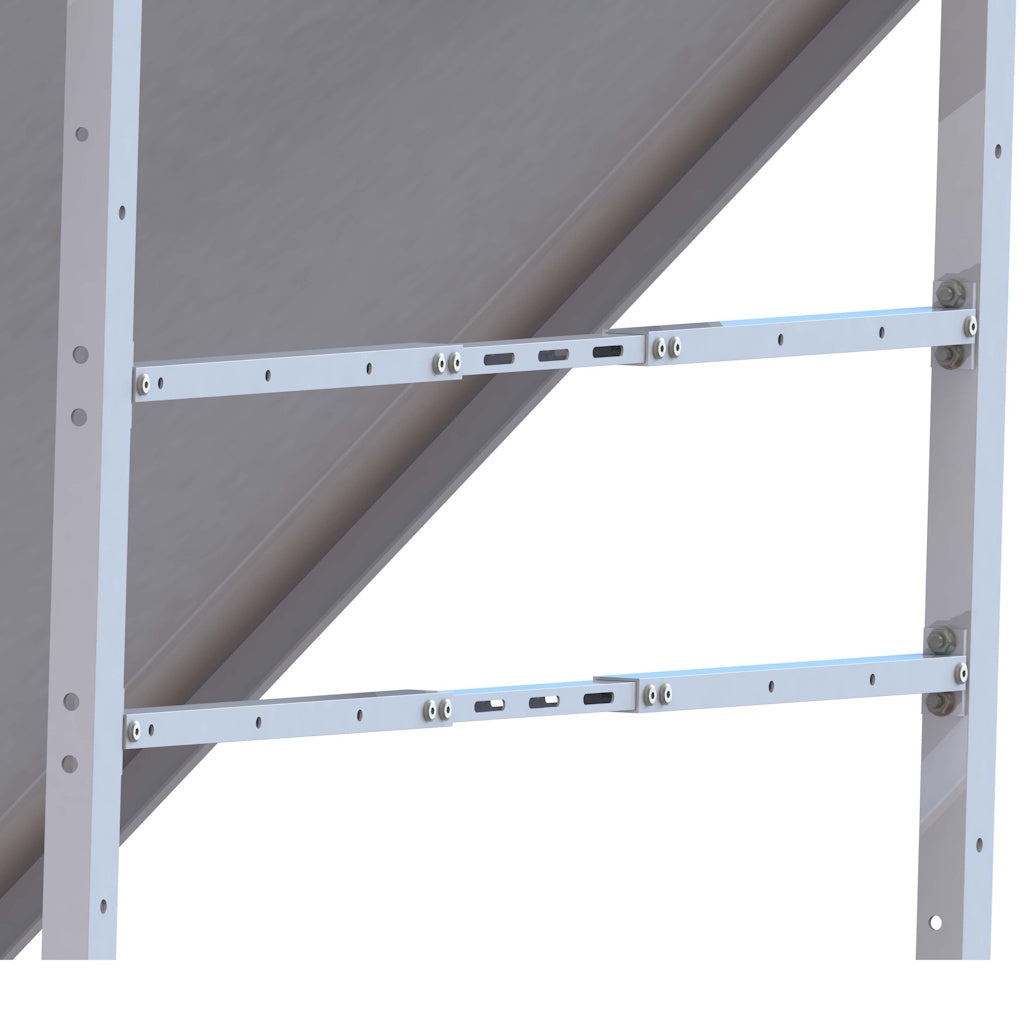

Adjustable cross-beam fixing positions let you mount the micro-inverter alongside the module.

Technical specifications

General

Brand

Fastensol

Product

Plug-In Solar Balcony Mounting Kit 2.0

Materials

High-strength aluminium alloy profiles, stainless steel fasteners

Adjustable tilt angle

15° to 45°

Suitable for

Solar modules and micro-inverters

Warranty

12 years on brackets

Module compatibility

Module type

Mainstream framed solar modules

Maximum module size

2384 × 1134 mm

Maximum module width

1134 mm

Maximum module weight

35 kg

Mounting surfaces

Balcony railings

Square or round, maximum diameter 72 mm

Railing condition

Stable structure, no visible corrosion, cracks or deformation

Recommended railings

Steel, aluminium, concrete balcony structure

Walls

Brick walls, concrete walls, other structurally approved surfaces

Forbidden surfaces

Hollow bricks, plasterboard, external thermal insulation walls, hollow tiled walls, lightweight partition panels

Installation height

Standard

20 m or less

Recommended

15 m or less

Above 15 m

Project-specific wind verification required

Kit contents

Brackets

2

Cross beams

4 (2 × beam a, 2 × beam b)

Blocks

2

Hex socket cap screws M6×12

8

Hex socket cap screws and nuts M6×40

8, plus 2 with flat washers

Hex socket cap screws and nuts M8×20

8

Hex socket cap screws and nuts M8×45

8

Hex socket cap screws and nuts M8×55

2

Hex socket cap screws and nuts M8×95

2

Expansion bolts M8×80

4

Hooks

2 round, 2 square

Safety wire ropes

2

Wrench

1 allen / open-end wrench

Frequently asked questions

Does the kit include solar panels or a micro-inverter?

No. The kit is the mounting structure and fixings only. The panel and micro-inverter are bought separately; the mounting kit is designed to carry both.

What railings will it fit?

Square and round balcony railings up to 72 mm in diameter. Steel and aluminium railings and concrete balcony structures are recommended. The railing must be stable with no visible corrosion, cracks or deformation. Choose the round or square hooks to match your railing profile.

Can I fix it to a wall instead of a balcony?

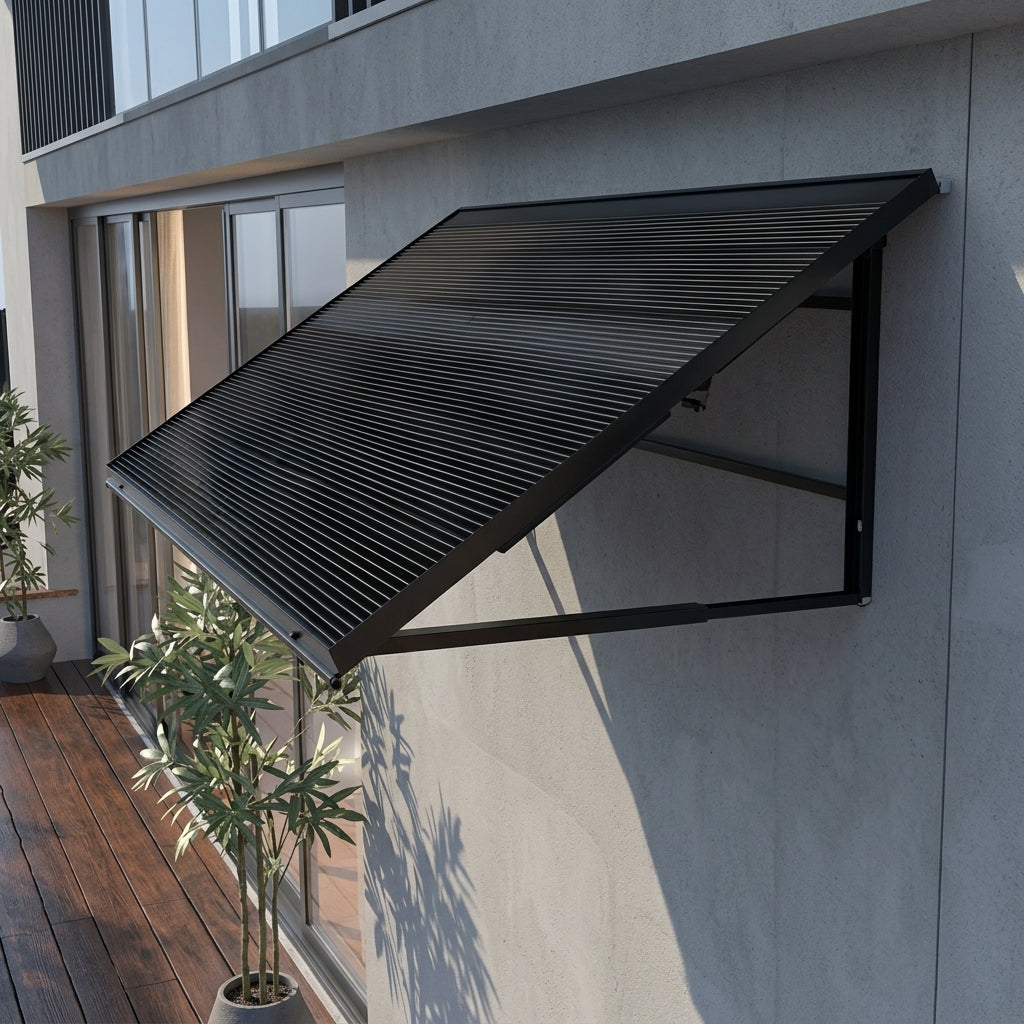

Yes. The kit can be fixed to brick and concrete walls using the supplied M8×80 expansion bolts (drill 80 mm deep with an M8 bit and clean out the holes). Hollow bricks, plasterboard, external insulation walls, hollow tiled walls and lightweight partitions must not be used.

What size and weight of module can it carry?

Mainstream framed modules up to 2384 × 1134 mm and 35 kg. If your module is wider than 1134 mm it is outside the kit's rated range.

How high can it be installed?

Standard installation is up to 20 m, with 15 m or less recommended. Above 15 m, project-specific wind verification is required. Buildings over 20 m, exposed coastal sites, tall isolated structures and high-wind sites need additional engineering verification.

What tools do I need to install it?

An open-end spanner (supplied), an M6/M8 hex key set, torque wrench, dual-bubble spirit level, tape measure and marker pen. Wall installs also need a light-duty hammer drill and M8 drill bit. Two people are required for lifting and positioning.

What is covered by the warranty, and how should I maintain it?

The brackets carry a 12-year warranty covering free replacement of components with material cracking, anodising delamination or factory defects under compliant installation and normal use. Inspect every 12 months (bolt tightness, aluminium corrosion, safety wire condition, module fixing) and immediately after storms, heavy snow or strong wind.
