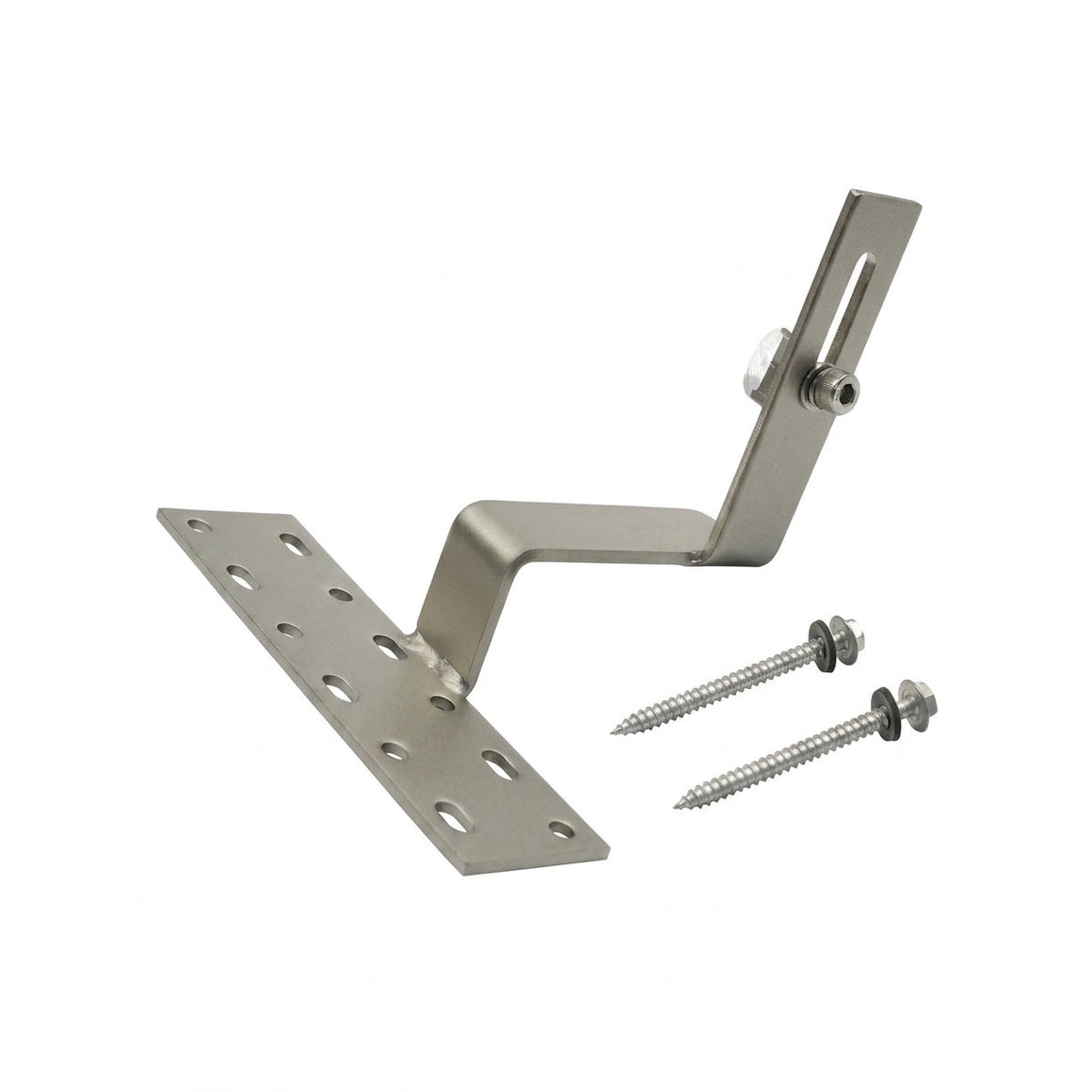

The Fastensol Pan Tile Roof Hook (Landscape) — TH06 is a substantial stainless steel bracket used to secure Fastensol mounting rails to the roof structure beneath pan tile and concrete tile roof coverings, for solar arrays in landscape orientation. It provides a robust, direct connection from the rail system down into the rafters.
As with the rest of the Fastensol tile hook range, a few tiles are removed from the roof at the marked positions and the hook is secured to a rafter pointing 'downhill' using the tek screws provided. Plywood padding can be used to achieve correct spacing from the tile surface, and the tiles are then simply replaced around the hook for a weatherproof finish.
Installation Method
To fit, a few tiles are removed from the outside of the roof and the hook is secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are then simply replaced around the hook, ensuring a weatherproof finish.
Professional Installation Required
Installation of Fastensol mounting components must be carried out only by professionally trained installers. It is the installer's responsibility to verify the structural integrity of the roof or substructure the system is fixed to — rotten, rusted, undersized, or excessively spaced rafters are not suitable and installation on such structures will void the warranty.
Key Features
Purpose-Built for Pan & Concrete Tiles
Specifically shaped to sit correctly beneath pan tile and concrete tile roof coverings — one of the most common UK residential roofing types.

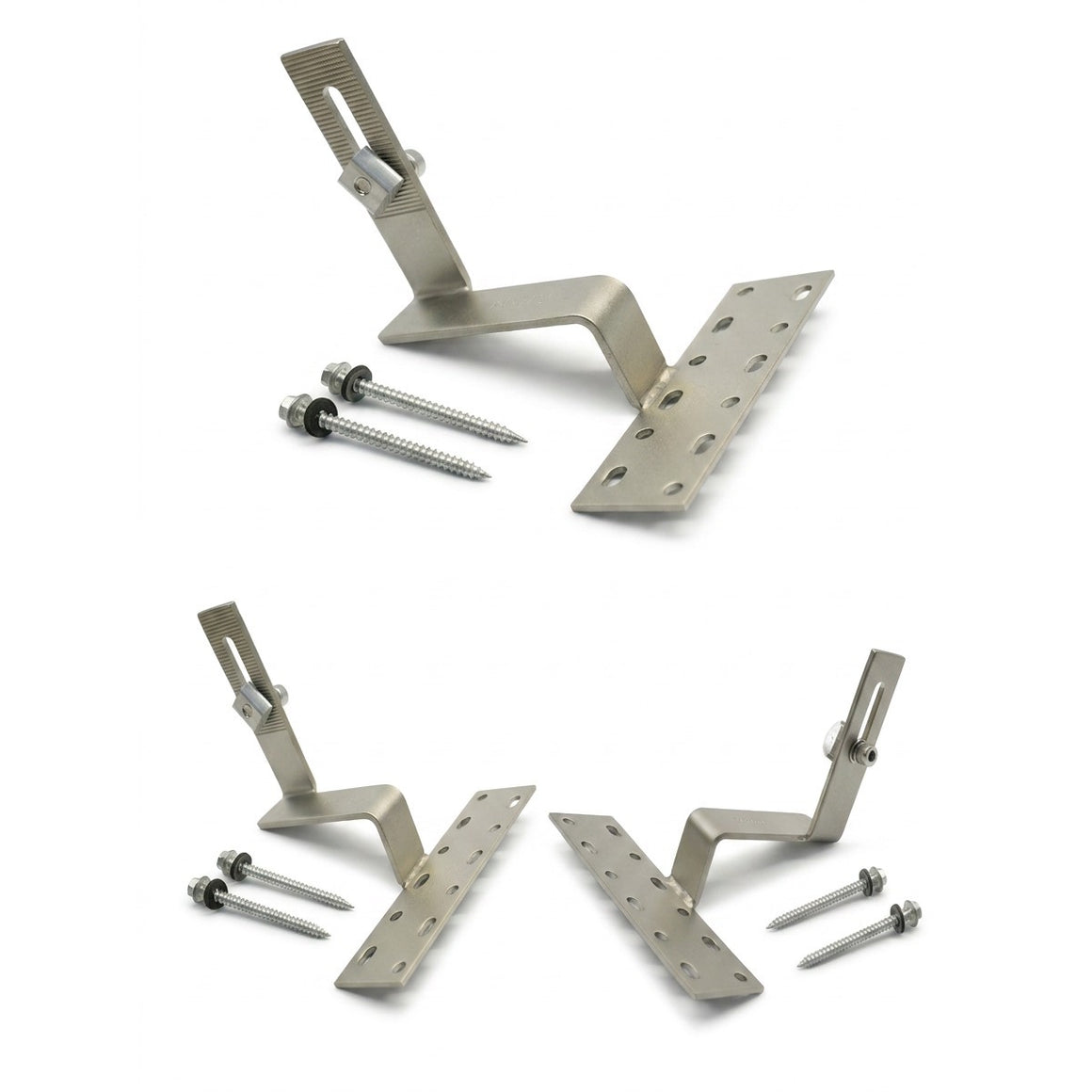

Substantial Stainless Steel Construction
Built as a substantial stainless steel bracket for reliable long-term structural performance, resisting corrosion across the full warranty period.
Direct Rafter Fixing
Secures directly to the rafter using the tek screws provided, giving wind and snow loads a clear structural path down into the roof timbers.
Landscape Orientation Support
Designed specifically for arrays mounted with panels in landscape orientation, positioning the mounting rail correctly for this layout on pan tile roofs.
Weatherproof, Tile-Concealed Fit
Once installed, the surrounding tiles are replaced over the hook body, keeping the fixing largely concealed and the roof line weathertight.
MCS 012 Certified System
Part of the MCS 012-certified Fastensol pitched roof mounting system, supporting compliant UK grid-connected solar installations.
Technical Specifications
Identification
Product Code
TH06 / F-TH06
Manufacturer
Xiamen Fasten Solar Technology Co., Ltd (Fastensol)
Tile Compatibility
Suitable Tile Types
Pan tile and concrete tile
Not Suitable For
Flat/plain/rosemary tile (use TH02A), slate (use TH04A), or adjustable concrete interlocking tile (use TH05)
Material & Construction
Fixings
Tek screws (provided)
System Ratings
Maximum Building Height
20 m
Warranty
Product Warranty
12 years material · 5 years finish
Frequently Asked Questions
Which tile types is the TH06 hook suitable for?
The TH06 is designed for pan tile and concrete tile roof coverings. For flat, plain or rosemary tiles use the TH02A; for slate roofs use the TH04A; and for adjustable concrete interlocking tiles use the TH05.
What is the difference between TH01 and TH06?
Both are suitable for pan tile / concrete tile roofs, but TH01 is the portrait orientation version, while TH06 is the landscape orientation version — choose based on how your solar panels will be mounted.
How is the TH06 roof hook installed?
A few tiles are removed at the marked fixing positions, and the hook is secured directly to the rafter pointing downhill using the tek screws provided. Plywood padding can be used to set correct spacing before the tiles are replaced around the hook.
How far apart should roof hooks be spaced?
Per Fastensol's installation guidance, roof hooks should be positioned at intervals of no more than 1.2 metres along each rail run to keep the system within its designed load limits.
Can I use this with mounting rails or clamps from another brand?
No. Fastensol components are engineered as a matched system, and mixing Fastensol hardware with mounting equipment from other suppliers is not supported and will void the warranty. Always use genuine Fastensol rails, clamps, hooks and splices together as a complete system.
What warranty does this product carry?
Fastensol backs this product with a 12-year product warranty against defects in material and workmanship, plus a 5-year finish warranty on the anodised coating, from Xiamen Fasten Solar Technology Co., Ltd. The finish warranty is void if the component is not cleaned and maintained in line with AAMA 609 & 610-02 guidance for architecturally finished aluminium, and the full warranty is void if the product is modified, installed incorrectly, or mixed with another manufacturer's mounting hardware.
