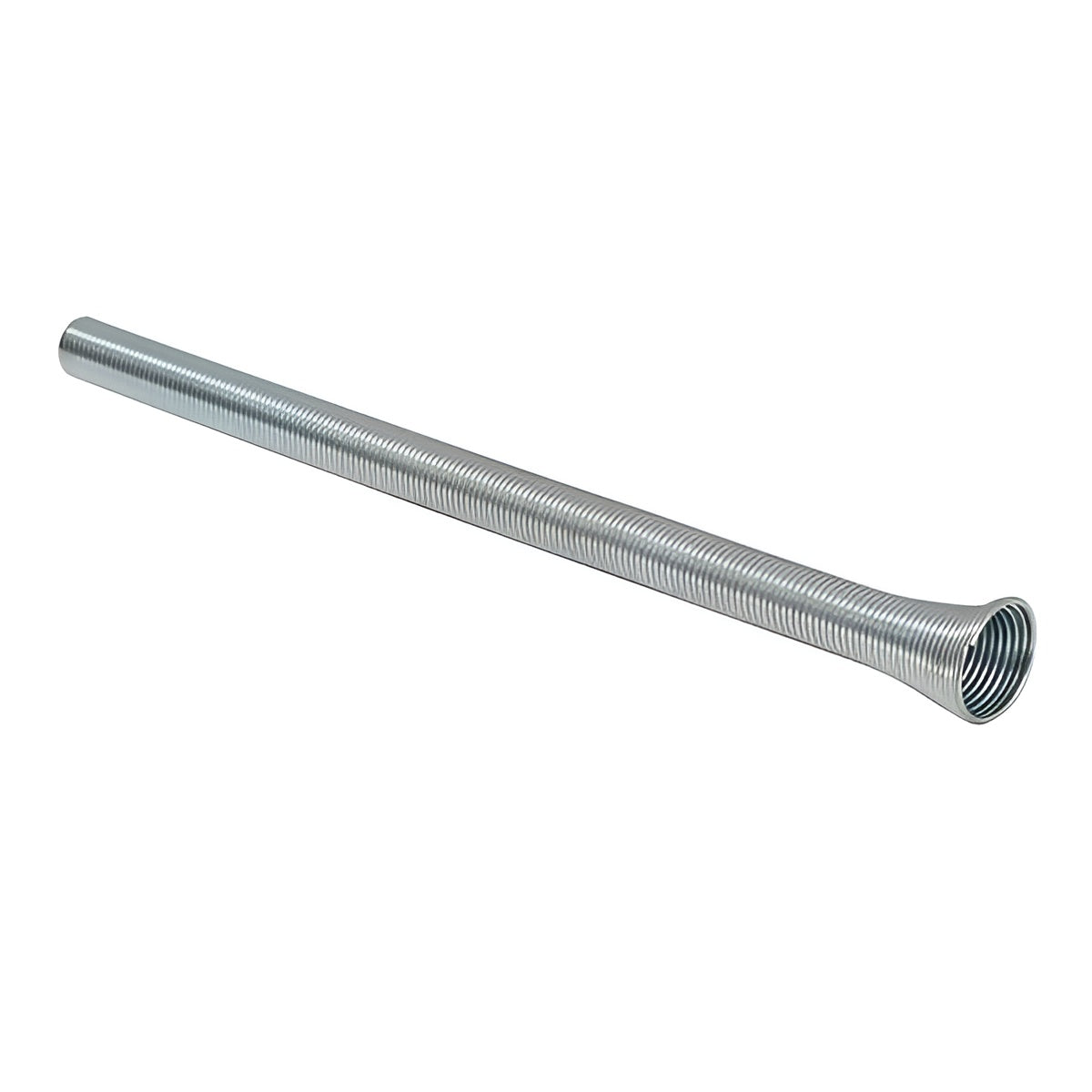

External Pipe Bending Spring 16, 20, 25 & 32mm | Kink-Free Bends

Description

The External Pipe Bending Spring is a spring that slides over the outside of the pipe to support it while you bend it by hand, helping to prevent kinking and flattening at the bend. It is available for 16mm, 20mm, 25mm and 32mm pipe.

Push the spring over the pipe to the point where the bend is needed, form the bend, then withdraw the spring. Bends can be made without a bending machine, directly on site.

16mm

Pipe size

20mm

Pipe size

25mm

Pipe size

32mm

Pipe size

External

Fits over the pipe

Manual

Hand bending

Respect the pipe's minimum bend radius

Never bend pipe tighter than the minimum bend radius stated by the pipe manufacturer. Inspect the pipe after bending, and if the surface is kinked, flattened or scored, cut out the damaged section rather than using it.

Choose the size that matches your pipe

Order the spring for the pipe outside diameter you are bending: 16mm spring for 16mm pipe, 20mm for 20mm, 25mm for 25mm and 32mm for 32mm.

Key features

Fits over the pipe

An external spring that is pushed over the pipe, so it supports the outside wall during bending.

Helps prevent kinks

Supports the pipe to help prevent kinking and flattening at the bend.

Bend where you need it

Slide to the exact bend position, bend, then withdraw.

Four sizes

Available for 16mm, 20mm, 25mm and 32mm pipe.

Variants

Pipe size

Spring type

Use

16mm

External bending spring

Manual bending of 16mm pipe

20mm

External bending spring

Manual bending of 20mm pipe

25mm

External bending spring

Manual bending of 25mm pipe

32mm

External bending spring

Manual bending of 32mm pipe

Technical specification

Spring

Product type

External pipe bending spring

Pipe sizes

16mm, 20mm, 25mm or 32mm, selected by variant

Fitting method

Slides over the outside of the pipe

Application

Manual bending of pipe

Frequently asked questions

How do I use an external bending spring?

Slide the spring over the pipe to the bend position, form the bend by hand, then pull the spring back off the pipe.

What does the spring do?

It supports the pipe wall during bending to help prevent kinking and flattening.

Which pipe sizes are available?

16mm, 20mm, 25mm and 32mm. Select the spring that matches your pipe outside diameter.

What is the difference between external and internal springs?

An external spring slides over the outside of the pipe. An internal spring is inserted inside the pipe. This product is the external type.

How tight can I bend the pipe?

Never bend tighter than the minimum bend radius given by the pipe manufacturer.
