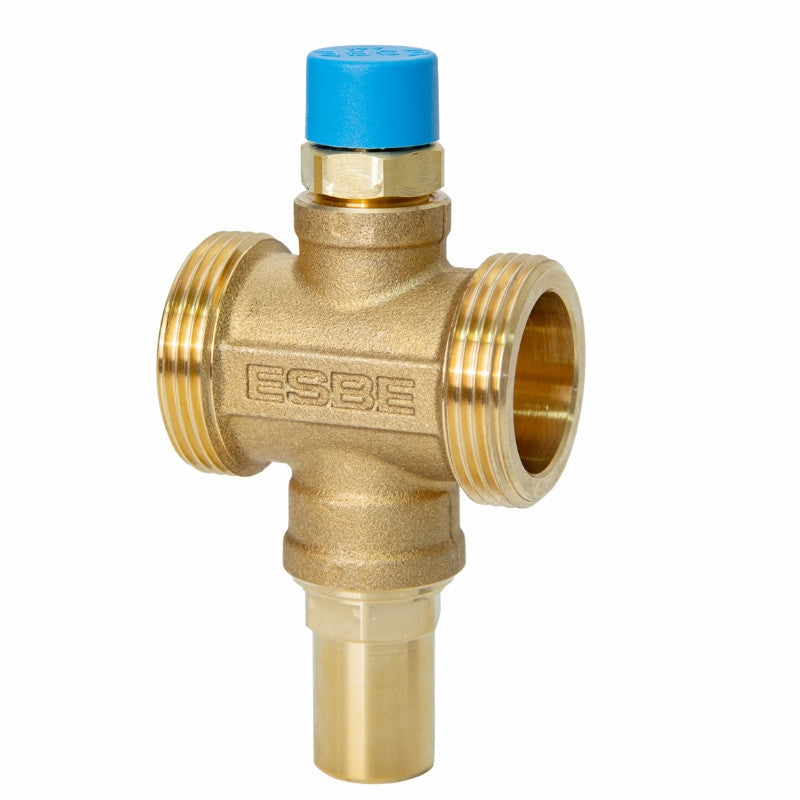

ESBE VTN102 DN32 Anti Freeze Valve - G-1 1/4" External Thread
Regular price
£97.30
Inc. VAT
£81.08
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
The ESBE VTN102 DN32 anti freeze valve is designed to help protect monobloc air to water heat pumps and associated plate heat exchangers from frost damage during cold weather and power interruptions. It automatically discharges cold heating water when the medium temperature falls below approximately 3°C, allowing warmer water to enter the system. Once the temperature rises to approximately 4°C, the valve closes again.
With a robust brass valve body, stainless steel spring and EPDM O-ring, this maintenance free valve provides reliable frost protection for domestic and light commercial heating installations. The DN32 version features G1 1/4" external thread connections and is suitable for heating water systems operating within the specified temperature and pressure limits.
Key Features
Automatic frost protection
Helps reduce the risk of freezing damage to monobloc heat pumps and plate heat exchangers.
Helps reduce the risk of freezing damage to monobloc heat pumps and plate heat exchangers.
Temperature controlled operation
Opens at approximately 3°C and closes again at approximately 4°C.
Opens at approximately 3°C and closes again at approximately 4°C.
DN32 connection size
Supplied with G1 1/4" external thread connections for compatible heating systems.
Supplied with G1 1/4" external thread connections for compatible heating systems.
Durable construction
Brass valve body, EPDM sealing ring and stainless steel spring for dependable service.
Brass valve body, EPDM sealing ring and stainless steel spring for dependable service.
No electrical supply required
Operates automatically through the temperature of the heating medium.
Operates automatically through the temperature of the heating medium.
Suitable for heating water
Intended for heating water systems in accordance with VDI 2035.
Intended for heating water systems in accordance with VDI 2035.
Technical Specifications
| Brand | ESBE |
|---|---|
| Product series | VTN100 |
| Model | VTN102 |
| Nominal diameter | DN32 |
| Connection | G1 1/4" external thread |
| Connection standard | ISO 228/1 B |
| Pressure class | PN10 |
| Maximum working pressure | 10 bar |
| Working temperature range | 0°C to 90°C |
| Ambient temperature range | -30°C to 60°C |
| Opening temperature | 3°C ±1°C |
| Closing temperature | 4°C ±1°C |
| Maximum discharge flow rate | 2 litres per minute at 1°C and 3 bar |
| Kvs value | 0.07 m³/h at 1°C |
| Valve body material | Brass |
| O-ring material | EPDM |
| Spring material | Stainless steel |
| Dimensions | A: 62 mm, B: 123 mm, C: 70 mm |
| Product weight | 0.42 kg |
| Heating medium | Heating water in accordance with VDI 2035 |
| Conformity | PED 2014/68/EU, Article 4.3 |
| Manufacturer article number | 35100200 |
| EAN | 7330193060851 |
Suitable Applications
Monobloc air to water heat pumps
Install as part of a compatible heating circuit to help protect external pipework, the heat pump and the plate heat exchanger from freezing conditions.
Install as part of a compatible heating circuit to help protect external pipework, the heat pump and the plate heat exchanger from freezing conditions.
Cold weather heating systems
Provides automatic temperature responsive protection where low outdoor temperatures could cause water in the system to freeze.
Provides automatic temperature responsive protection where low outdoor temperatures could cause water in the system to freeze.
Domestic and light commercial installations
Suitable for use by homeowners, heating engineers and trade professionals working with compatible PN10 heating water systems.
Suitable for use by homeowners, heating engineers and trade professionals working with compatible PN10 heating water systems.
Installation Information
The ESBE VTN102 DN32 valve should be installed in accordance with the manufacturer’s installation instructions and the requirements of the heating system. Check the connection size, system pressure, operating temperatures and installation position before fitting. This product is intended for use with compatible heating water systems and is not a substitute for correct system design, insulation or frost protection measures.
