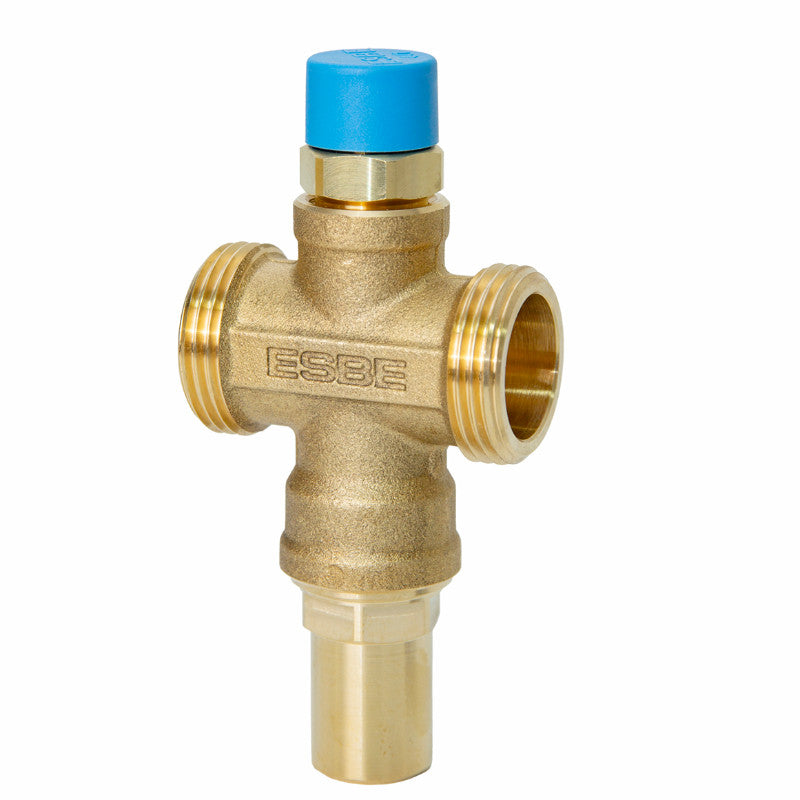

ESBE VTN102 DN25 Anti Freeze Valve - G 1" External Thread

Description

The ESBE VTN102 DN25 anti freeze valve provides automatic frost protection for air to water monobloc heat pump systems. It helps protect the heat pump and plate heat exchanger from freezing damage during cold weather or a power interruption by releasing cold water from the circuit before it can freeze.

When the water temperature falls below approximately 3°C, the valve opens to discharge cold water and allow warmer water to enter the system. It closes again when the temperature reaches approximately 4°C. With a robust brass body, EPDM sealing and maintenance free operation, the ESBE VTN102 is a dependable choice for both domestic and trade heating installations.

Key Features and Benefits

Automatic Frost Protection

Helps prevent freezing damage to monobloc heat pumps and plate heat exchangers.

Temperature Responsive Operation

Opens at approximately 3°C and closes again at approximately 4°C to regulate frost protection automatically.

Strong Brass Construction

Made with a durable brass valve body for reliable use in heating and hydronic systems.

Simple System Integration

Features a DN25 size with a G 1" external thread connection for compatible pipework.

Maintenance Free Design

Designed for automatic operation without electrical power or routine manual adjustment.

Compact and Versatile

Suitable for vertical installation within an angle of ±45°, subject to the manufacturer’s installation guidance.

Technical Specifications

Brand	ESBE
Product Series	VTN100
Model	VTN102
Product Type	Anti freeze valve
Application	Air to water monobloc heat pump systems
Nominal Diameter	DN25
Connection	G 1" external thread
Connection Standard	ISO 228/1 B
Maximum Working Pressure	10 bar / 1.0 MPa
Pressure Class	PN10
Working Temperature Range	0°C to 90°C
Ambient Temperature Range	-30°C to 60°C
Opening Temperature	3°C ±1°C
Closing Temperature	Approximately 4°C
Maximum Discharge Flow	2 litres per minute at 1°C and 3 bar differential pressure
Valve Body Material	Brass
O-Ring Material	EPDM
Spring Material	Stainless steel
Dimensions A × B × C	58 × 123 × 73 mm
Weight	0.35 kg
Manufacturer Product Code	35100100
EAN	7330193060844
Conformity	PED 2014/68/EU, Article 4.3

Recommended Uses

Monobloc Heat Pump Installations

Use the valve on compatible outdoor heating circuits to help reduce the risk of frost related damage.

Domestic Heating Systems

A practical frost protection component for homeowners seeking additional protection for an external heat pump system.

Professional Heating and Plumbing Work

Suitable for installers, heating engineers and trade professionals working with compatible DN25 hydronic pipework.

Installation Note

Installation should be completed by a suitably qualified heating professional in accordance with the manufacturer’s instructions. Confirm the valve size, connection type, system design and discharge arrangements before installation.
