ESBE VRI111 Insulation Shell DN32 for VRG and VRB Valves

Description

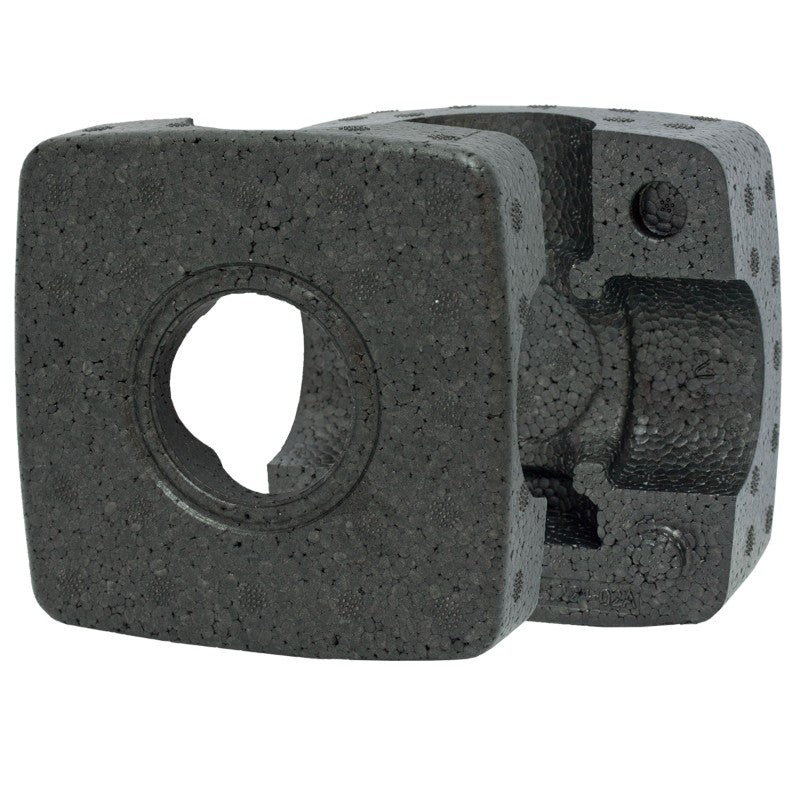

The ESBE VRI111 DN32 insulation shell is designed to provide a close fitting thermal cover for compatible ESBE VRG and VRB rotary valves. Manufactured from lightweight black expanded polypropylene (EPP), it helps reduce heat loss, limit air circulation around the valve and provide additional protection against contact with hot valve surfaces.

The two piece shell features a self locking design, allowing straightforward installation without separate tape, springs or fastening accessories. It is suitable for heating, underfloor heating, solar heating, potable water and ventilation applications where compatible ESBE valves are installed.

Key Features

Reduced Heat Loss

Helps reduce heat losses by up to 65% compared with an uninsulated valve installation.

Made for ESBE Valves

Designed for compatible ESBE VRG100, VRG200, VRG300 and VRB100 rotary valves.

Self Locking Construction

The shell secures around the valve without requiring additional tape, springs or fastening components.

Added Surface Protection

Provides a protective barrier around hot valve surfaces, helping reduce the risk of accidental contact.

Technical Specifications

Brand	ESBE
Product series	VRI100
Product reference	VRI111
Suitable valve size	DN32
Compatible valve series	ESBE VRG100, VRG200, VRG300 and VRB100
Material	Black EPP, 35 g/l
Thermal conductivity	0.035 W/mK
Dimensions	A: 120 mm, B: 120 mm, C: 92 mm, D: 55 mm
Media temperature range	-20°C to +130°C
Ambient temperature range	-20°C to +130°C
Conformity	EnEV 2014
Manufacturer article number	16104000

Recommended Applications

Heating systems: Improve thermal efficiency around compatible rotary mixing valves.

Underfloor heating: Help retain heat around valve assemblies used for floor heating circuits.

Solar heating: Suitable for compatible ESBE valve installations in solar thermal systems.

Ventilation and potable water systems: Provide additional insulation where the compatible ESBE valve and operating temperatures are suitable.
