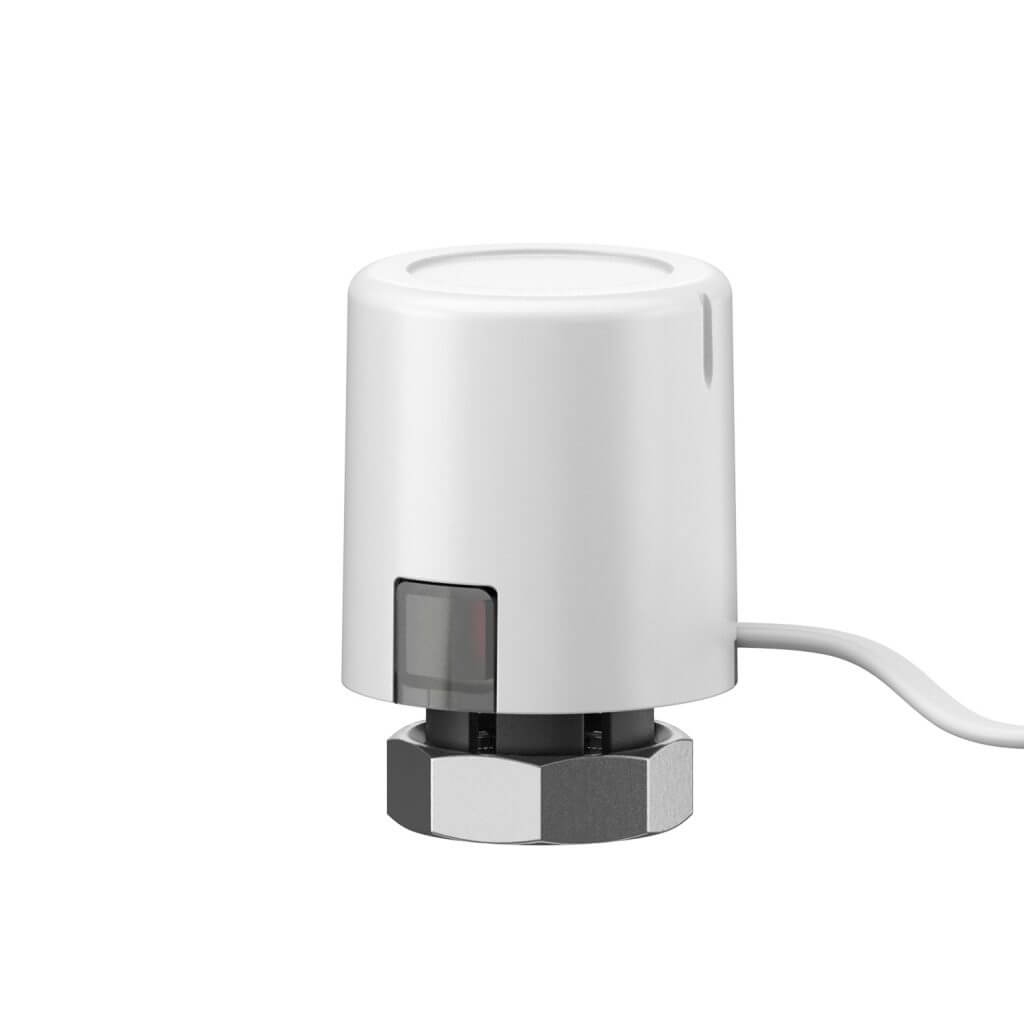

EPH UFH Actuator Head UFH10-RF
The EPH UFH Actuator Head for UFH10-RF is a robust and reliable thermal actuator designed specifically for controlling underfloor heating (UFH) valves in electric heating systems. Engineered for seamless integration with the EPH EC10021 system and UFH wiring centres, this actuator enables precise and automatic control of your underfloor heating zones.
With its compact and durable design, the actuator offers efficient valve operation, contributing to responsive heating control and increased system energy efficiency. It is suitable for residential and commercial applications requiring dependable zone valve management.
Key Features & Benefits
- Designed for direct control of UFH valve actuators within EPH heating control systems
- Compatible with EPH UFH10-RF wiring centres
- Compact size suitable for standard valve mounting
- Reliable thermal motor ensures quiet and smooth operation
- Detachable power cable for easy replacement and installation flexibility
- CE and UKCA certified for compliance with relevant safety and performance standards
- Suitable for use with a maximum of 4 actuators per heating zone
Technical Specifications
| Specification | Details |
|---|---|
| Model Number (MPN) | TA230 |
| Operating Voltage | 230V AC, 50-60 Hz |
| Power Consumption | 3W typical |
| Maximum Stroke | 4.5 mm |
| Spring Pressure | 125 N (Newton) |
| Ambient Temperature Range | 0°C to 50°C |
| Motor Type | Thermal motor (quiet operation) |
| Connection | Detachable power cable for ease of maintenance and installation |
| Maximum Actuators per Zone | Up to 4 actuators |
| Certifications | CE, UKCA |
This UFH actuator head is specifically designed to work within the EPH electric heating control system, providing reliable and efficient valve operation to maintain comfortable temperatures in each heating zone. Its detachable cable and compact design improve ease of installation and serviceability.
Installation Notes: Installation should be undertaken by a qualified heating engineer or electrician. Correct wiring and integration with the UFH wiring centre is essential for optimal performance and safety.
- Type Water Thermostats
- Vendor EPH Controls
- SKU EPH-TA230
