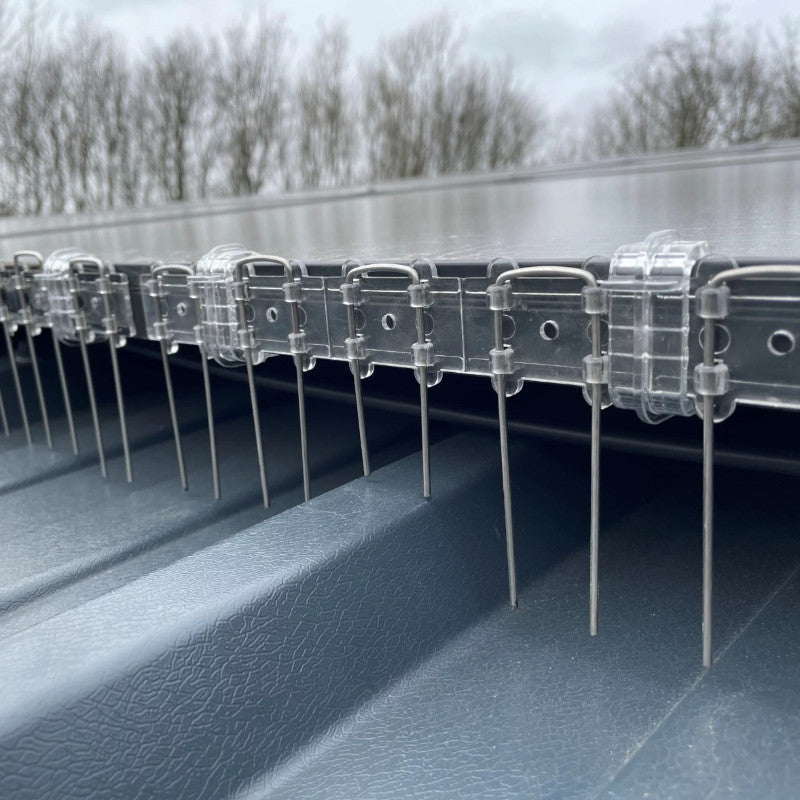

The EnviroGuard 130mm Adjustable Solar Spike (Pack of 50, Clear) is a non-intrusive bird deterrent system designed to stop pigeons and other pests from roosting and nesting underneath solar PV arrays. Each pack contains 50 individual 500mm lengths, giving a total coverage of 25 linear metres — enough to proof a typical domestic or small commercial array perimeter.
Constructed from 304 grade stainless steel pins set into a UV-stabilised clear polycarbonate base, the spikes are adjustable and can be trimmed with wire cutters to leave a neat, straight edge suited to the roof profile. The system requires no drilling into the panel frame, so it will not affect or void any manufacturer solar panel warranty.
130mm
Adjustable Pin Length
25m
Total Coverage (Pack of 50)
304
Stainless Steel Grade
No Drilling
Warranty-Safe Fit
Compatibility
This spike system is designed for solar panels that do not have a lip on the underside of the frame, where traditional bird mesh and standard mounting clips cannot be fitted. It is ideal for uneven roofs and profiled tin-clad roofs where a flexible, individually adjustable spike is needed to follow the roofline.
Fixing Method — Clips Sold Separately
This spike is fixed using EnviroGuard's Solar Panel Speed Clips (sold separately) or with a suitable strong-bond fixing adhesive. EnviroGuard recommends 6 clips per metre (3 clips per 500mm length) for the strongest, most secure fit. Speed clips are available in 30mm and 35mm sizes to suit different panel frame depths.
Key Features
304 Stainless Steel Pins
Pins are manufactured from 304 grade stainless steel with a diameter of approximately 2mm, chosen for long-term corrosion resistance in exposed rooftop conditions.
UV-Stabilised Polycarbonate Base
The clear polycarbonate base is UV-stabilised to resist yellowing and degradation from prolonged sunlight exposure, and can be cut down to size by hand or with heavy-duty cutters where less than a full length is required.
Fully Adjustable, No-Drill Installation
The 130mm pin length can be trimmed with a set of wire cutters to leave a neat, straight edge tailored to the gap under the panel. No drilling into the panel frame is required, so the manufacturer's solar panel warranty is not affected.
Suited to Uneven and Profiled Roofs
Because each spike is individually adjustable, the system follows uneven roof lines and profiled tin-clad roofing far more effectively than rigid mesh systems, giving installers flexibility across varied roof types.
Simple, Removable Fit
Once Speed Clips are fitted, the spike is held securely in place but can be removed at any time by reversing the installation process — useful for panel maintenance, cleaning, or access.
Full Corner and Perimeter Coverage
Spikes should be installed to both internal and external corners of the array with no gaps left in the perimeter, ensuring birds cannot find an unprotected access point underneath the panels.
Technical Specifications
Identification
Product
EnviroGuard Solar Panel Adjustable Spike — 130mm, Clear
Pack Size
50 units (25m total coverage)
Dimensions
Adjustable Pin Length
130mm (before trimming)
Base / Unit Length
500mm per length
Pin Diameter
Approximately 2mm
Total Pack Coverage
25 linear metres (50 × 500mm)
Materials
Pin Material
304 grade stainless steel
Base Material
UV-stabilised polycarbonate
Installation
Fixing Method
EnviroGuard Solar Speed Clips (sold separately) or fixing adhesive
Recommended Clip Density
6 clips per metre (3 per 500mm length)
Compatible Clip Sizes
30mm / 35mm / 40mm (select by panel frame depth)
Drilling Required
None — warranty-safe fit
Adjustability
Trim pins to length with wire cutters; base can be cut/snapped to size
Suitability
Panel Type
Panels without an underside lip (mesh/clip systems will not fit)
Roof Type
Ideal for uneven roofs and profiled tin-clad roofing
Application
Domestic and commercial solar PV bird proofing
Frequently Asked Questions
What is the difference between the Clear and Black versions of this spike?
Both versions share identical dimensions and performance — 130mm adjustable 304 stainless steel pins on a UV-stabilised polycarbonate base. The only difference is the base colour: Clear is more discreet on light-coloured panel frames, while Black blends in better with black-framed panels. Choose whichever best matches your panel frame for the neatest finish.
Do I need the Speed Clips to install this product?
The spike can be fixed either with EnviroGuard's Solar Speed Clips (sold separately) or with a suitable strong-bond fixing adhesive. Speed Clips are the quicker, tool-free option and allow the spike to be removed and refitted for maintenance, so most installers order clips alongside the spike. EnviroGuard recommends 6 clips per metre of spike.
Will this affect my solar panel warranty?
No. The spike system requires no drilling into the panel frame, so it will not affect or void the panel manufacturer's warranty. It is fitted entirely externally using clips or adhesive.
How many packs will I need for my array?
Measure the full perimeter of your solar array in metres, then divide by 25 (the coverage of one pack of 50) to work out how many packs are required. Spikes should run continuously around both internal and external corners with no gaps, so it's worth rounding up slightly to allow for trimming waste at corners and joins.
Is this suitable for panels that have a lip on the underside?
Panels with a lip on the underside are usually better suited to EnviroGuard's traditional mesh and mesh clip bird proofing system. This adjustable spike product is specifically designed for panels without an underside lip, or for uneven and profiled roofs where mesh cannot be tensioned correctly.
