⚠ Installer Requirements
The IQ9N Microinverter must be installed by a competent, suitably qualified electrical installer in accordance with BS 7671 (IET Wiring Regulations) and all applicable local Building Regulations. Grid connection requires notification to the Distribution Network Operator (DNO) under G98 (installations up to 3.68 kW per phase) or G99 (larger installations requiring prior approval). All AC wiring must use Enphase IQ Cabling — third-party AC connectors are not approved. For systems incorporating battery backup, Enphase University certification may be required before commissioning.
⚠ Compatibility Advisory
The IQ9N can be added to an existing IQ7 or IQ8 system on the same IQ Gateway, but IQ7 or IQ8 units cannot be retrofitted to a site already running IQ9N as the primary generation. In a mixed IQ7/IQ8/IQ9N array, the Sunlight Jump Start feature is not available; however, a mixed IQ8 + IQ9N system retains Sunlight Jump Start. The combined peak output of all microinverters must not exceed 150% of the IQ Battery array's rated power (200% for IQ8 + IQ9N mixed systems) when operating with battery backup. Module pairing must be verified using the Enphase Compatibility Calculator at enphase.com — the IQ9N has no enforced DC/AC ratio but the panel's open-circuit voltage and Isc must remain within inverter limits.
ⓘ Why Microinverters?
Unlike a string inverter, where one shaded or underperforming panel reduces the output of the entire array, each IQ9N operates independently — so every module delivers its individual maximum power. This module-level power electronics (MLPE) approach also means the DC voltage on the roof never exceeds 60 V, dramatically reducing fire risk compared to string systems running at 400–1000 V DC. The IQ9N further eliminates the need for a separate rapid shutdown device: rapid shutdown is built in, complying with the highest current safety standards.
High-Power Output for Next-Gen Panels
With a maximum input power of 600 W and a wide DC input range of 18–60 V, the IQ9N is engineered specifically to match today's large-format, high-output PV modules including 66-cell, 72-cell and half-cut designs. There is no enforced DC/AC ratio, giving installers flexibility to pair a wide range of current panel wattages without clipping penalties, subject to compatibility calculator confirmation.
97.44% EU Efficiency & Burst Mode
The IQ9N achieves a 97.44% European weighted efficiency and 97.95% peak inverter efficiency — among the highest in its class. Enphase's patented Burst Mode technology keeps the unit harvesting energy during low-irradiance conditions (early morning, late evening, overcast skies) when conventional inverters would simply cut out, maximising annual yield particularly in the UK climate.

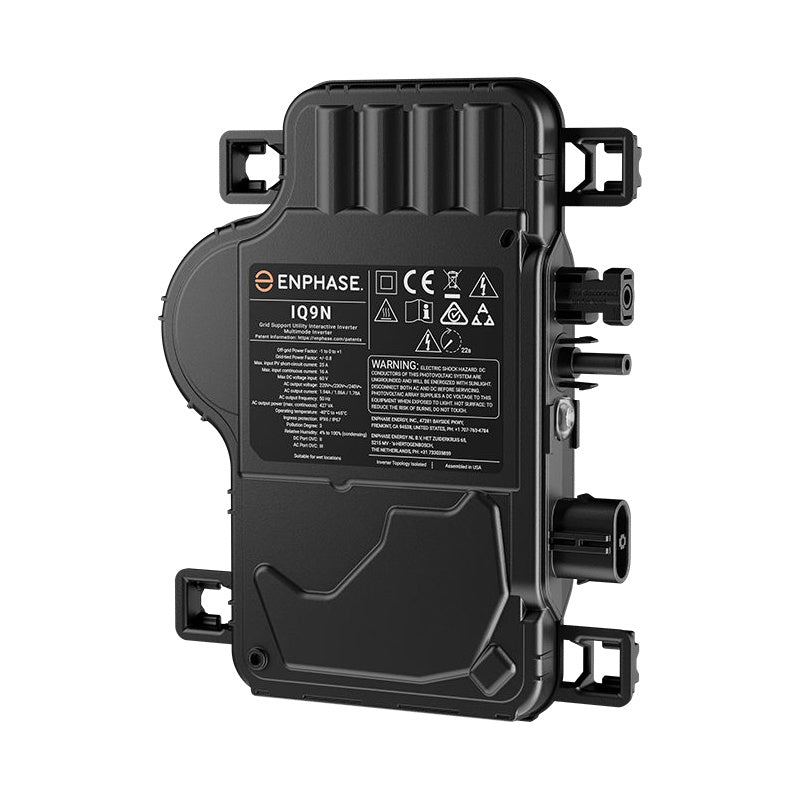

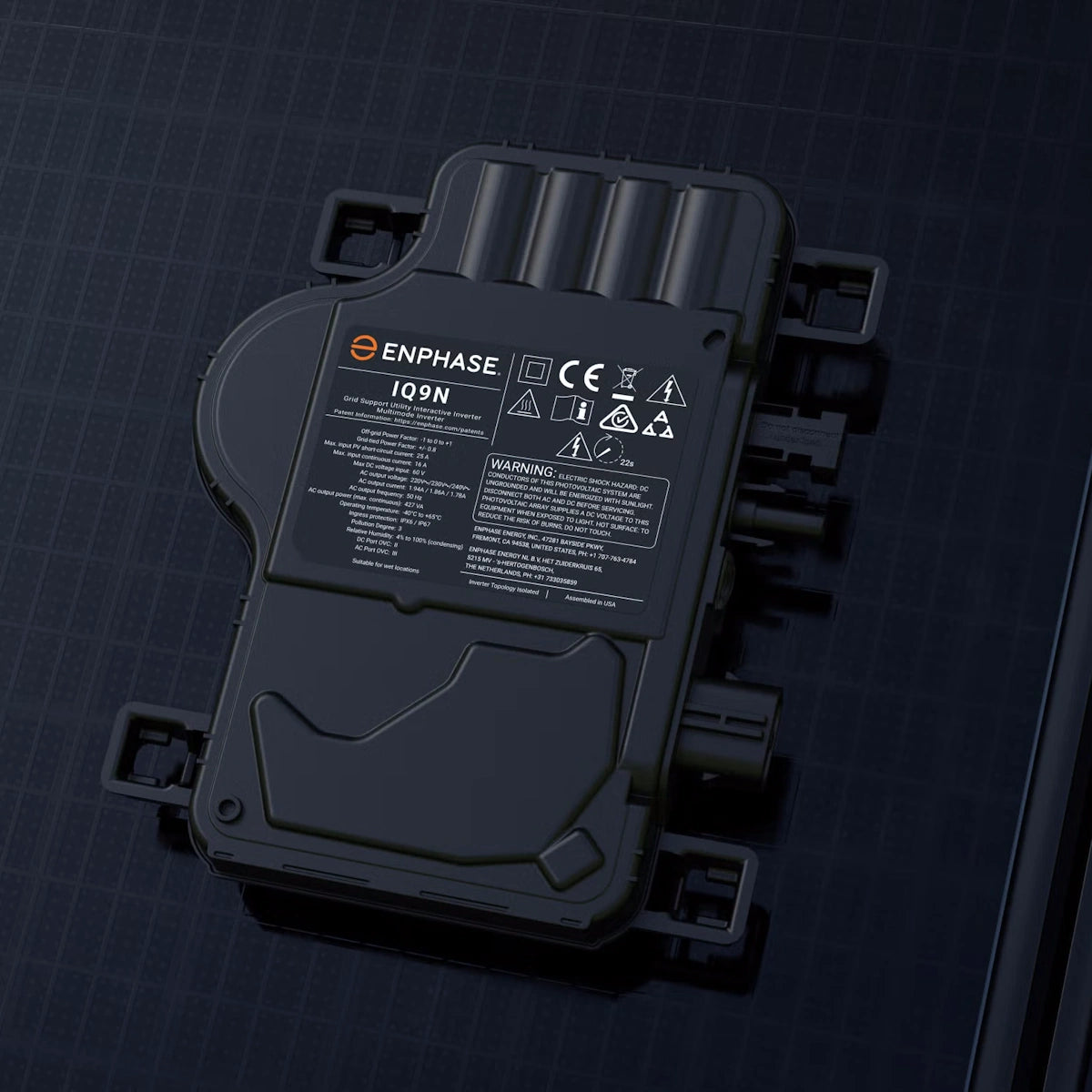

Integrated Stäubli MC4 & Simple AC Cabling
The DC side ships with integrated Stäubli MC4 connectors — the industry-standard, weatherproof plug accepted by virtually every PV module manufacturer. On the AC side, the IQ9N uses Enphase IQ Cabling, a daisy-chain trunk cable system that eliminates individual junction boxes on each inverter, cutting installation time significantly. The unit is Class II double-insulated, so no additional earth bonding is needed at the inverter.
Built-In Rapid Shutdown & Low-Voltage DC
Operating at a maximum of 60 V DC — well below the 120 V threshold considered hazardous — the IQ9N provides inherent rapid shutdown at module level the moment grid power is lost or the system is isolated. There is zero inverter back-feed current to the array (Irms = 0 A), and night-time standby power is just 40 mW, minimising parasitic draw during hours of darkness.

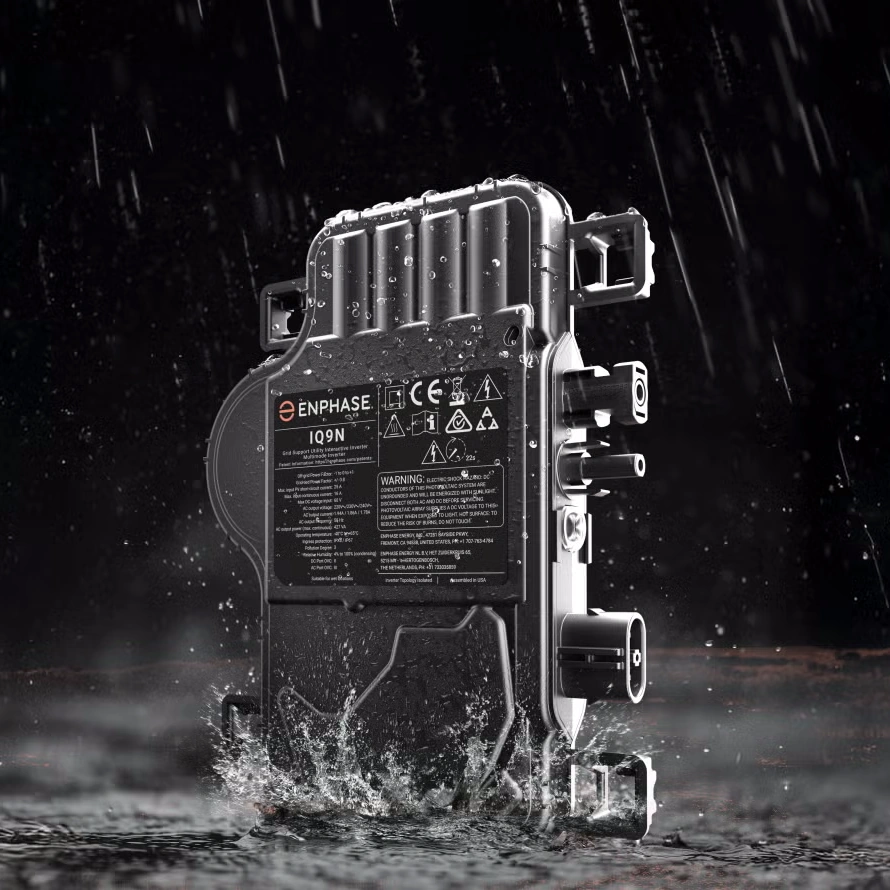

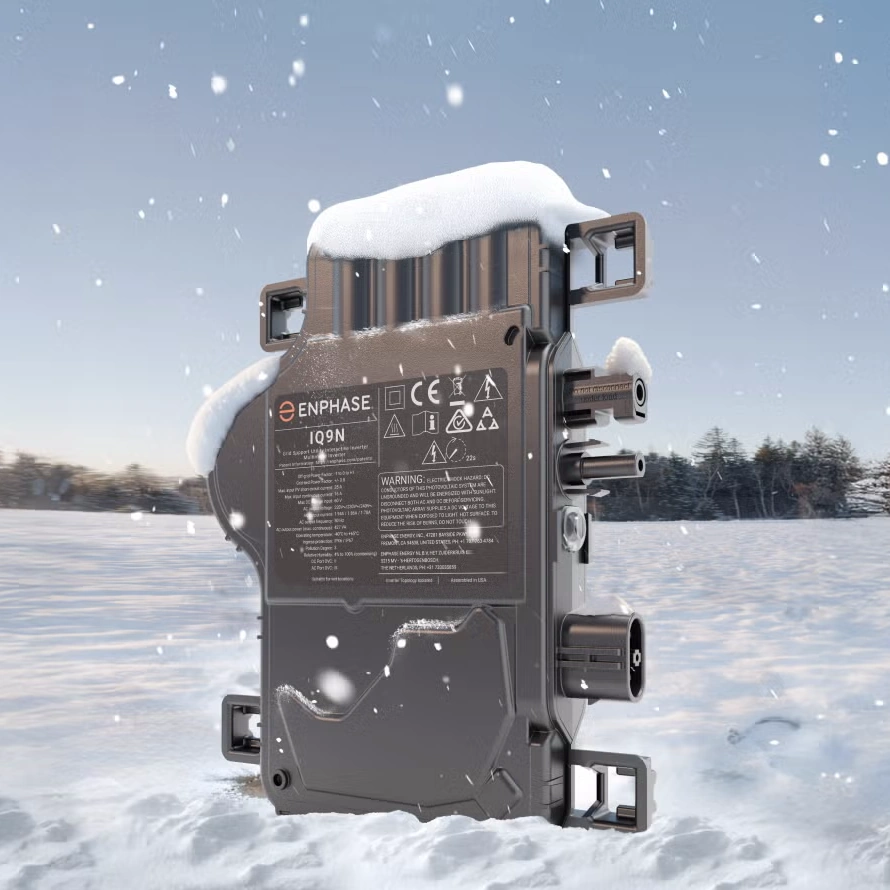

IP67 Outdoor Rating & 1 Million+ Hours Testing
The corrosion-resistant polymeric enclosure carries a full IP67 ingress protection rating — fully dust-tight and withstanding temporary immersion. It is rated for relative humidity up to 100% (condensing) and ambient temperatures from −40°C to +65°C, covering the most extreme UK and European rooftop conditions. Each IQ9N undergoes over one million power-on hours of cumulative reliability testing, underpinning the 25-year warranty offer.
Smart Grid Functions & PLC Monitoring
The IQ9N complies with G98, G99, G100 and Northern Ireland variants G98-NI / G99-NI, covering all UK grid connection scenarios. Advanced grid functions include Power Export Limiting (PEL), Phase Imbalance Management (PIM), Loss of Phase detection (LOP), and reactive power control Q(U) / cos(phi)(P). Communication uses narrowband PLC at 110–120 kHz via the existing AC cable — no separate data wiring required.
