The Enphase IQ Battery 5P Pedestal Mount (part number IQ-FLOOR-PEDESTAL, manufacturer code B05-PI-0550-O) is the official floor-mounting kit for the Enphase IQ Battery 5P. Where wall mounting is not possible or preferred, this sturdy metal pedestal assembly provides a stable, code-compliant installation base without requiring any wall support. The kit includes all brackets, covers, fixings, and a drill template — everything needed for a clean, professional floor-mounted installation.
IP55
Installed Enclosure Rating
85.25 kg
Total Installed Weight (inc. battery)
11.2 kg
Pedestal Shipping Weight
-20 to 55°C
Operating Temperature
⚠ Installer Requirement: This pedestal mount is an optional accessory required only when the IQ Battery 5P is to be floor-mounted. It is not included with the battery unit. Installation must follow the Enphase IQ Battery 5P quick install guide and comply with all local codes and requirements of the Authority Having Jurisdiction (AHJ).
ℹ Compatibility: This pedestal is designed exclusively for the Enphase IQ Battery 5P. It mounts one battery unit per pedestal. For multi-battery systems, a separate pedestal is required per unit.
Complete Kit Contents

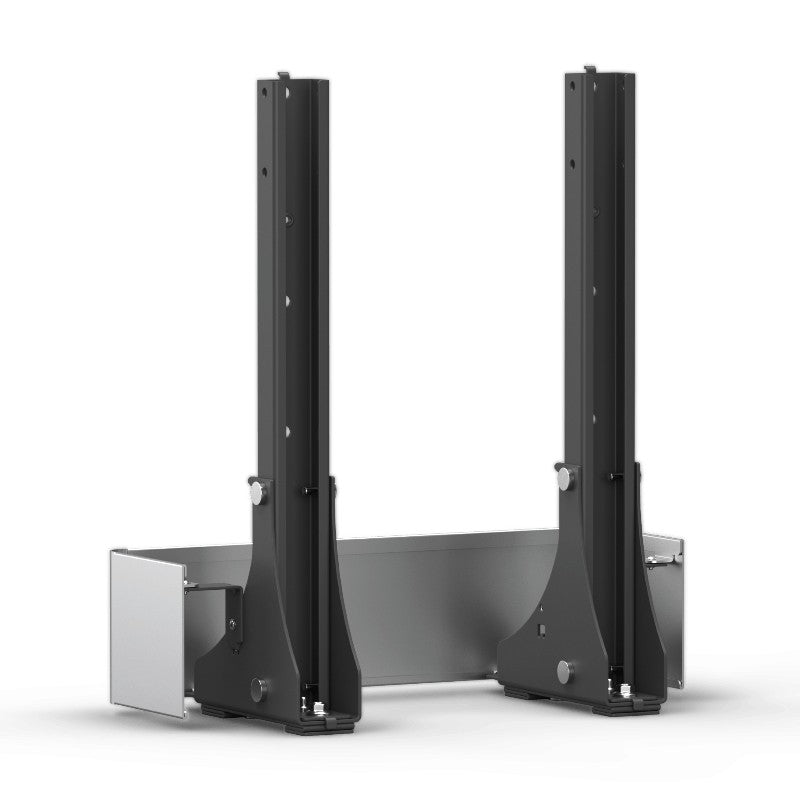

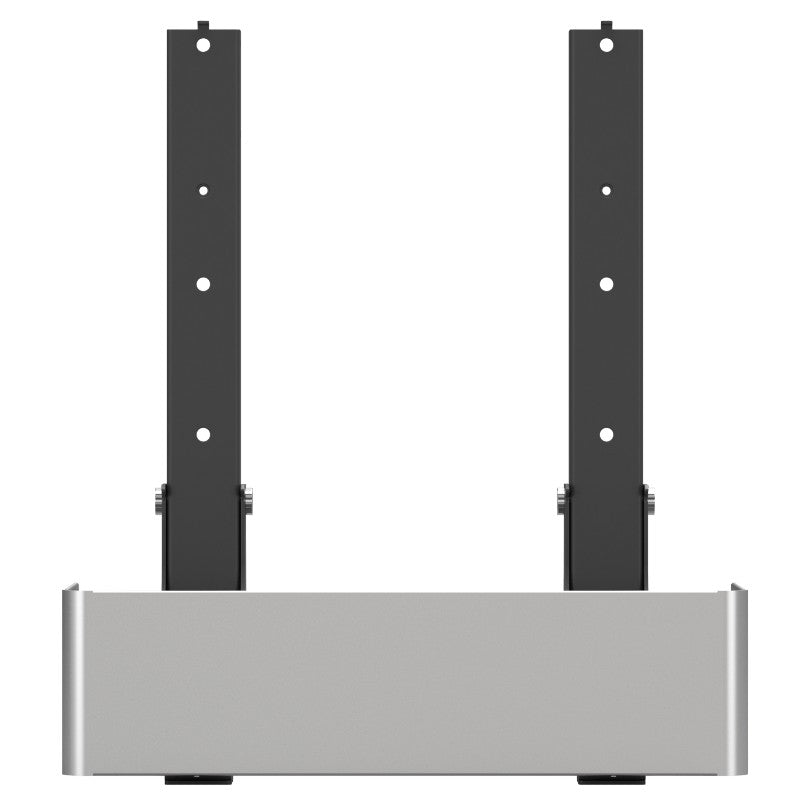

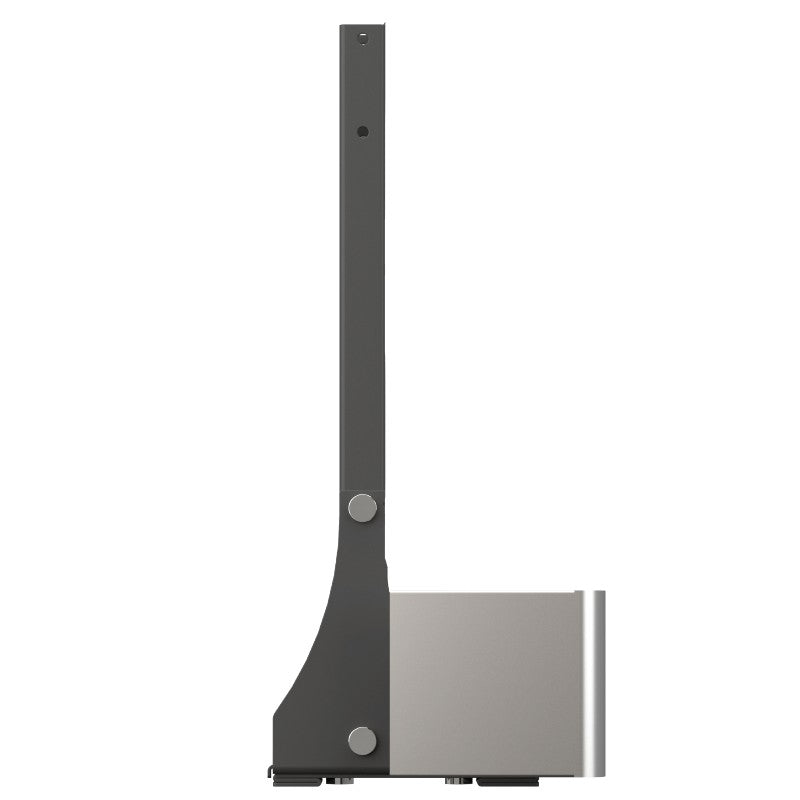

The pedestal includes two pedestal bracket assemblies with legs, a pedestal cover to protect the lower leg section for a tidy finish, two L-brackets to secure the cover, a drill template for precise floor fixing, a quick install guide, and all fasteners and washers required for the complete installation.
Floor-to-Top Installation Height
When installed with an IQ Battery 5P, the combined assembly stands 44.6 inches (approximately 1,133 mm) tall with a footprint of 21.7 in × 11.0 in. This compact floor stance is suitable for utility rooms, garages, and plant areas where wall space is limited or unsuitable.
Standards & Certifications
The pedestal assembly is certified to UL9540A (fire safety for energy storage systems) and AC156 (seismic restraint). These certifications ensure compliance with the same rigorous safety standards as the IQ Battery 5P itself, making the installation suitable for regions with seismic requirements.
Outdoor-Rated & Weather Resistant
The installed combination of pedestal and IQ Battery 5P carries a minimum IP55 enclosure rating (NEMA 3R), meaning the assembly is protected against dust ingress and water jets from any direction — suitable for both indoor and outdoor installation locations.
| Technical Specifications — IQ Battery 5P Pedestal Mount (B05-PI-0550-O) |
| Manufacturer Part Number |
B05-PI-0550-O |
| AIZO Part Number |
IQ-FLOOR-PEDESTAL |
| Compatible Battery |
Enphase IQ Battery 5P (one unit per pedestal) |
| Shipping Weight |
11.2 kg (24.7 lbs) |
| Shipping Dimensions (H × W × D) |
190 mm × 599 mm × 490 mm (7.5 × 23.6 × 19.3 in) |
| Installed Height (with battery) |
44.6 in (approx. 1,133 mm) |
| Installed Footprint (W × D) |
21.7 in × 11.0 in (approx. 551 mm × 279 mm) |
| Total Installed Weight (pedestal + battery) |
85.25 kg (187.95 lbs) |
| Operating Temperature |
-20°C to +55°C (non-condensing) |
| Enclosure Rating (installed) |
IP55 / NEMA 3R (Outdoor rated) |
| Safety Standard |
UL9540A |
| Seismic Standard |
AC156 |
Does the IQ Battery 5P have to be wall-mounted?
No. The IQ Battery 5P can be either wall-mounted (using the included wall bracket) or floor-mounted using this pedestal kit. The pedestal is sold separately and is required if you choose the floor-mount option. Both methods are equally valid installations.
Can one pedestal support multiple IQ Battery 5P units?
No. Each pedestal mount supports one IQ Battery 5P unit. For multi-battery configurations, you will need one pedestal per battery unit, or consider a wall-mounting arrangement if space allows.
Is the pedestal suitable for outdoor installation?
Yes. The installed assembly (pedestal plus battery) carries a minimum IP55 / NEMA 3R outdoor rating, making it suitable for protected outdoor locations. Always confirm local building codes and AHJ requirements before outdoor installation.
Does the kit include fixing hardware and a drill template?
Yes. The pedestal kit includes a drill template for marking floor fixing positions accurately, plus all required fasteners and washers. No additional hardware is needed for a standard installation.
Do I also need the lifting handles to install the battery onto the pedestal?
Enphase strongly recommends using the IQ Battery 5P Lifting Handles (IQBATTERY-HNDL-5) when positioning the battery onto the pedestal. The battery unit is heavy and the handles make the process safer and more manageable with a two-person team. Lifting handles are sold separately.
