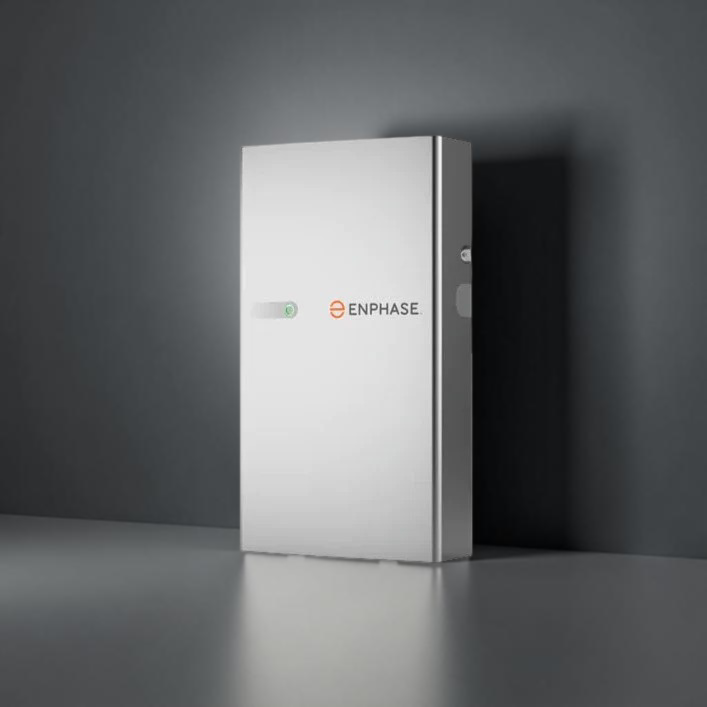

The Enphase IQ Battery 5P with FlexPhase is an all-in-one AC-coupled storage system that gives installers a single unit configurable for either single-phase or three-phase properties. Rather than stocking separate SKUs, the field-switchable design lets you set the phase and power rating to match the DNO connection and load requirements on site. It stores 5.0 kWh of usable energy using six embedded IQ8T‑BAT Microinverters, delivering up to 3.84 kVA continuous power in single-phase configuration or up to 1.28 kVA per phase in three-phase configuration.
Built on lithium iron phosphate (LFP) chemistry, the battery is evaluated to UL 9540A, the highest industry safety standard for battery energy storage, and backed by a 15-year limited warranty covering up to 6,000 cycles.
1ph / 3ph
Field-switchable
3.84 kVA
Continuous power
96%
DC round-trip efficiency
IP55
Indoor/outdoor rated
Certified installation only: this battery must be installed, commissioned, and replaced only by an Enphase-certified installer. First-time installers must complete Enphase's certification and submit a design review before ordering, and the upgrade course must be completed before commissioning a FlexPhase unit using the power de-rating feature.
Backup power needs the System Controller: this battery ships in grid-tied Self-Consumption mode by default. Whole-home backup during a grid outage requires the separately-sold IQ System Controller 3 INT. Grid-tied operation also requires an IQ Gateway Metered plus Communications Kit 2 INT (or IQ Combiner 2 EU 3P).
Phase configuration is a one-time choice: the unit ships as single-phase with a jumper block fitted on the AC terminals. Removing the jumper converts it to three-phase during installation. Once the power rating is provisioned in the Enphase Installer App it cannot be changed on site — Enphase Support must be contacted to alter it after commissioning.
Powerful
Up to 3.84 kVA continuous single-phase, or 1.28 kVA per phase in a three-phase configuration, from six integrated IQ8T‑BAT Microinverters built into the unit.
Reliable
15-year limited warranty, passive natural-convection cooling with no moving parts or fans, and remote software/firmware updates delivered over the internet connection.
Simple
AC-coupled for fast installation on new or existing solar systems. Supports Self-Consumption, Full Backup, and time-of-use (TOU) modes, and is VPP Ready for third-party API control. Field replaceable components simplify servicing.
Safe
Evaluated to UL 9540A, the highest industry standard for battery safety, using lithium iron phosphate (LFP) chemistry for maximum safety and longevity.
Flexible power rating
Installers can configure the continuous power rating in the Enphase Installer App during commissioning, simplifying compliance with local DNO requirements and giving more flexibility over install location and circuit design.
Monitored and controlled
Full visibility and control through the Enphase App and Enphase Installer Platform, with wired control communication for a fast, consistent connection between system components.
Technical specification
Output — single-phase
Rated continuous output power
3.84 kVA
Rated output current
16.7 A
Peak output current (3 sec / 10 sec)
33.4 A / 26.7 A
Nominal AC voltage
230 V L-N
Nominal AC voltage range
213–253 V
Output — three-phase
Rated continuous output power
3.84 kVA (1.28 kVA/phase)
Rated output current
16.7 A (5.56 A/phase)
Peak output current per phase (3 sec / 10 sec)
10.67 A / 8.53 A
Nominal AC voltage
230 V L-N, 400 V L-L
Nominal AC voltage range
213–253 V L-N, 366–457 V L-L
General
Nominal frequency
50 Hz (47–53 Hz range)
Power factor (grid-tied / backup)
0.8 lead–lag / 1.0 lead–lag
AC round-trip efficiency
90%
Operating modes
Self-Consumption, Full Backup, AI Optimisation, VPP Ready
Battery module
DC round-trip efficiency
96% (beginning of life)
Nominal DC voltage / operating range
76.8 V / 60–87 V
Chemistry
Lithium iron phosphate (LFP)
Ambient operating temperature (charging)
−20°C to 50°C
Ambient operating temperature (discharging)
−20°C to 55°C
Mechanical and electrical
Dimensions (H × W × D)
980 × 550 × 188 mm
Total installed weight
83 kg
IP rating — battery / microinverters
IP55 / IP67
Cooling
Natural convection
Mounting
Wall-mount (included) or pedestal (sold separately)
Installation location
Indoor/outdoor
Warranty and standards
Limited warranty
15 years or 6,000 cycles (>60% capacity), whichever first
Grid standard (without IQ Relay)
G98, G98 NI, G99, G99 NI, G100-2
Safety standard
UL 9540A, EN IEC 62109-1 & 2, IEC 62619
Compatible system components
Grid-tied monitoring
IQ Gateway Metered (ENV-S-WM-230)
Communication (grid-tied)
Communications Kit 2 INT
Disconnect device
IQ Relay 1ph/3ph (Q-RELAY-1P-INT / Q-RELAY-3P-INT)
Backup operation
IQ System Controller 3 INT (sold separately)
Pre-wired combiner option
IQ Combiner 2 EU 3P
Solar inverters
IQ Series Microinverters, third-party PV string inverters
Optional accessories
Lifting handles (IQBATTERY-HNDL-5), pedestal mount (B05-PM-0550-O)
Frequently asked questions
Can this battery be switched between single-phase and three-phase after installation?
The unit ships as single-phase with a jumper block pre-installed on the AC terminals. To use it in a three-phase installation, the installer simply removes the jumper block during wiring, before commissioning. However, once the power rating is provisioned in the Enphase Installer App, it cannot be changed on site — Enphase Support must be contacted to modify it afterwards.
Does this battery provide backup power during a grid outage?
Not on its own. The IQ Battery 5P with FlexPhase supports Self-Consumption mode by default in a grid-tied system. Full Backup during a power cut is only available when the system also includes an IQ System Controller 3 INT, which is sold separately.
Can multiple units be installed together, and how many can share a circuit?
Yes. Depending on the configured power rating, up to 2 units per single-phase branch circuit or up to 4–10 units per three-phase circuit can be connected, with a maximum battery circuit total of up to 10 units at lower power ratings. The exact figure depends on the power rating selected during commissioning — refer to the manufacturer's power rating tables for the specific configuration required.
Where can this battery be installed?
The housing is IP55-rated, so it can be installed either indoors or outdoors, at altitudes up to 2,500 m and ambient temperatures between −20°C and 55°C. The optimum installation temperature range is 0°C to 30°C, and it must not be mounted on a flammable surface without a flame-retardant board fitted first.
Who is allowed to install and commission this battery?
Only Enphase-certified installers may install, troubleshoot, or replace the IQ Battery 5P with FlexPhase. First-time installers must complete Enphase certification and submit a design review, and must also complete the upgrade course before commissioning a unit using the new power de-rating feature.
What is the actual weight I need to plan for during installation?
The unit's lifting weight is 69.5 kg using the handles, while the total installed weight — including the cover and wall-mount bracket — is 83 kg. The mounting wall or structure must be confirmed as capable of bearing this load, and mechanical lifting equipment is required unless manual lifting by two people is compliant with local regulations.
