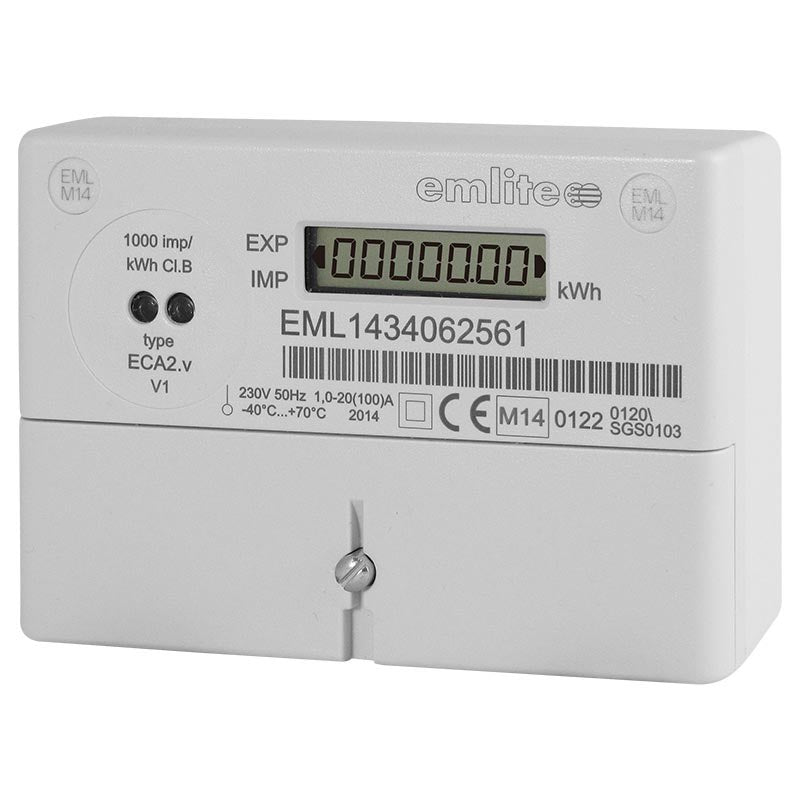

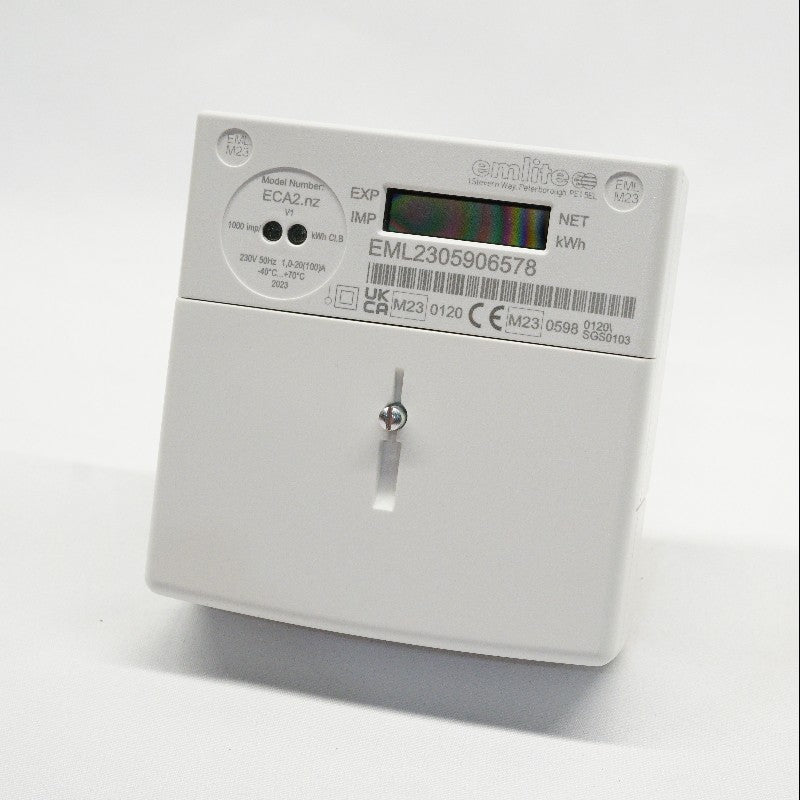

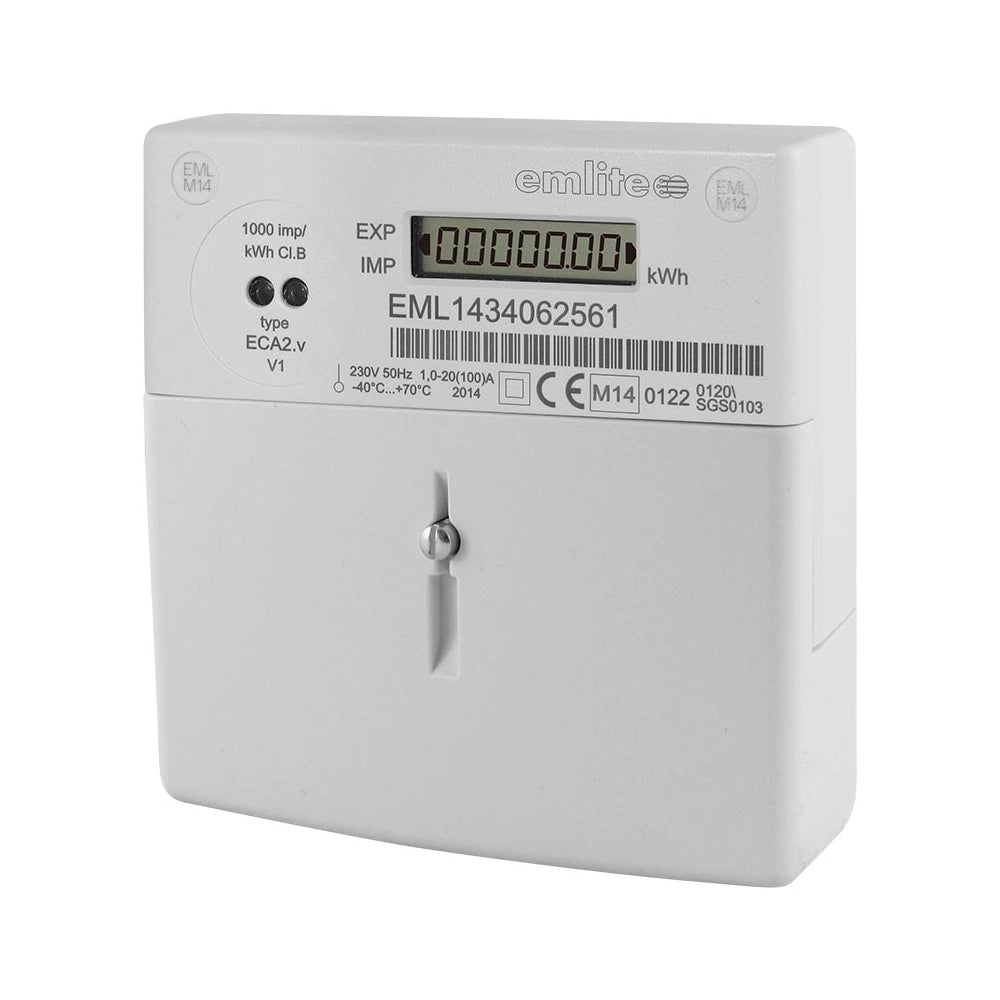

Emlite Single Phase Total Generation Meter 100A with Pulse Output inc Cover

Emlite Single Phase Total Generation Meter 100A with Pulse Output

The Emlite single phase total generation meter is designed for precise monitoring of energy production in residential and small commercial renewable energy systems. With a 100A direct connection and 1000 pulses/kWh output, this compact meter delivers accurate, real-time readings essential for managing and optimising solar, wind, and battery storage installations.

Key Features

• Measures total active energy generation (kWh) with high accuracy.
• Rated for 100 amps direct connection—ideal for typical single-phase systems.
• High-resolution 1000 pulses per kWh pulse output for advanced monitoring and data logging.
• Large, clear LCD display with backlight for easy reading in all lighting conditions.
• Compact DIN rail mount design for flexible installation in control panels.
• Meets MID (Measuring Instruments Directive) certification for legal and regulatory compliance.

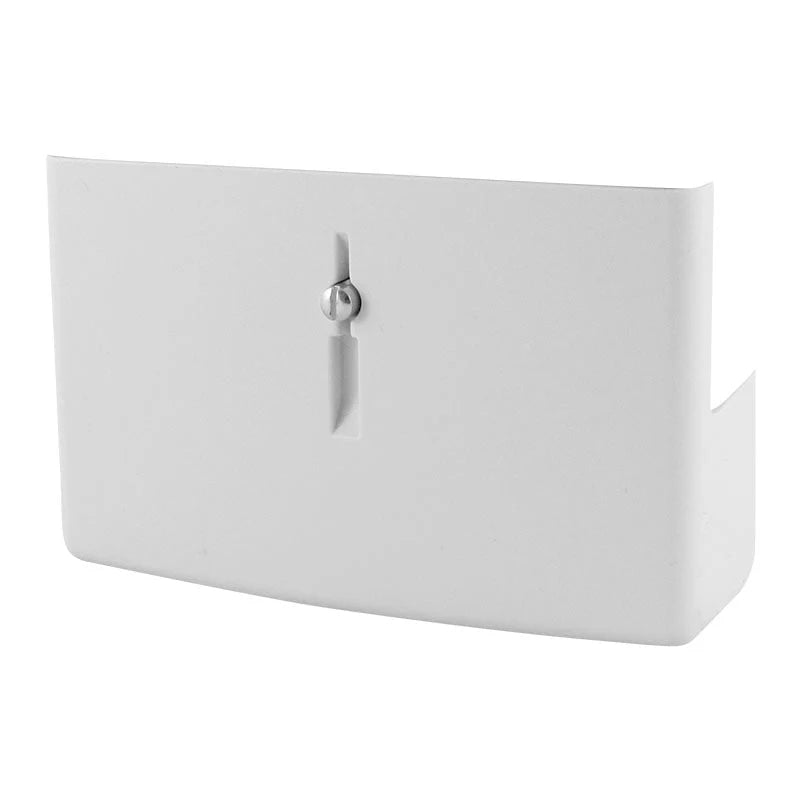

• Protective terminal cover included for safety and secure installation.
• Robust, tamper-resistant casing suitable for indoor use.

Specifications

• Maximum current: 100A
• Pulse output: 1000 pulses/kWh
• Voltage: 230V AC
• Frequency: 50Hz
• Accuracy class: Class 1 (±1%)
• Operating temperature: -10°C to +55°C
• Dimension: 125mm (H) x 125mm (W) x 40mm (D)
• Weight: 0.3 kg
• Mounting type: DIN rail
• Manufacturer Part Number (MPN): EM-ECA2

Applications

• Solar PV generation monitoring for homes and small businesses
• Renewable energy installations including wind and hybrid battery systems
• Energy data logging and generation management in residential setups
• Feed-in tariff and net metering compliance

Included in the Box

• Emlite Single Phase Total Generation Meter 100A with Pulse Output
• User manual and installation guide

Installation should be carried out by a qualified electrician to ensure accuracy and regulatory compliance.
This product comes with a 2-year manufacturer warranty.
