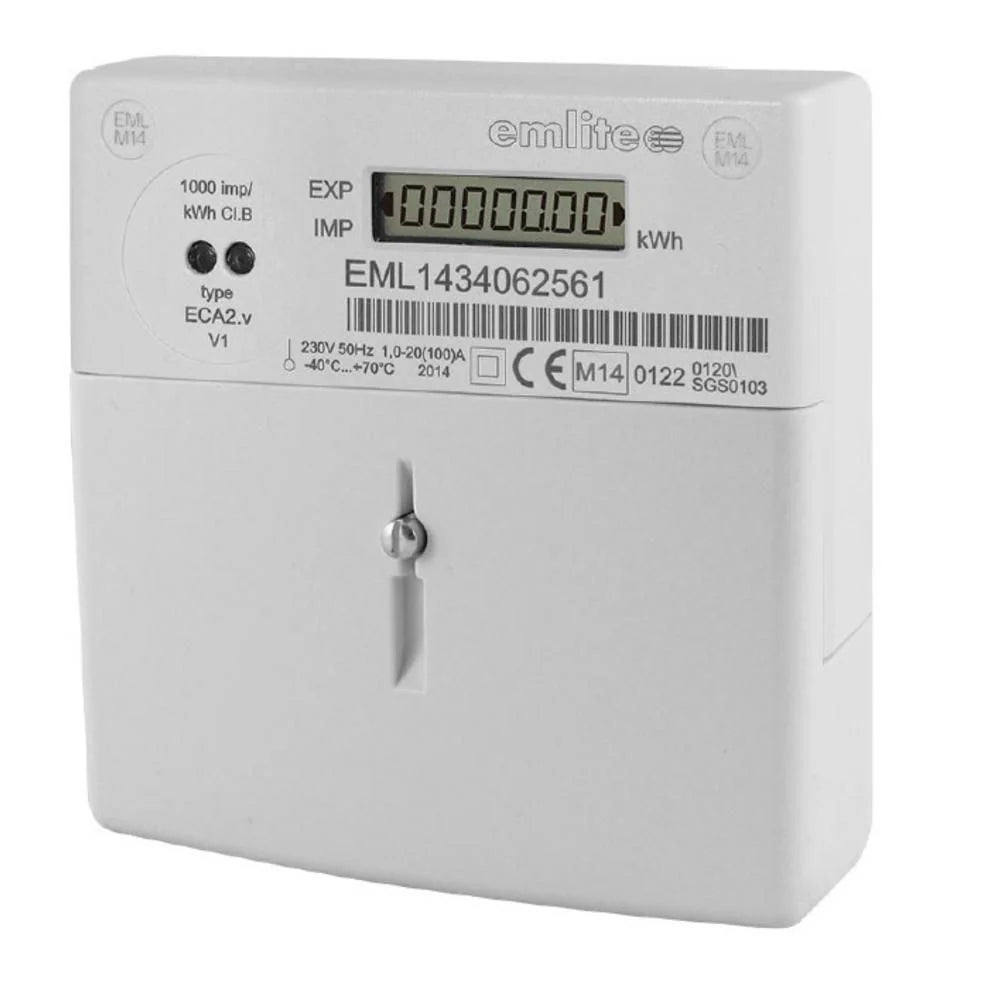

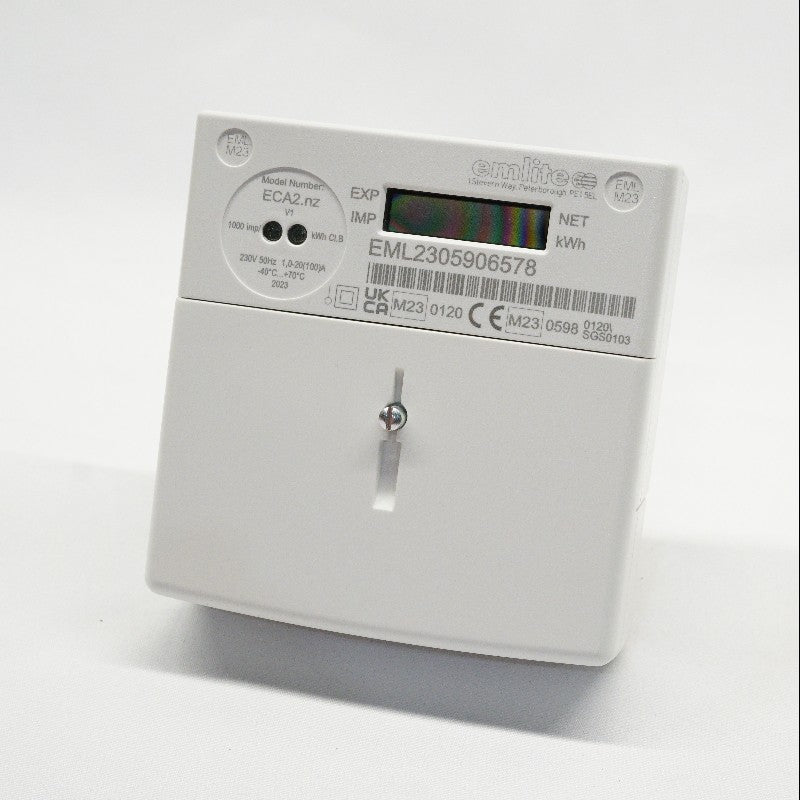

Emlite 1-ph Bi-Directional Generation Meter 100A (1000 pulse/kWh) incl. Cover

Emlite 1-Phase Bi-Directional Generation Meter 100A 1000 Pulse/kWh (Incl. Cover)

The Emlite bi-directional single-phase generation meter is purpose-built for accurate monitoring and measurement of both import and export energy—making it essential for modern solar, storage, and renewable power systems. With a robust 100A capacity and high-precision 1000 pulses/kWh pulse output, this meter is ideal for residential and commercial installations striving for accurate data and regulatory compliance.

Key Features

• Measures both import and export (bi-directional) active energy (kWh), perfect for grid-tied and hybrid renewable systems.
• Direct connected 100A maximum current for flexible, high-capacity use—no CTs required.
• High-resolution 1000 pulses/kWh pulse output for advanced monitoring and easy integration with logging systems.
• Large, easy-to-read backlit LCD display with auto-scroll and static register options.
• DIN rail mountable compact housing saves space within control or meter boards.

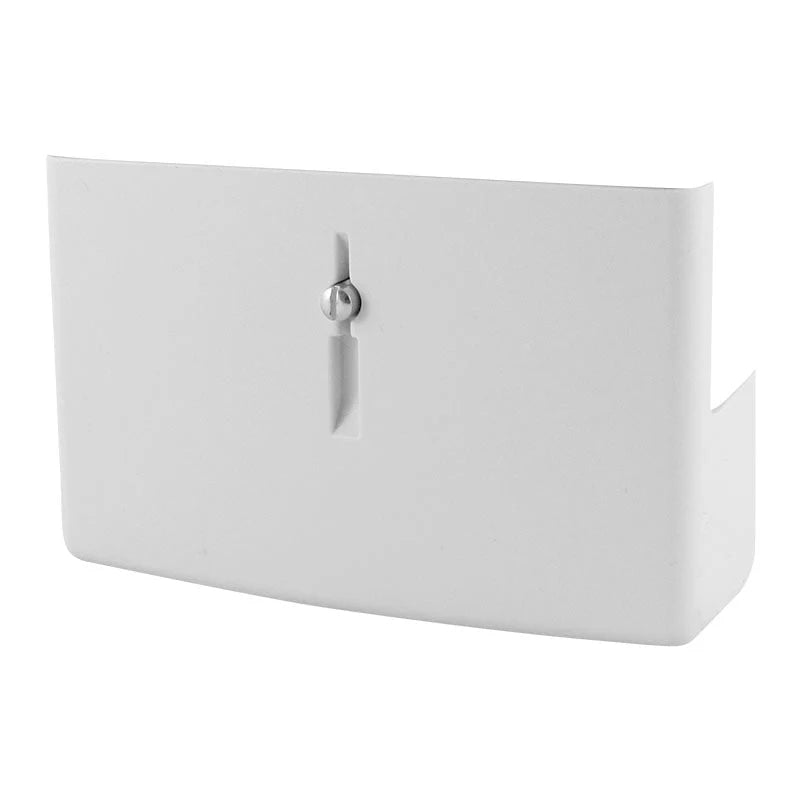

• Includes extended protective terminal cover for safety and compliance.
• MID (Measuring Instruments Directive) certified—suitable for legal metering and billing.
• Fully tamper-resistant sealed housing with reverse energy fraud detection.
• Compatible with net metering, feed-in-tariff, and energy storage configurations (including battery and photovoltaic hybrid systems).

Specification

• Rated current: 100A
• Pulse output: 1000 pulses/kWh
• Voltage: 220–240V AC (max 276V)
• Frequency: 50Hz
• Accuracy class: EN 50470 1-3 Class B (±1%)
• LCD display: 8 × 3.5mm character size, backlit
• Operating temperature range: -10°C to +55°C
• Weight: 1.22kg
• Dimensions: 91mm (H) × 125mm (W) × 40mm (D)
• DIN rail mounting
• Supplied with extended / protective terminal cover
• Manufacturer Part No: EM-ECA2-BI

Applications

• Residential and commercial solar PV generation monitoring
• Hybrid battery and solar energy systems (net metering, FiT, DC-coupled storage)
• Renewable energy trading and microgrids
• Backup power and EV charging station management
• Greenhouses, remote monitoring projects, community and industrial energy management

What's Included

• Emlite Bi-Directional 1-Phase Generation Meter 100A with cover
• User manual and installation guide

Professional installation by a qualified electrician is required for accurate operation and regulatory compliance.
This meter is shipped with a manufacturer’s 12-month guarantee for peace of mind.
