The ThermoSphere Double Square 450mm is a double-end-mounted 12V electric heated towel bar with a square-profile tube (40 × 100mm cross-section). At 12V SELV it is safe in any bathroom zone. The patented self-regulating element is 50% more energy-efficient than conventional bars. Made from 304 grade stainless steel, designed and finished in the UK. Available in 6 standard finishes. 25W output. 5-year warranty. 12V transformer required, sold separately.
25W
Max Output
12V SELV
Safety
450mm
Bar Length
304 SS
Grade
6
Finishes
5 yr
Warranty
⚠ Transformer Required: A separate 12V transformer is required and sold separately. Total the wattage of all bars on the circuit to size the transformer correctly. Connection to mains must be made by a qualified electrician.
Sizes & Finishes
Code
Description
Finish
Output
HTB-DS-450-DPS
Double Square 450mm
Diamond Polished
25W
HTB-DS-450-BSS
Double Square 450mm

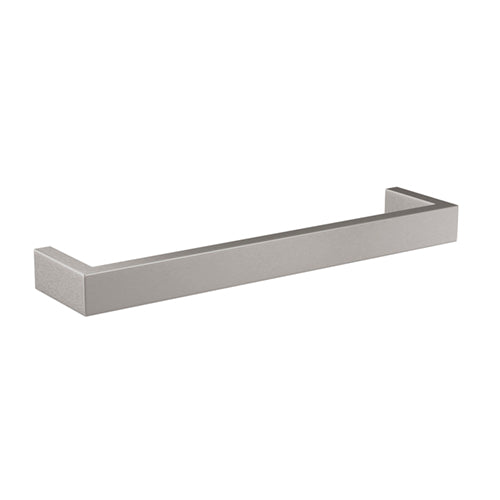

Brushed Stainless
25W
HTB-DS-450-PLB
Double Square 450mm

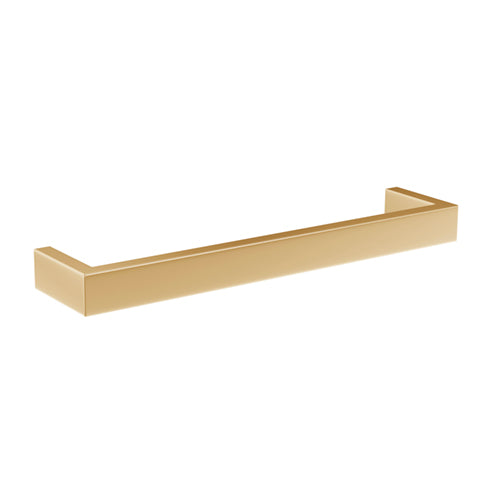

Diamond Polished Brass
25W
HTB-DS-450-BRB
Double Square 450mm
Brushed Brass
25W
HTB-DS-450-MBK
Double Square 450mm

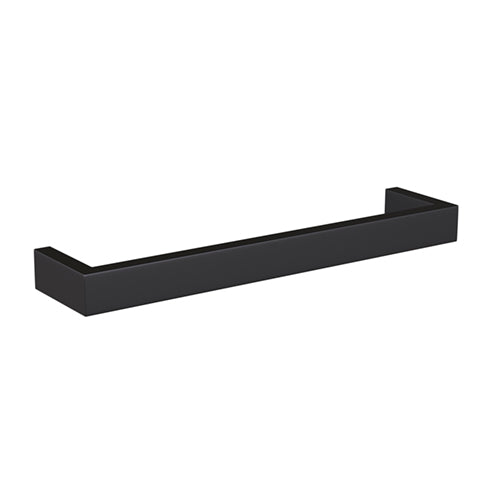

Matt Black
25W
HTB-DS-450-MWT
Double Square 450mm

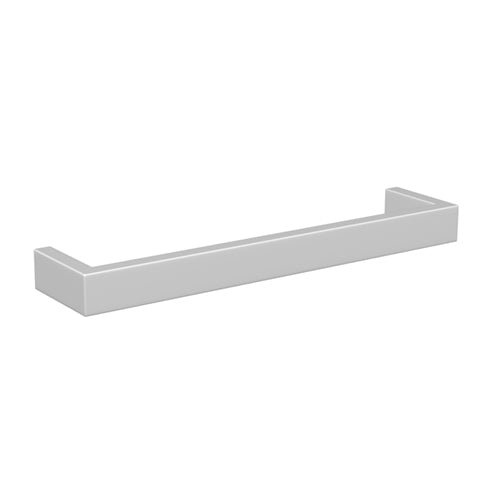

Matt White
25W
Key Features
12V SELV — Safe in Any Bathroom Zone
At 12V SELV (Safety Extra Low Voltage) this bar is completely safe in all bathroom zones including Zone 1 (above or inside a bath/shower tray) where 230V appliances are not permitted. No specialist enclosure required.
12V SELVAll bathroom zones
Patented Self-Regulating Element — 50% More Efficient
The dual self-regulating heating element automatically limits maximum operating temperature. When a towel is placed on the bar the element heats to optimum; when temperature is reached output reduces rather than cycling on/off at full power. 50% more energy-efficient than conventional electric towel bars.
Patented elementSelf-regulating50% more efficient
304 Grade Stainless Steel — Designed and Made in the UK

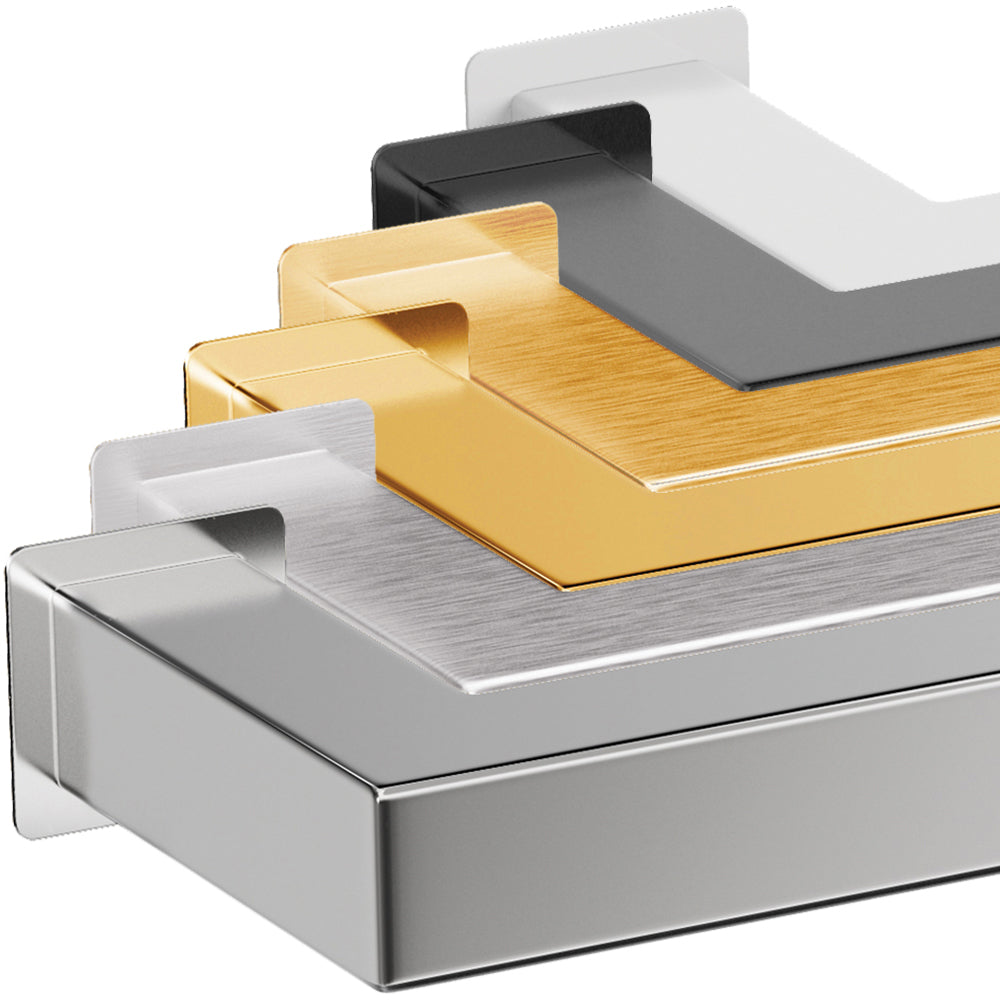

Manufactured from 304 grade stainless steel — the premium grade used in demanding wet environments. Designed, finished and made in Great Britain. Available in 6 standard finishes: Diamond Polished, Brushed Stainless, Diamond Polished Brass, Brushed Brass, Matt Black, Matt White.
304 SSMade in UK6 finishes

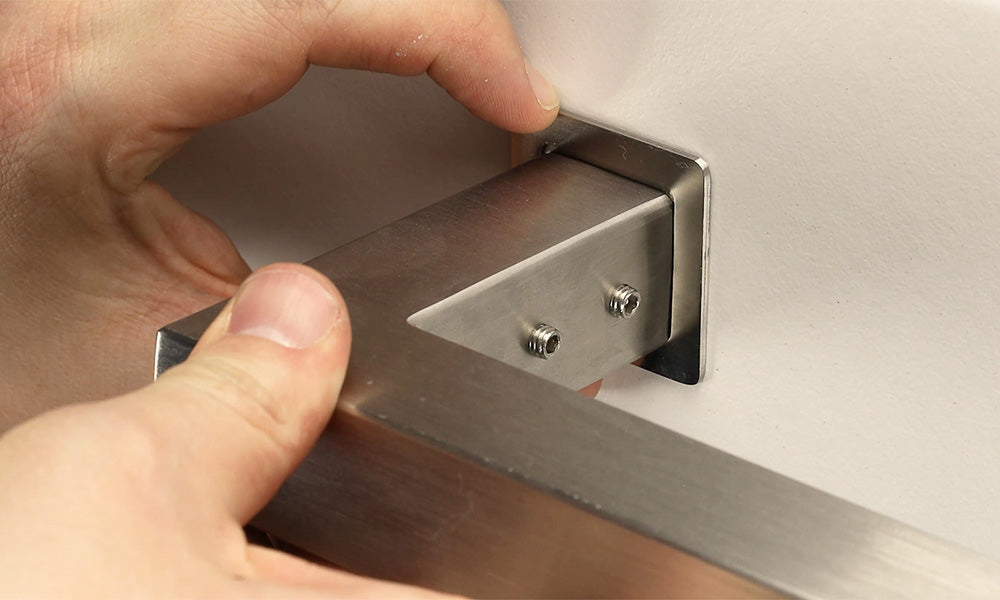

Double-End Patented Mounting — Up to 7 Bars, Integrated Cable Management
The patented mounting system supports up to 7 bars in a single run with perfect alignment and concealed cable routing. Each double-end bar holds up to 30kg. The 2m connection cable exits from the wall end of the bar, fully concealed.
Patented mountUp to 7 barsCable managed
T-MO Relay Mode and Dual Control Thermostat Compatible
Pair with the T-MO thermostat in relay mode for scheduled on/off control without temperature sensing. The ThermoSphere Dual Control Thermostat can independently schedule both a towel bar and underfloor heating from one thermostat.
T-MO relay modeDual Control compatible
Technical Specifications
Technical Data
Voltage
12V SELV
Material
304 Grade Stainless Steel
Dimensions (W×H×D)
450 × 40 × 100mm
Output
25W
Cable Length
2m
Wiring Connection
Concealed
Fixing
Patented mounting system (concealed)
Finishes Available
Standard Finishes
Diamond Polished, Brushed Stainless, Diamond Polished Brass, Brushed Brass, Matt Black, Matt White
ℹ Installation: All electrical connections must be made by a qualified electrician in accordance with BS 7671. Register your product with ThermoSphere online to activate your lifetime warranty.
Frequently Asked Questions
Do I need a transformer?
Yes — a 12V transformer is required and sold separately. Add up the wattage of all bars on the circuit to size the transformer. This 450mm bar is 25W.
Can I control this bar with a thermostat?
Yes. Use the T-MO thermostat in relay mode for scheduled on/off control. The Dual Control Thermostat can independently schedule a towel bar and underfloor heating from a single unit.
How many bars on one mounting system?
Up to 7 bars on the patented system in a single run, with perfect alignment and no visible cables between bars.
Is it safe in all bathroom zones?
Yes — 12V SELV is safe in all bathroom zones including Zone 1 (directly above or inside a bath/shower tray) where 230V appliances are not permitted.
What is the maximum load?
Each double-mounted square bar holds up to 30kg. The patented mounting ensures bars remain perfectly level long-term.
