Electric 12V Vertical Heated Towel Bar – Round Profile 900mm

Description

The ThermoSphere HTB-VR-900 is a 12V SELV vertical heated towel bar with a slim round profile, built for bathrooms where safety and space are both non-negotiable. Standing 900mm tall and finished in 304-grade stainless steel, it delivers gentle, constant background warmth from a self-regulating 12V dry electrical element — no plumbing, no mains voltage on the wall, and no bulky footprint.

Because it runs on extra-low voltage (SELV), this towel bar can be installed in any bathroom zone, including Zone 1 and Zone 0 areas around baths and showers, once wired through a suitably rated 12V transformer. Every unit ships with a removable robe hook and is backed by a five-year manufacturer guarantee.

12V SELV

Safe extra-low voltage

900mm

Overall height

22–30W

Heat output by finish

IP55

Moisture protection

304

Grade stainless steel

5 Yrs

Manufacturer guarantee

Transformer required — not supplied

This is a 12V SELV product and must be wired via a suitably rated 12V transformer installed in accordance with BS 7671 bathroom zoning rules. The transformer is not included — confirm your transformer spec and mounting location (typically outside the bathroom or in an appropriate zone) before installation. Installation should be carried out by a competent person in line with Part P requirements.

Finish changes the wattage

Heat output on the HTB-VR-900 ranges from 22W to 30W depending on the finish selected — the polished stainless steel version is rated at 30W. Check the specific finish’s output if you are sizing the towel bar against a room heat-loss calculation.

Safe SELV heating

Runs on 12V SELV, keeping mains voltage off the towel bar itself — ideal for wet zones close to baths and showers.

Slim round profile

A compact round tube profile (38mm diameter bar) suited to narrow walls and contemporary bathroom layouts.

304 stainless steel

Built from corrosion-resistant 304-grade stainless steel for long-term durability in humid environments.

Self-regulating element

The patented self-regulating dry heating element maintains consistent warmth without a separate thermostat.

Concealed wiring

Cable connection is concealed within the bottom mounting bracket for a clean, uninterrupted finish.

Removable robe hook

Comes with an optional, removable robe hook — fit it for extra hanging space or leave it off for a minimalist look.

Technical Specification

Model Code

HTB-VR-900 (finish suffix varies by colour)

Profile

Vertical Round

Size (W x H x D)

38 x 900 x 100 mm

Voltage

12V SELV

Heating Element

Self-regulating dry electric element

Heat Output

22W–30W depending on finish (30W for Polished Stainless)

Material

304-grade stainless steel

Protection Rating

IP55

Wiring Connection

Concealed, in bottom mounting bracket

Cable Length

2m

Power Supply

Requires separate 12V transformer (not included)

Robe Hook

Removable, included

Warranty

5 years (manufacturer)

Finish

Model Suffix

Output

Diamond Polished Stainless Steel

HTB-VR-900

30W

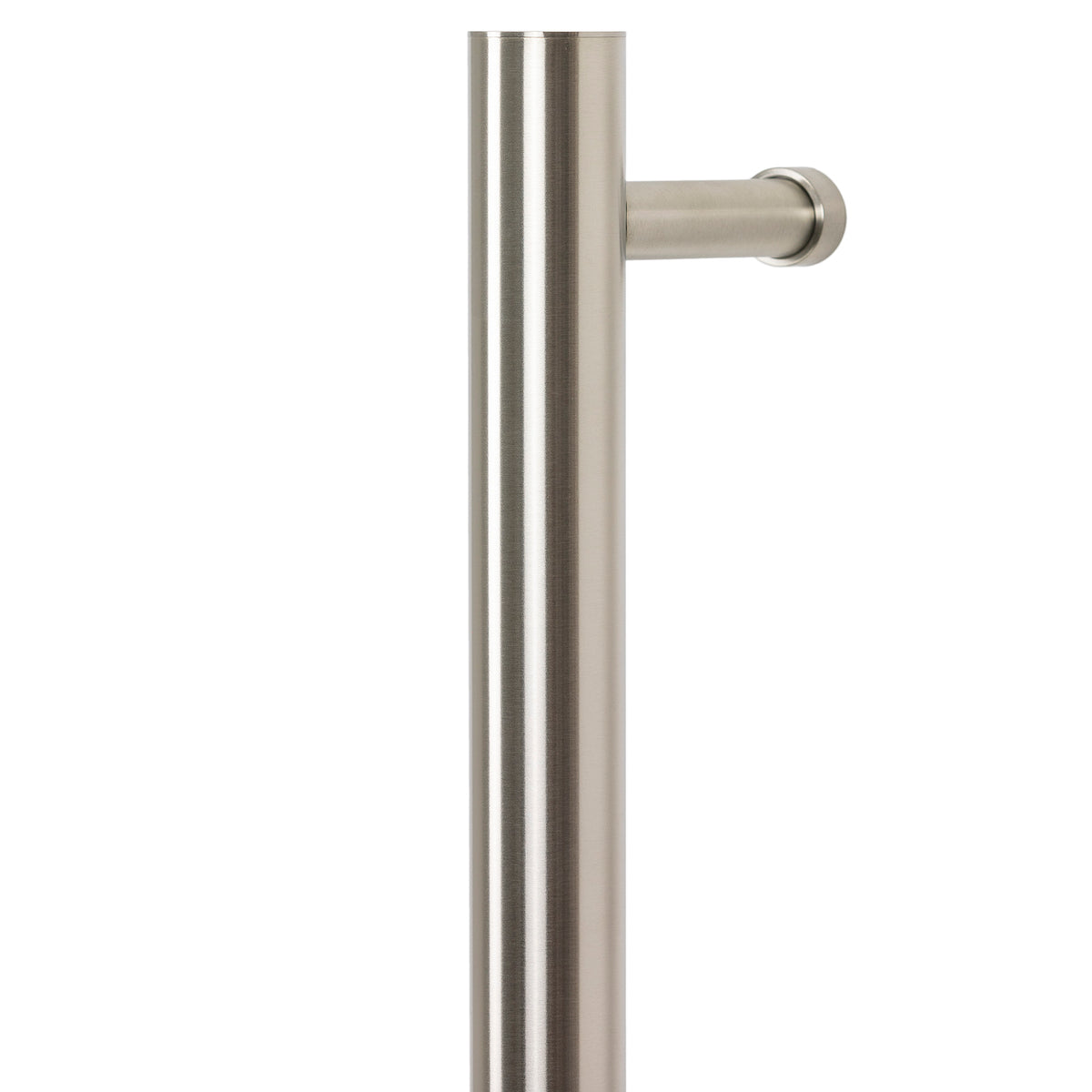

Brushed Stainless Steel

HTB-VR-900-BSS

22–30W

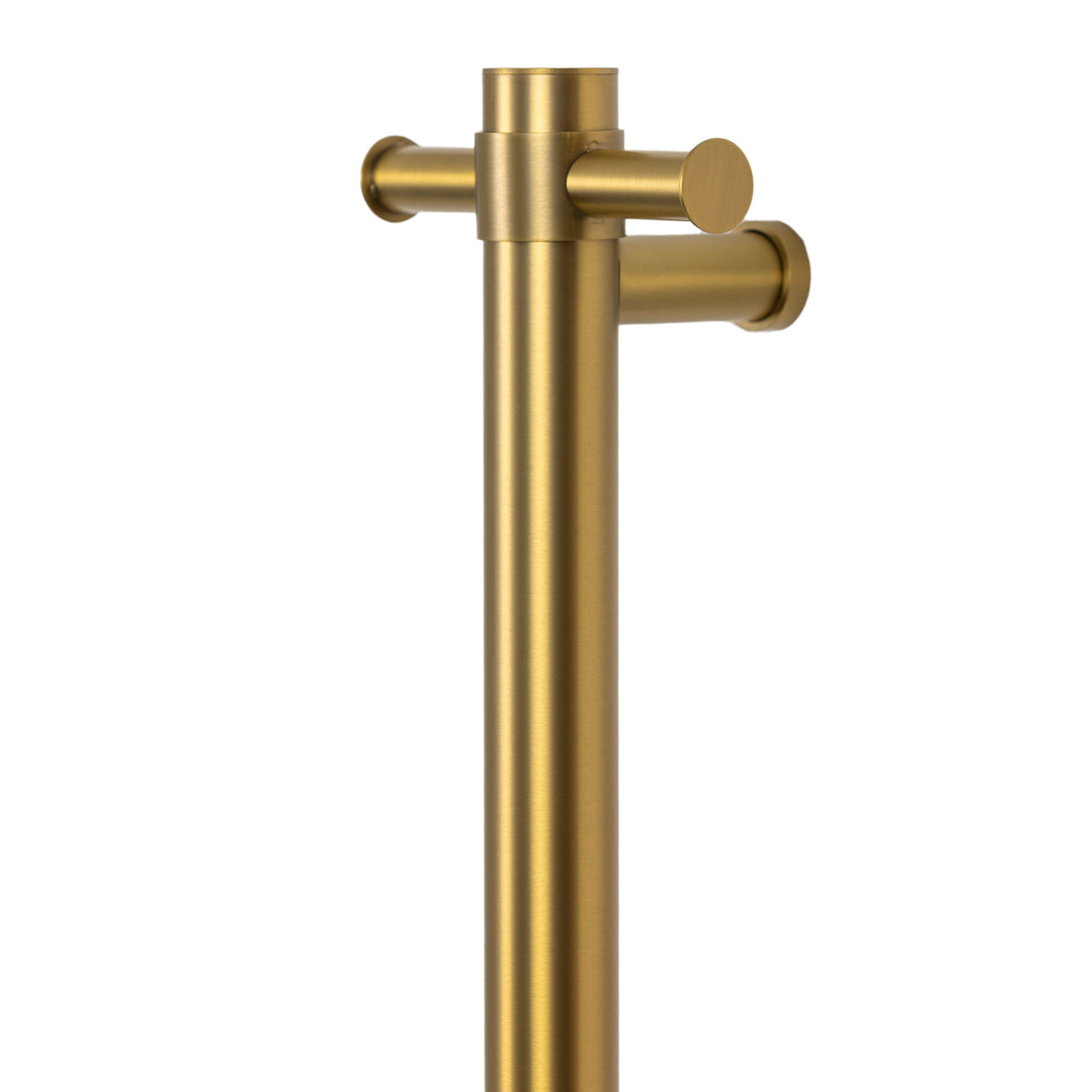

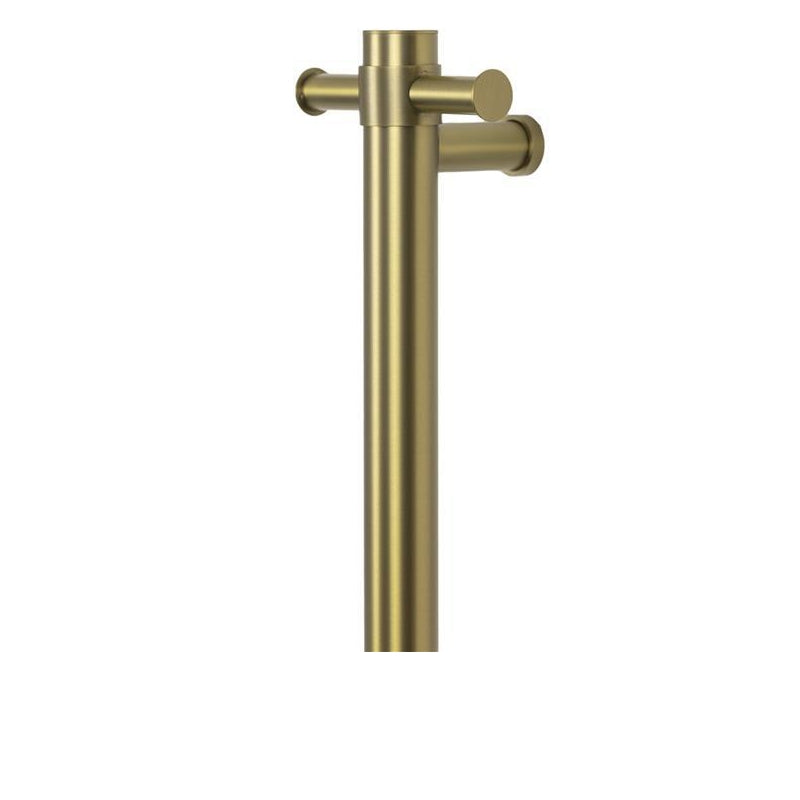

Brushed Brass

HTB-VR-900-BRB

22–30W

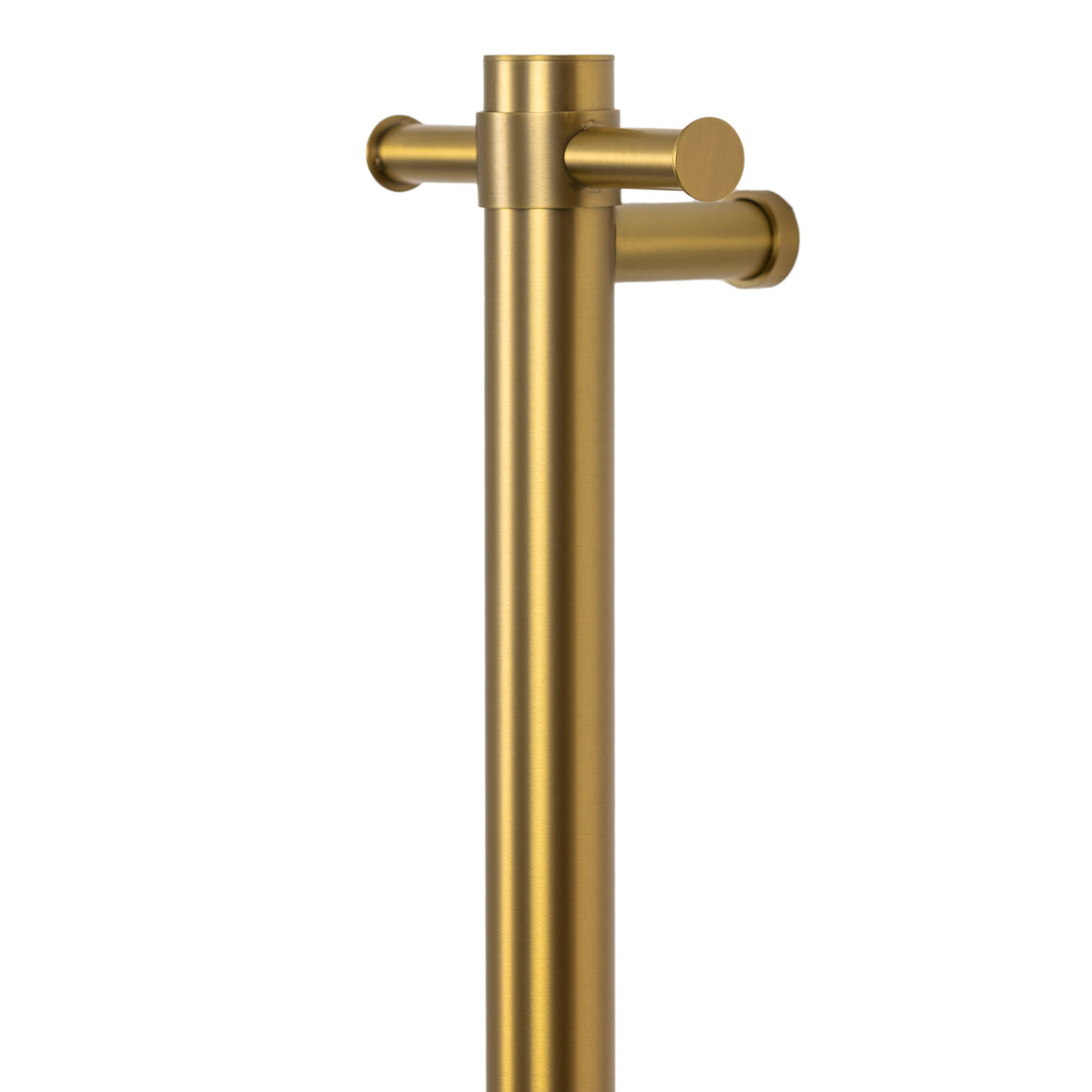

Brushed Gold

HTB-VR-900-BGD

22–30W

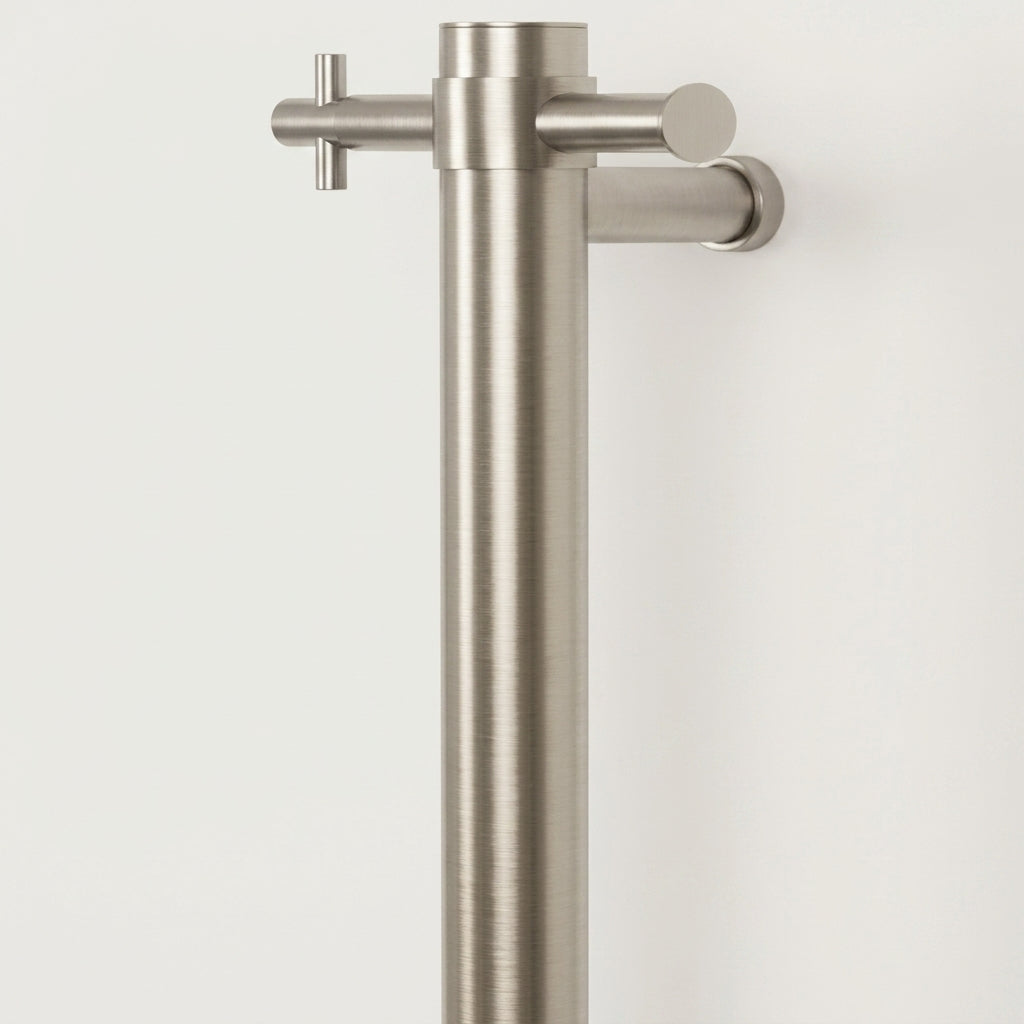

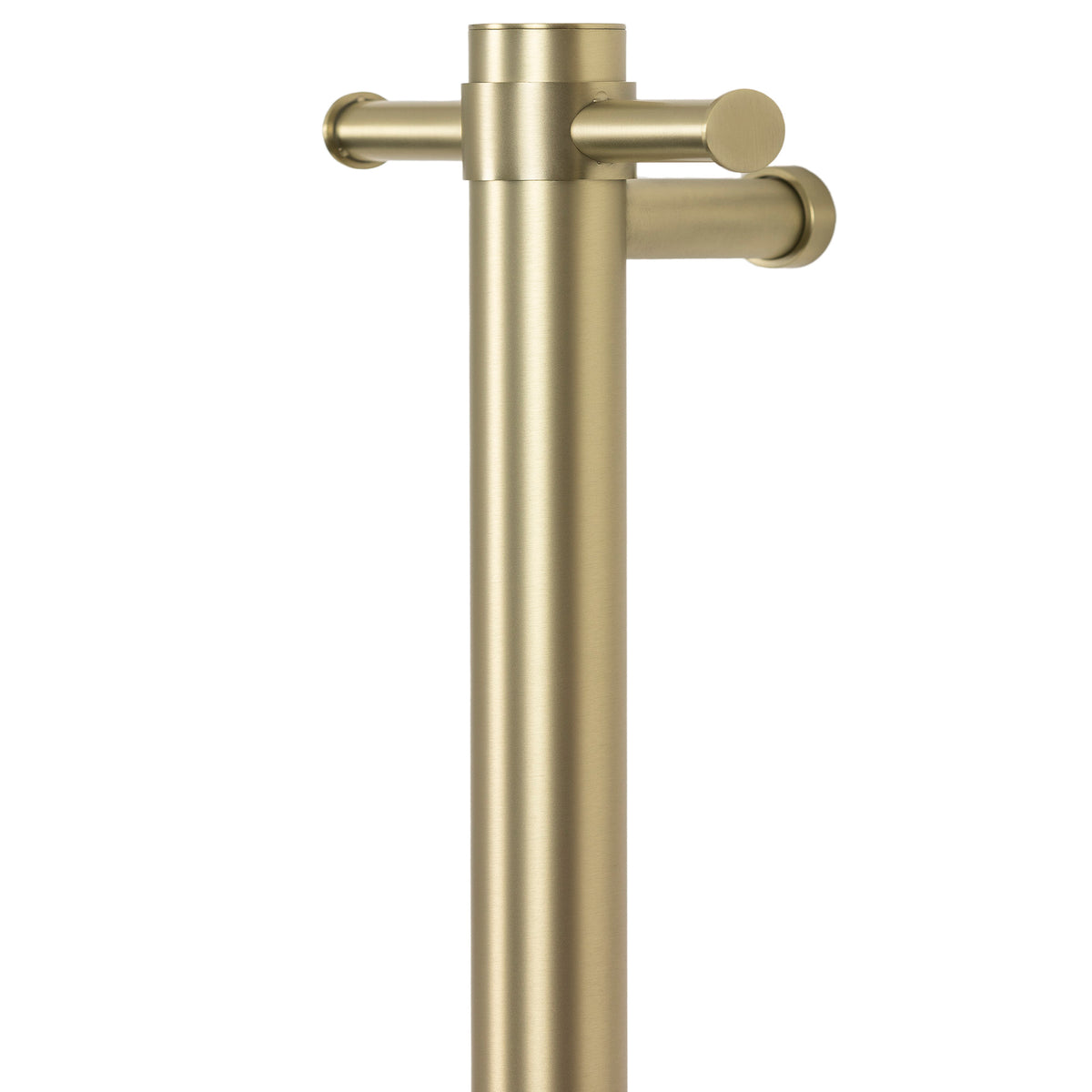

Brushed Nickel

HTB-VR-900-BN

22–30W

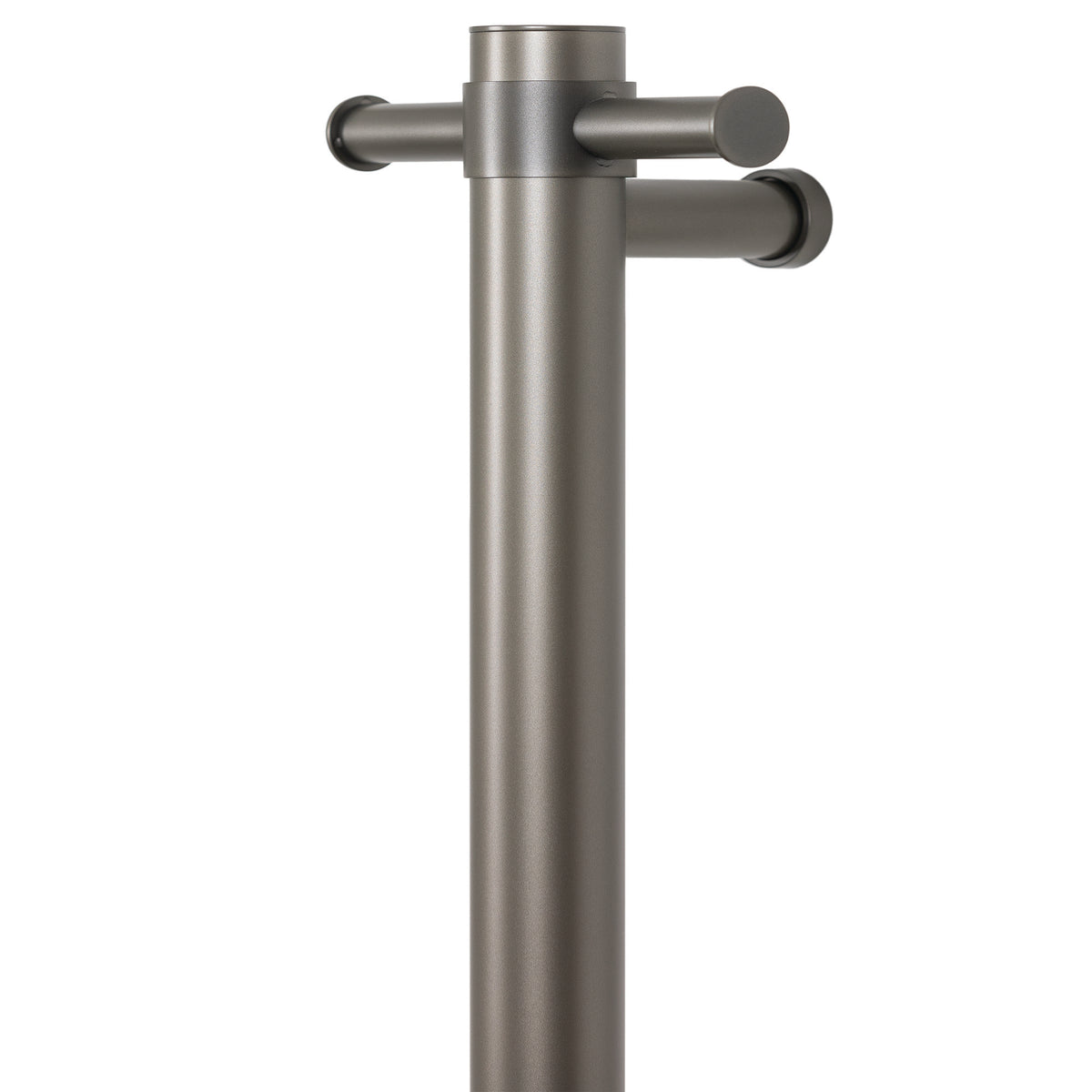

Gunmetal

HTB-VR-900-GM

22–30W

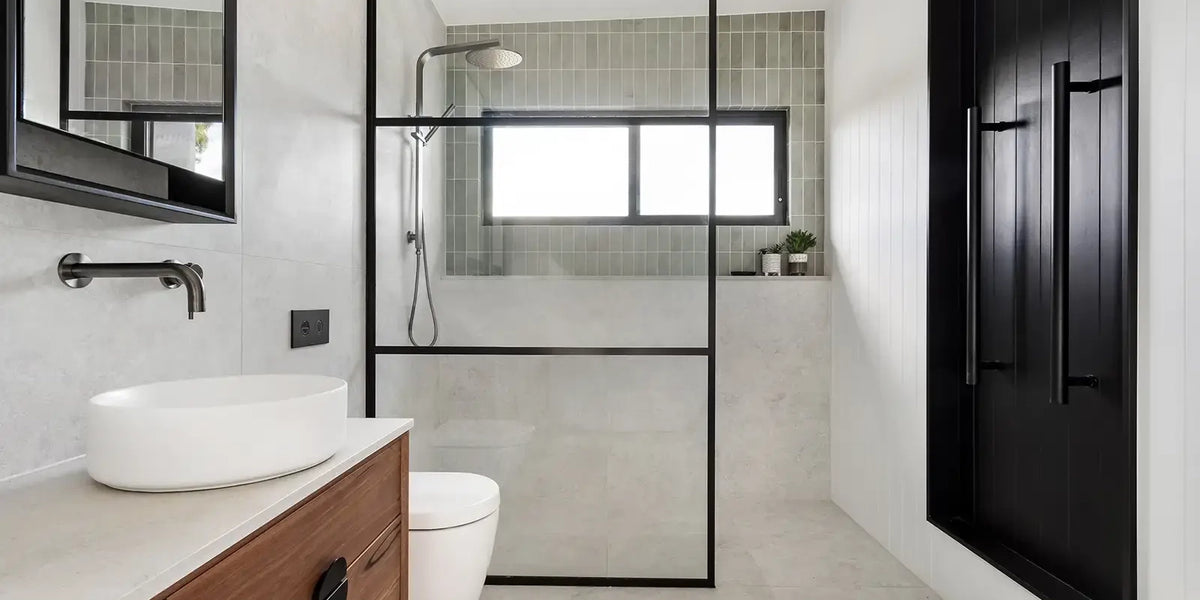

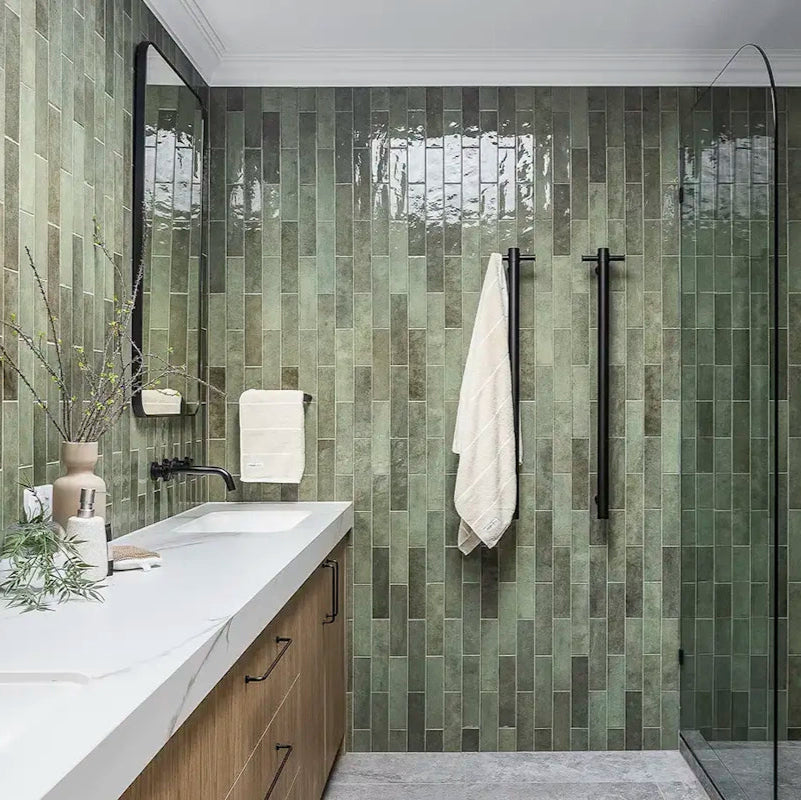

Matt Black

HTB-VR-900-MBK

22–30W

Matt White

HTB-VR-900-MWH

22–30W

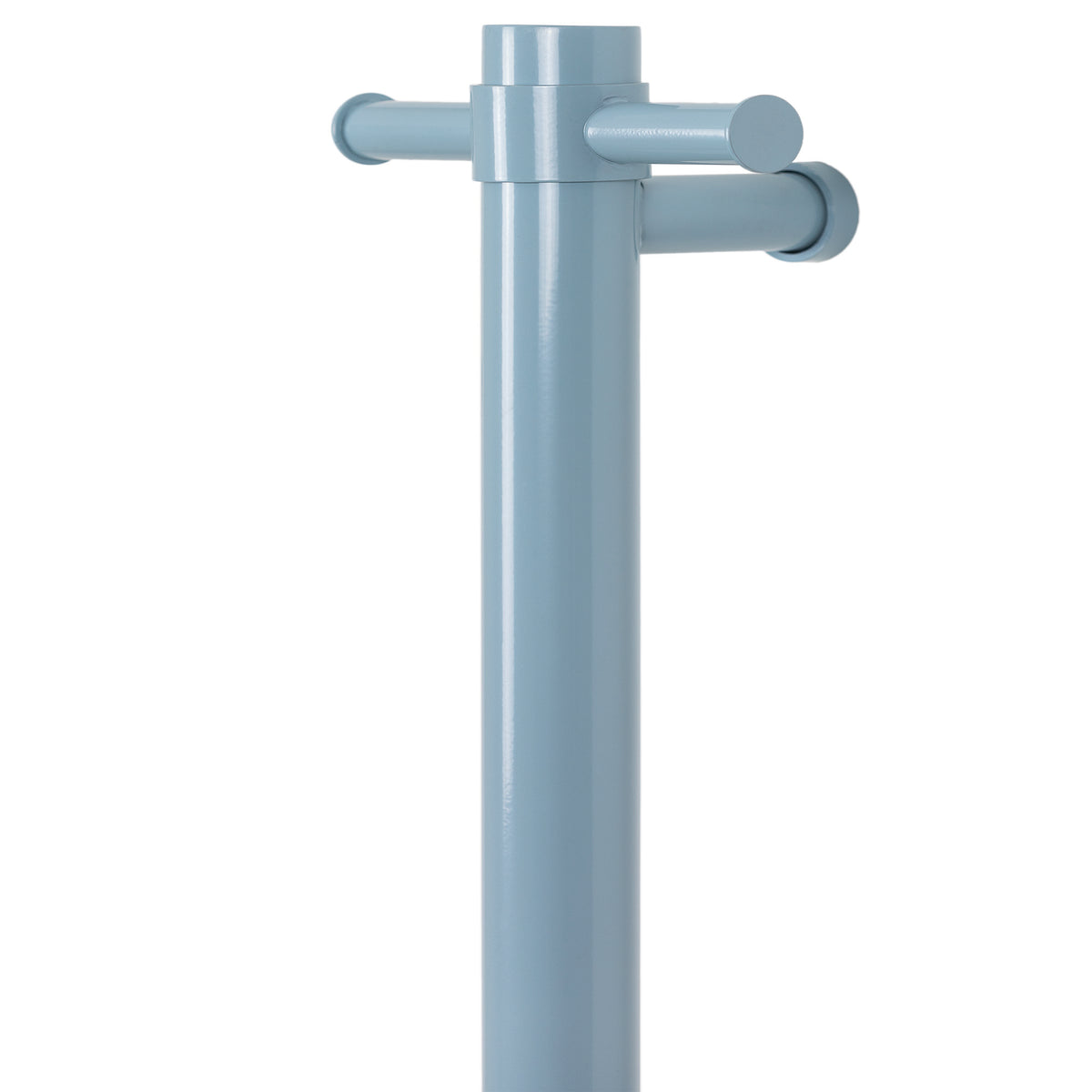

Pastel Horizon Blue

HTB-VR-900-PBL

22–30W

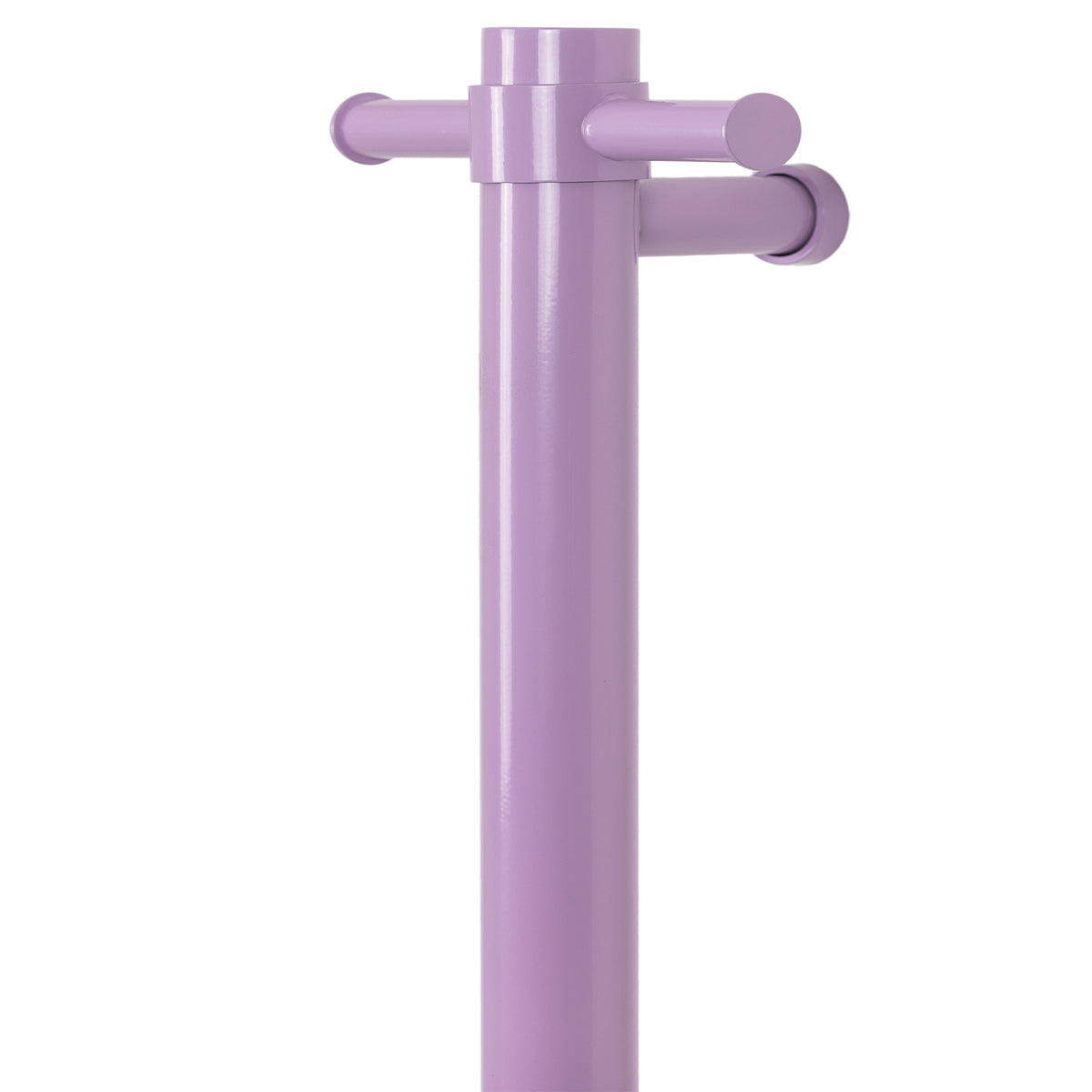

Pastel Lilac Satin

HTB-VR-900-PLL

22–30W

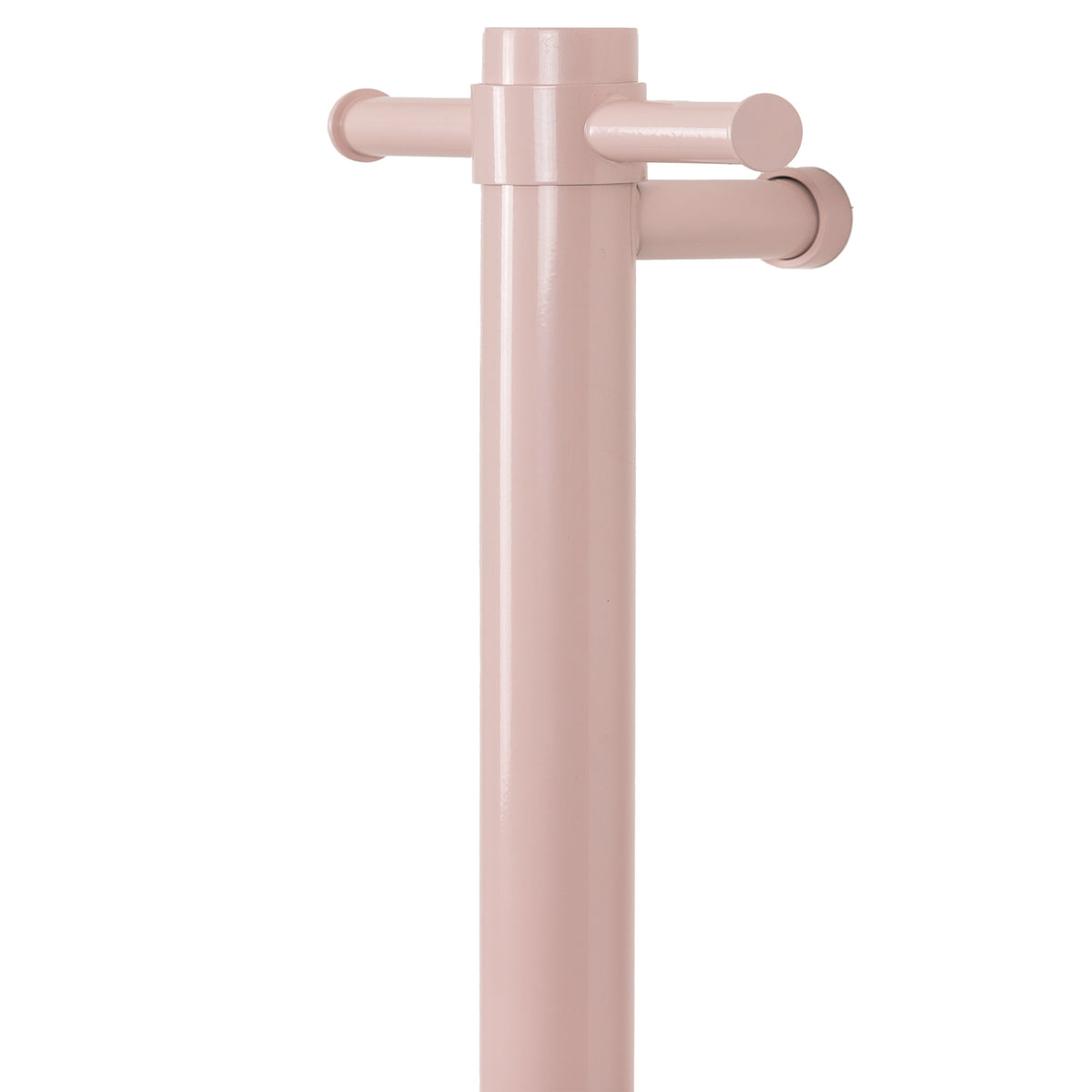

Pastel Dusty Pink

HTB-VR-900-PPK

22–30W

Frequently Asked Questions

Can this towel bar be installed in a shower enclosure or above a bath (Zone 1/Zone 0)?

Yes. Because it operates on 12V SELV, the HTB-VR-900 is suitable for installation in bathroom zones where mains-voltage electrical products are restricted, provided the 12V transformer itself is sited correctly and the whole installation follows BS 7671 zoning requirements.

Do I need to buy a transformer separately?

Yes — a suitably rated 12V transformer is required and is not included with this towel bar. It must be installed in line with the wiring guidelines supplied with the product and current UK wiring regulations.

Does the heated towel bar come with a thermostat?

No separate thermostat is fitted. The element is self-regulating, meaning it maintains a steady, safe surface temperature without additional temperature controls.

Is the robe hook compulsory?

No. The robe hook is removable — many installations leave it off for a cleaner, more minimal look, while others fit it for extra practicality.

What is the difference between this and the 230V version?

This model runs on 12V SELV via a transformer, giving it a lower heat output (22–30W) but wider zone flexibility. The 230V version connects directly to the mains, delivers a higher output (around 120W) for faster warm-up, but is IP44-rated and restricted to installation outside Zone 1.
