EcoFlow Power Pulse 2 Charging Cable 7.5m

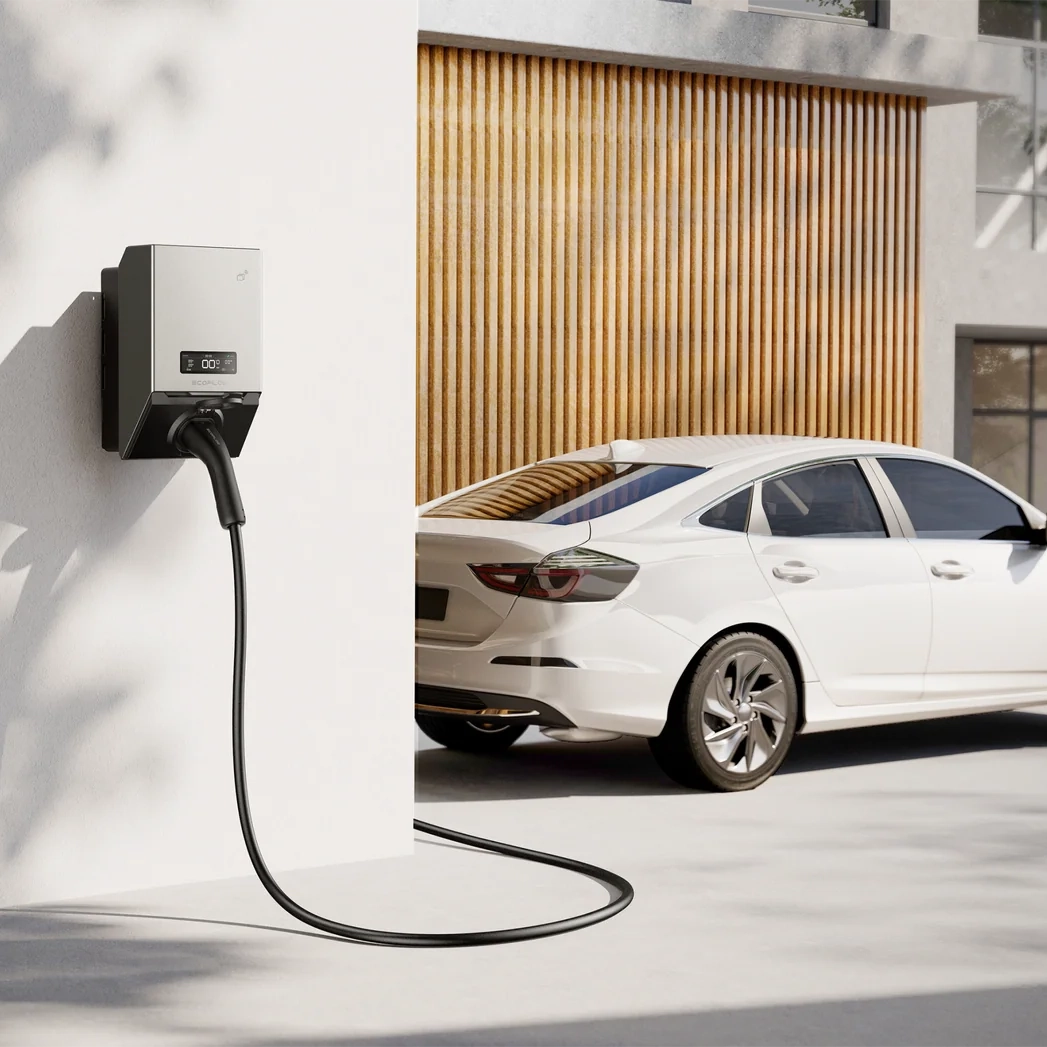

The EcoFlow Power Pulse 2 Charging Cable (7.5m) is a heavy-duty Type 2 EV charging cable designed specifically for the Power Pulse 2 7kW untethered wallbox, providing flexible reach for home and semi-public charging applications.

Product Description

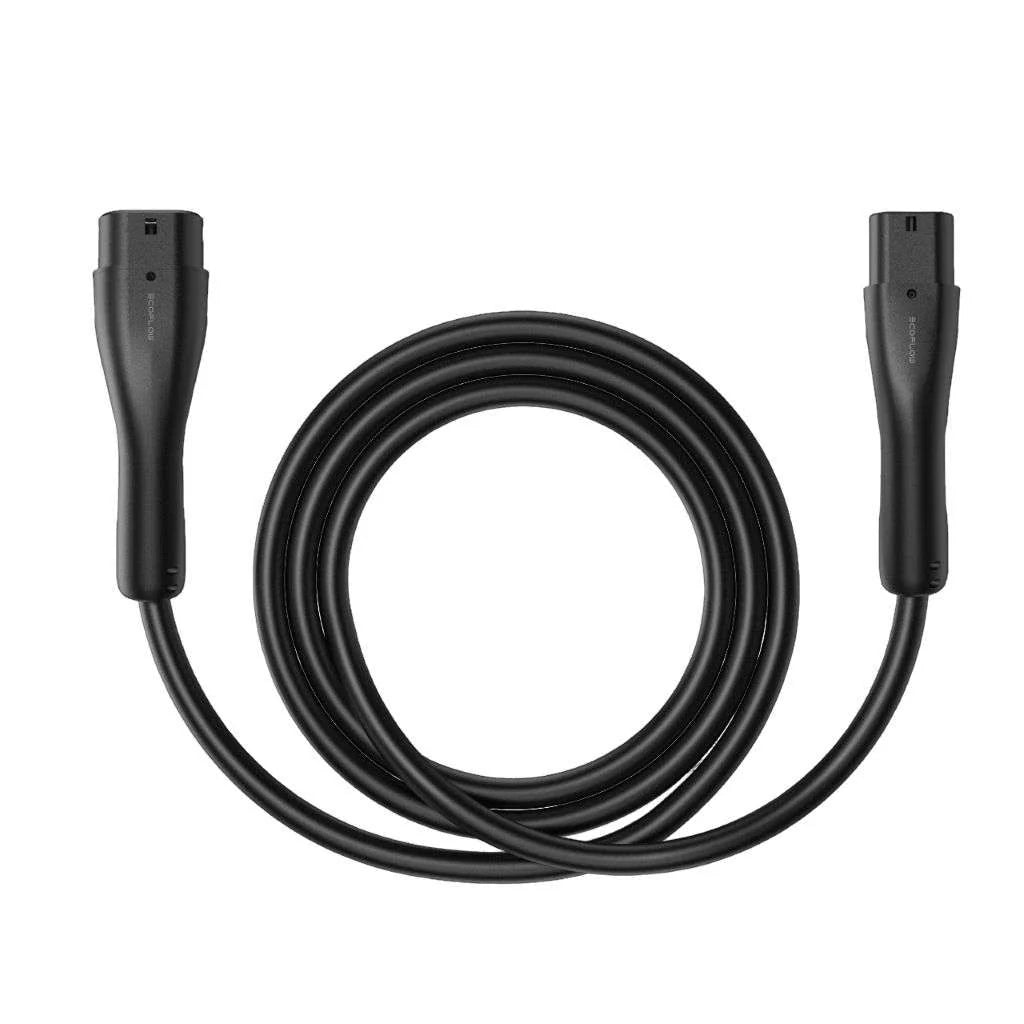

This 7.5m premium Type 2 to Type 2 cable features reinforced construction for daily use with IP65 weather sealing at both ends. Optimised for Power Pulse 2 chargers with integrated cable recognition, it supports full 32A/7kW charging while maintaining flexibility in cold weather and durability for outdoor storage.

Key Features

• Extended 7.5m length: Reaches across driveways to parked EVs without wallbox repositioning.
• Power Pulse 2 optimised: Auto-detected by charger for seamless plug-and-charge operation.
• Heavy-duty construction: Double-insulated with TPU outer jacket for UV, oil and abrasion resistance.
• Weatherproof design: IP65 rated connectors with ergonomic overmoulding for wet conditions.
• Ergonomic handling: Slim 16mm diameter with anti-slip grip and integrated cable loop.
• Safety certified: Overheat protection, pilot signal verification, and 25kA short-circuit withstand.

Technical Details

• Cable length: 7.5m end-to-end (6.8m usable).
• Current rating: 32A single-phase (7kW @ 230V).
• Connector type: Type 2 (IEC 62196-2) male/female, 7-pin.
• Cable specification: H07RN-F 3G6.0mm² + 1G1.0mm² pilot.
• Voltage rating: 230–400V AC.
• Temperature range: −30°C to +50°C (flexible to −40°C).
• Bending radius: Minimum 10x cable diameter (160mm).
• Compliance: BS EN 61851-1, IEC 62196-2, OZEV approved.

Physical Specifications

• Total length: 7.5m (750cm).
• Cable diameter: 16 ± 0.5mm.
• Weight: 4.8kg complete.
• Connector housing: Reinforced polyamide, black/grey.
• Cable jacket: TPU (thermoplastic polyurethane), UV stabilised.
• Conductor material: Stranded copper class 5 (extra flexible).
• IP rating: IP65 mated (connectors), IP54 unmated.

System & Application Notes

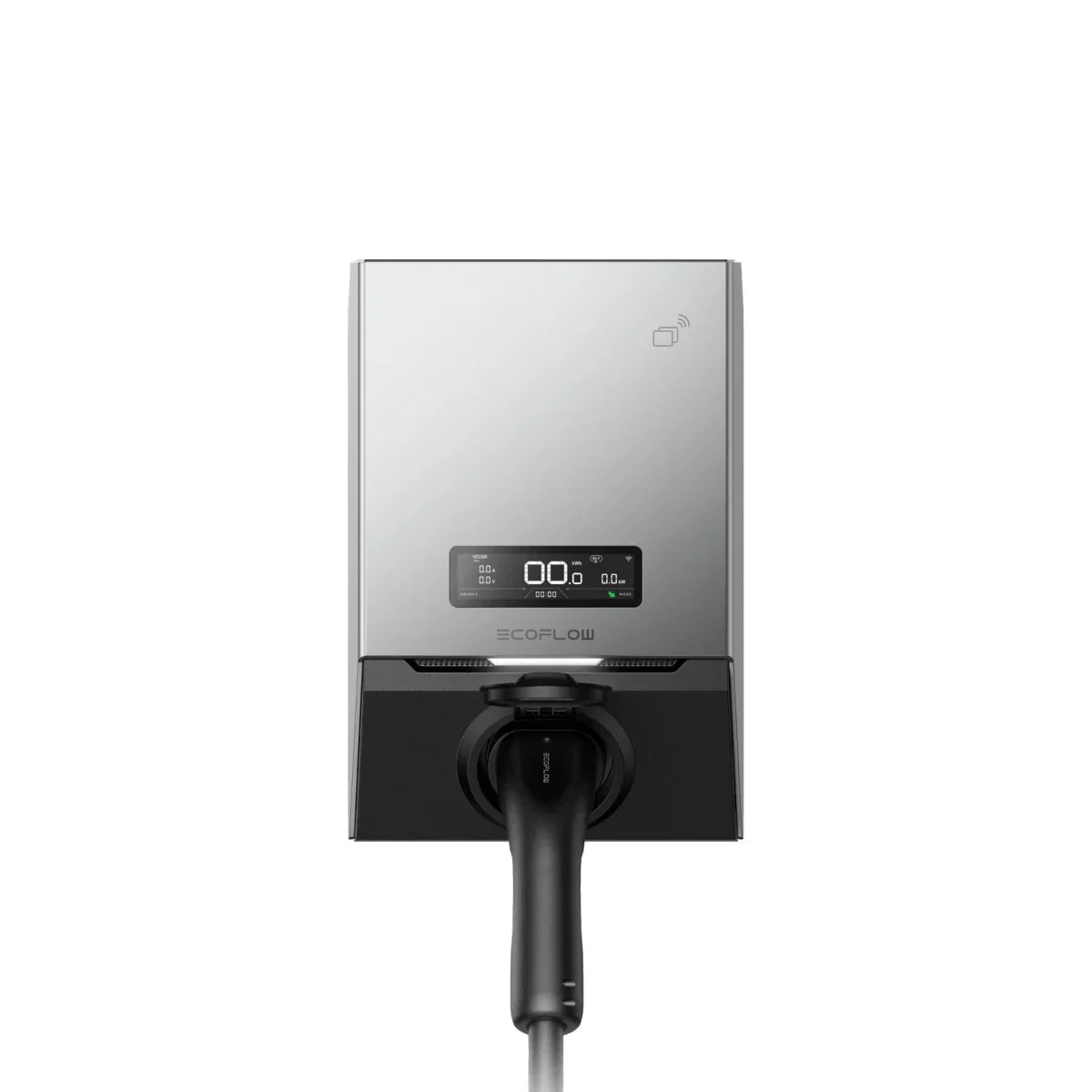

• Compatibility: Power Pulse 2 7kW untethered, all Type 2 EVs (Tesla, VW ID, MG4, etc.).
• Installation: No installation required; stores on wallbox hook or garage reel.
• Maintenance: Visual inspection recommended annually; lifetime 10+ years outdoor.
• Alternatives: 5m standard cable or 10m extended version available.
• Safety features: Automatic current derating in extreme temperatures, pilot circuit verification.
• Warranty: 3 years against manufacturing defects.
• Applications: Home driveways, semi-public charging, fleet depots with untethered wallboxes.
