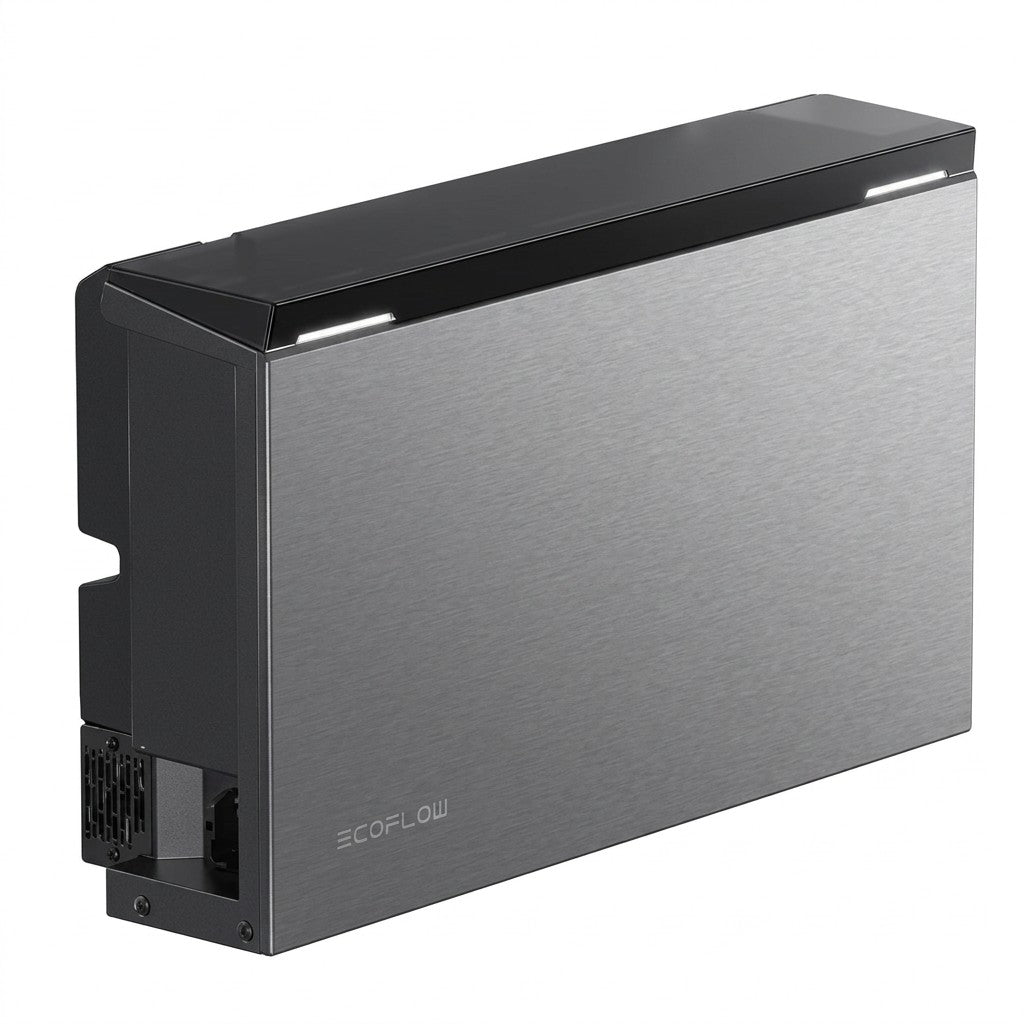

The EcoFlow Ocean 2 Plus Single-Phase Hybrid Inverter is the higher-capacity model in the Ocean 2 range, available in 8kW and 10kW (9.9kW rated) AC output variants. It is built for larger homes and higher-demand applications, with three independent MPP trackers to capture more solar generation from complex or multi-orientation roofs.
Ocean 2 Plus delivers true whole-home backup with a 63A bypass and 0ms load-side switching under supported grid conditions, supporting higher household loads during an outage than the standard Ocean 2 model. It also supports intelligent connection to a third-party inverter on the backup side, and stacks with up to twelve Ocean 2 5.02kWh battery modules for a maximum capacity of 60kWh per inverter.
8 / 10 kW
AC Output Options
Up to 24 kW
Max. PV Input Power
63 A
Backup Bypass Rating
Please Note: This inverter is supplied without a smart meter and requires a separate external smart meter for correct system commissioning in most UK installations. Confirm the correct meter model for your specific tariff and installation type before ordering — see our EcoFlow Smart Meter product listings.
Key Features
Two Power Options for Larger Homes
Available as an 8kW or 10kW (9.9kW rated) model, suited to larger households, EV charging and heat pump loads.
Three Independent MPPTs
With 3 MPP trackers supporting up to 24kW of total PV input, the Plus model adapts more easily to complex rooftops and partial shading.
True Whole-Home Backup
A 63A bypass with 0ms load-side switching (under supported grid conditions) supports higher household loads during an outage than the standard Ocean 2 model.
Expandable to 60kWh per Inverter

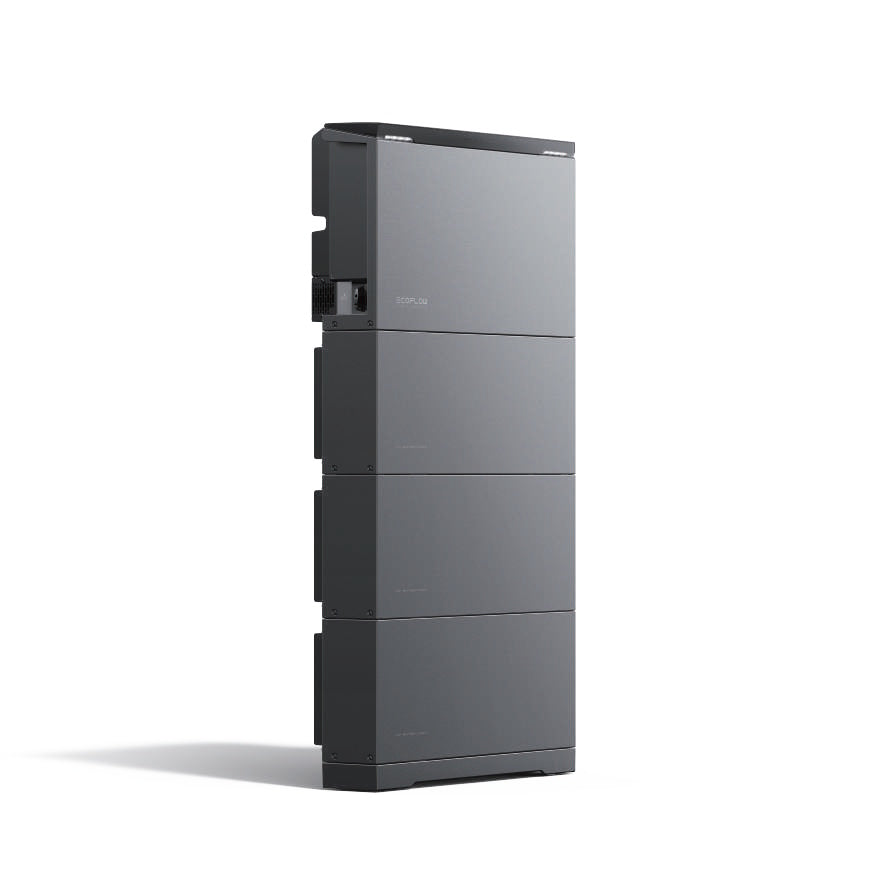

Supports a stack of up to 12 Ocean 2 5.02kWh batteries, reaching 60kWh of storage with a dual-tower configuration on a single inverter.
Parallel Installation for Larger Systems
Supports up to 5 cascaded inverters in grid-connected parallel operation, scaling total storage up to 300kWh across a multi-inverter system.
Third-Party Inverter Compatibility
Supports third-party inverter connection on the backup side, offering flexibility for integrating with existing solar installations.
Choosing the Right Model
Model
AC Output
Typical Use Case
Ocean 2 Plus 8kW 1ph
8 kW
Larger homes with higher self-consumption or EV charging demand
Ocean 2 Plus 10kW 1ph
9.9 kW (marketed as 10kW)
Maximum single-phase output for high-demand homes, heat pumps and whole-home backup
Technical Specifications
General
Product Range
Ocean 2 Plus Single-Phase Hybrid Inverter
Model Codes
EF HD-P1-8K0-S2A (8kW) / EF HD-P1-9K9-S2A (marketed as 10kW)
Mounting Method
Floor stand or wall-mounted
Environmental Category
Outdoor / Indoor
PV Input
Number of Strings per MPPT
1
PV Operating Voltage Range
50–900 V
Max. Input Current per MPPT
16 A
Max. Total Input Power
16,000 W (8kW model) / 20,000 W (10kW model)
AC Output
Rated AC Output Power
8,000 W / 9,999 W (model dependent)
Nominal Voltage
220V AC / 230V AC, L+N+PE
Max. Output Current
42.8 A (8kW) / 53.5 A (10kW)
Max. Input Current (Grid)
63 A
Power Factor
0.8 leading ~ 0.8 lagging
Battery & Capacity
Compatible Battery
EcoFlow Ocean 2 LFP Battery 5.02kWh
Rated Battery Voltage
800 V
Max. Capacity with 1 Inverter
12 battery modules (up to 60 kWh, dual-tower)
Parallel Installation (On-Grid)
Up to 5 cascaded inverters (up to 300 kWh total)
Parallel Installation (Off-Grid)
Up to 2 cascaded inverters
Protection & Efficiency
Grid-to-Off-Grid Switching Time
0 ms (under supported conditions)
Anti-Islanding Protection
Yes
DC / AC Surge Protection
Type II / Type II
Physical
Dimensions (W×D×H)
Approx. 679.6 × 406.5 × 203.2 mm
Important Safety Information: Installation must be carried out by a qualified, MCS-certified installer. Grid connection notification (G99, applicable at this output range) must be completed with the local Distribution Network Operator (DNO) before commissioning.
Frequently Asked Questions
What is the difference between the 8kW and 10kW models?
Both share the same design and features. The 8kW model is rated at 8,000W output, while the 10kW model is rated at 9,999W (marketed as 10kW) with correspondingly higher maximum PV input and output current.
How is Ocean 2 Plus different from the standard Ocean 2 inverter?
Ocean 2 Plus offers higher output power (8kW/10kW vs 3.68–6kW), a third MPP tracker for more complex roofs, a higher-rated 63A backup bypass for whole-home backup, and support for up to 12 battery modules rather than 6.
Can this inverter provide whole-home backup during a power cut?
Yes, Ocean 2 Plus is designed for true whole-home backup with a 63A bypass and 0ms load-side switching under supported grid conditions, allowing it to support higher household loads than the standard Ocean 2 model during an outage.
How much storage can I add to one Ocean 2 Plus inverter?
A single inverter supports up to 12 Ocean 2 5.02kWh battery modules, reaching 60kWh of storage using a dual-tower configuration.
Do I still need a separate smart meter?
Yes, a separate external smart meter is typically required for correct system commissioning in most UK installations, in addition to the inverter's internal metering.
