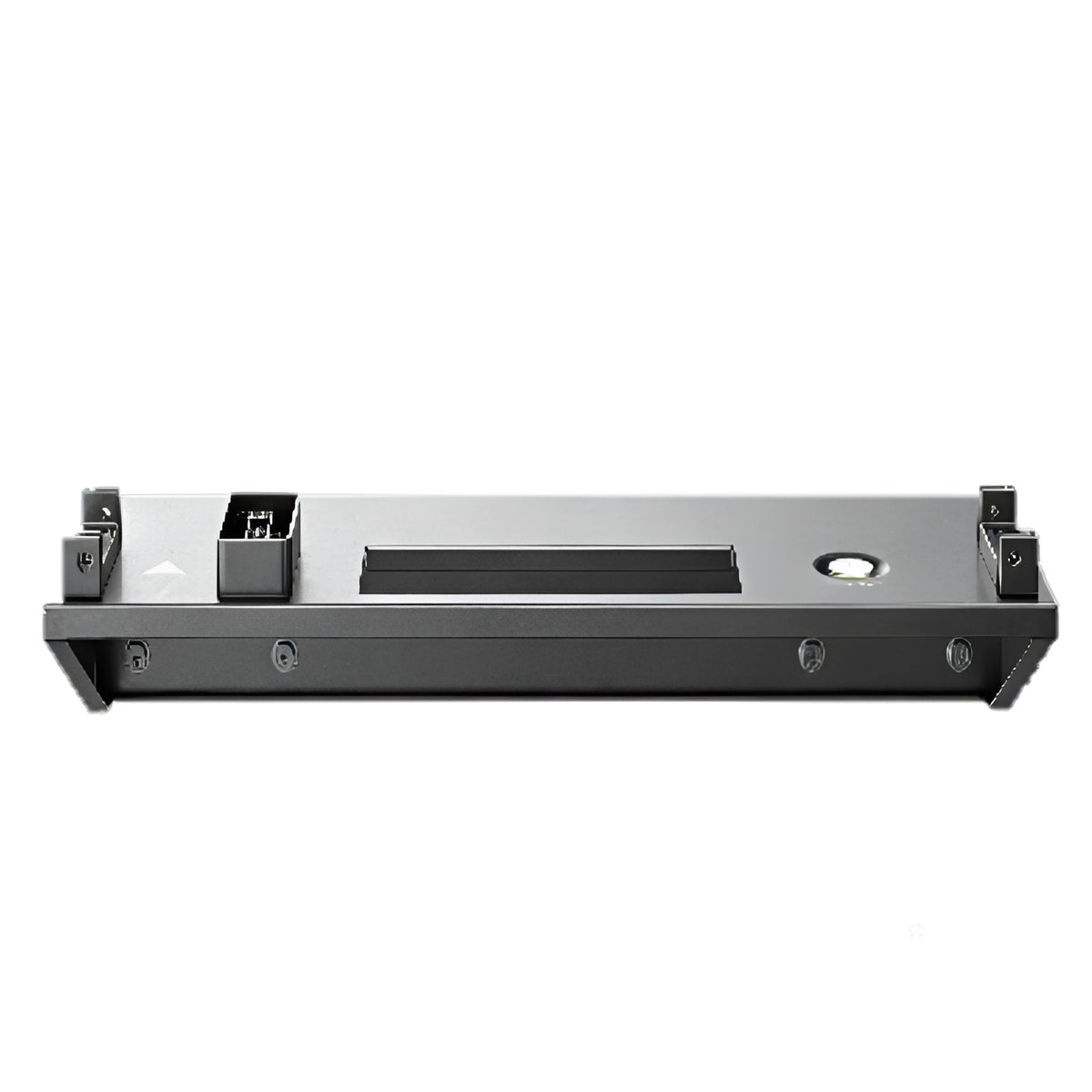

The EcoFlow OCEAN 2 Battery Floor Base is the genuine EcoFlow floor-standing foundation for the first stack of OCEAN 2 LFP batteries. It is designed for stacks built from the OCEAN 2 LFP Battery 5kWh (EF BD-5-S2) and the OCEAN 2 LFP Battery 8kWh (EF BD-8-S2), giving you a level, secure start point for up to 6 batteries per stack.
The base has adjustable feet and a built-in spirit level so you can set it perfectly horizontal on the floor, plus a click-on stacking terminal that links the first battery without external cables. It works with OCEAN 2 single-phase and three-phase hybrid inverter systems, and at just 704.6 x 177 x 119.5 mm and 2.76 kg it is easy to position on site. It is intended for all-OCEAN 2 stacks.
Up to 6
Batteries per stack
5kWh + 8kWh
OCEAN 2 batteries supported
48.18 kWh
Max stack (6 x 8kWh)
30.12 kWh
Max stack (6 x 5kWh)
1ph + 3ph
Compatible systems
Safety and installation
Installation must be carried out by a qualified, trained installer following the EcoFlow installation guide. The floor must be solid, flat and able to carry the full weight of the stack, and the supplied bolts are intended for solid concrete floors, so select suitable fixings for other floor types. Each battery must be moved by two or more people using the handles, and for stacks of 4, 5 or 6 batteries the manufacturer calls for lifting equipment.
Mixing with PowerOcean batteries
This base is only recommended for stacks made up entirely of OCEAN 2 batteries. The OCEAN 2 5kWh battery is cross-compatible with PowerOcean 5kW batteries, but when you mix the two, do not use this base. Use the PowerOcean battery base instead, with the PowerOcean batteries at the bottom of the stack and the OCEAN 2 batteries on top.
Second stacks and wall mounting
This base is for the first stack. A second stack of up to 6 OCEAN 2 batteries is connected using a PowerOcean Plus battery base and battery junction box, both sold separately. For wall-mounted installations, EcoFlow offers a separate wall-mounted battery base that supports up to 3 batteries per stack.
Compatible with both OCEAN 2 battery sizes
Yes, one floor base covers both capacities. You can build a stack from 5kWh modules, 8kWh modules, or a mix of the two, as OCEAN 2 supports mixed use of its battery packs within the same system.
Key features
Fits 5kWh and 8kWh batteries
One manufacturer-matched base for OCEAN 2 LFP 5kWh and 8kWh modules, so you can specify the same accessory whichever capacity the customer chooses.
Up to six batteries high
Supports a floor-standing stack of up to 6 batteries: 30.12 kWh with 5kWh modules or 48.18 kWh with 8kWh modules.
Level and square
Adjustable feet and a built-in spirit level make it simple to set the base horizontal before the first battery goes on.
Click-on stacking terminal
The click-on terminal connects the first battery in the stack, so batteries stack and connect without external cables.
Secure floor fixing
Fixed to the floor with M6x60 expansion bolts. Two are supplied with each battery and can secure either the battery or the base.
Compact and light
Just 704.6 x 177 x 119.5 mm and 2.76 kg, matched to the slim OCEAN 2 battery footprint.
Compatible batteries and stack capacity
Battery
Nominal capacity
Max per stack
Max stack capacity
Weight each
OCEAN 2 LFP 5kWh (EF BD-5-S2)
5.02 kWh
6
30.12 kWh
46 kg
OCEAN 2 LFP 8kWh (EF BD-8-S2)
8.03 kWh
6
48.18 kWh
67.5 kg
Technical specification
General
Product type
Battery floor base (floor stand) for the first stack
Compatible batteries
EcoFlow OCEAN 2 LFP Battery 5kWh (EF BD-5-S2) and 8kWh (EF BD-8-S2)
Compatible systems
EcoFlow OCEAN 2 and OCEAN 2 Plus hybrid inverter systems, single-phase and three-phase
Dimensions (W x D x H)
704.6 x 177 x 119.5 mm
Installation
Mounting method
Floor standing, fixed to the floor with expansion bolts
Levelling
Adjustable feet with built-in spirit level
Stacking connection
Click-on stacking terminal
Maximum batteries per stack
6
Fixing hardware
M6x60 expansion bolts (two supplied with each battery, usable on the battery or the base)
Minimum clearance between parallel stacks
300 mm
Side access
Leave enough space either side of the stack to tighten the battery side locking screws
Corridors, hallways and lobbies
Maintain at least 1 m clearance from the battery system for safe egress
Wall-mounted alternative
Separate EcoFlow wall-mounted battery base, up to 3 batteries per stack
Specifications are subject to change by the manufacturer without notice. Always follow the current EcoFlow installation guide for your inverter and battery combination.
Frequently asked questions
Is this base compatible with both the 5kWh and 8kWh OCEAN 2 batteries?
Yes. It is the floor base for the first stack of OCEAN 2 LFP batteries, and EcoFlow's installation guide for the 8kWh battery uses the same battery base as the 5kWh. You can stack 5kWh modules, 8kWh modules, or a mixture on it.
How many batteries can I stack on it?
Up to 6 batteries per floor-standing stack. That gives a maximum of 30.12 kWh with six 5kWh modules or 48.18 kWh with six 8kWh modules.
Can I use it with PowerOcean batteries?
It is not recommended when mixing OCEAN 2 and PowerOcean batteries. In a mixed stack, use the PowerOcean battery base and place the PowerOcean batteries at the bottom with the OCEAN 2 batteries on top.
Does it work with single-phase and three-phase systems?
Yes. It is used with the OCEAN 2 single-phase and three-phase hybrid inverter systems, where the inverter stacks directly on top of the batteries.
What fixings do I need?
The base is fixed to the floor with M6x60 expansion bolts. Two come with each battery and can be used on either the battery or the base. They are intended for solid concrete floors, so choose suitable fixings for any other floor construction.
How much clearance does the stack need?
Allow a minimum of 300 mm between parallel stacks and enough room at the sides to tighten the battery side screws. In a corridor, hallway or lobby, keep at least 1 m clear for safe egress.
