Dyness 10.24kWh 51.2V LV LFP Battery | Powerbox G2
Regular price
£1,799.00
Inc. VAT
£1,499.17
Exc. VAT
Free Shipping
Free shipping on solar panels for orders above £2,500!
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Documentation
Downloads
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
The Dyness Powerbox G2 is a 10.24 kWh low-voltage lithium iron phosphate (LiFePO4) battery designed for residential energy storage. With 9.728 kWh of usable energy, a 51.2 V, 200 Ah cell configuration and 1C discharge, it delivers strong power for household loads, supplying 5.12 kW nominal and 10.24 kW maximum from a single unit.

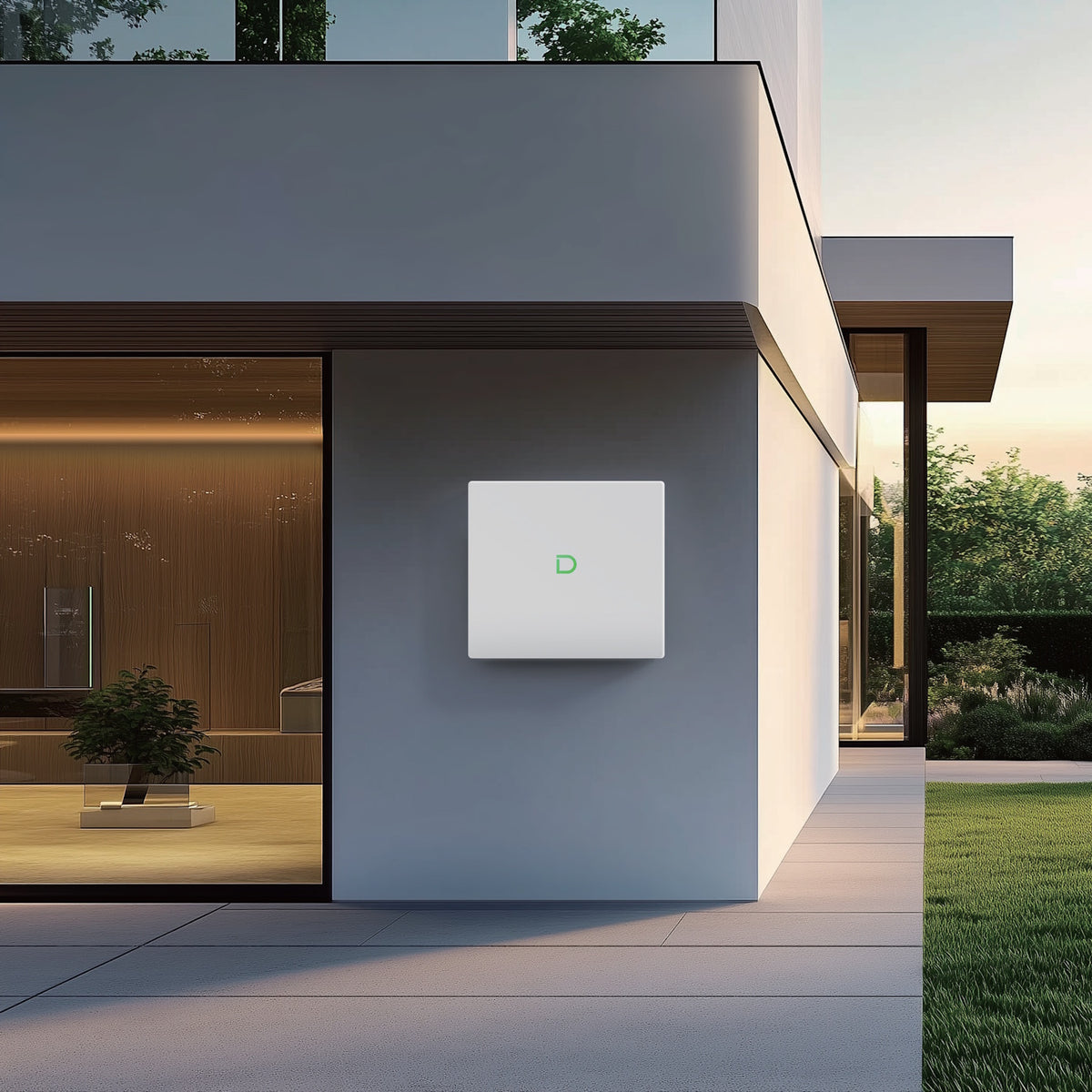

Supplied with the PC front cover panel, it has a slim 165 mm (6.5 in) profile, so it fits where bulkier batteries will not. It is rated IP65 for indoor or outdoor installation and mounts on the wall bracket or stands on the floor, with 30% less volume and 15% less weight than the previous generation. Capacity scales from 10.24 kWh up to 512 kWh with up to 50 units in parallel.
Safety is built in: an active fire protection system with a built-in aerosol extinguisher reacts within 5 seconds, and an explosion-proof valve provides automatic pressure relief. CAN and RS485 communication, a built-in Wi-Fi module with app OTA updates and an optional low-temperature heating function complete the package, backed by unlimited cycles over 10 years.
10.24 kWh
nominal energy
9.728 kWh
usable energy
1C / 200 A
max discharge
IP65
indoor or outdoor
50 units
in parallel, up to 512 kWh
10 years
unlimited cycles
Heavy unit: plan the lift and the fixing
- The battery weighs 96 kg. Use suitable lifting equipment and enough people for the mounting method.
- Wall mounting needs a solid brick or cement wall at least 100 mm thick with strong load-bearing capacity.
- Earth the battery shell with a cable of at least 6 mm² (M6 ring terminal, 6 Nm).
- Fit only by trained professionals. In a fire, do not use water and keep a dry powder extinguisher nearby. Never mix batteries of different makes, models or ages.
- For UK installations, follow BS 7671 and the IET Code of Practice for Electrical Energy Storage Systems, and notify your DNO for the overall system as required (G98/G99).
Inverter communication and DIP switches
The battery talks to the inverter over CAN or RS485 through the supplied RJ45 cable. Set the master DIP switch to suit the inverter brand: factory setting 0000 for Solis, GoodWe, SAJ and SolaX, switch #3 ON for SMA, Ingeteam, Solplanet, SOFAR, Deye, Luxpower and others. Some brands need different settings, so check the latest Dyness inverter compatibility list. The DIP switches sit under a tamper label, and Dyness must authorise opening the cover before you change them.
Cold-climate charging and large banks
Standard charging range is 0 to 55 °C. Charging down to -20 °C needs the optional heating function, so confirm it is fitted if the battery will sit in an unheated space. Banks of more than 12 parallel units need a CAN terminating resistor on the last battery's CAN OUT port.
Recommended inverter settings and sizing
- Max charge (bulk) voltage 57.6 V, absorption 56.5 V, float 56 V.
- Shut-down voltage 48 V, shut-down SOC 5%, restart voltage 52 V.
- Max charge current 200 A and max discharge current 200 A.
- Matching guide: 5 kW inverter with 1 unit, 10 kW with 1 to 2 units, 15 kW with 2 to 3 units.
Key features
Flexible expansion
Up to 50 units in parallel gives 10.24 kWh to 512 kWh of capacity to grow with the household.
Ultra safe
Intelligent fire extinguishing reacts within 5 seconds, with an automatic pressure relief valve and a DC circuit breaker for short-circuit protection.
Automatic self-heating
Optional heating function extends the operating range to -20 °C to 55 °C, including charging.
1C discharge
Up to 200 A continuous discharge, with 300 A peak for 2 minutes at 25 °C, to power several loads at once.
Easy installation
30% less volume and 15% less weight than before. Wall-mount with the supplied bracket and positioning template, or stand it on the floor.
IP65 protection
Sealed for indoor or outdoor use, with a built-in Wi-Fi module and app OTA updates for monitoring.
Technical specifications
Inverter power matching
Supplied in the box
Per the manufacturer packing list: the Powerbox G2 battery, red and black power cables (2.05 m), a 2 m parallel communication cable and a 2 m inverter communication cable (RJ45), the wall bracket, 6 × M8 shoulder screws, 4 × M6 expansion bolts, 4 × M6 tapping screws, 2 positioning cardboards, unlock pieces, user manual and warranty card.
