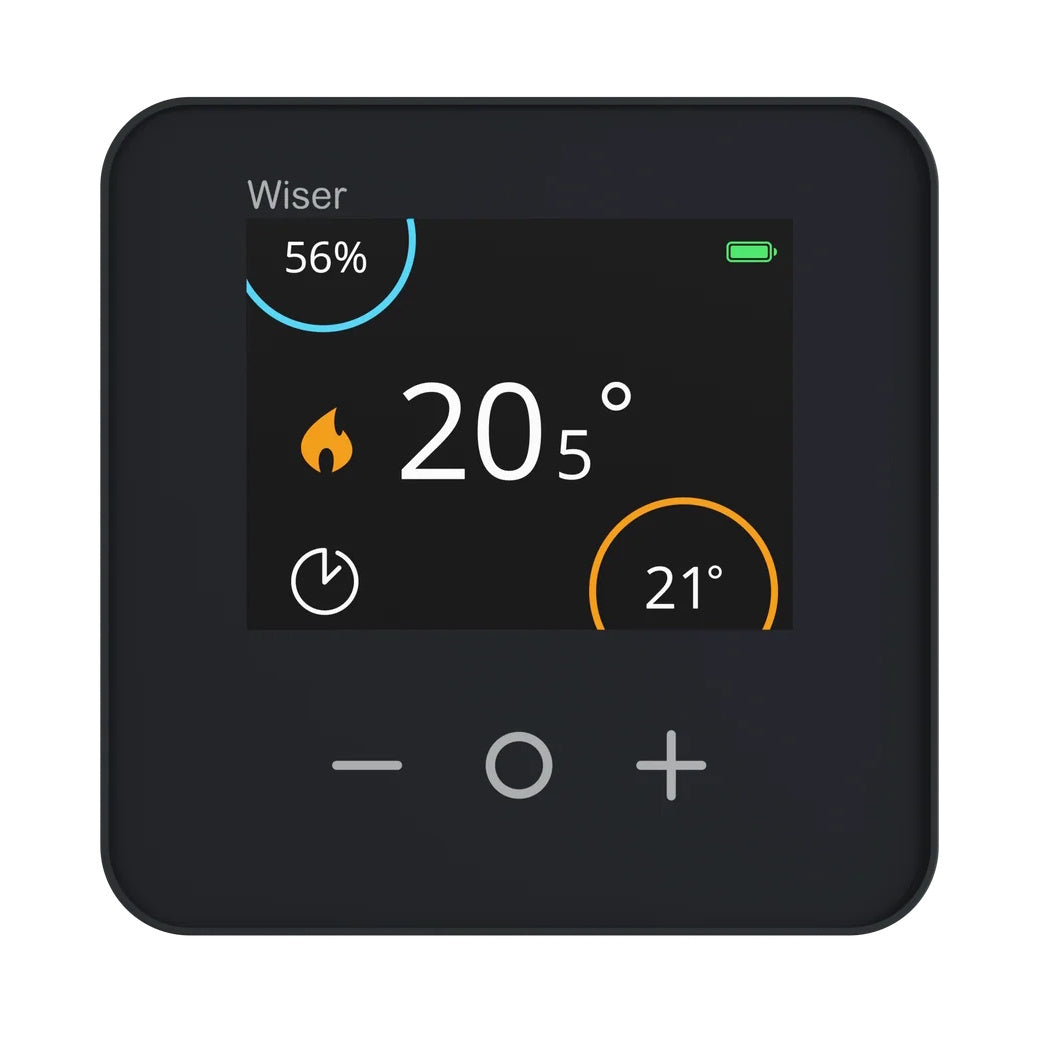

The Drayton Wiser Room Thermostat in Anthracite (WN704R0S0901) is a wireless, battery-powered smart thermostat that adds accurate room-by-room temperature control to any Wiser multi-zone heating system. It acts as the master control for rooms fitted with Wiser Radiator Thermostats, and is also the required room controller when using the Wiser Underfloor Heating Controller or Wiser Heat Switch.
Communicating over Zigbee 2.4 GHz with the Wiser Hub, the thermostat can be wall-mounted using the supplied bracket or left freestanding on the included desk stand, giving complete flexibility over positioning. Its matt anthracite finish is designed to complement darker interior schemes and anthracite-finished heating hardware. Manufacturer part reference: WN704R0S0901 (also listed as WN704R0S0901SX).
2.4"
Full-Colour LCD
5-30°C
Temperature Range
2.4 GHz
Zigbee Wireless
30m
Max. Wireless Range
IP20
Ingress Protection
2 Yrs
Manufacturer Guarantee
Please Note
A Wiser Hub is required for this thermostat to operate — it does not function as a standalone device. It is compatible with Wiser Hub Generation 1 and Generation 2, and works with all boiler types via OpenTherm or on/off control.
Full-Colour Touchscreen Display
A backlit, full-colour LCD screen with capacitive touch buttons shows the current room temperature and active set-point at a glance, and allows the set temperature to be adjusted directly on the device.
Temperature & Humidity Sensing
Built-in electronic temperature and humidity sensors give the thermostat dual monitoring capability, with both readings visible in the Wiser Home app.
Wireless Zigbee Communication
Communicates with the Wiser Hub over 2.4 GHz Zigbee, with a wireless range of up to 30 metres (reduced by walls and electrical interference), removing the need for any additional wiring.
Wall-Mounted or Freestanding

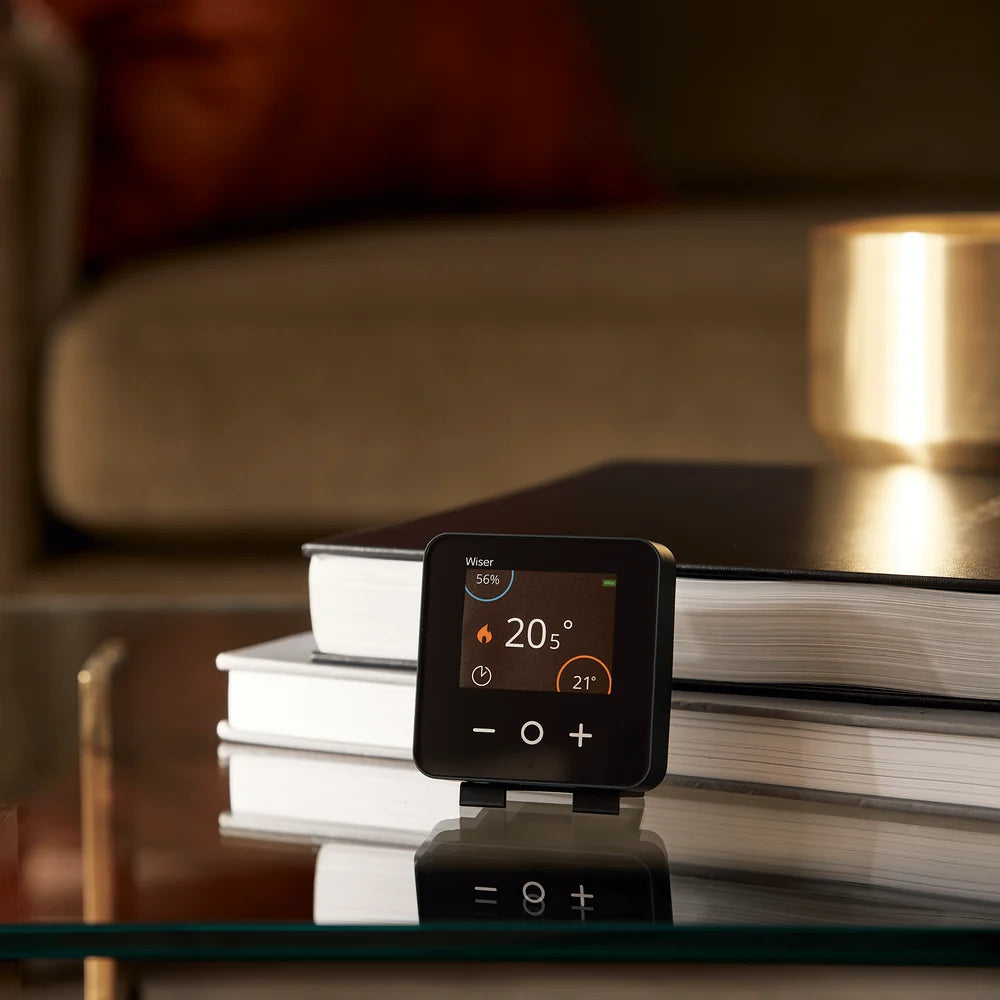

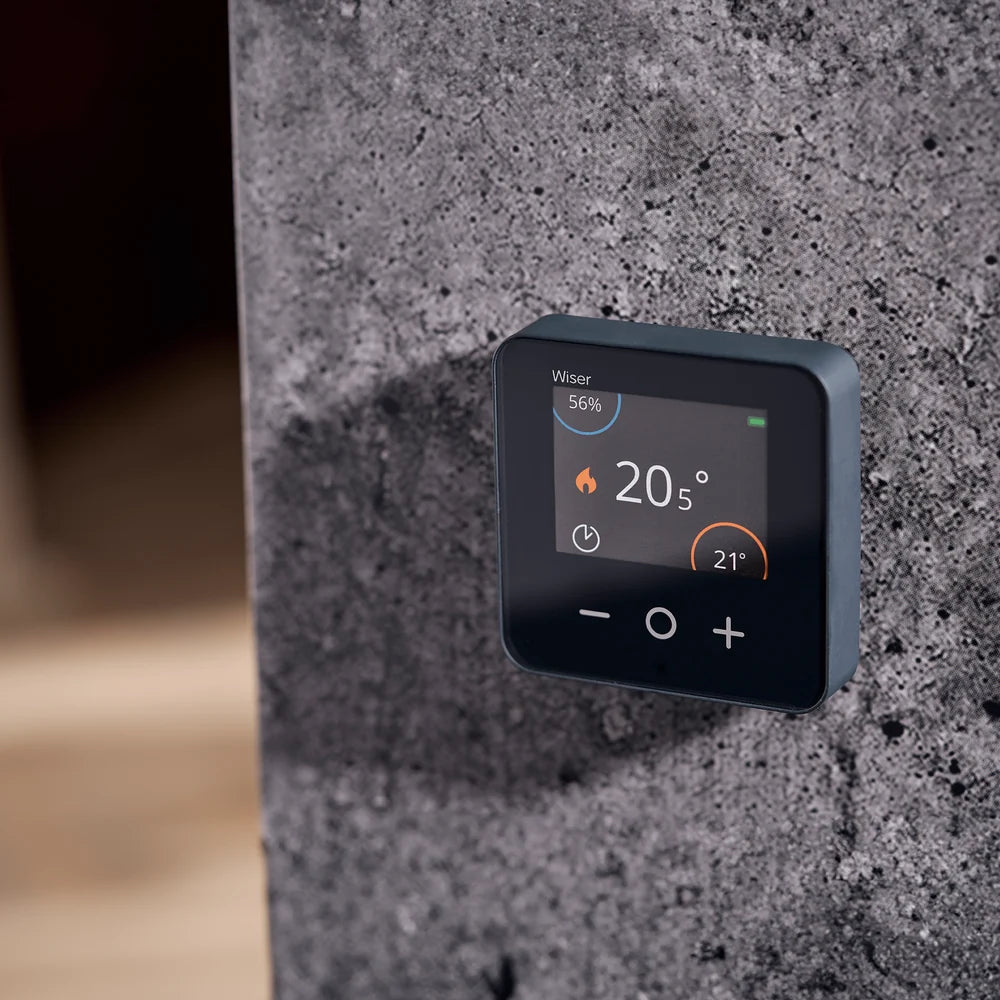

Supplied with a wall bracket and a desk stand, so the thermostat can be fixed to a wall or placed freestanding on any flat surface.
Master Control for Radiator Thermostats
Acts as the master zone controller for up to 4 Wiser Radiator Thermostats in a room, and is required when controlling the Wiser Underfloor Heating Controller or Wiser Heat Switch.
Voice & App Control

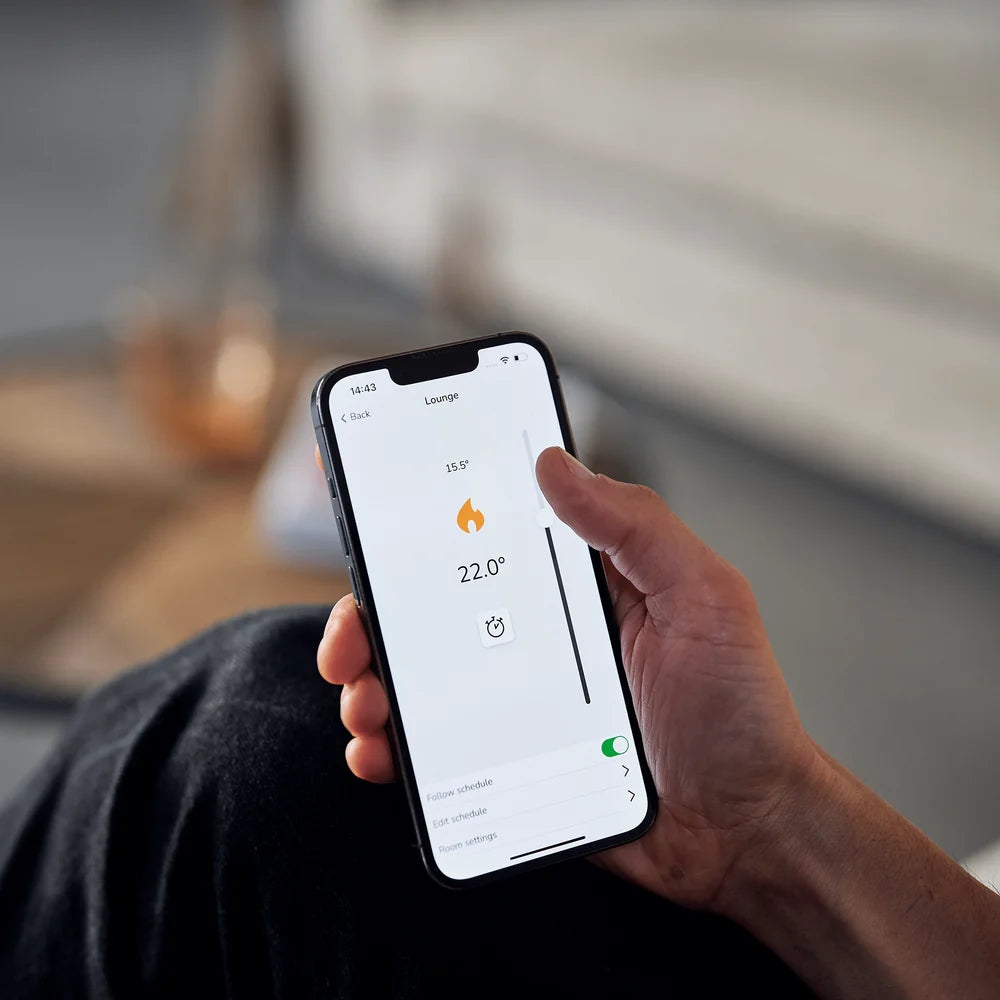

Fully controllable via the Wiser Home app on iOS or Android, and compatible with Amazon Alexa and Google Assistant for hands-free voice adjustments.
Technical Specification
General
Manufacturer Part Reference
WN704R0S0901
Colour
Anthracite
Product Type
Wireless Room Thermostat
Range
Wiser
Mounting
Wall-mounted (bracket supplied) or freestanding (desk stand supplied)
Performance
Temperature Setting Range
5°C to 30°C
Sensor Type
Electronic — temperature and humidity
Display
Backlit full-colour LCD touchscreen
Control Method
Capacitive touch buttons, Wiser Home app, or voice assistant
Boost Function
Temporary temperature boost, 30 minutes to 3 hours
Connectivity
Communication Protocol
Zigbee 2.4 GHz
Concentrator Compatibility
Wiser Hub Generation 1 and Generation 2
Boiler Communication
OpenTherm or on/off, via Wiser Hub
Max. Wireless Range
30 m (reduced by walls, floors, and electrical interference)
Smart Home Compatibility
Amazon Alexa, Google Assistant, Wiser Home app (iOS/Android)
Power & Physical
Power Source
Battery-powered — 2 x AA batteries (supplied)
Dimensions (H x W x D)
Approx. 85 x 82 x 53 mm
IP Rating
IP20 — indoor use only
ErP Control Class
Class IV (on/off systems) / Class VI (OpenTherm systems)
Compliance & Warranty
Manufacturer Guarantee
2 years (T&Cs apply)
Manufacturer
Drayton (Schneider Electric Controls UK Ltd)
Important Safety Information
This is a battery-powered, wireless device with no mains wiring, so no electrical qualification is required to install it. However, any associated mains-wired Wiser Hub, Heat Switch, or boiler interface must be installed by a competent, qualified installer in accordance with UK wiring regulations.
Frequently Asked Questions
Do I need a Wiser Hub to use this thermostat?
Yes. The Wiser Room Thermostat is designed to work as part of a Wiser multi-zone heating system and requires a Wiser Hub (Generation 1 or 2) to connect to your boiler and be controlled via the app.
Can this thermostat control underfloor heating?
Yes. It is the required room controller when used with the Wiser Underfloor Heating Controller, allowing room-by-room temperature control of underfloor heating zones.
What's the difference between the anthracite and white versions?
The Anthracite (WN704R0S0901) and White (WN704R0S0902) versions are functionally identical, differing only in their external finish to suit different interior colour schemes.
How many radiator thermostats can one room thermostat control?
It can act as the master control for up to 4 Wiser Radiator Thermostats within a single room or zone.
Does it need mains power?
No. The thermostat is battery-powered, running on 2 x AA batteries supplied in the box, and communicates wirelessly with the Wiser Hub.
