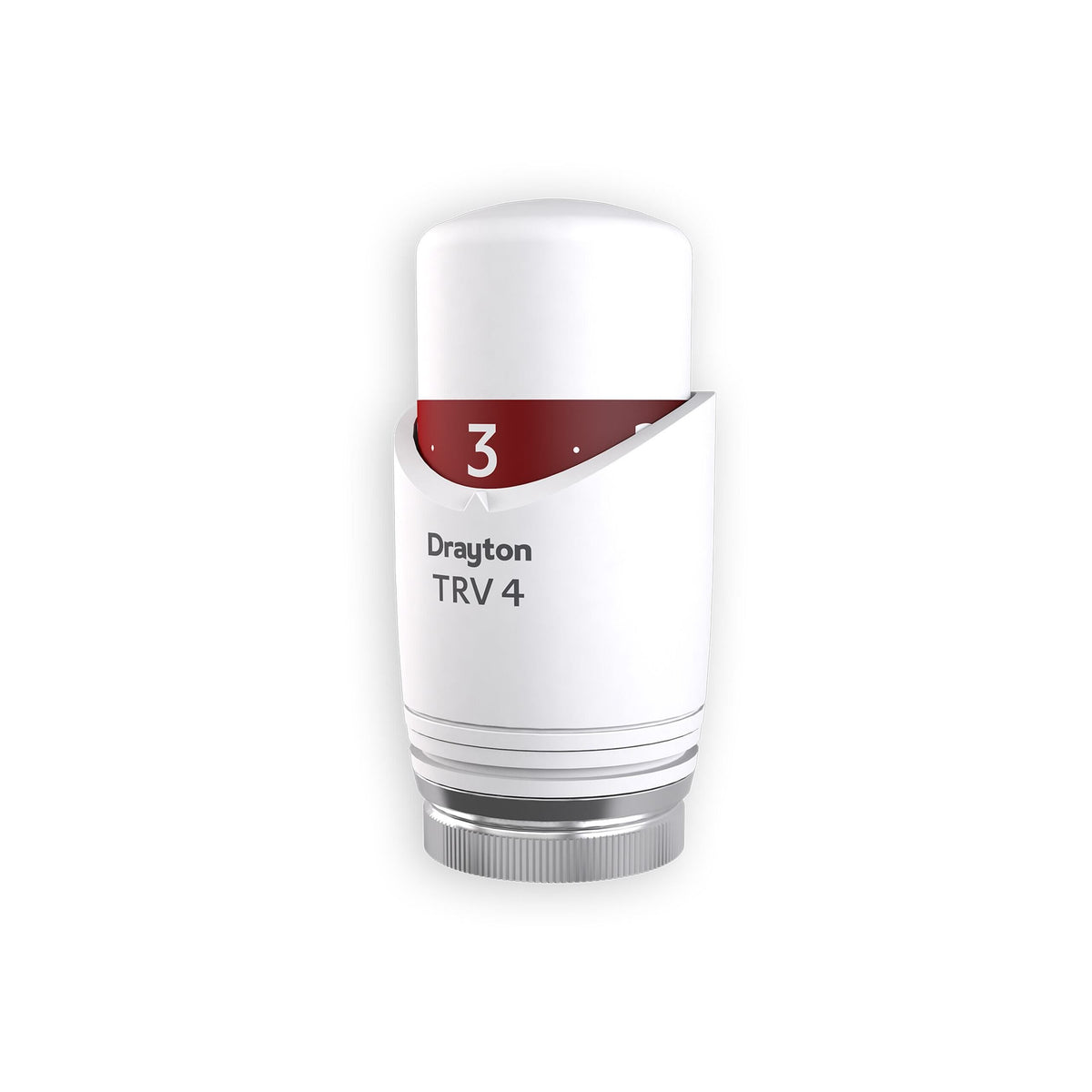

Drayton TRV4 All White Integral Sensing Head - 07 07 007

Description

The Drayton TRV4 All White Integral Sensing Head (MPN 07 07 007) is a standalone replacement or retrofit thermostatic sensing head, sold separately from the valve body. It fits any TRV4-compatible valve body with the standard M30 x 1.5mm fitting, allowing a head-only upgrade or replacement without disturbing the pipework.

Unlike the TRV4 Classic head, which uses a white and chrome combination, this head is finished in all white throughout — suited to white radiators and installations where a fully white valve is preferred for a clean, uniform look. It carries the same liquid-filled sensor and setting range as the rest of the TRV4 range.

10°C–30°C

Setting Range

M30 x 1.5mm

Fitting Thread

All White

Finish

Class I

Energy Rating

0.2mm/°C

Sensitivity

20 min

Response Time

ℹ Good to Know: This sensing head fits TRV4 valve bodies only and is not compatible with TRV3 bodies. For retrofitting onto an older TRV3 body, a dedicated conversion head is required instead.

Head-Only Upgrade or Replacement

Sold separately from the valve body, this head allows a head-only upgrade or replacement without changing the existing pipework or valve.

All-White Finish

Finished in all white, rather than the white/chrome combination of the TRV4 Classic head, giving a uniform white appearance at the radiator.

Liquid-Filled Sensor

An ultra-sensitive liquid-filled sensor provides precise room temperature control, with a sensitivity of 0.2mm/°C.

Class I Energy Efficiency

The TRV4 White range carries the Class I / “A” energy efficiency rating from the European valve manufacturers' association (TELL EU).

Infinitely Adjustable Fixing

The head-to-body fixing is infinitely adjustable, so the setting scale can always be positioned in clear view regardless of pipework orientation.

Frost Protection Setting

A marked frost protection position automatically opens the valve when the room temperature falls below approximately 8°C.

General

MPN

07 07 007

Product type

Integral sensing head (head only)

Finish

All white

Fitting thread

M30 x 1.5mm

Compatibility

TRV4 valve bodies only (not TRV3)

Materials

Chrome-plated brass and plastic bezel

Performance

Temperature setting range

10°C to 30°C

Setting numbers

1 to 5, then MAX

Frost protection

Below approximately 8°C, marked *

Sensitivity

0.2mm/°C

Hysteresis

0.4 K

Response time

20 minutes

Maximum sensor temperature

50°C

Can this head be fitted to any valve body?

It fits any TRV4-compatible valve body with the standard M30 x 1.5mm thread. It is not compatible with TRV3 valve bodies — a dedicated conversion head is needed for those.

Is this the same as the TRV4 Classic head?

No — the TRV4 Classic head is finished in white and chrome, while this head (07 07 007) is finished in all white throughout.

Can the head be fitted vertically and horizontally?

Yes, the sensing head can be rotated to suit either orientation, and to suit left- or right-hand installations.

What is the maximum tightening torque when fitting?

Do not overtighten the ring nut — the maximum tightening torque is 30 Nm.

How do I set frost protection?

Turn the setting dial to the frost symbol (*). The valve will then automatically open when the room temperature falls below approximately 8°C.
