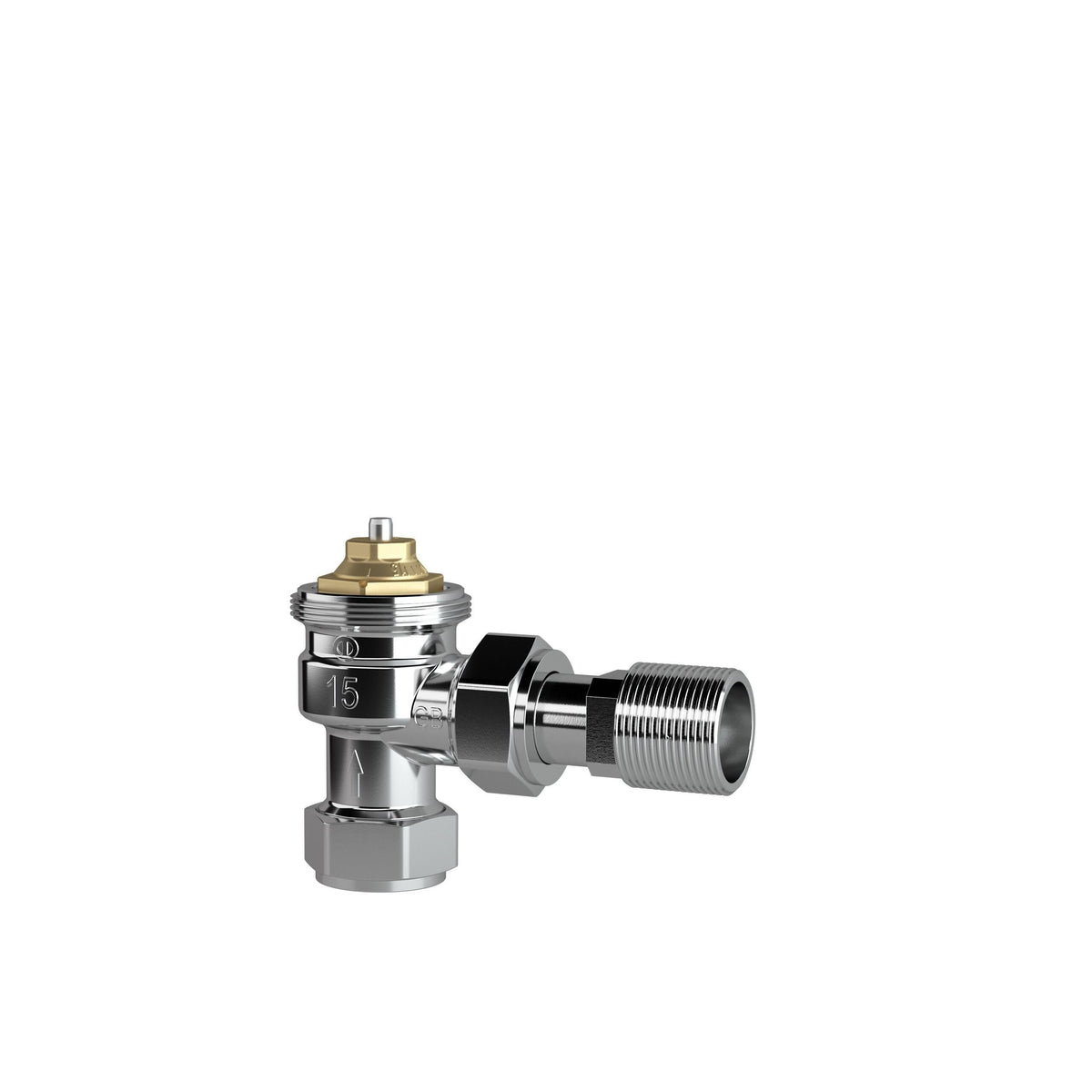

Drayton TRV4 15mm Angled TRV Valve Body (No Head) - 07 15 180

Description

The Drayton TRV4 15mm Angled Valve Body (MPN 07 15 180) is the valve body only, supplied without a sensing head. It's intended for installers replacing a worn valve body while reusing an existing TRV4 sensing head, or for new installations where the head is being purchased and fitted separately.

The body carries the same internal performance as the rest of the TRV4 range, including non-stick valve internals, a double gland seal, and a pre-setting facility to balance the radiator's flow rate directly from the valve. As a 15mm angled body, it accepts any standard TRV4 sensing head via the M30 x 1.5mm fitting.

15mm

Valve Size

Angled

Body Style

No Head

Supplied Without

M30 x 1.5mm

Head Fitting

10 bar

Max Static Pressure

110°C

Max Flow Temperature

⚠ Important Safety Information: This product is the valve body only — no sensing head is included. A compatible TRV4 sensing head must be purchased separately for the valve to function as a thermostatic radiator valve.

Body-Only Replacement

Ideal for replacing a worn or damaged valve body while keeping an existing, working TRV4 sensing head, avoiding the cost of a full valve and head assembly.

Reverse Flow Capability

The 15mm angled body supports installation on the flow or return, with the head fitted vertically or horizontally once attached.

Non-Stick Internals

Valve internals are specially formulated to resist limescale build-up, helping the valve continue to open and close freely over years of service.

Double Gland Seal

A double gland seal protects against water leakage, with a top seal that allows the sensing head to be removed without draining down the system.

Pre-Setting Balancing

The two-pipe body includes a pre-setting facility, allowing installers to balance the radiator's flow rate directly from the valve during commissioning.

Standard M30 Head Fitting

Accepts any TRV4-compatible sensing head via the standard M30 x 1.5mm thread, in Classic, Chrome, White or Anthracite finish.

General

MPN

07 15 180

Product type

Valve body only, no sensing head

Body style

Angled

Valve size

15mm

Head fitting thread

M30 x 1.5mm

Connection

Compression fitting to BS EN 1254-2, 1/2" BSP threaded radiator connection

Material

Chrome-plated brass

Performance

Maximum test pressure

20 bar

Maximum flow temperature

110°C

Maximum static pressure

10 bar at 65°C, 6 bar at 110°C

Maximum differential pressure

1 bar, to ensure valve closure

Maximum recommended differential pressure

0.2 bar, for low-noise operation

Does this include a sensing head?

No, MPN 07 15 180 is the valve body only. A compatible TRV4 sensing head must be fitted separately for it to work as a thermostatic radiator valve.

Which sensing heads are compatible with this body?

Any TRV4-compatible sensing head with the standard M30 x 1.5mm fitting, including Classic, Chrome, White and Anthracite finishes.

Can this body be used with a TRV3 head?

No — TRV4 sensing heads are not compatible with TRV3 bodies, and this is a TRV4 body. Use a genuine TRV4 head, or the dedicated TRV4-to-TRV3 conversion head where applicable.

Can this valve be installed on the flow or return?

Yes, the 15mm angled body has reverse flow capability and can be installed on either the flow or the return pipework.

Why would I buy just the valve body?

It's typically used when replacing a worn or damaged valve body while keeping an existing, working sensing head, or when the head is being sourced separately for a specific finish.
