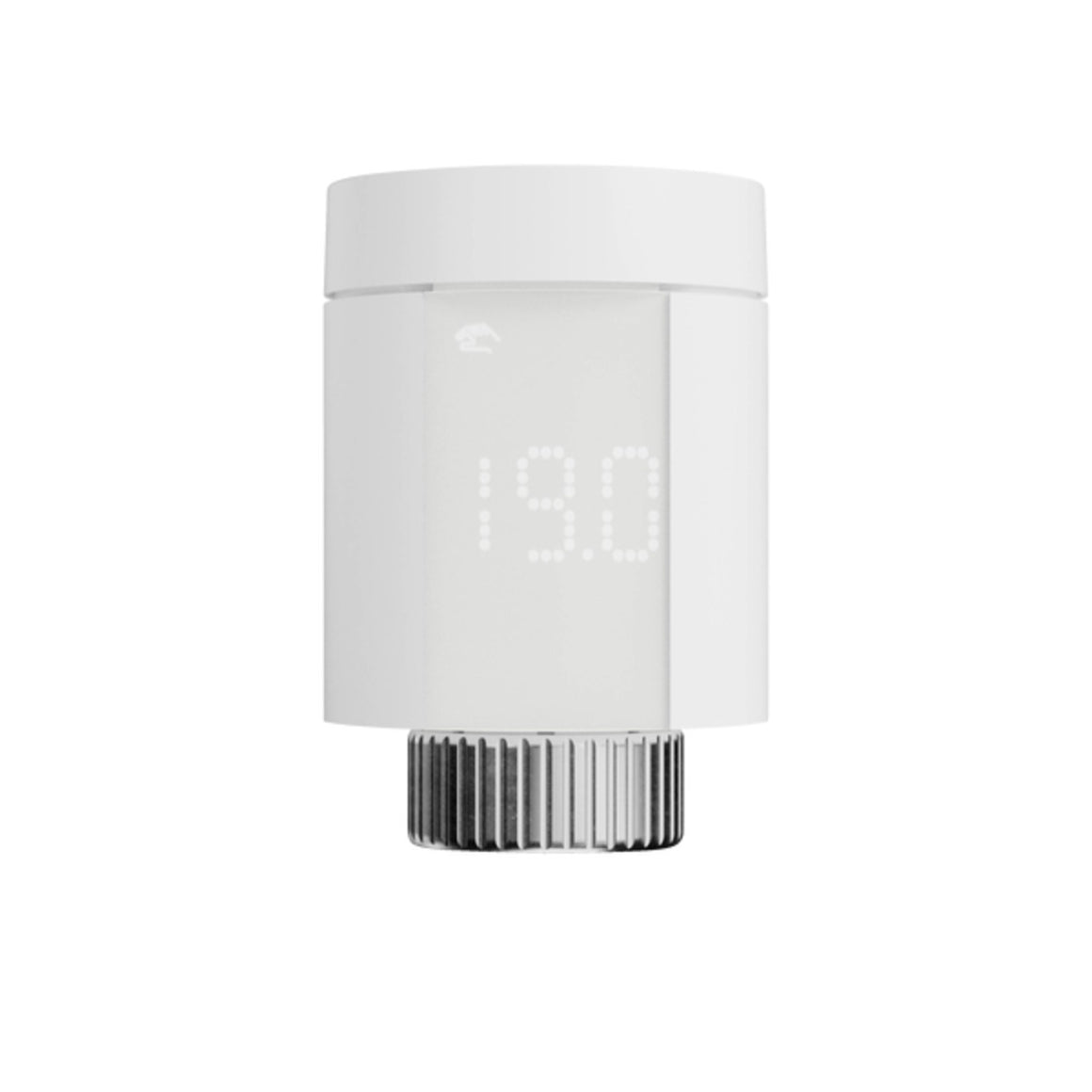

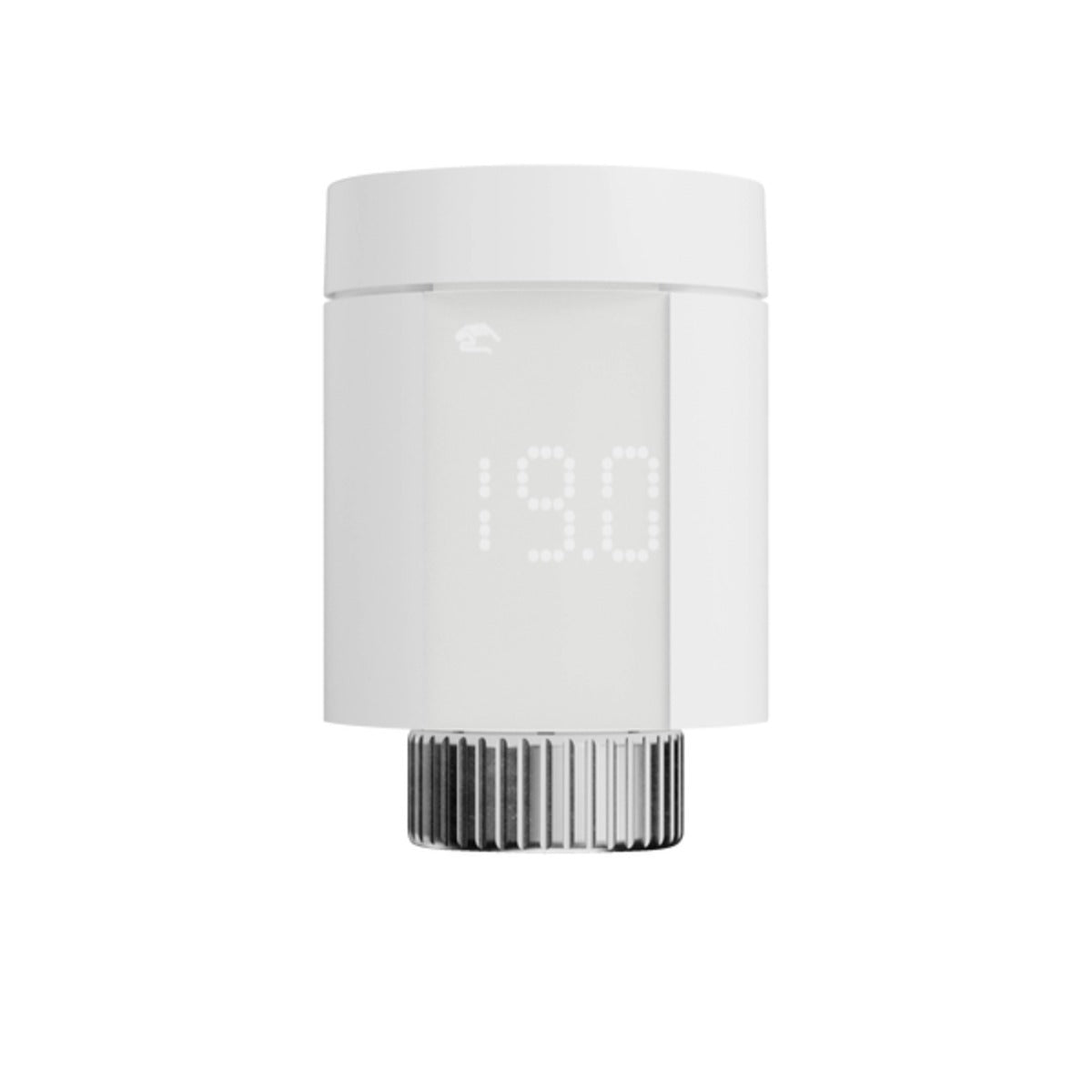

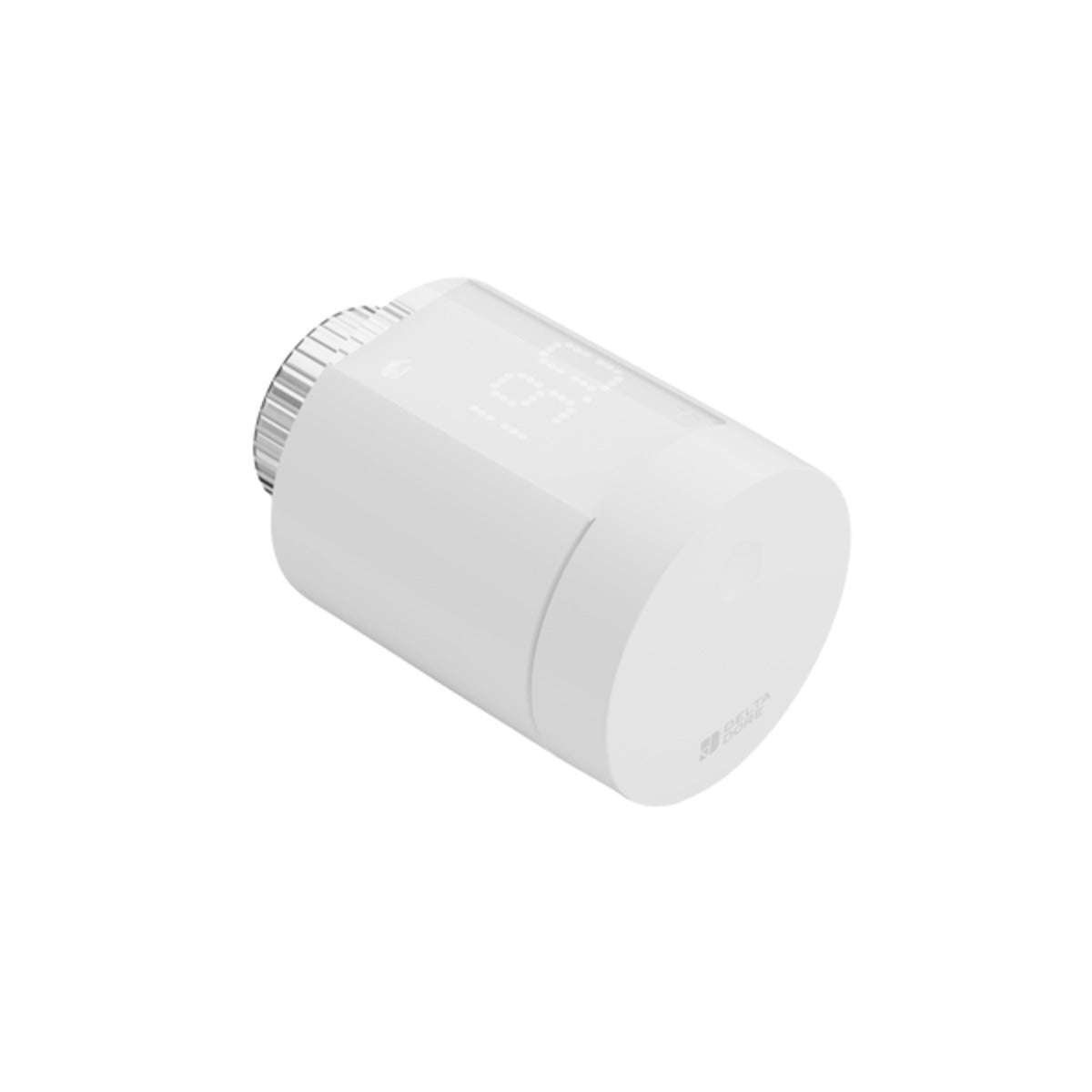

Delta Dore Smart TRV M30 x 1.5 Smart Radiator Valve Head | 6050685

Description

The Delta Dore Smart TRV (6050685) is an M30 × 1.5 smart thermostatic radiator valve that gives every room its own temperature. It suits all types of hot-water radiators connected to a gas, oil or wood boiler, or a heat pump and screws straight onto standard M30 × 1.5 valve bodies.

Inside, self-adaptive learning (AI) fine-tunes each room, while open window detection, a Boost function and an anti-seizure system are built in. Connect a Delta Dore hub for remote programming, heating anticipation, humidity display and automatic synchronisation of several heads in the same room.

M30 × 1.5

Direct valve fit

5 to 30°C

Setting range

PID

Regulation

2 Years

Battery life

100 m

Wireless range

5 Years

Manufacturer guarantee

What is in the box

1 × Smart TRV head and 2 × alkaline LR6 (AA) batteries. Adapters are not included with this version.

Check the valve thread first

This head fits M30 × 1.5 valve bodies directly. For Danfoss RA, RAV or RAVL, M28 × 1.5, Caleffi or Giacomini valves you also need the Set of 6 Smart TRV Adapters (6200282) or the Smart TRV Adapt (6050686) pack. Remote features need a Delta Dore smart home hub.

Key Features

Room-by-Room Comfort

Set each radiator between 5 and 30°C with PID control for steady, efficient comfort.

AI Self-Adaptive Learning

The head learns each room's behaviour to keep constant comfort without constant adjustment.

Window Detection and Boost

Automatic open window detection saves energy while the Boost function raises the room temperature quickly.

Smarter with a Hub

Add a Delta Dore hub for remote programming and control, start-up anticipation, humidity display and synchronised heads in one room.

Interlock Ready

Add a generator receiver to switch the boiler or heat pump off when no radiator is calling for heat.

Easy Everyday Use

Frost protection, child lock, anti-seizure and a 180° rotating LED screen. Batteries last up to 2 years and can be alkaline or rechargeable.

Technical Specifications

Product

Brand

Delta Dore

MPN

6050685

Description

M30 × 1.5 smart thermostatic radiator valve

Guarantee

5 years

Place of use

Indoor

Electrical and Control

Power supply

2 × alkaline LR6 (AA) supplied, rechargeable cells compatible

Battery life

Up to 2 years

Regulation

PID

Adjustment range

5 to 30°C

Display

LED, rotating 180°

Wireless range

Up to 100 m

Physical

Valve connection

M30 × 1.5

Length

78 mm

Operating temperature

0°C to +40°C

Compatibility

Heat sources

Gas, oil or wood boiler, or heat pump

Hubs

Delta Dore smart home hubs, e.g. Tydom Home (6700119)

Valve adapters

Set of 6 Smart TRV adapters (6200282)

Frequently Asked Questions

Which valves does it fit?

It screws directly onto M30 × 1.5 valve bodies. For other valves use the six-piece adapter set or the Adapt pack.

Does it work without a hub?

Yes for local control. A hub adds remote programming, anticipation, humidity display and room synchronisation.

Does it work with a heat pump?

Yes. Delta Dore states it works with hot-water radiators connected to a gas, oil or wood boiler or a heat pump.

How long do the batteries last?

Up to 2 years with the supplied alkaline LR6 (AA) cells, or rechargeable batteries if you prefer.

Can I use several heads in one room?

Yes. With a Delta Dore hub, heads in the same room synchronise automatically.
