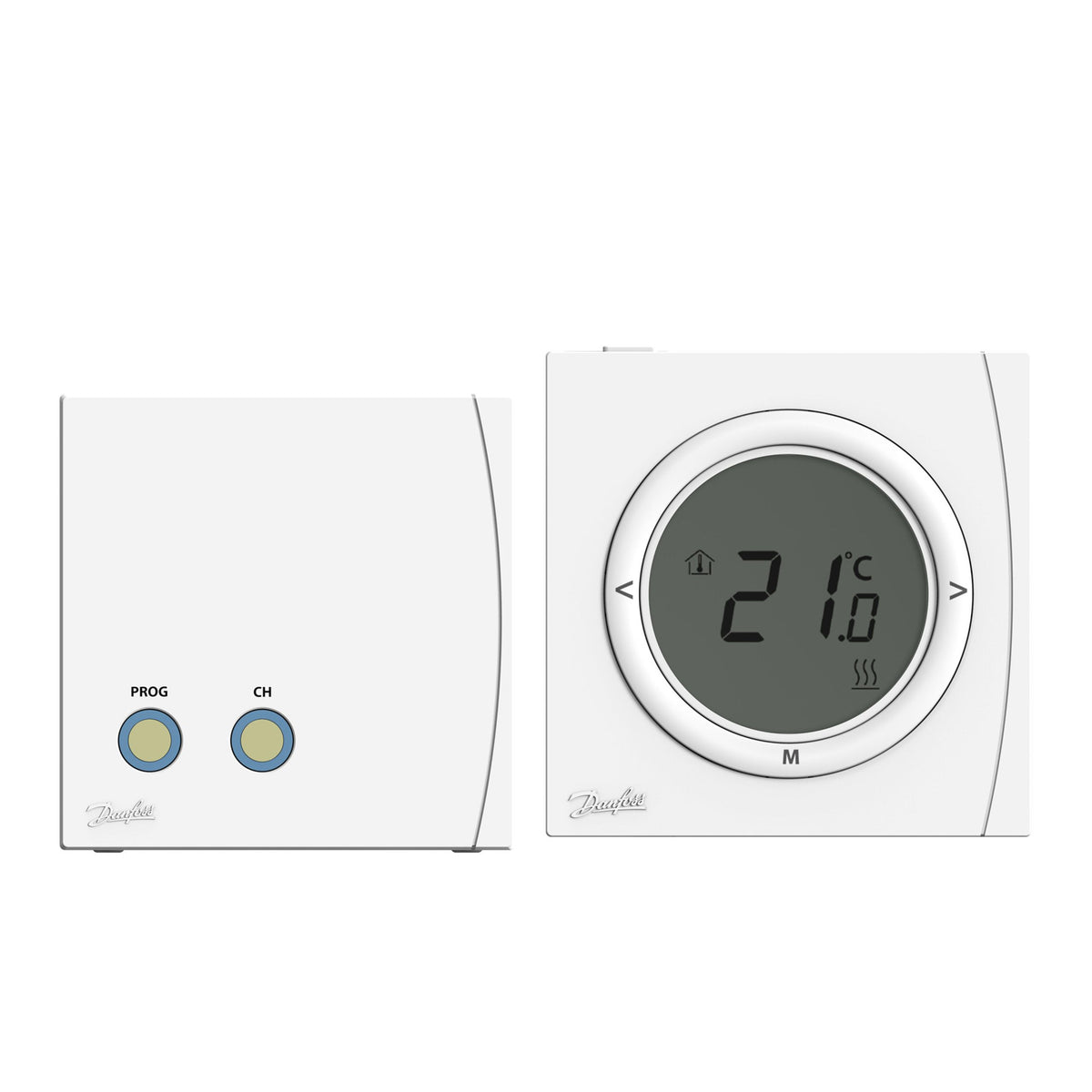

Danfoss TP5001RF + RX1-S V2 Wireless Programmable Room Thermostat with RF Receiver
Regular price
£153.00
Inc. VAT
£127.50
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
Upgrade your heating control with the Danfoss TP5001RF + RX1-S V2, a battery powered wireless programmable room thermostat paired with a mains powered RF receiver. Designed for UK homes and trade installations, it delivers precise temperature scheduling, frost protection, and holiday mode to improve comfort while reducing energy use. The large backlit display, simple dial control, and industry standard receiver backplate make it ideal for both home owners and heating engineers.
Key Features
5/2 day or 24 hour programming - Set weekday/weekend schedules or a full 24 hour programme with up to 4 daily events for tailored heating control.
Wireless RF communication - 433.92 MHz radio link (up to 30 m range) between thermostat and receiver for flexible, low wire installations.

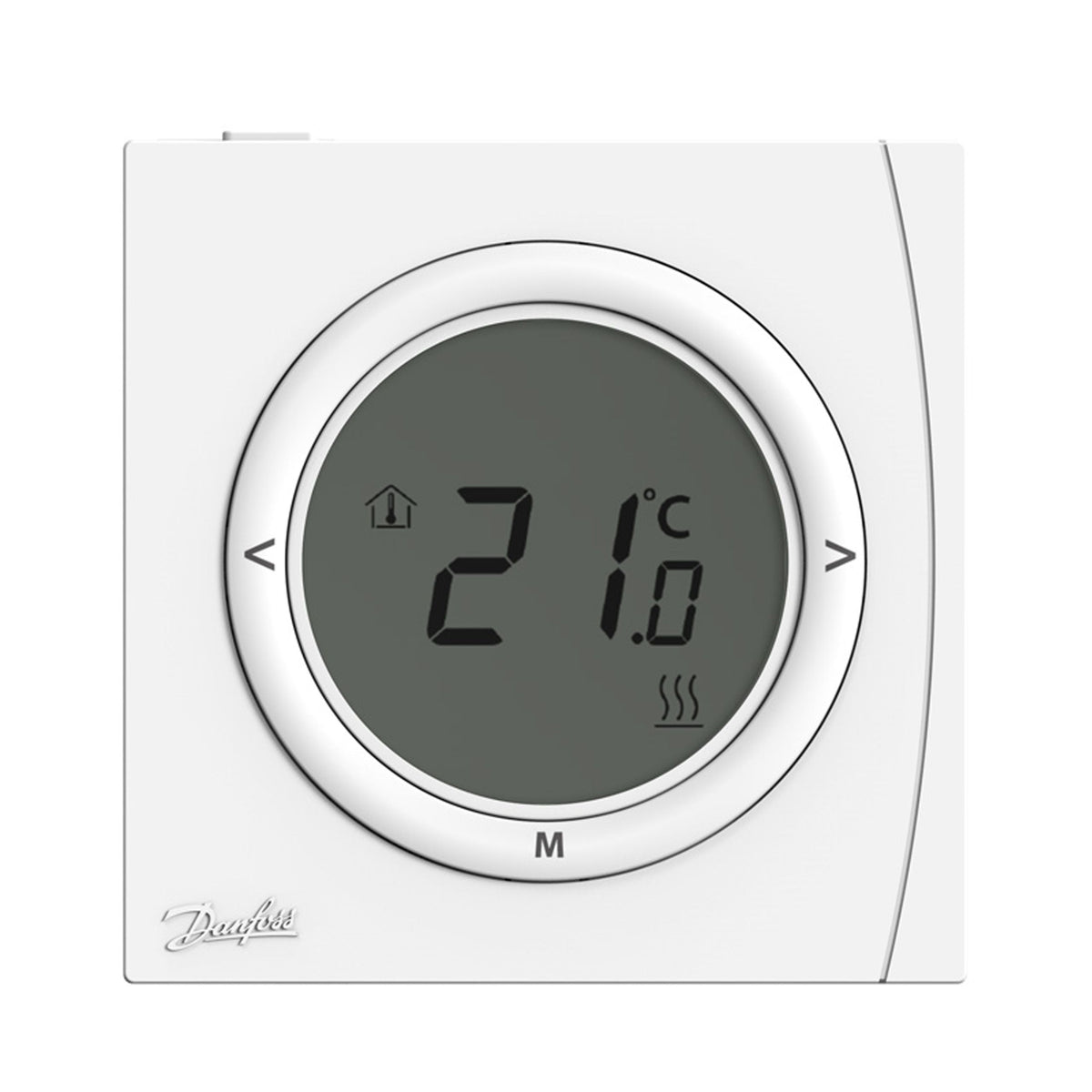

Large backlit LCD & dial control - Clear display of room temperature and status, with intuitive ring dial for quick adjustments.
Frost protection & holiday mode - Prevent freezing when away and switch to an energy-saving holiday setting with ease.

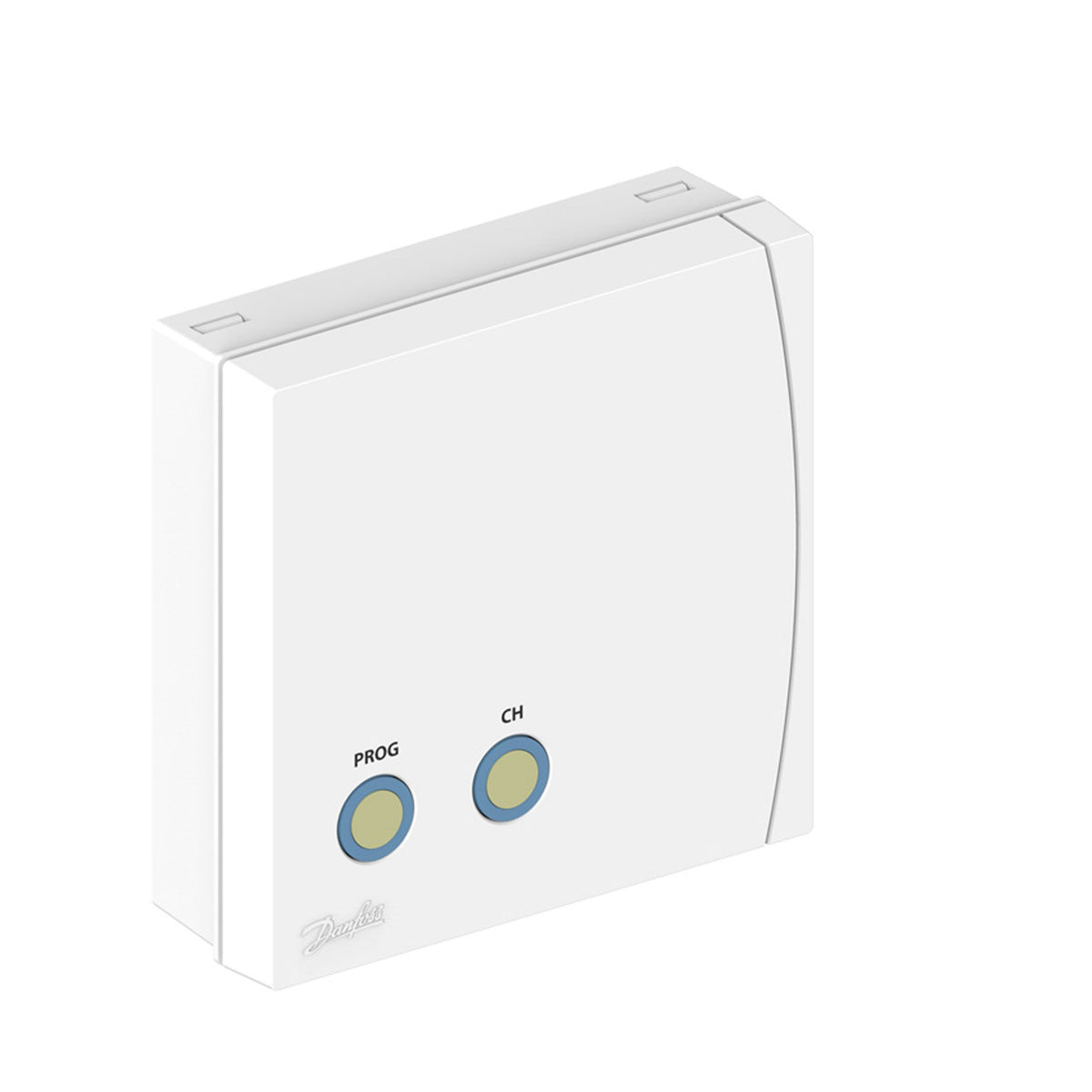

Industry standard RX1-S V2 backplate - Simplifies replacements and new installs with multiple wire entry options and volt free output.
Boiler Plus & ErP Class IV - Helps meet UK Boiler Plus requirements and contributes to an ErP efficiency gain of around 2%.
Product Overview
The Danfoss TP5001RF + RX1-S V2 is a reliable, wireless programmable room thermostat system designed for modern UK heating setups. The thermostat runs on 2 x AA batteries, while the single channel RF receiver is powered from 230 V AC, giving you the freedom to place the controller where it is most convenient without complex wiring.
With selectable 5/2 day or 24 hour programmes and up to four on/off events per day, you can match heating to your daily routine. Optimised start, load compensation, and a service interval timer further enhance comfort and system efficiency. The real time clock and calendar remove the need for manual summer/winter time adjustments.
Suitable for combi, system, and regular boilers, as well as many electric heating controls, this thermostat is a practical choice for homeowners upgrading old mechanical stats and for trade professionals seeking a straightforward, compliant wireless solution.
Technical Specifications
| Specification | Detail |
|---|---|
| Product type | Wireless programmable room thermostat + single channel RF receiver |
| Manufacturer | Danfoss |
| MPN | 087N7936 |
| EAN / GTIN | 5715162419342 |
| Thermostat power supply | 2 x AA alkaline batteries (approx. 2 year life) |
| Receiver power supply | 230 V AC, 50/60 Hz |
| RF frequency | 433.92 MHz (typical range up to 30 m) |
| Temperature setting range | 5 °C to 35 °C |
| Operating temperature range | 0 °C to 40 °C |
| Programme options | 5/2 day or 24 hour, up to 4 events per day (2 heating periods) |
| Output (receiver) | Volt free, 3 A (1) at 250 V AC, 1 × SPDT |
| IP rating (installed) | IP30 |
| Thermostat dimensions (H × W × D) | Approx. 86 × 86 × 30 mm |
| Receiver dimensions (H × W × D) | Approx. 84 × 84 × 30 mm |
| Standards & compliance | EN 60730-2-9 (thermostat), EN 60730-1 (receiver), Boiler Plus compliant, ErP Class IV (~2% efficiency gain) |
| Warranty | Typically 5 years (subject to manufacturer terms) |
Ideal Use Cases
Homeowner upgrade: Replace old mechanical or non programmable thermostats to gain timed heating control, frost protection, and potential energy savings without rewiring the whole system.
Trade installation: Fit in new or existing boiler setups where a wireless, volt free room stat is required, using the industry standard RX1-S V2 backplate for quick swaps.
Second home or holiday let: Use holiday mode and frost protection to keep the property safe and efficient while unoccupied, with minimal manual intervention.
