CY Screened Control Cable 2-Core mm² | Heat Pump Comms Cable

Description

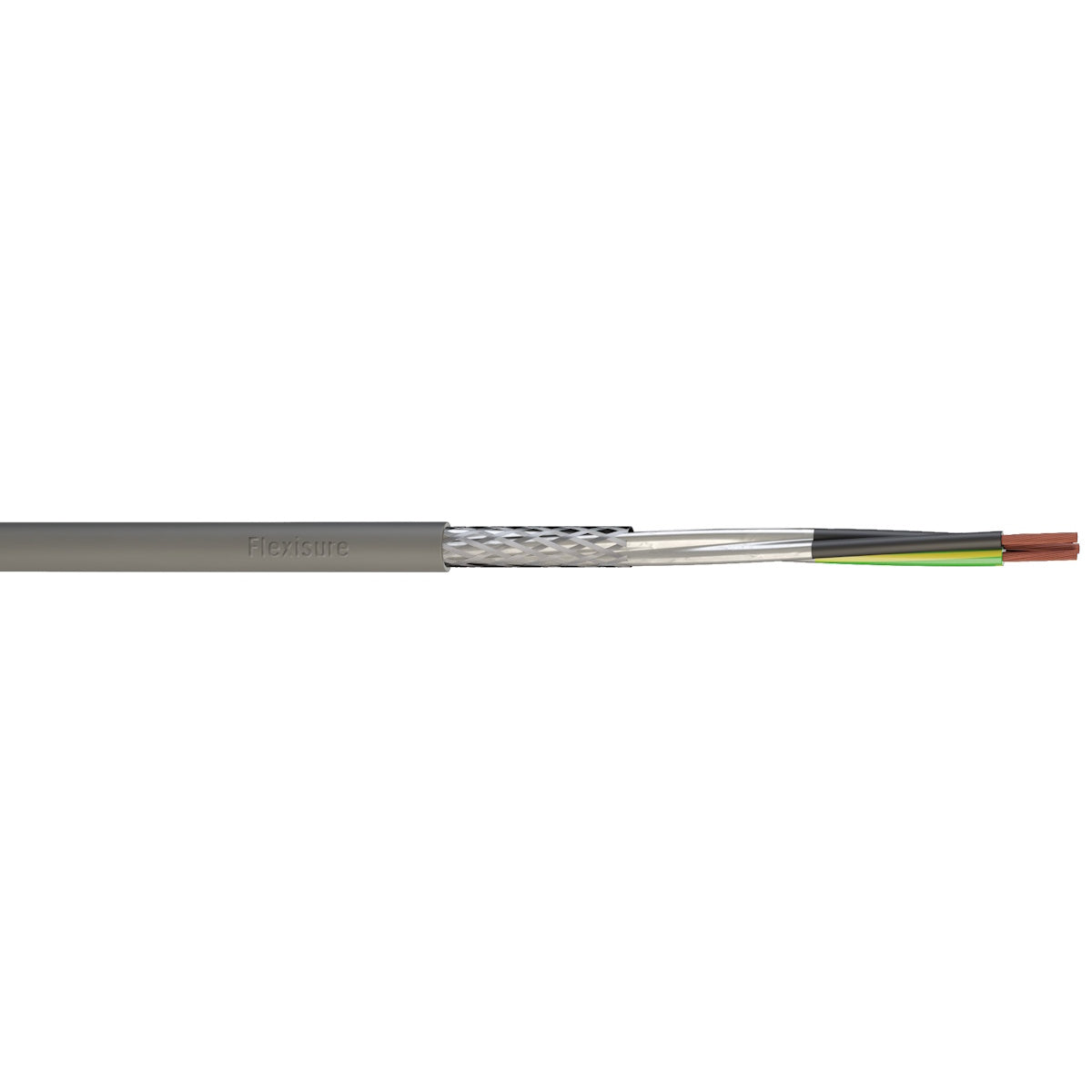

This CY screened control cable, 2-core at 1mm² cross-section, is manufactured to BS EN 50525-2-11 and designed for reliable communication wiring between a Samsung heat pump outdoor unit and its MIM control board. The tinned copper wire braid screening shields the signal conductors from electromagnetic interference, protecting the integrity of the low-voltage control signal over longer cable runs.

Constructed with plain annealed flexible copper conductors, PVC insulation and a PVC outer sheath over the braided screen, this cable is rated for use in dry, moist and wet conditions. It is robust enough for most external routing, though as it is not UV stable, any section run outdoors and exposed to direct sunlight should be protected within flexible conduit.

2-Core

Conductor count

1mm²

Conductor CSA

300/500V

Voltage rating

-15°C to 70°C

Operating temperature

TCWB

Screening type

BS EN 50525-2-11

Manufacturing standard

Please Note

This cable is not UV stable. For any section of run exposed outdoors, install within flexible conduit to protect the PVC sheath from sunlight degradation.

Key Features

Electromagnetic Screening

Tinned copper wire braid (TCWB) screening reduces electromagnetic interference, protecting signal integrity on control and instrumentation runs.

Samsung Heat Pump Comms Application

Purpose-suited for connecting a Samsung heat pump outdoor unit to its MIM control board without risk of signal interference.

Suitable for Damp Environments

Rated for use in dry, moist and wet rooms, giving flexibility for plant room and external routing.

Flexible Construction

Plain annealed flexible copper conductors allow the cable to be routed through tight spaces and moving applications without tensile load.

Wide Operating Temperature Range

Operates from -15°C to 70°C, suitable for most external and plant room conditions in the UK.

Manufactured to BS EN 50525-2-11

Conductors, insulation and sheathing all manufactured to recognised British and European cable standards.

Technical Specification

Construction

Cable Type

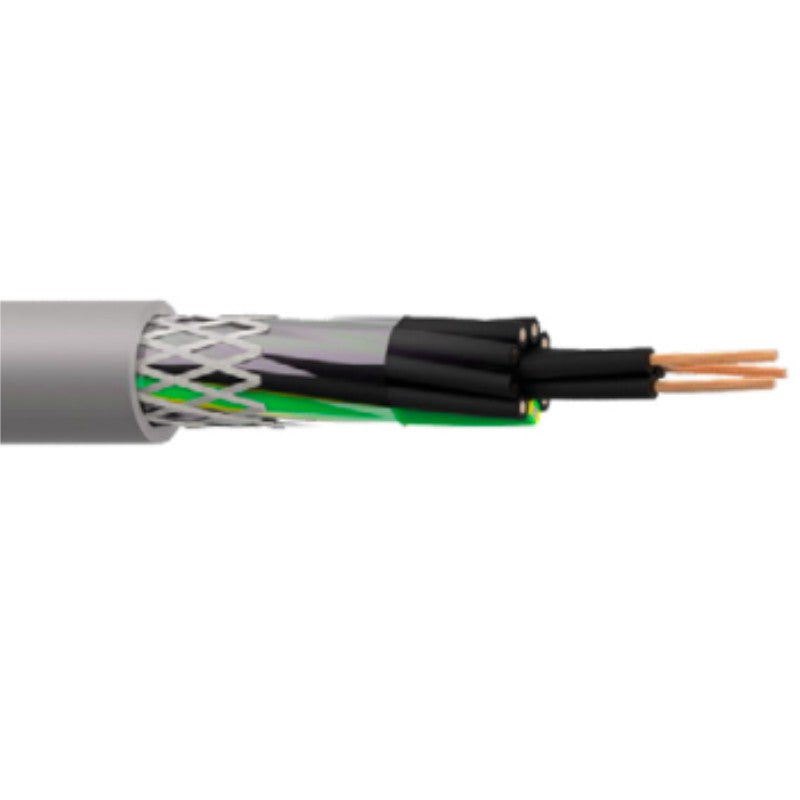

CY control flexible, PVC insulated / TCWB / PVC sheathed

Conductor

Plain annealed copper, Class 5 to BS EN 60228

Insulation

PVC Type TI2 to BS EN 50363-3

Screening

Tinned copper wire braid (TCWB)

Sheath

PVC Type TM2 to BS EN 50363-4-1

Electrical & Dimensional

Number of Cores

2

Conductor Cross-Sectional Area

1.0mm²

Voltage Rating

300/500V

Approximate Overall Diameter

5.5–7.5mm

Approximate Weight

60kg/km

Current Rating

Per BS 7671 IET Wiring Regulations, tables 4F1 and 4F3

Environmental

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

70°C

Minimum Bending Radius

6 x cable diameter

UV Stability

Not UV stable – use conduit outdoors

Frequently Asked Questions

What is this cable used for?▼

It provides screened control wiring between a Samsung heat pump outdoor unit and its MIM control board, protecting the communication signal from electromagnetic interference.

Can this cable be installed outdoors?▼

It is robust enough for outdoor and damp conditions, but it is not UV stable. Any section exposed to direct sunlight should be run inside flexible conduit.

What does the screening (braid) do?▼

The tinned copper wire braid reduces electromagnetic interference reaching the signal conductors, which is important for control and instrumentation cabling running near power cables or other interference sources.

What length options are available?▼

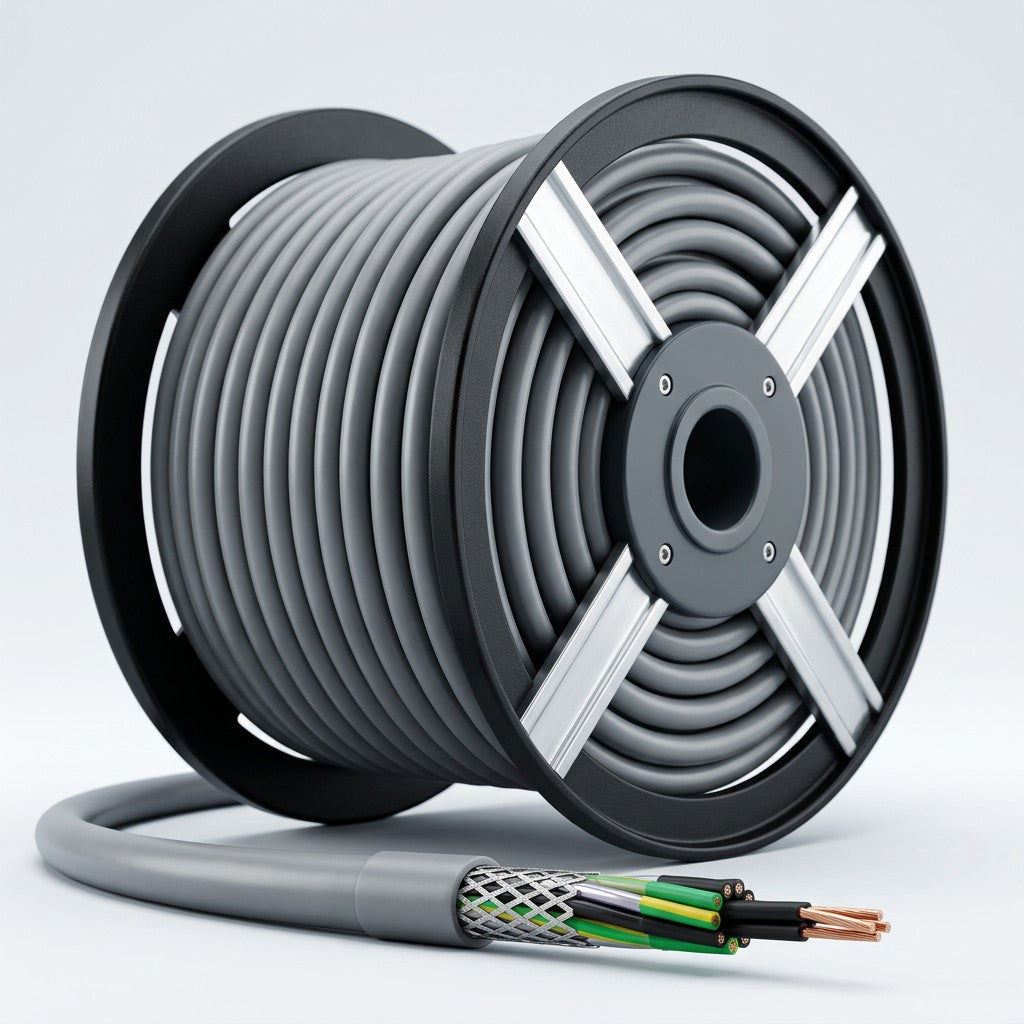

This cable is supplied as 10m and 25m reels, suitable for the great majority of heat pump installation runs.

What standard is the cable manufactured to?▼

It is manufactured generally to BS EN 50525-2-11, with conductors, insulation and sheathing each meeting their respective BS EN component standards.
