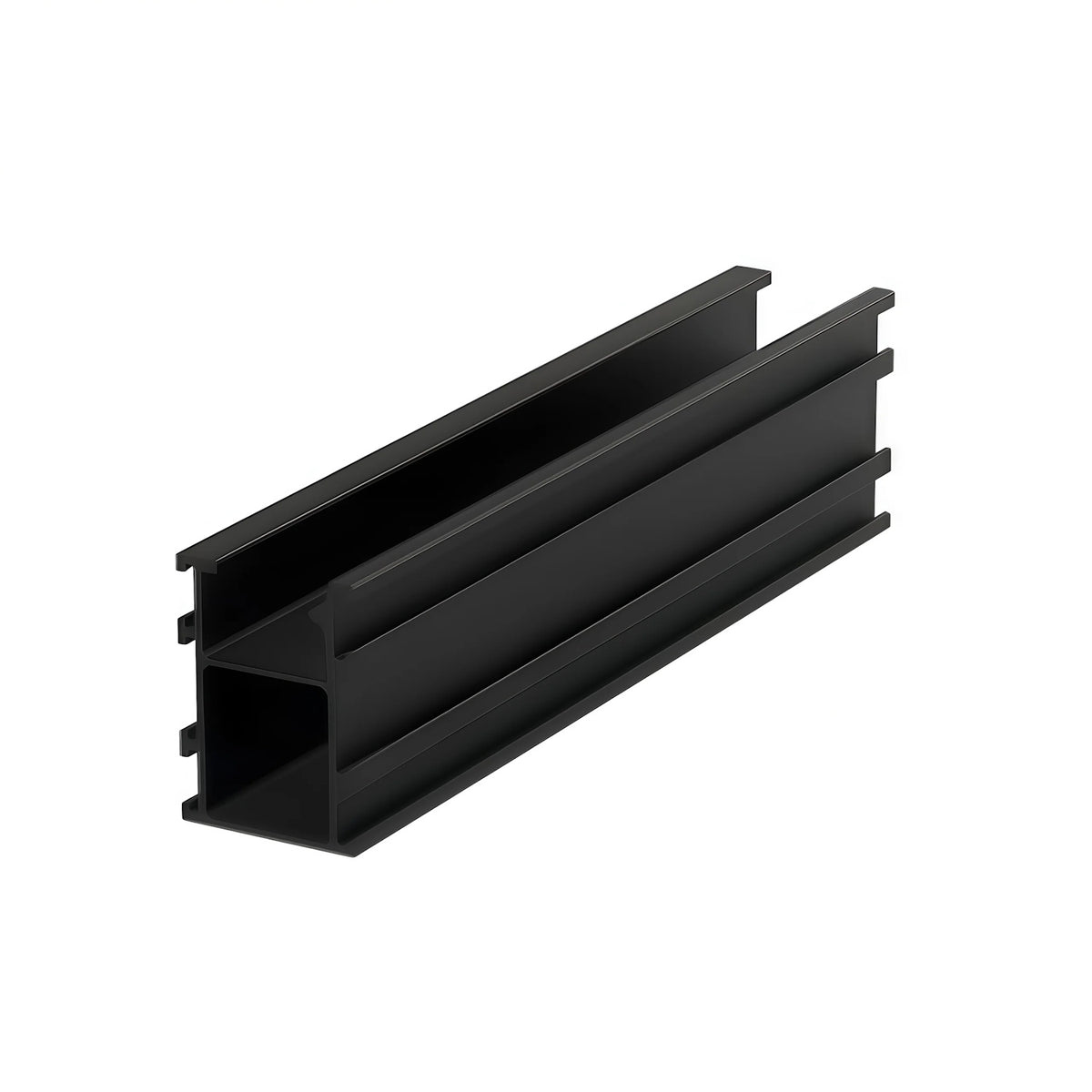

The Clenergy PV-ezRack® Pro Rail (ER-R-PRO-3600-BLK) is the black-finish version of Clenergy's 3.6-metre aluminium mounting rail for the PV-ezRack SolarRoof™ Pro system, giving installers a low-visibility option for roofs with dark tiles or all-black panel installations. It shares the same engineering as the standard silver rail — working with Clenergy's pre-assembled roof hooks and unique Cross Connection Clamp for a fast, secure, and cost-effective installation — while the black finish helps the rail blend into the roofline rather than standing out against dark modules.
Length
3600mm (3.6m)
|
Finish
Black anodised
|
Material
High-strength aluminium alloy
|
Weight
2.3 kg
|
System
PV-ezRack SolarRoof™ Pro
|
Warranty
10 years
|
Roof Angle & Structural Note: Clenergy's SolarRoof Pro installation guidance covers roof pitches from approximately 15–60°, with rail fixing centres, hook spacing, and rafter fixings determined by roof loading and module size. Always confirm fixing spacings, purlin/rafter fixing method, and site-specific wind/snow load calculations against Clenergy's current installation manual before fitting.
Ordering Note: For 3-panel runs using standard 400/410W modules (1134mm wide), Clenergy specifies the 3600mm rail. The 3300mm and 3500mm rail lengths will not accommodate three such panels without buying extra rail and connector pieces — check panel width against rail length before ordering to avoid a mixed order. Confirm black-finish stock and lead times separately, as black rail is typically a lower-volume line than silver.
|
Low-Visibility Black Finish
The black anodised finish is designed to sit discreetly against dark roof tiles and all-black solar panels, avoiding the visual contrast of silver rail on a dark roof.
|
Universal Module Compatibility
Engineered to accommodate all sizes and thicknesses of framed PV modules on the market, so the same rail platform can be specified across a wide range of panel brands and models.
|
|
Corrosion-Resistant Construction
Manufactured from high-strength aluminium alloy with a black anodised finish, combining long-term corrosion resistance with the structural strength needed to carry panel loads across variable roof spans.
|
Pre-Assembled Speed
Works with roof hooks pre-assembled onto Clenergy's Cross Connection Clamp, cutting down the number of loose components handled on the roof and reducing overall install time.
|
|
Lightweight Handling
At 2.3 kg per 3.6m length, the rail is light enough for straightforward one-person handling on the roof, without compromising the rated strength of the SolarRoof Pro system.
|
Optimised for Three-Panel Runs
The 3600mm length is specifically sized to fit three 1134mm-wide standard panels in a single continuous run, avoiding the extra connectors and cut-rail waste that shorter lengths require.
|
| Product Specification |
| Manufacturer |
Clenergy |
| Part Number (MPN) |
ER-R-PRO-3600-BLK |
| Product Type |
PV mounting rail |
| System |
PV-ezRack SolarRoof™ Pro |
| Length |
3.6 m (3600mm) |
| Material |
High-strength aluminium alloy |
| Finish |
Black anodised |
| Weight |
2.3 kg |
| Compatibility |
All sizes and thicknesses of framed PV modules; recommended for 3 x 1134mm-wide (400/410W) panels per rail |
| Application |
Residential pitched roof solar PV installations, new-build and retrofit — well suited to all-black or dark-tile roofs |
| Product Warranty |
10 years |
Why choose the black rail over silver?
The black anodised finish is intended for installations with all-black solar panels or dark roof tiles, where a black rail sits visually more discreetly than the standard silver finish.
Is the black rail structurally the same as the silver rail?
Yes. Both use the same high-strength aluminium alloy construction, dimensions, and PV-ezRack SolarRoof™ Pro system compatibility — the difference is the anodised finish colour.
How many panels fit on a 3600mm rail?
Clenergy recommends the 3600mm rail for fitting three standard 400/410W panels (1134mm wide) in a single run. Shorter 3300mm or 3500mm rails will not accommodate three such panels without additional rail and connector pieces.
Is this rail compatible with all solar panel brands?
The rail is engineered to accommodate all sizes and thicknesses of framed PV modules on the market, giving flexibility across most panel brands used in residential installations.
Do I need to check roof pitch before installing?
Yes. Clenergy's SolarRoof Pro installation documentation specifies an accepted roof angle range and fixing spacing requirements based on roof loading and module size. Always check the current manufacturer installation manual for the applicable roof pitch range and fixing centres for your specific site before installing.
What warranty does this rail carry?
The PV-ezRack Pro Rail is covered by a 10-year product warranty.
