Blue Sea Systems Fuse Block ANL 325-750A
Regular price
£63.00
Inc. VAT
£52.50 Exc. VAT
£52.50 Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

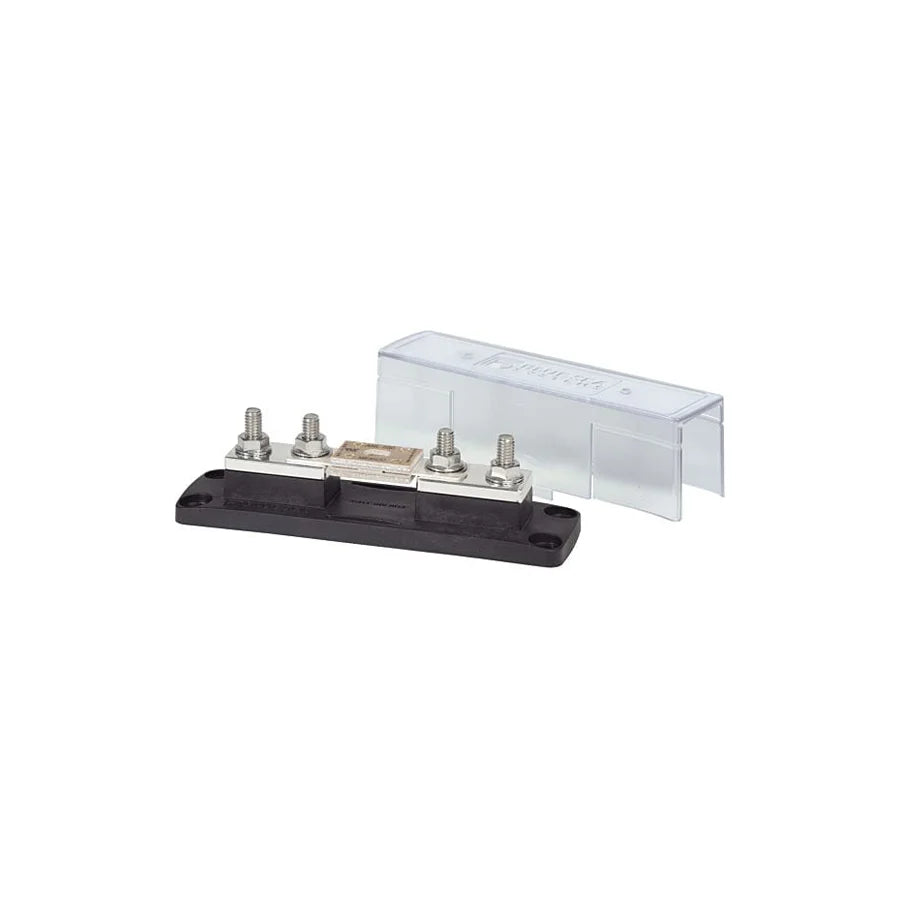

The Blue Sea Systems ANL Fuse Block with Insulating Cover - 35 to 750A (Part No: 5503) is a heavy-duty fuse block designed for ANL fuses in marine, automotive, and off-grid electrical systems, providing secure fuse mounting and ignition protection for safe operation up to 32V DC.
Product Description
The Blue Sea Systems 5503 ANL Fuse Block accepts a wide range of ANL fuse amperages (35-750A) for versatile protection in high-current applications. It features a swing-out design for easy fuse replacement without removing fasteners, tin-plated copper bus for corrosion resistance, and an insulating cover to meet ABYC/USCG requirements. Ignition protected and suitable for gasoline-powered boats, it ensures reliable circuit protection in demanding environments.
Key Features
- Swing-out design: Allows fuse replacement without removing fasteners.
- Insulating cover: Satisfies ABYC/USCG requirements for safety.
- Tin-plated copper bus: Resists corrosion and provides high conductivity.
- Stainless steel hardware: Ensures durability and secure connections.
- Ignition protected: Safe for gasoline-powered boats (SAE J1171).
- UL 94-V0 base: Resists high heat for reliability.
- Accepts 5/16" (M8) ring terminals: Compatible with standard wiring.
- Insert molded studs: Secure fuse mounting.
Technical Specifications
- Model: 5503 – ANL Fuse Block with Cover.
- Voltage rating: 32V DC max.
- Fuse compatibility: ANL fuses 35A to 750A.
- Terminal studs: 5/16" - 18 (M8).
- Mounting holes: Accepts #10 (M5) screws.
- Certifications: ABYC E-11, UL 94-V0, SAE J1171.
Dimensions & Weights
- Length: 178 mm.
- Width: 51 mm.
- Height: 38 mm.
- Weight: 0.45 kg.
System & Application Notes
- Ideal for marine, RV, and off-grid systems requiring high-current fuse protection.
- Compatible with ANL fuses; mount on panels or bulkheads.
- Suitable for systems up to 32V DC; ensures safe isolation and protection.
- Installation: Use appropriate ring terminals and torque to specs.
- Enhances safety with ignition protection and insulating cover.
- Warranty: Limited lifetime (confirm with supplier).
- Type Battery Isolator Switch
- Vendor Blue Sea Systems
- SKU 5503
