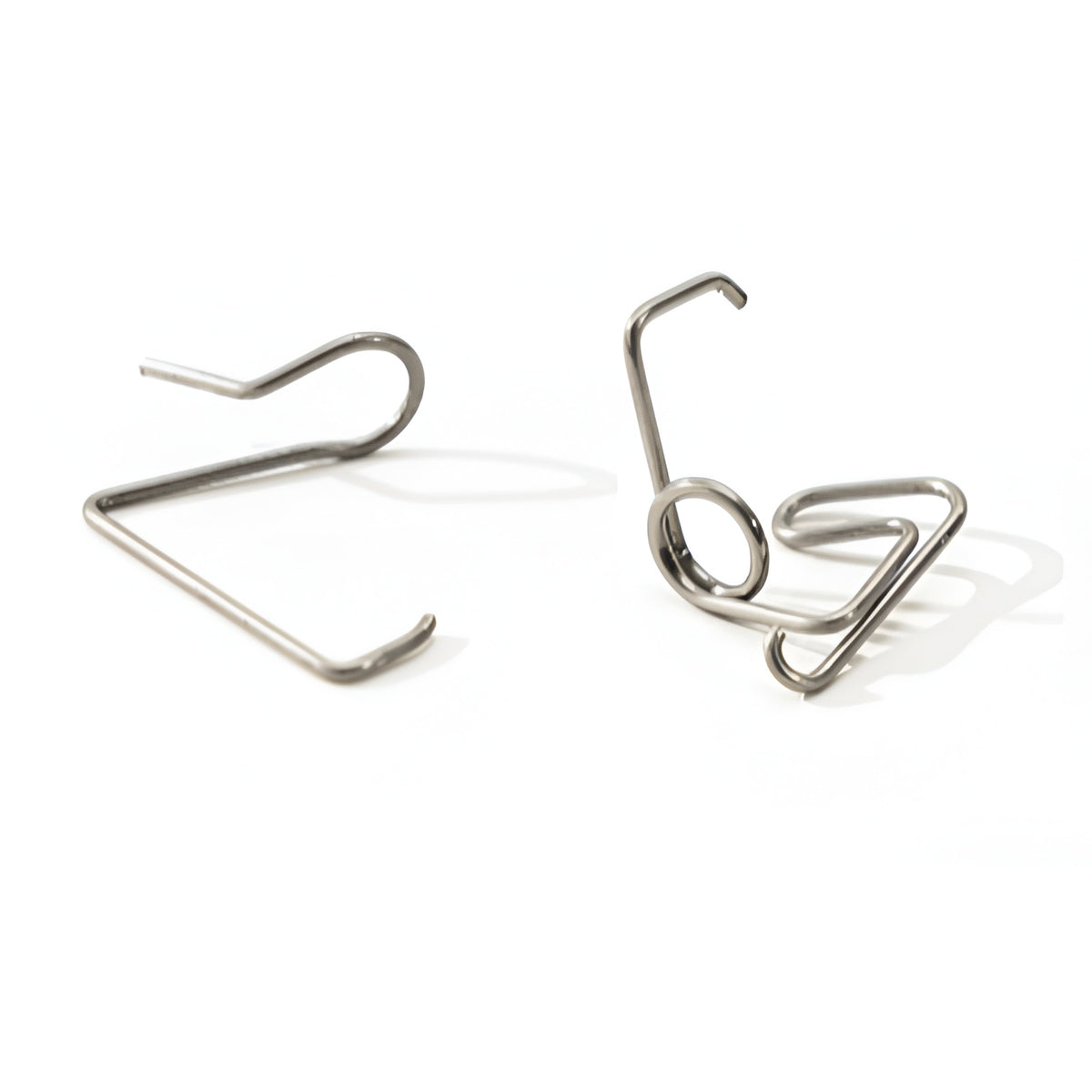

The BirdBlocker CableFix Clip for box-design frames (14–18mm width, 30–35mm height) is part of the CableFixPro range — the only complete cable management system designed for both traditional and box-frame solar panels. Each clip mounts without tools onto the panel frame, keeping DC cabling elevated, organised and protected from sharp edges along the length of the array.
Made from stainless spring steel wire (NS coated) conforming to EN 10270-3, DIN 10088-1 and BS EN 10088-3, each clip holds two 6–8.8mm cables and can be tensioned to prevent sagging. CableFixPro clips are the only cable care solution that can be combined directly with BirdBlocker's standard and box-design bird-proofing clips, backed by a 10-year product warranty.
6-8.8mm
Cable Capacity (x2)
10 Years
Product Warranty
No Tools
Installation Required
Spacing & Tensioning
Space CableFixPro clips up to 50cm apart, with a minimum of 2 clips per panel. Multiple cable runs can be tensioned in accordance with relevant EU and UK cable management standards (IEC, NEN, BS).
Compatible with BirdBlocker Bird-Proofing Range
CableFixPro is the only cable management solution that can be combined directly with BirdBlocker's standard and box-design bird-proofing clips on the same installation, allowing cable management and bird-proofing to be fitted as one coordinated system rather than two separate product lines.
Key Features
Tool-Free Installation
Clips mount directly onto the box-design panel frame without tools, saving installer time on-site while giving a secure, repeatable fix across the array.
Protects Cables from Sharp Edges
Once installed, DC cabling is kept clear of sharp frame edges and roofing material, eliminating a common cause of cable insulation damage and long-term earth faults.
Two-Cable Capacity per Clip
Each clip holds two cables between 6mm and 8.8mm diameter, suiting standard PV DC cable sizes used across most string configurations.
Corrosion-Resistant Stainless Spring Steel
Manufactured from NS-coated stainless spring steel wire to EN 10270-3, DIN 10088-1 and BS EN 10088-3 standards, giving long-term resistance to weathering and corrosion in an exposed rooftop environment.
Compatible with the Full BirdBlocker Range
As the only cable care solution combinable with BirdBlocker's standard and box-design bird-proofing clips, CableFixPro lets installers manage cabling and bird deterrence in a single coordinated fitting pass.
10-Year Product Warranty
Backed by a 10-year manufacturer warranty, reflecting the durability of the stainless steel construction under continuous outdoor exposure.
Technical Specifications
Identification
Product
BirdBlocker CableFix Clip for Box-Design Frames
Item Code
CF-BoxClip-100 W14-18xH30-35
Manufacturer
BirdBlocker (CableFixPro range)
Materials
Material
Stainless spring steel wire, NS-coated
Standards
EN 10270-3:01 · 1.4310 DIN 10088-1 · BS EN 10088-3:2014
Capacity & Spacing
Cable Capacity per Clip
Two cables, 6–8.8mm diameter
Maximum Spacing
50cm between clips
Minimum Clips per Panel
2 clips
Tensioning
Multiple cable strains tensioned in accordance with IEC/NEN/BS norms
Packaging
Retail Quantity
50 clips per package
Wholesale Quantity
50 packages per box
Dimensions (Pack)
150 × 250 × 50mm
Compatibility & Warranty
Compatible With
BirdBlocker standard and box-design bird-proofing clips
Panel Frame Type
Box-design frames, 14–18mm wide, 30–35mm high
Product Warranty
10 years
Frequently Asked Questions
What size cables does the CableFix Clip accept?
Each clip holds two cables between 6mm and 8.8mm in diameter, which covers the standard DC cable sizes used in most PV string installations. Check your cable's outer diameter against this range before specifying.
How many clips do I need per panel?
Space clips up to 50cm apart along the cable run, with a minimum of 2 clips per panel. For longer cable runs between panels or to the string end, add additional clips to maintain the 50cm maximum spacing.
Can I use CableFix Clips alongside BirdBlocker bird-proofing clips?
Yes — CableFixPro is described by the manufacturer as the only cable care solution that can be combined directly with BirdBlocker's standard and box-design bird-proofing clips, allowing both systems to be fitted together on the same frame edge.
What frame dimensions does this specific clip suit?
This listing is sized for 14–18mm wide, 30–35mm high box-design frames. Always confirm your panel's exact frame profile against the manufacturer's datasheet before ordering, as CableFixPro is also available in other width and height combinations for different frame types.
Does the CableFix Clip require any tools to install?
No. The clip is designed for tool-free installation, mounting directly onto the panel frame by hand for a quick, repeatable fix across the array.
What warranty applies to the CableFix Clip?
CableFixPro clips carry a 10-year product warranty from BirdBlocker, reflecting the corrosion-resistant stainless spring steel construction.
