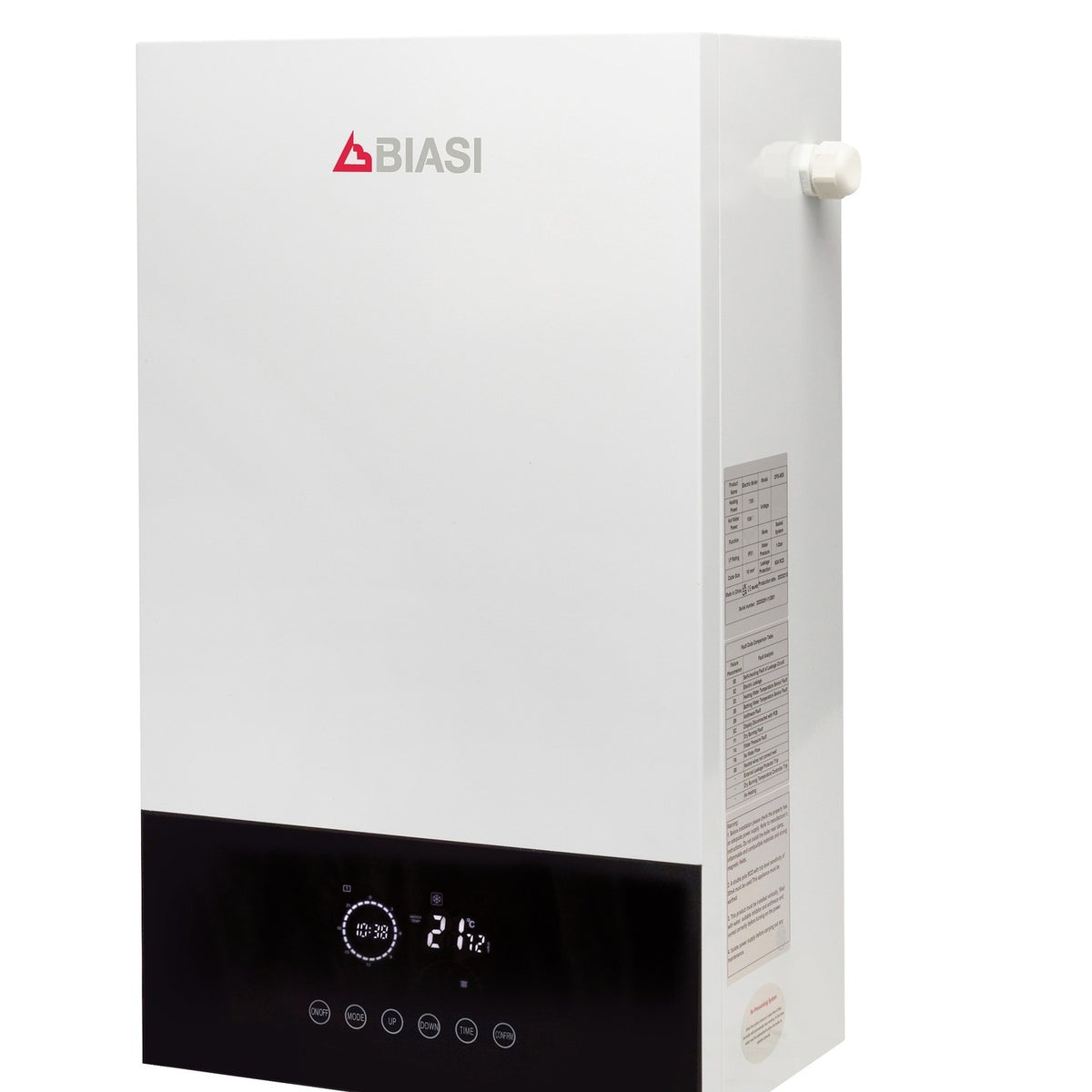

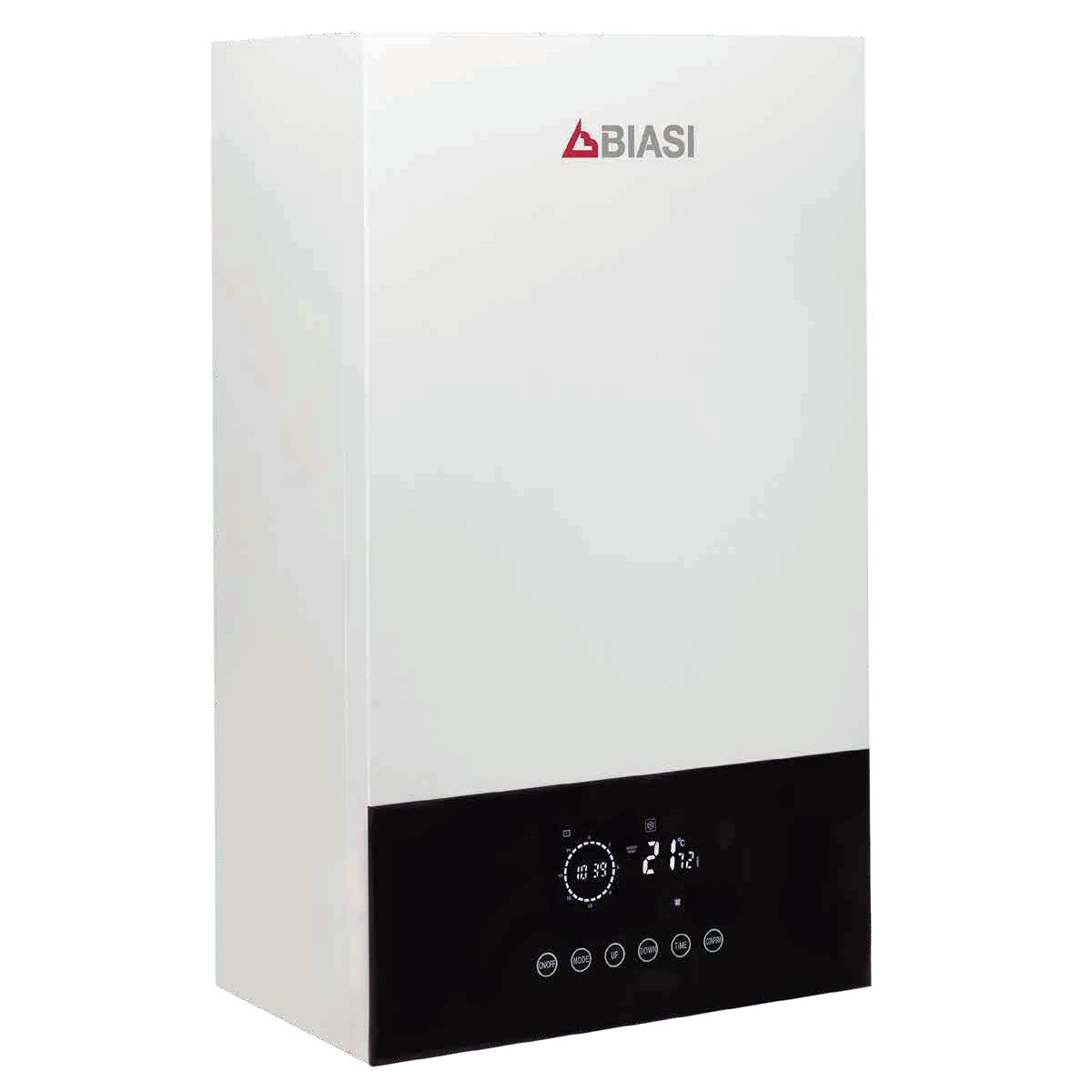

The Biasi Pro-Electric 8kW Single Phase Electric System Boiler (BIPROELEC8S) is a wall-mounted, flueless electric system boiler that is a direct replacement for a gas system boiler. It works with a vented or unvented indirect hot water cylinder to supply central heating and stored hot water, which makes it the right route for homes with more than one bathroom.
There is no flue, no gas and no condensate, and the boiler modulates its output towards full 8kW power, running at close to 100% efficiency. It has an integrated pump and expansion vessel, a touchscreen control panel and very few moving parts, and it can be paired with a timer to take advantage of off-peak electricity or integrated with a solar PV system.
8kW
Rated Output
35A
Full-Load Current
40A
Recommended Breaker
6mm²
Recommended Cable
230V 1-Ph
Supply
3 Years
Warranty
Fittings Pack Optional
The Biasi Pro-Electric System Boiler Fittings Pack (Ei1124501) is an optional item sold separately. Add it to your order if you need the fittings.
Electrical Supply Check Before You Order
This model draws 35A at full load on a 230V single phase supply and Biasi recommend a 40A breaker with 6mm² cable. Biasi require a voltage and load test calculation to confirm the breaker size and that the property supply can carry the load before installation.

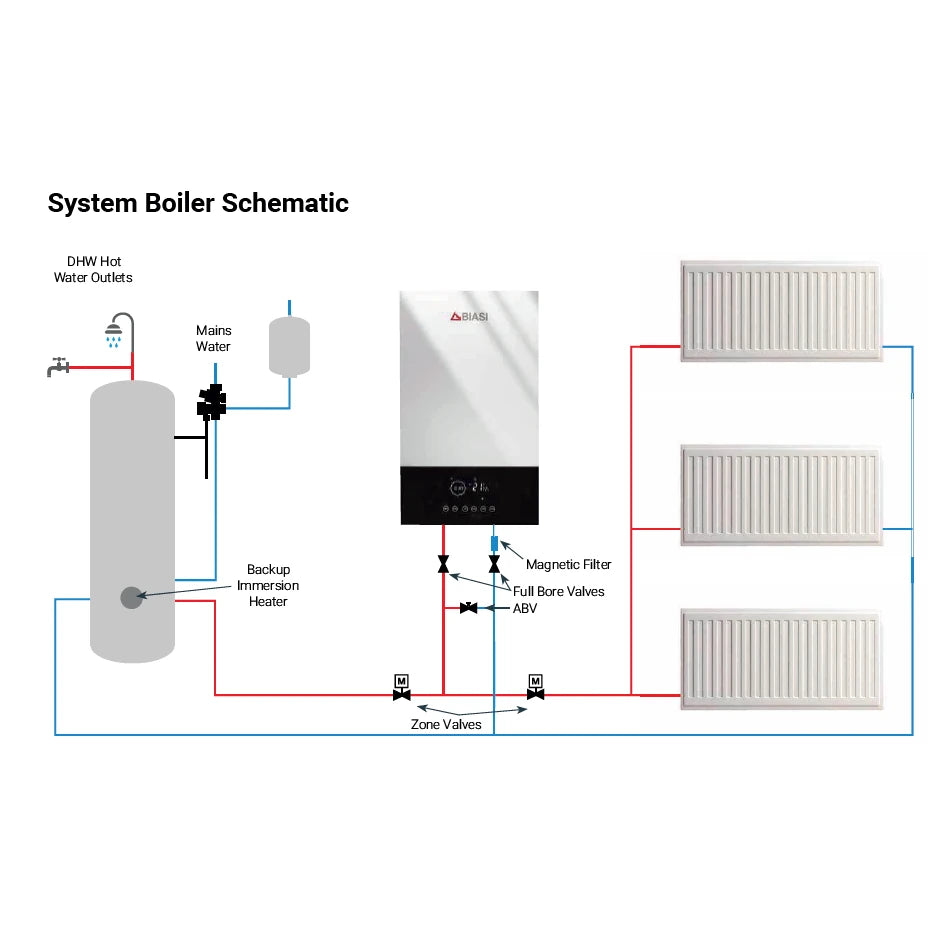

Indirect Cylinder Required
This is a system boiler, not a combi. It does not supply instantaneous hot water on its own and must be paired with a vented or unvented indirect hot water cylinder.
No Flue, No Gas
With zero combustion there is no flue, no condensate and no carbon monoxide risk, so siting is flexible.
Direct Gas System Boiler Replacement
Designed as a direct replacement using the same ¾" heating connections as a gas system boiler.

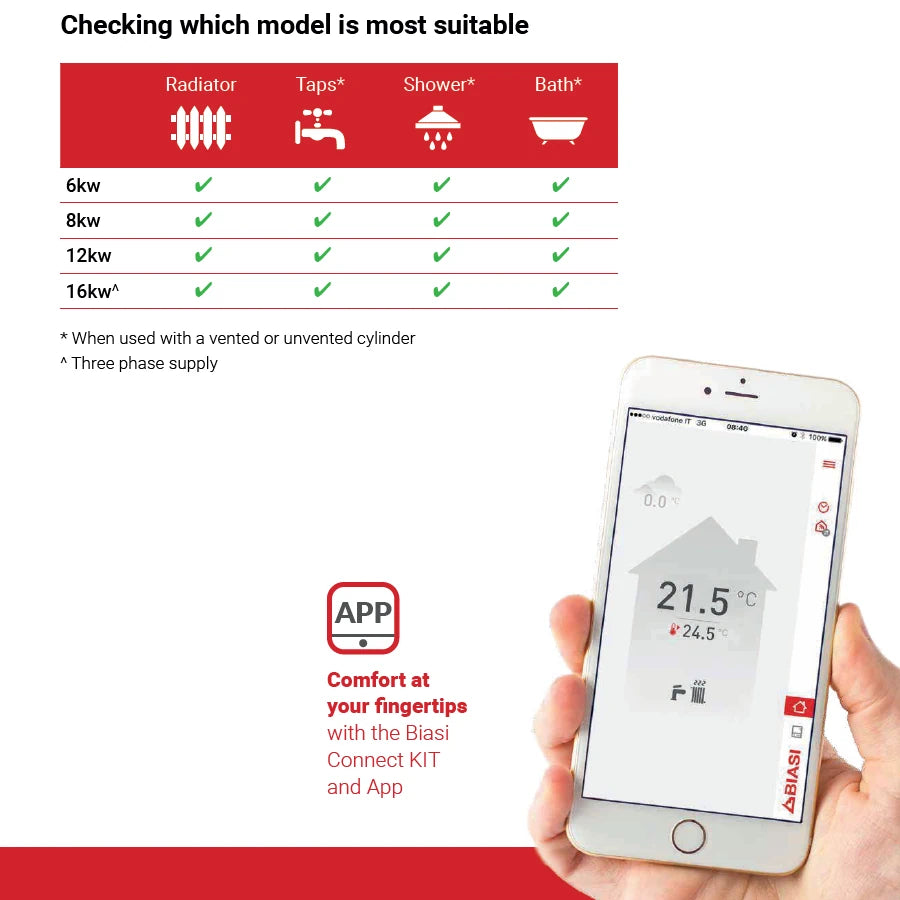

Multi-Bathroom Ready
Paired with an indirect cylinder, Biasi rate every output for radiators, taps, showers and baths.

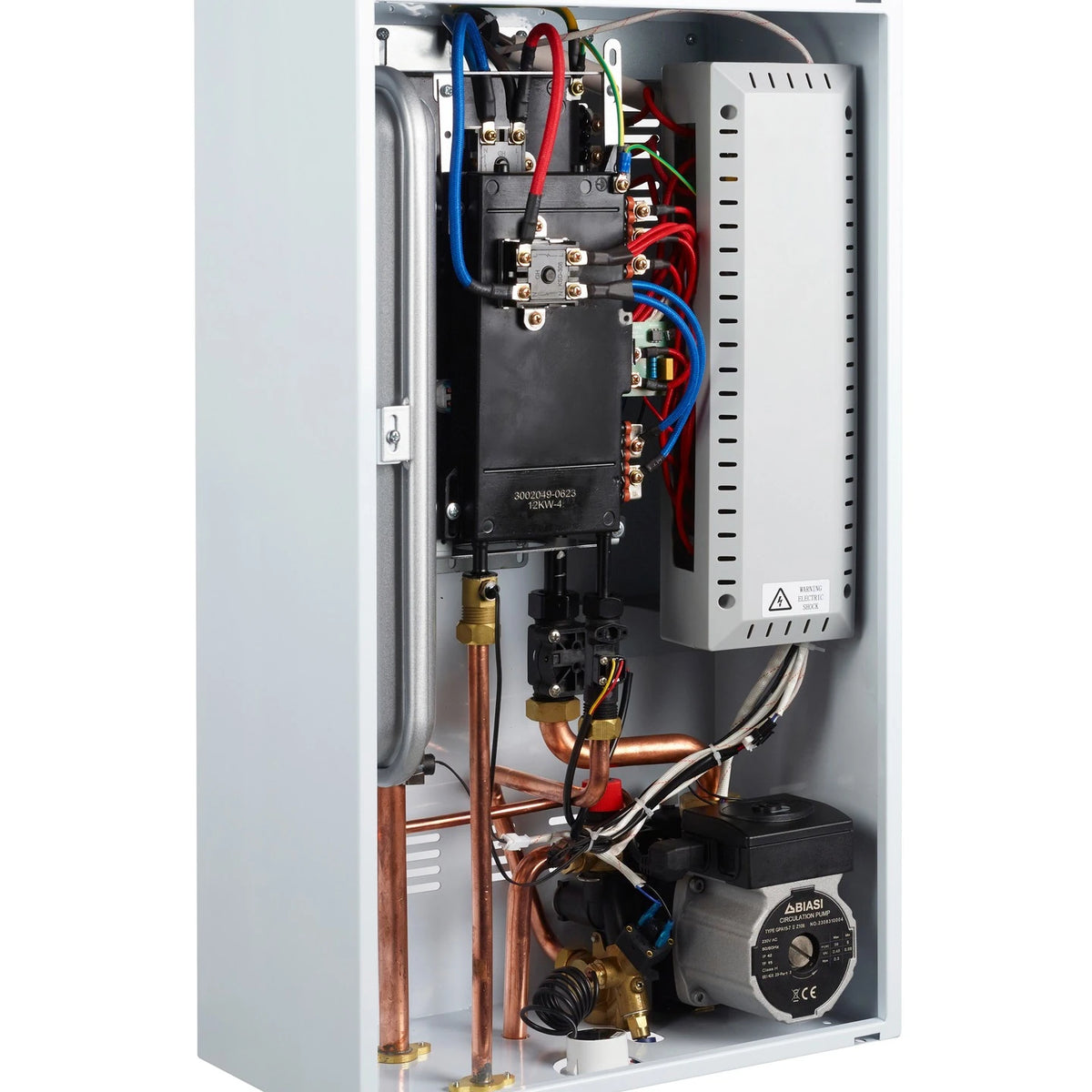

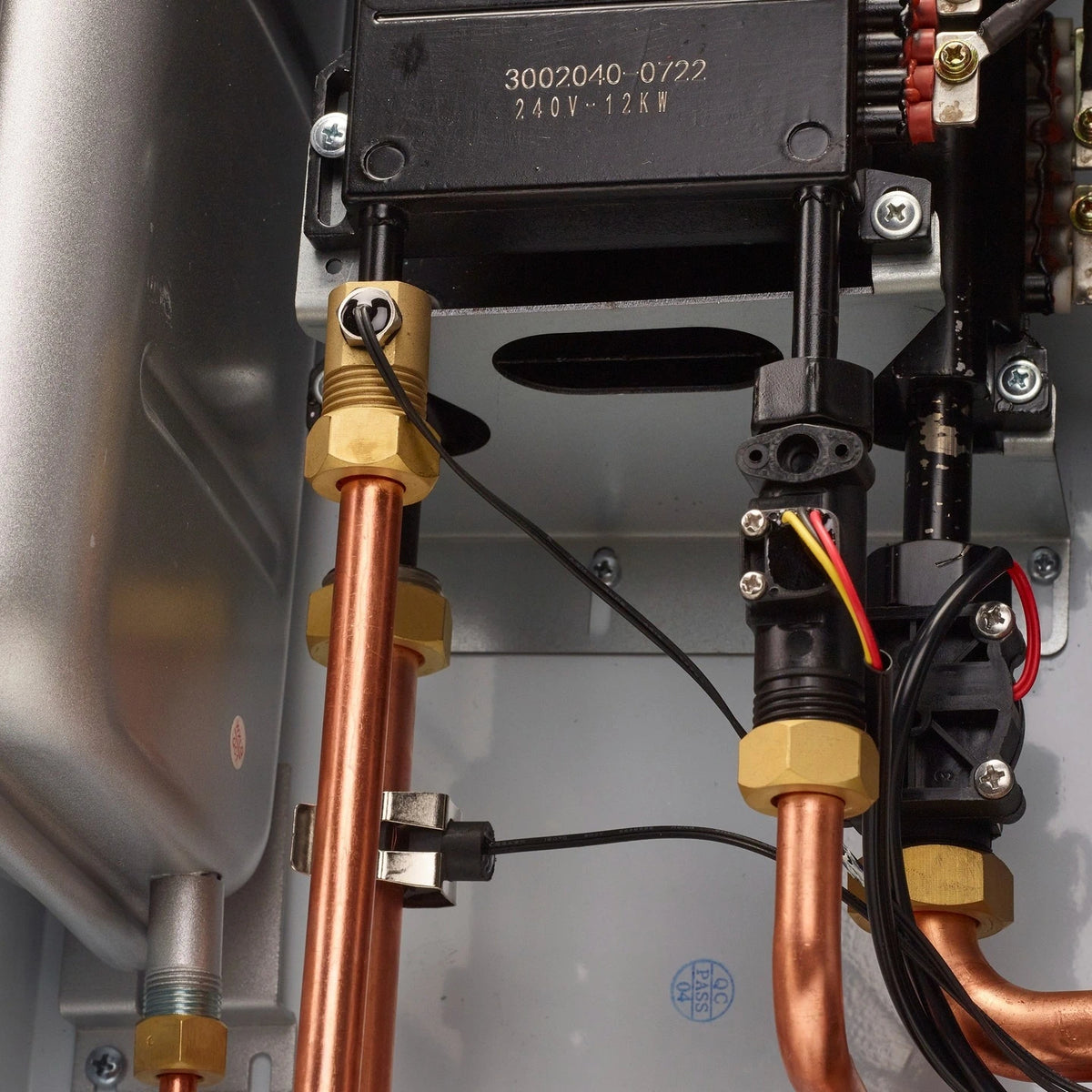

Integrated Pump and Expansion Vessel
A circulating pump, expansion vessel, pressure gauge and safety valve are pre-fitted and the boiler is pre-wired.
Touchscreen Control Panel
Handles winter and summer mode, 24-hour timing, radiator or floor heating mode and child lock.
Solar PV and Off-Peak Friendly
Use a timer to heat during off-peak periods, or integrate with solar PV to use self-generated power.
Technical Specification
Identity
Manufacturer
Biasi
Model / MPN
Pro-Electric 8kW System Boiler, BIPROELEC8S
Boiler Type
Wall-mounted electric system boiler (indirect cylinder required)
Fittings Pack (optional)
Ei1124501 - sold separately
Electrical
Supply
Single phase 230V, 50Hz
Current at Full Load
35A
Recommended Breaker
40A
Recommended Cable
6mm²
IP Rating
IPX4
Heating Performance
Rated Output
8kW
Flow Temperature
30-80°C
Max / Min Heating Pressure
2.5 bar / 0.5 bar
Radiator / Floor Heating Range
30-80°C / 30-60°C
Connections and Size
Heating Connections
¾" male
PRV Connection
15mm

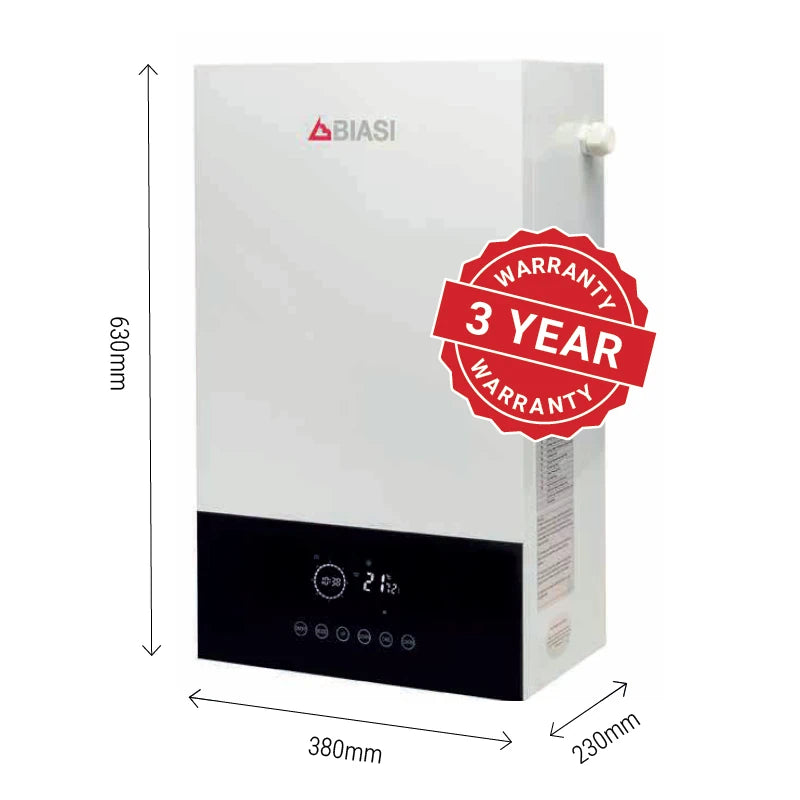

Dimensions
630 x 380 x 230mm (H x W x D)
Warranty and Standards
Warranty
3 years, registered within 45 days
Standards
BS EN 12828, BS EN 12831, BS EN 14336, BS 7671
Warranty and Installation Requirements
The 3-year Biasi warranty is only valid if the boiler is installed by a competent, registered installer, a Part P electrical certificate is issued immediately after the live connection, the guarantee is registered within 45 days of purchase, the appliance is serviced annually by a registered electrician, and a magnetic filter is fitted to the heating return. Biasi state they accept no responsibility for failures where these terms are not met.
Frequently Asked Questions
Is the fittings pack included?
No. The Biasi System Boiler Fittings Pack (Ei1124501) is an optional item sold separately.
Which cylinder do I need?
A vented or unvented indirect hot water cylinder. This boiler is a system boiler and does not provide instantaneous hot water by itself.
What electrical supply does the 8kW need?
It draws 35A at full load and Biasi recommend a 40A breaker with 6mm² cable. A voltage and load test is required before installation, and a Part P certificate must be issued.
Can I use it with solar panels or off-peak tariffs?
Yes. Biasi state it can be integrated with a solar PV system and, with a timer, set up to take advantage of off-peak electricity to heat your water.
How is the warranty validated?
Register within 45 days of purchase, have a Part P certificate issued after the live connection, fit a magnetic filter on the return and arrange an annual service by a registered electrician.
