Becker and Wolf Wall Mounted 80L All-In-One Hot Water Heat Pump R290 – A+ Rated

The Becker & Wolf Wall 80L Wall Mounted All-in-One Heat Pump Water Heater R290 BWHP080WM290 is an energy-efficient, compact hot water solution designed for small homes, offices, or apartments, utilizing eco-friendly R290 refrigerant for reliable domestic hot water production with smart WiFi control. Comes with G3 Installation Kit & Potable Expansion Vessel.

Product Description

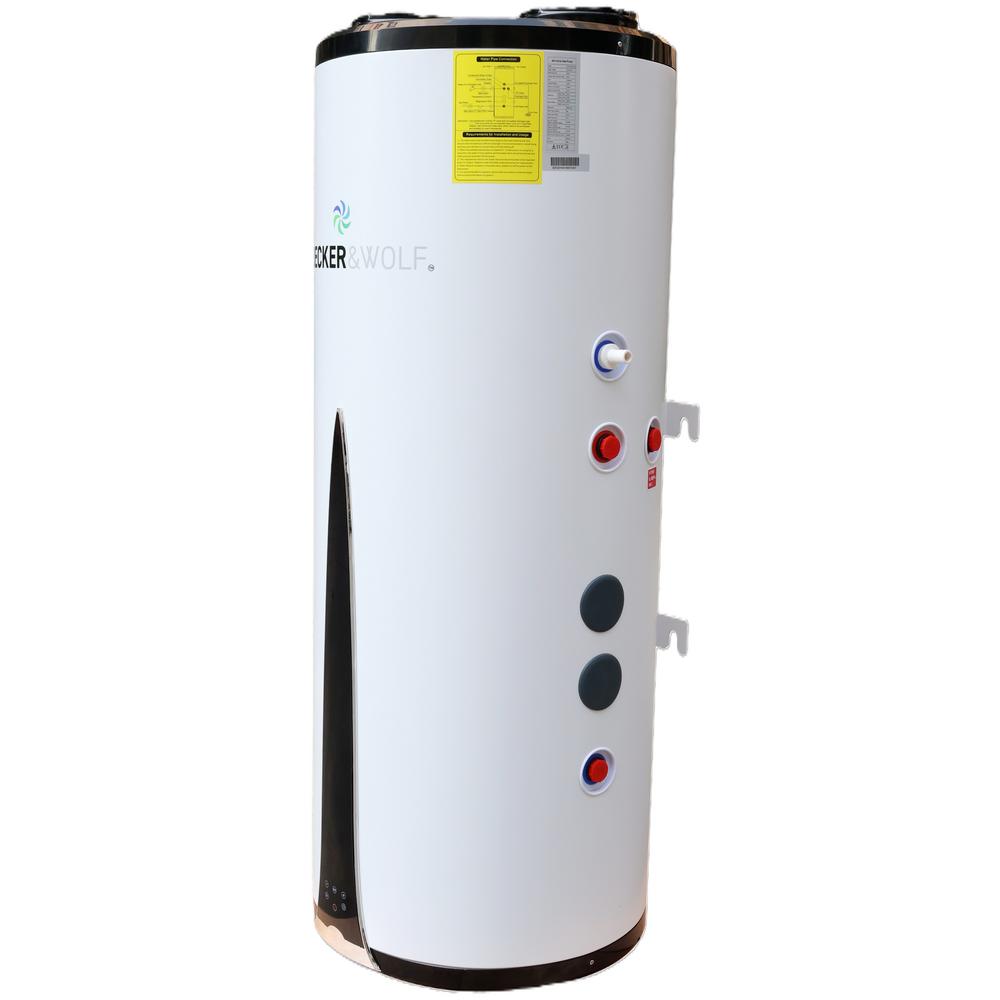

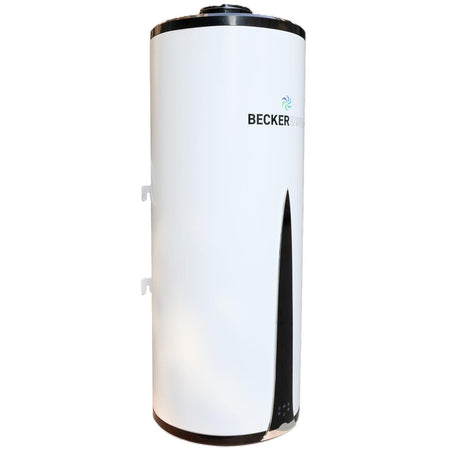

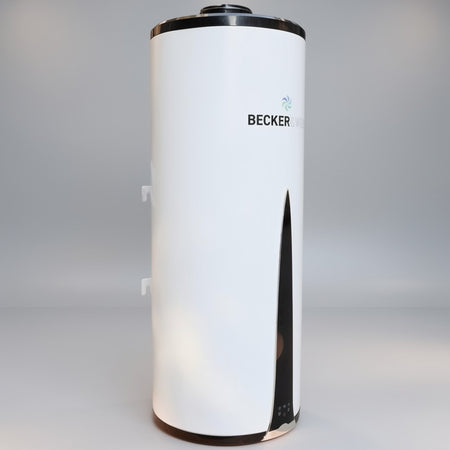

The Becker & Wolf BWHP080WM290 is a wall-mounted, all-in-one heat pump water heater with an 80L tank capacity, ideal for 1-2 person households or small commercial spaces. It features advanced heat pump technology for high efficiency, reducing energy costs while providing hot water up to 75°C. The unit includes a 2kW auxiliary electric heater for backup, WiFi connectivity for remote app control, and easy installation without the need for external units. Environmentally friendly with low GWP R290 refrigerant, it offers quiet operation and space-saving design.

Key Features

• Eco-friendly refrigerant: R290 with low GWP and CO2 equivalent of 0.00045 t.
• High efficiency: A+ energy class, COP 2.787 (EN16147), and 118.3% efficiency rating.

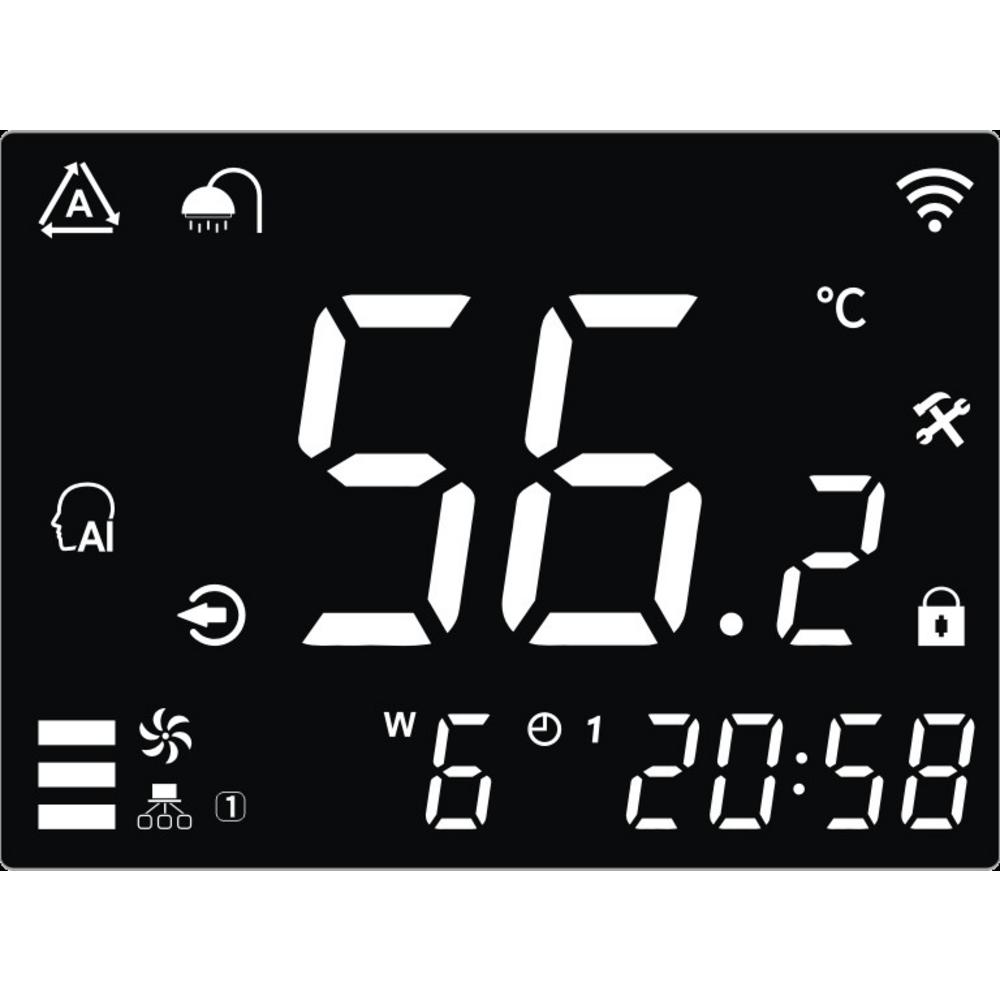

• Smart control: WiFi-enabled with Becker & Wolf app for remote monitoring and scheduling.
• High-temperature output: Up to 75°C water temperature for versatile use.
• Auxiliary heater: 2kW electric backup for reliable hot water supply.
• Quiet operation: Noise level of 48 dB(A).
• Easy installation: Wall-mounted, compact design with DN15 water connections.

Technical Specifications

• Model: BWHP080WM290 – Wall Mounted All-in-One Heat Pump Water Heater.
• Tank capacity: 80 litres.
• Refrigerant: R290.
• Energy class: A+.
• COP (EN16147): 2.787.
• Energy efficiency (n Wh %): 118.3%.
• Default water temperature: 55 °C (max up to 75 °C).
• Working temperature range: -7 °C to +43 °C.
• Air flow: 450 m³/h.
• Rated hot water production: 20 L/h.
• Maximum allowable pressure: 3 MPa.
• Rated working pressure of tank: 0.8 MPa.
• IP class: IPX1.
• Power supply: 220-240 V / 1 / 50 Hz.
• Rated power input: 220 W.
• Rated current input: 0.98 A.
• Max power input: 2300 W.
• Max current input: 10.2 A.
• Aux electric heater: 2 kW.
• Noise level: 48 dB(A).
• Water piping connections: DN15.

Dimensions & Weights

• Unpacked dimensions (Ø x H): 468 mm x 1222 mm.
• Packed dimensions (L x W x H): 580 mm x 580 mm x 1245 mm.
• Net weight: 48 kg.
• Gross weight: 53 kg.

System & Application Notes

• Ideal for small residences (1-2 people) or offices, providing efficient hot water with minimal space requirements.
• Compatible with standard domestic power supply; includes auxiliary heater for peak demand or low ambient temperatures.

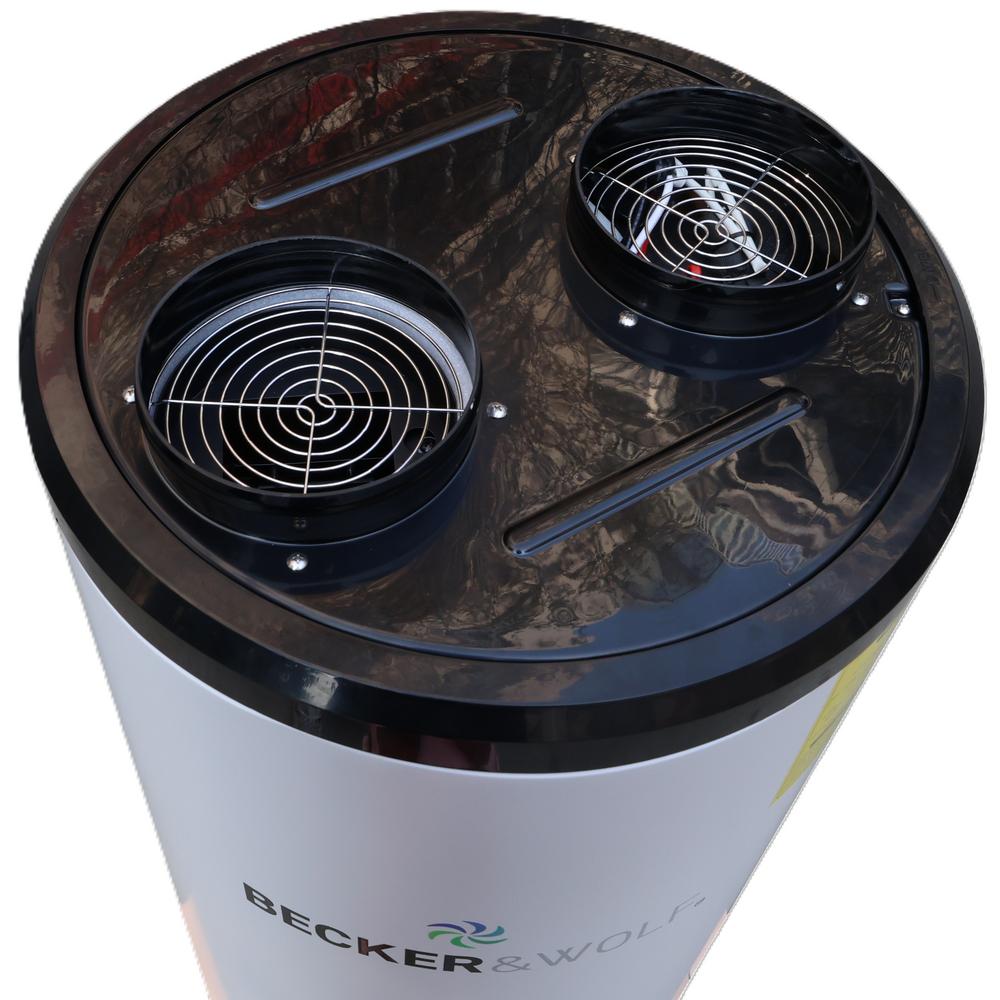

• Installation: Wall-mounted with vertical air discharge; ensure proper ventilation and access for maintenance.
• Supports WiFi app control for smart optimization and monitoring.
• Professional installation recommended; complies with energy efficiency standards for incentives.
