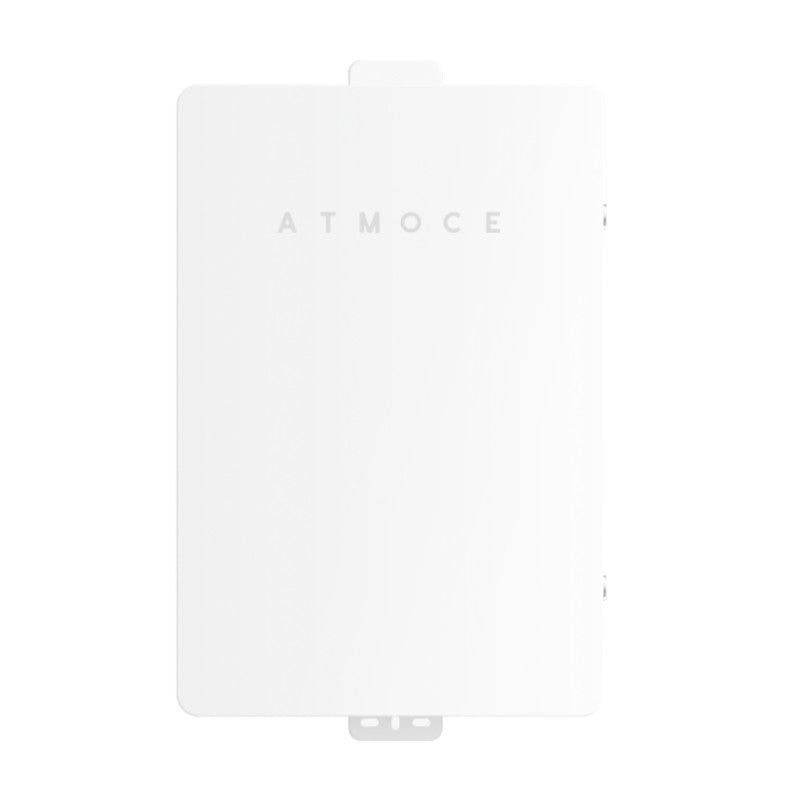

The Atmoce MC100-T three-phase M-Combiner is the central management hub for larger Atmoce home energy systems, integrating solar microinverters, battery storage, and the three-phase grid connection within a single pre-wired, pre-installed enclosure. It supports up to 30kW of PV power across two branches and up to 42kWh of battery capacity, making it suitable for larger residential and small commercial three-phase installations.
Housed in an IP65-rated, reinforced-insulation enclosure suitable for indoor or outdoor mounting, the MC100-T arrives pre-connected with its integrated M-Gateway MG100 controller, streamlining installer setup and system activation via the Atmozen app.
|
30kW
Max. PV Power
|
42kWh
Max. Battery Capacity
|
3-Phase
Grid Setup
|
IP65
Ingress Protection
|
8.6kg
Unit Weight
|
2
PV Branches
|
Please Note: The standard PV-side breaker on the MC100-T is rated 20A but can be replaced with a 25A-rated breaker to support the full 30kW maximum PV power. Confirm breaker configuration against installation requirements before commissioning.
Integrated Three-Phase Hub
Combines the gateway, grid interface relay, current sensors and power breakers for three-phase systems, managing the interaction between microinverters, batteries, loads, and the grid.
|
High Power Capability
Rated for 30kW of PV power across two branches and up to 42kWh of battery capacity, suited to larger three-phase residential and small commercial arrays.
|
Pre-Installed & Pre-Connected
Ships with the M-Gateway MG100 already fitted, along with pre-wired three-phase breakers and current transformers, minimising on-site wiring work.
|
Bi-Directional Cloud Communication
Communicates with Atmoce-Cloud and the Atmozen app via PLC, Wi-Fi, BLE, ETH, CAN and RS485, giving installers and homeowners remote visibility of system performance.
|
Reinforced Safety Design
An IP65-rated enclosure with reinforced insulation and integrated surge protection supports both indoor and outdoor installation across a wide temperature range.
|
Precision Three-Phase Metering
Includes three current transformers per channel, accurate to within 0.1%, for microinverter and battery monitoring across all three phases.
|
| What's In The Box |
| M-Gateway |
1 x MG100 (pre-installed) |
| SPD (surge protection device) |
1 x unit, In: 20kA, 4-pole |
| PV-side breaker |
2 x units, 20A, 4-pole (upgradeable to 25A) |
| Grid-side breaker |
1 x unit, 63A, 4-pole, RCD 30mA |
| Battery-side breaker |
1 x unit, 63A, 4-pole |
| Microinverter CT |
3 x CTs, accurate to within 0.1% |
| Battery CT |
3 x CTs, accurate to within 0.1% |
| Consumption CT interface |
1 x CT signal interface, accurate to within 0.1% |
| M-Relay |
1 x MR100-T, 50A, 4-pole |
| Electrical Parameters |
| Grid setup |
Three-phase |
| Nominal voltage |
220/380Va.c., 230/400Va.c., 3(N)~ |
| Nominal operating voltage range (L to N) |
184 to 276 V |
| Nominal frequency |
50/60 Hz |
| Extended frequency range |
45 to 65 Hz |
| Max. PV branches |
2 |
| Max. PV current per branch |
20 A (25A with upgraded breaker) |
| Max. PV power |
30 kW |
| Max. battery current |
63 A |
| Max. battery capacity |
42 kWh |
| Overvoltage category |
III |
| AC surge protection |
Type II |
| Mechanical & Environmental |
| Dimensions (W x H x D) |
389 x 616 x 127 mm |
| Weight |
8.6 kg |
| Ambient temperature range |
-30°C to 50°C |
| Cooling |
Natural convection |
| Enclosure environmental rating |
Outdoor, IP65 |
| Protection class |
Class II |
| Pollution degree |
III |
| Wire sizes |
PV side: 2.5-4mm² / Grid side: 10-16mm² / Battery side: 10-16mm² |
| Communication cable sizes |
0.25-0.75mm² |
| Noise |
<25 dB |
| Altitude |
Up to 3000m |
| Communication & Compliance |
| Communication |
PLC, Wi-Fi, BLE, ETH, CAN, RS485 |
| Indicators |
3 x LEDs |
| Safety |
IEC 61439-1/-2 |
| Health |
EN IEC 62311 |
| EMC |
EN 301 489-1/-17, EN IEC 61000-1/-2/-3/-4 |
| Radio spectrum |
EN 300 328 |
| PLC |
EN 50065-1/-2 |
| Cloud connectivity |
Atmoce-Cloud and Atmozen app |
What does the MC100-T do within an Atmoce system?
The MC100-T is the central hub for three-phase Atmoce systems, safely connecting and managing the interaction between solar microinverters, battery storage, the three-phase grid connection, and home loads via its integrated M-Gateway.
How much solar and battery capacity can the MC100-T support?
The MC100-T supports up to 30kW of PV power across two branches and up to 42kWh of connected battery capacity, suited to larger three-phase residential and small commercial installations.
Can the PV-side breaker be upgraded for higher power?
Yes. The standard configuration uses a 20A PV-side breaker, which installers can replace with a 25A-rated breaker to unlock the full 30kW maximum PV power rating.
Does the MC100-T come with the gateway already fitted?
Yes. The unit ships pre-installed and pre-connected with the M-Gateway MG100, along with its three-phase breakers and current transformers, reducing on-site installation time.
Is the MC100-T suitable for outdoor installation?
Yes. It carries an IP65 environmental rating with reinforced insulation, suitable for both indoor and outdoor mounting.
