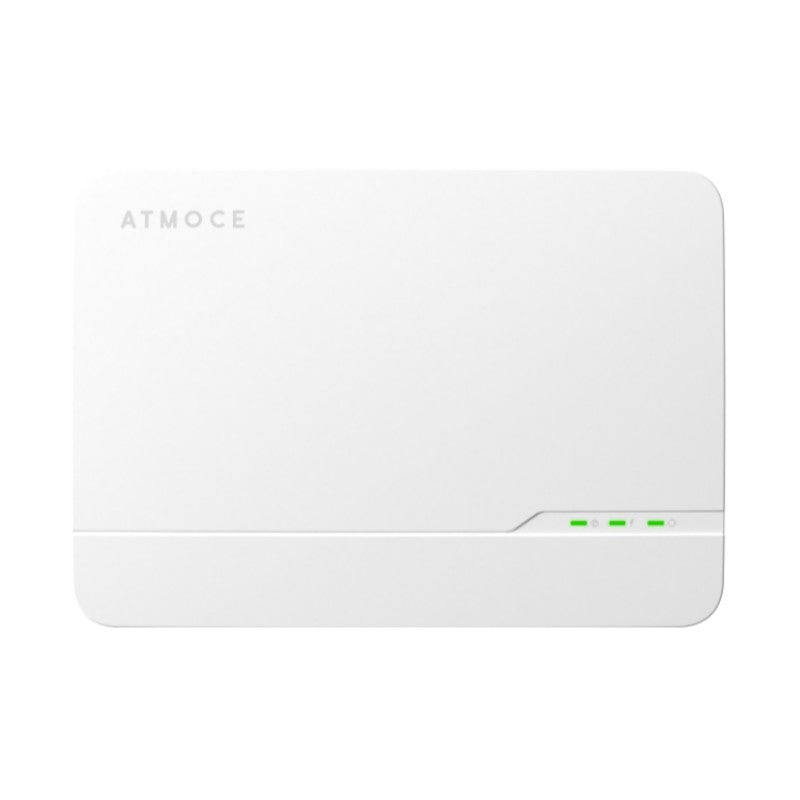

The Atmoce MC100L single-phase M-Combiner Lite is a compact version of the Atmoce management hub, bringing together solar microinverters, battery storage, and the grid connection for smaller single-phase installations. It supports up to 5kW of PV power on a single branch and up to 7kWh of battery capacity, making it a space-efficient option for more compact residential arrays.
Built into a compact IP65-rated enclosure with reinforced insulation, the MC100L arrives pre-connected with an M-Gateway Lite board, and can be activated quickly through the Atmozen app for a straightforward installer experience.
|
5kW
Max. PV Power
|
7kWh
Max. Battery Capacity
|
1
PV Branch
|
IP65
Ingress Protection
|
337x237x99mm
Compact Dimensions
|
30A
Max. Battery Current
|
Please Note: The standard PV-side breaker on the MC100L is rated 20A but can be replaced with a 25A-rated breaker to support the full 5kW maximum PV power. Confirm breaker configuration against installation requirements before commissioning.
Compact Integrated Hub
Combines the gateway board, grid interface relay, current sensors and power breakers in a smaller footprint, suited to compact single-phase installations.
|
Right-Sized Power Capability
Rated for 5kW of PV power on a single branch and up to 7kWh of battery capacity, matching the scale of smaller solar-plus-storage arrays.
|
Pre-Installed & Pre-Connected
Ships with the M-Gateway Lite board already fitted, along with pre-wired breakers and current transformers, for fast on-site setup.
|
Bi-Directional Cloud Communication
Communicates with Atmoce-Cloud and the Atmozen app via PLC, Wi-Fi, BLE, ETH and CAN, giving installers and homeowners remote visibility of system performance.
|
Reinforced Safety Design
An IP65-rated enclosure with reinforced insulation and integrated Type II surge protection supports both indoor and outdoor installation.
|
Precision Metering
Includes a battery current transformer accurate to within 0.1%, feeding accurate real-time production and consumption data to the Atmozen app.
|
| What's In The Box |
| M-Gateway Lite |
1 x board (pre-installed) |
| SPD (surge protection device) |
1 x unit, In: 20kA, 2-pole |
| PV-side breaker |
1 x unit, 20A, 2-pole (upgradeable to 25A) |
| Grid-side breaker |
1 x unit, 63A, 2-pole, RCD 30mA |
| Battery-side breaker |
1 x unit, 32A, 2-pole |
| Battery CT |
1 x CT, accurate to within 0.1% |
| Consumption CT interface |
1 x CT signal interface, accurate to within 0.1% |
| Electrical Parameters |
| Grid setup |
Single-phase |
| Nominal voltage |
220/230/240 V |
| Nominal operating voltage range (L to N) |
184 to 276 V |
| Nominal frequency |
50/60 Hz |
| Extended frequency range |
45 to 65 Hz |
| Max. PV branches |
1 |
| Max. PV current |
20 A (25A with upgraded breaker) |
| Max. PV power |
5 kW |
| Max. battery current |
32 A |
| Max. battery capacity |
7 kWh |
| Overvoltage category |
III |
| AC surge protection |
Type II |
| Mechanical & Environmental |
| Dimensions (W x H x D) |
337 x 237 x 99 mm |
| Ambient temperature range |
-30°C to 50°C |
| Cooling |
Natural convection |
| Enclosure environmental rating |
Outdoor, IP65 |
| Protection class |
Class II |
| Pollution degree |
III |
| Power cable sizes |
PV side: 2.5-4mm² / Grid side: 10-16mm² / Battery side: 4-6mm² |
| Communication cable sizes |
0.25-0.75mm² |
| Noise |
<25 dB |
| Altitude |
Up to 3000m |
| Communication & Compliance |
| Communication |
PLC, Wi-Fi, BLE, ETH, CAN |
| Indicators |
3 x LEDs |
| Safety |
IEC 61439-1/-2 |
| Health |
EN IEC 62311 |
| EMC |
EN 301 489-1/-17, EN IEC 61000-1/-2/-3/-4 |
| Radio spectrum |
EN 300 328 |
| PLC |
EN 50065-1/-2 |
| Cloud connectivity |
Atmoce-Cloud and Atmozen app |
What does the MC100L do within an Atmoce system?
The MC100L Lite is a compact central hub that safely connects and manages the interaction between solar microinverters, battery storage, the grid connection, and home loads for smaller single-phase installations.
How much solar and battery capacity can the MC100L support?
The MC100L supports up to 5kW of PV power on a single branch and up to 7kWh of connected battery capacity, suited to compact residential systems.
What is the difference between the MC100L and the full MC100?
The MC100L is a smaller, single-branch unit rated for up to 5kW PV and 7kWh battery capacity in a more compact enclosure, while the full MC100 supports up to 10kW PV across two branches and 21kWh of battery capacity.
Does the MC100L come with the gateway already fitted?
Yes. The unit ships pre-installed and pre-connected with the M-Gateway Lite board, along with its breakers and current transformer, for a streamlined installation.
Is the MC100L suitable for outdoor installation?
Yes. It carries an IP65 environmental rating with reinforced insulation, suitable for both indoor and outdoor mounting.
